◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51124 - NPR/NQR(RHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#39105) — 48 parça

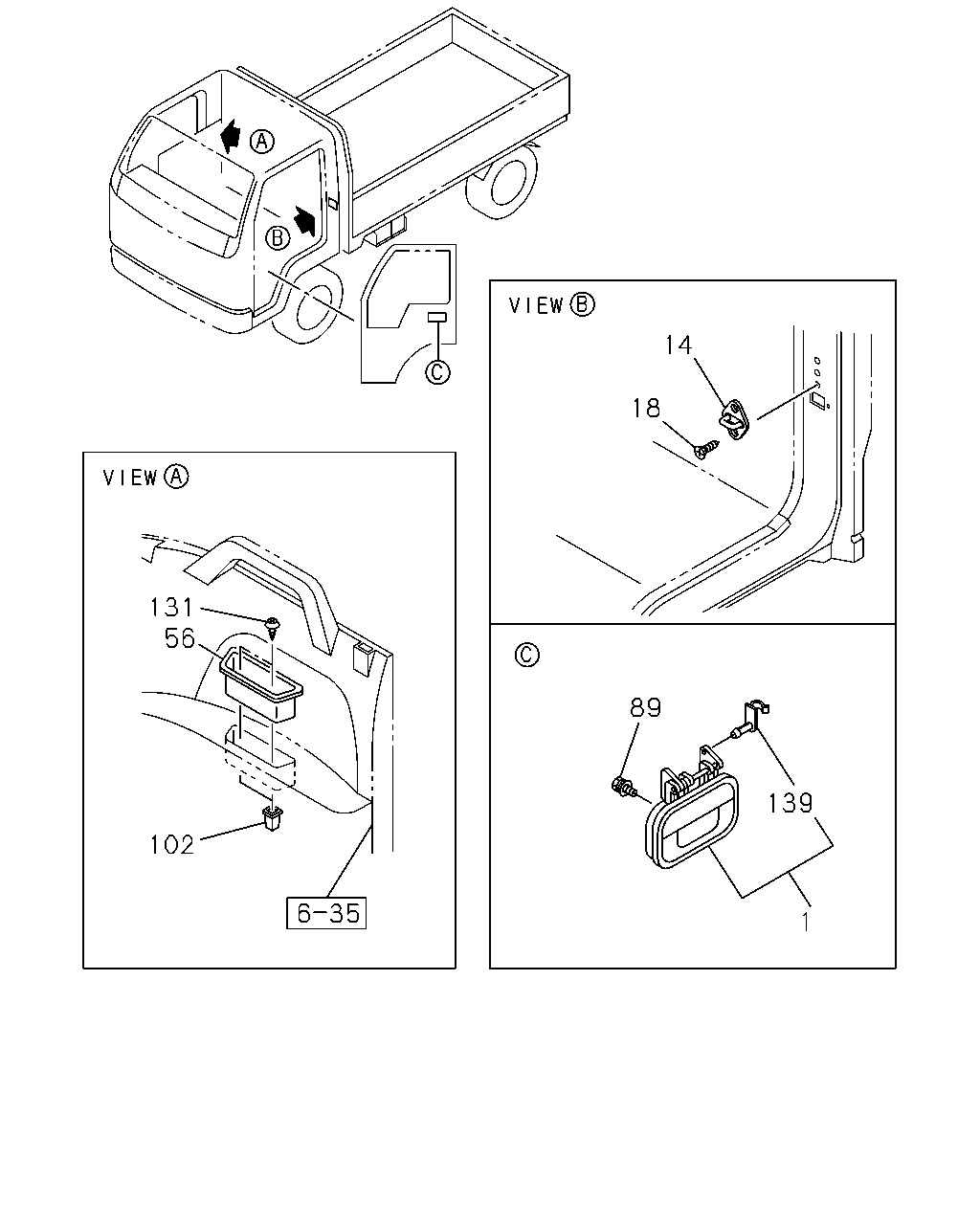

çizim 13866
14 18 131 56 89 139 102 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-722-1 01 1 0608- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-721-1 01 1 0608- ● ●
14 16.335 STRIKER; FRT DOOR 8-97221-702-1 02 1 0608- ● ●
18 16.335 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 0608-0612 ● ●
18 16.335 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 0701- ● ●
56 16.157 ESCUTCHEON; LOCK KNOB
GRAY 		8-97582-307-3 02 1 0608-0610 ● ●
56 16.157 ESCUTCHEON; LOCK KNOB
GRAY 		8-97406-318-3 02 1 0611- ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0608-0612 ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
M6X8 W/TORQUES 		8-98064-276-1 04 1 0701- ● ●
102 16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0608- ● ●
131 16.345 SCREW; ESCUTCHEON,DOOR PULL
M5X12 TAPPING W/PL WASHER 		0-74160-512-0 06 1 0608-0612 ● ●
131 16.345 SCREW; ESCUTCHEON,DOOR PULL
M5X12 HEX SOCKET 		0-72380-512-0 06 1 0701- ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-652-1 01 1 0608- ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-651-1 01 1 0608- ● ●

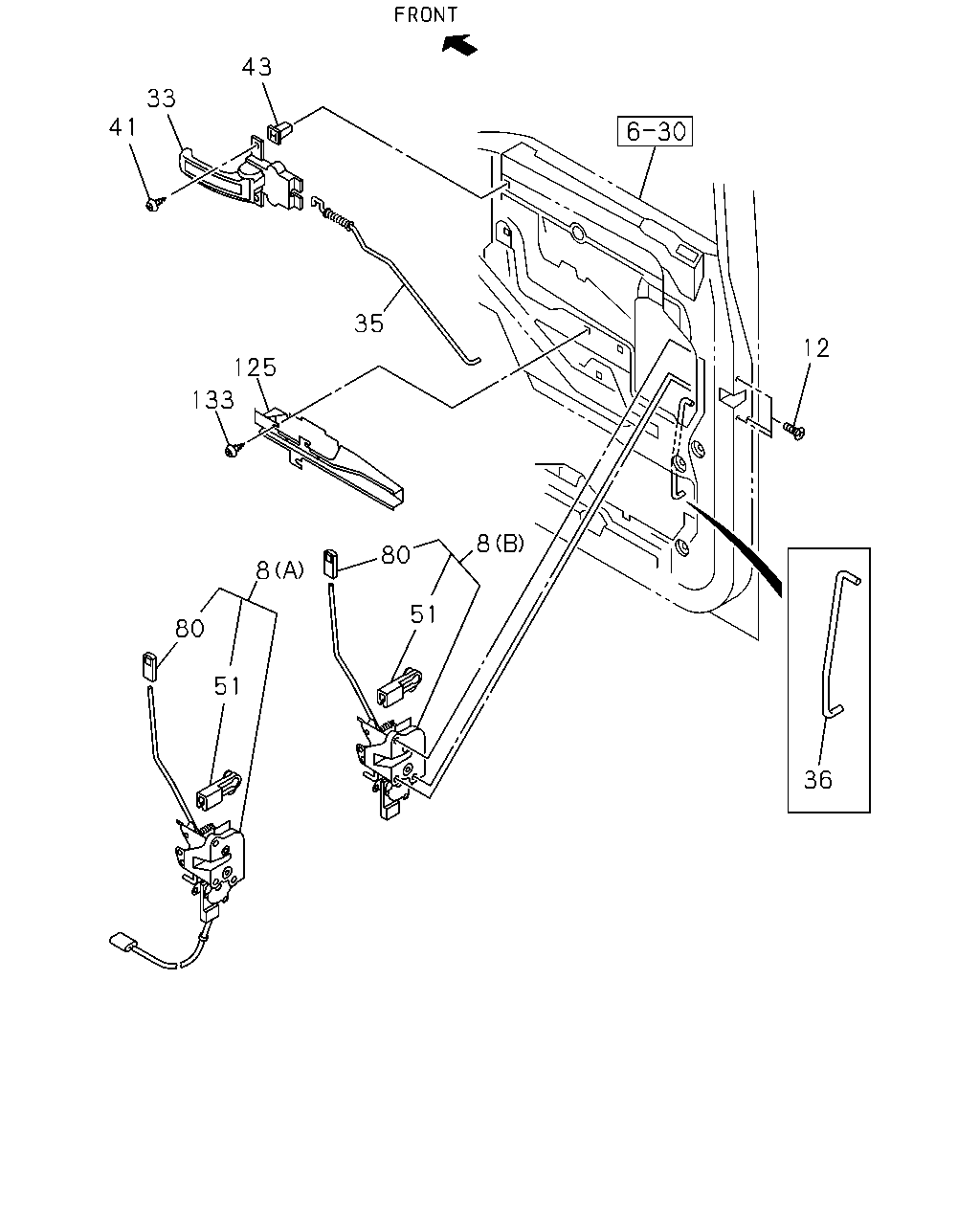

çizim 57105
43 33 41 35 12 125 133 8 80 8 51 80 51 36
BalonParca AdiParca NoAdetTipApplied Date A B
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97582-300-2 01 1 0608-0610 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97406-312-2 01 1 0611-1009 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97421-007-0 01 1 1010- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97582-299-2 01 1 0608-0610 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97406-311-2 01 1 0611- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) GRAY 		8-97582-298-2 01 1 0608-0610 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) GRAY 		8-97406-310-2 01 1 0611- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) GRAY 		8-97582-297-2 01 1 0608-0610 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) GRAY 		8-97406-309-2 01 1 0611- ● ●
12 16.330 SCREW; DOOR LK
M6X16 		1-09981-447-1 06 1 0608-0612 ● ●
12 16.330 SCREW; DOOR LK
M6X14.5 		8-98004-342-0 06 1 0701- ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97582-305-1 01 1 0608-0611 ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97409-389-0 01 1 0612- ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97582-304-1 01 1 0608-0611 ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97409-388-0 01 1 0612- ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97890-887-2 01 1 0608- ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97890-886-2 01 1 0608- ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97890-885-0 01 1 0608- ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97890-884-0 01 1 0608- ● ●
41 16.345 SCREW; INSIDE HANDLE
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0608-0612 ● ●
41 16.345 SCREW; INSIDE HANDLE
16.570 M5X16 HEX SOCKET 		0-72380-516-0 04 1 0701- ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0608- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD 8-97859-069-0 01 1 0608- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
16.345 		8-97852-643-0 01 1 0608- ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97582-706-0 01 1 0608-0610 ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97582-706-0 01 1 0608-0610 ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97406-876-0 01 1 0611- ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97406-876-0 01 1 0611- ● ●
80 16.157 KNOB; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> GRAY 		8-97582-706-0 02 1 0608-0610 ● ●
80 16.157 KNOB; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> GRAY 		8-97406-876-0 02 1 0611- ● ●
125 16.341 BRACKET; DOOR PULL 8-97869-460-1 01 1 0608- ● ●
125 16.341 BRACKET; DOOR PULL 8-97869-459-1 01 1 0608- ● ●
133 16.345 SCREW; DOOR PULL STAY
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 0608-0612 ● ●
133 16.345 SCREW; DOOR PULL STAY
16.570 M5X16 HEX SOCKET 		0-72380-516-0 06 1 0701- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
