4-60 — REAR SUSPENSION (#391) — 61 parça

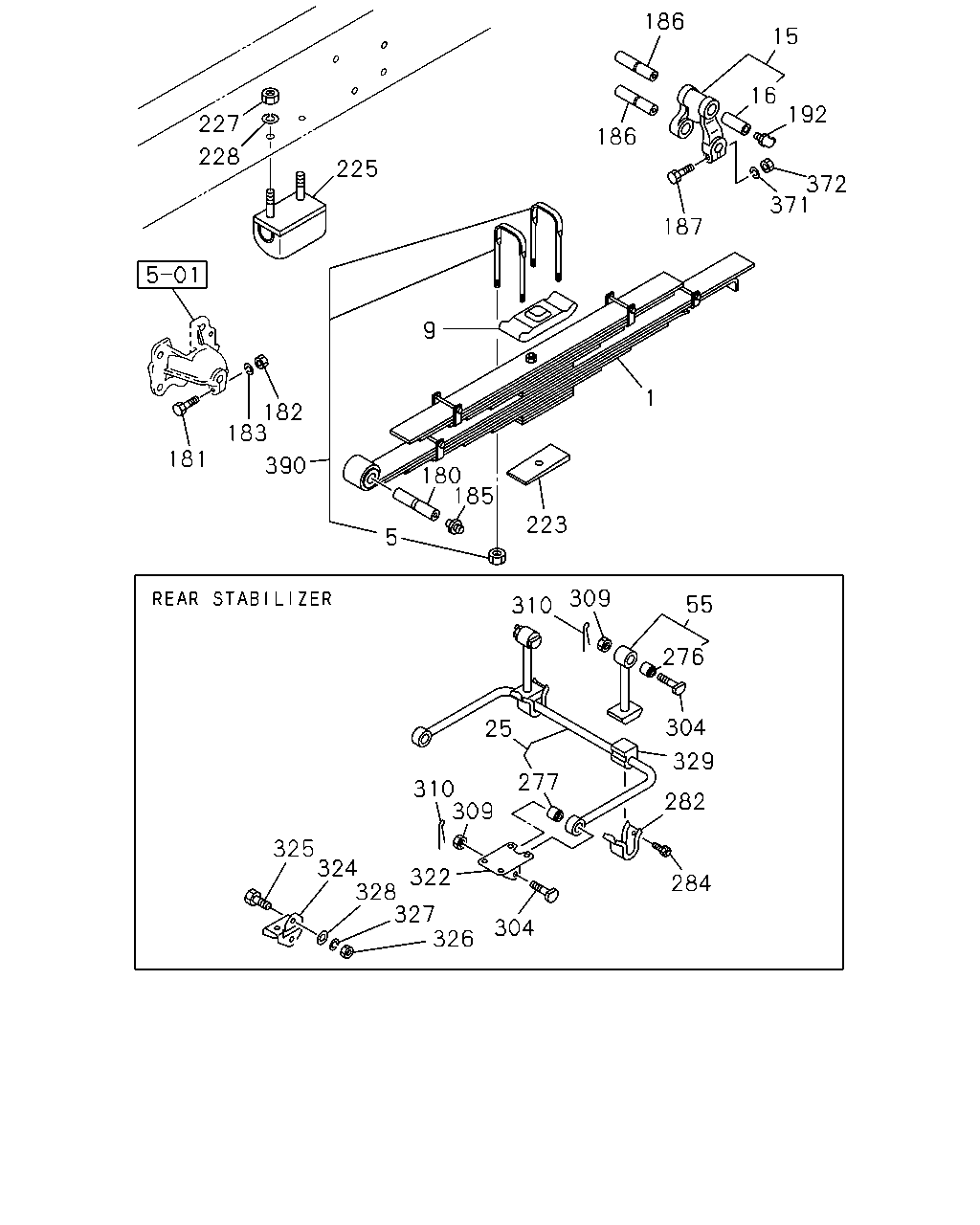

çizim 27751
186 15 16 192 227 186 228 225 372 371 187 9 1 182 183 181 390 180 185 223 5 309 55 310 276 304 25 329 277 310 309 282 325 324 328 327 326 322 284 304
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR1(F40) 13-LEAF 		1-51300-334-3 02 1 9202- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY VAR1(F40),SUSPENSION HEAVY DUTY VAR2(F41) 13-LEAF 		1-51300-333-2 02 1 9202- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR2(F41) 14-LEAF 		1-51300-352-0 02 1 9202- ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 9202- ● ●
9 PAD; U BOLT,RR SPR
EXC. SUSPENSION HEAVY DUTY VAR2(F41) 		1-51372-048-1 02 1 9202- ● ●
9 PAD; U BOLT,RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) 		1-51372-030-0 02 1 9202- ●
15 SHACKLE; RR SPR
EXC. SUSPENSION HEAVY DUTY VAR2(F41) 		1-51362-049-1 02 1 9202- ● ●
16 BUSHING; SHACKLE,RR SPR
EXC. SUSPENSION HEAVY DUTY VAR2(F41) 		9-51351-019-0 02 1 9202- ● ●
25 BAR ASM; STAB,RR SUSP
REAR STABILIZER SHAFT<F61> 		1-51770-029-1 01 1 9202-9404 ● ●
25 BAR ASM; STAB,RR SUSP
REAR STABILIZER SHAFT<F61> 		1-51770-029-1 01 1 9405- ●
55 ROD; STAB
REAR STABILIZER SHAFT<F61> 		1-51770-024-1 02 1 9202-9404 ● ●
55 ROD; STAB
REAR STABILIZER SHAFT<F61> 		1-51770-024-1 02 1 9405- ●
180 PIN; RR SPR
EXC. SUSPENSION HEAVY DUTY VAR2(F41) DO=28 L=131 PT1/8 		1-51361-015-0 02 1 9202- ● ●
180 PIN; RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) 		1-51361-020-0 02 1 9202- ●
181 BOLT; SPR & SHACKLE
EXC. SUSPENSION HEAVY DUTY VAR2(F41) M14X65 		0-10811-465-0 02 1 9202- ● ●
181 BOLT; SPR & SHACKLE
SUSPENSION HEAVY DUTY VAR2(F41) M14X80 		0-10806-480-0 02 1 9202- ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 9202- ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 9202- ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9202- ● ●
186 PIN; SHACKLE,RR SPR
EXC. SUSPENSION HEAVY DUTY VAR2(F41) DO=28 L=131 PT1/8 		1-51361-015-0 04 1 9202- ● ●
187 BOLT; SPR & SHACKLE
EXC. SUSPENSION HEAVY DUTY VAR2(F41) M14X65 		0-10811-465-0 04 1 9202- ● ●
192 NIPPLE; GREASE,SHACKLE PIN
EXC. SUSPENSION HEAVY DUTY VAR2(F41) PT1/8 STRAIGHT 		9-09031-010-0 04 1 9202- ● ●
223 SPACER; U BOLT,RR SPR
EXC. SUSPENSION HEAVY DUTY VAR2(F41) 		1-51377-166-0 02 1 9202- ● ●
223 SPACER; U BOLT,RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) 		1-51377-327-0 02 1 9202- ●
225 RUBBER; CUSHION,RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) 		1-53366-045-0 02 1 9202- ●
227 NUT; CUSHION RUBBER
SUSPENSION HEAVY DUTY VAR2(F41) M12 		9-99110-512-0 04 1 9202- ●
228 WASHER; LK,CUSHION RUBBER
SUSPENSION HEAVY DUTY VAR2(F41) ID=12.2 		9-09150-512-0 04 1 9202- ●
276 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51779-019-0 04 1 9202-9404 ● ●
276 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51779-019-0 04 1 9405- ●
277 BUSHING; STAB,RR UPR
REAR STABILIZER SHAFT<F61> 		1-51779-067-0 02 1 9202-9404 ● ●
277 BUSHING; STAB,RR UPR
REAR STABILIZER SHAFT<F61> 		1-51779-067-0 02 1 9405- ●
282 RETAINER; STAB BAR
REAR STABILIZER SHAFT<F61> 		1-51789-015-2 02 1 9202-9404 ● ●
282 RETAINER; STAB BAR
REAR STABILIZER SHAFT<F61> 		1-51789-015-2 02 1 9405- ●
284 BOLT; RET TO RET
REAR STABILIZER SHAFT<F61> M10X25 		8-94463-351-0 08 1 9202-9404 ● ●
284 BOLT; RET TO RET
REAR STABILIZER SHAFT<F61> M10X25 		8-94463-351-0 08 1 9405- ●
304 PIN; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51789-020-1 04 1 9202-9404 ● ●
304 PIN; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51789-020-1 04 1 9405- ●
309 NUT; STAB ROD
REAR STABILIZER SHAFT<F61> M24 		9-99116-424-0 04 1 9202-9404 ● ●
309 NUT; STAB ROD
REAR STABILIZER SHAFT<F61> M24 		9-99116-424-0 04 1 9405- ●
310 PIN; SPLIT,STAB ROD
REAR STABILIZER SHAFT<F61> OD=4.6 L=45 		9-08115-045-0 04 1 9202-9404 ● ●
310 PIN; SPLIT,STAB ROD
REAR STABILIZER SHAFT<F61> OD=4.6 L=45 		9-08115-045-0 04 1 9405- ●
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61> 		1-51781-038-1 02 1 9202-9404 ● ●
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61> 		1-51781-038-1 02 1 9405- ●
324 BRACKET; STAB BAR TO FRAME
REAR STABILIZER SHAFT<F61> 		1-51781-059-0 02 1 9202-9404 ● ●
324 BRACKET; STAB BAR TO FRAME
REAR STABILIZER SHAFT<F61> 		1-51781-059-0 02 1 9405- ●
325 BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14X40 		0-20801-440-0 06 1 9202-9305 ● ●
325 BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14X45 		9-92061-445-0 06 1 9306-9404 ● ●
325 BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14X45 		9-92061-445-0 06 1 9405- ●
326 NUT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14 		9-99110-414-0 06 1 9202-9305 ● ●
326 NUT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14 		9-99110-514-0 06 1 9306-9404 ● ●
326 NUT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14 		9-99110-514-0 06 1 9405- ●
327 WASHER; LK,BRKT TO FRAME
REAR STABILIZER SHAFT<F61> ID=14.2 		9-09150-614-0 06 1 9202-9305 ● ●
328 WASHER; PL,BRKT
REAR STABILIZER SHAFT<F61> ID=15 		9-09651-069-0 12 1 9306-9404 ● ●
328 WASHER; PL,BRKT
REAR STABILIZER SHAFT<F61> ID=15 		9-09651-069-0 12 1 9405- ●
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51789-016-0 02 1 9202-9404 ● ●
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51789-016-0 02 1 9405- ●
371 WASHER; LK,SHACKLE
EXC. SUSPENSION HEAVY DUTY VAR2(F41) ID=14.2 		9-09150-514-0 04 1 9202- ● ●
372 NUT; SHACKLE
EXC. SUSPENSION HEAVY DUTY VAR2(F41) M14 		9-99110-414-0 04 1 9202- ● ●
390 U-BOLT SET; RR SPRING
EXC. SUSPENSION HEAVY DUTY VAR2(F41) L=455 		1-87870-268-0 04 1 9202- ● ●
390 U-BOLT SET; RR SPRING
SUSPENSION HEAVY DUTY VAR2(F41) L=470 		1-87870-092-1 04 1 9202-9503 ●
390 U-BOLT SET; RR SPRING
SUSPENSION HEAVY DUTY VAR2(F41) L=490 		1-87870-036-2 04 1 9504- ●
