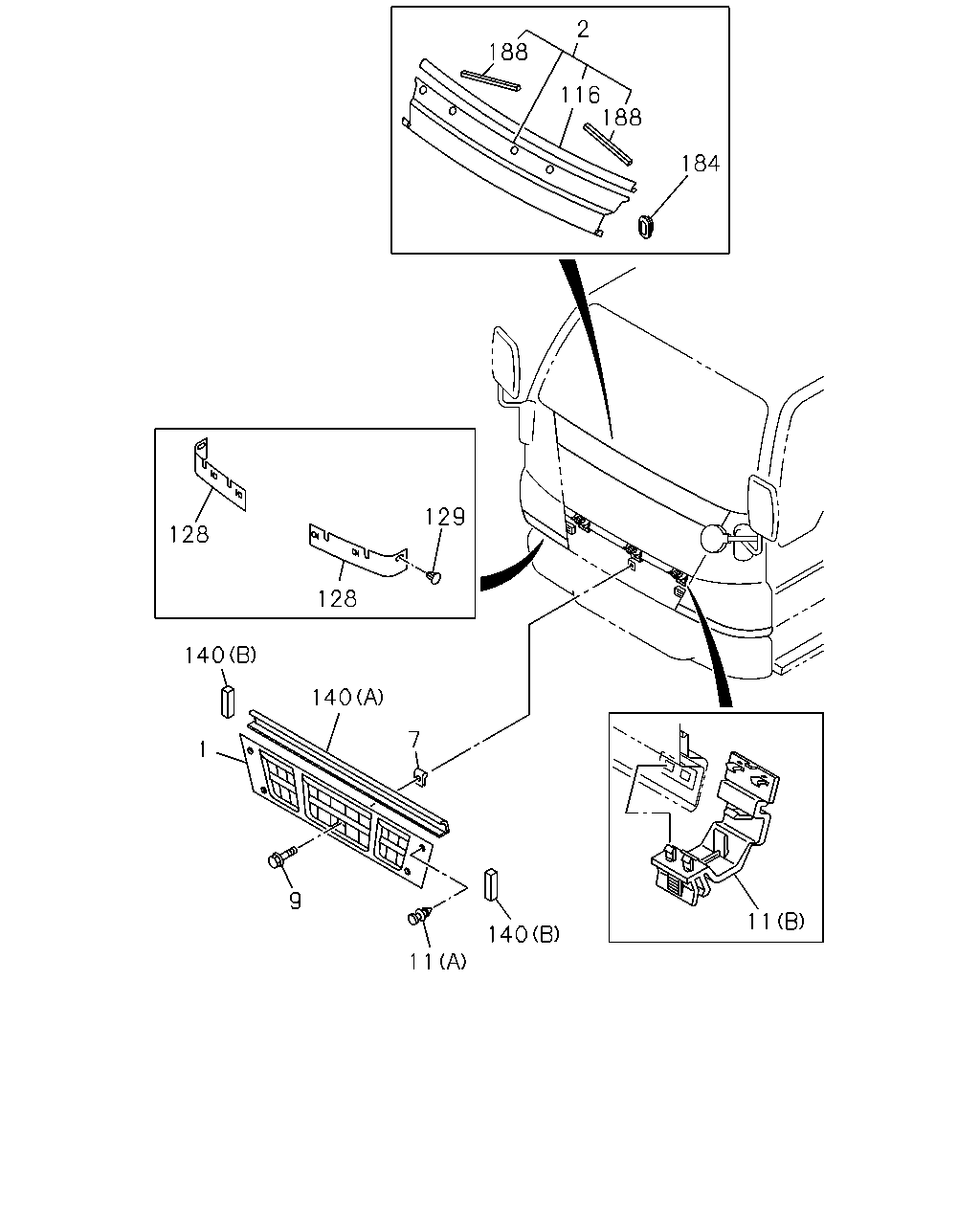

6-03 — RADIATOR GRILLE (#39098) — 18 parça

2 188 116 188 184 129 128 128 140 140 7 1 9 11 140 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.266 GRILLE; RAD BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE	8-97583-048-4	01	1	0608-	●	●
1	01.266 GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE	8-97583-047-4	01	1	0608-	●	●
1	01.266 GRILLE; RAD BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER	8-97583-050-4	01	1	0608-	●	●
1	01.266 GRILLE; RAD RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR	8-97581-826-2	01	1	0608-	●	●
2	01.266 GRILLE; ORNAMENT WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97583-951-2	01	1	0608-	●	●
2	01.266 GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-680-5	01	1	0608-	●	●
7	01.269 NUT; SPIRE,RAD GRILLE	8-98014-760-0	01	1	0608-	●	●
9	01.269 SCREW; RAD GRILLE 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	01	1	0608-0805	●	●
9	01.269 SCREW; RAD GRILLE 08.153 M6X20 W/PL WASHER	8-98059-504-0	01	1	0806-	●	●
11	01.269 CLIP; RAD GRILLE (B) WHITE	8-97102-415-0	04	1	0608-	●	●
11	01.269 CLIP; RAD GRILLE (A)	8-97581-651-2	04	1	0608-	●	●
116	01.266 MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-656-1	01	1	0608-	●	●
128	01.267 COVER; HEADLAMP GRILLE	8-97581-653-3	02	1	0608-	●	●
129	01.269 CLIP; COVER HEADLAMP GRILLE D=6.5	8-97855-279-0	02	1	0608-	●	●
140	01.266 SEAL; RAD GRILLE (A)	8-97581-665-0	01	1	0608-	●	●
140	01.266 SEAL; RAD GRILLE (B)	8-97583-411-1	02	1	0608-	●	●
184	01.269 GROMMET; ORNAMENT	8-97581-668-0	02	1	0608-	●	●
188	08.010 SEAL; ORNAMENT	8-97584-800-0	02	1	0608-	●	●
