◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51124 - NPR/NQR(RHD) EURO4 ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#39095) — 14 parça

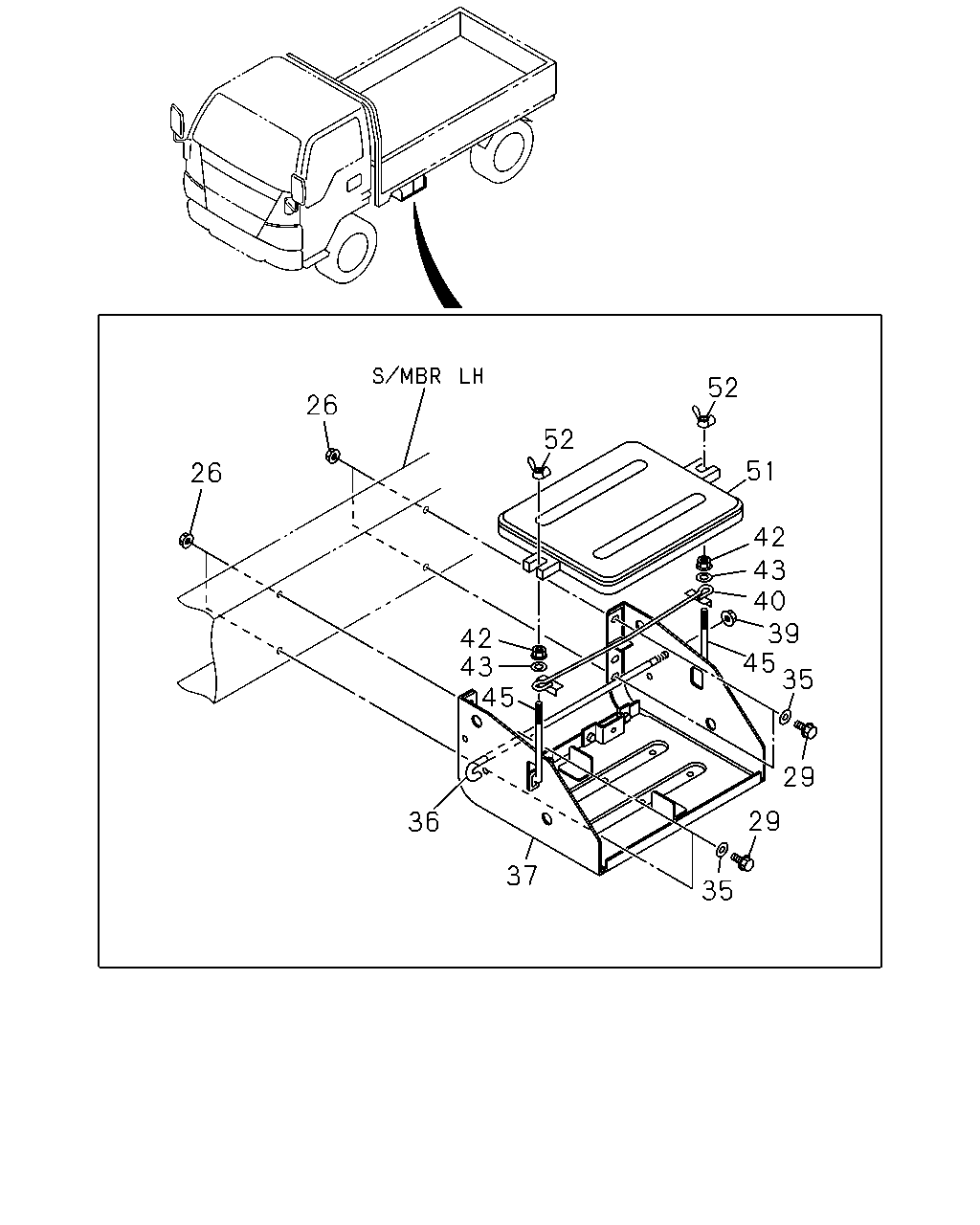

çizim 58784
52 26 52 51 26 42 43 40 39 45 35 42 43 45 29 29 36 37 35
BalonParca AdiParca NoAdetTipApplied Date A B
26 02.334 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 04 1 0608- ● ●
29 02.334 BOLT; BRKT TO FRAME
BATTERY 80D26R<6KC>,BATTERY 65D23R(7DQ), BATTERY 75D23R<7PC> 04.439 M10X30 W/LK WASHER 		0-50541-030-0 04 1 0608- ● ●
35 02.334 WASHER; PL,BATTERY CARRIER
BATTERY 80D26R<6KC>,BATTERY 65D23R(7DQ), BATTERY 75D23R<7PC> 04.046 ID=10.5 OD=22 		0-91610-610-0 04 1 0608- ● ●
36 02.334 STOPPER; BATTERY
BATTERY 65D23R(7DQ),BATTERY 75D23R<7PC> 		8-94145-894-0 01 1 0608- ● ●
37 02.333 BRACKET; BATTERY
BATTERY 80D26R<6KC>,BATTERY 65D23R(7DQ), BATTERY 75D23R<7PC> 		8-97356-174-0 01 1 0608-0610 ● ●
37 02.333 BRACKET; BATTERY
BATTERY 80D26R<6KC>,BATTERY 65D23R(7DQ), BATTERY 75D23R<7PC> 		8-97384-068-2 01 1 0611-0612 ● ●
37 02.333 BRACKET; BATTERY
BATTERY 80D26R<6KC>,BATTERY 65D23R(7DQ), BATTERY 75D23R<7PC> 		8-97384-067-2 01 1 0701- ● ●
39 02.334 NUT; STOPPER,BATTERY
BATTERY 65D23R(7DQ),BATTERY 75D23R<7PC> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0608- ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26R<6KC>,BATTERY 65D23R(7DQ), BATTERY 75D23R<7PC> 		5-53615-004-1 01 1 0608- ● ●
42 02.334 NUT; CLAMP
BATTERY 80D26R<6KC>,BATTERY 65D23R(7DQ), BATTERY 75D23R<7PC> M8 		0-91110-508-0 02 1 0608- ● ●
43 02.334 WASHER; PL,CLAMP
BATTERY 80D26R<6KC>,BATTERY 65D23R(7DQ), BATTERY 75D23R<7PC> 02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 0608- ● ●
45 02.334 ROD; TENSION,BATTERY
BATTERY 80D26R<6KC>,BATTERY 65D23R(7DQ), BATTERY 75D23R<7PC> 		9-53616-615-0 02 1 0608- ● ●
51 02.335 COVER; BATTERY
BATTERY 80D26R<6KC>,BATTERY 65D23R(7DQ), BATTERY 75D23R<7PC> 		8-97120-747-0 01 1 0608- ● ●
52 02.335 NUT; WING,COVER FIX
BATTERY 80D26R<6KC>,BATTERY 65D23R(7DQ), BATTERY 75D23R<7PC> M8 WING NUT 		0-91118-408-0 02 1 0608- ● ●
