5-01 — FRAME AND OTHER PARTS (#39092) — 152 parça

376 376 376 376 376 376 376 376 376 376 376 376 376 376 176 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
118	07.529 NUT; STOPPER EXC. FRAME PRESS KOUGYOU<7RZ> M8 LOCK NUT	0-91370-008-0	02	1	0608-0703	●
118	07.529 NUT; STOPPER M8 LOCK NUT	0-91370-008-0	02	1	0608-0703		●
118	07.529 NUT; STOPPER M8 LOCK NUT	0-91370-008-0	02	1	0704-	●	●
176	04.085 BOLT; C/MBR,ENG MTG EXC. FRAME PRESS KOUGYOU<7RZ> 09.171 M10X25 FLANGE	0-28051-025-0	08	1	0608-0703	●
176	04.085 BOLT; C/MBR,ENG MTG 09.171 M10X25 FLANGE	0-28051-025-0	08	1	0608-0703		●
176	04.085 BOLT; C/MBR,ENG MTG 09.171 M10X25 FLANGE	0-28051-025-0	08	1	0704-	●	●
376	07.039 RIVET; FRAME 07.011 (A) D8X22 TAPER END	9-06750-822-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME 07.011 (C) D8X30 TAPER END	9-06750-830-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME (I) D10X36 TAPER END	9-06751-036-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME (J) D11X30 TAPER END	9-06751-130-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME 07.105 (K) D12X30 TAPER END	9-06751-230-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME 07.535 (L) D12X34 TAPER END	9-06751-234-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME 07.428 (M) D12X36 TAPER END	9-06751-236-0	AR	1	0608-	●	●
376	07.039 RIVET; FRAME 07.112 (N) D12X38 TAPER END	9-06751-238-0	AR	1	0608-	●	●

24 2 219 219 17 24 20 17 34 42 188 344 74 344 188 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.010 MEMBER; CROSS,1ST EXC. FRAME PRESS KOUGYOU<7RZ> 07.011	8-97100-041-1	01	1	0608-0703	●
2	07.010 MEMBER; CROSS,1ST 07.011	8-97100-041-1	01	1	0608-0703		●
2	07.010 MEMBER; CROSS,1ST 07.011	8-97100-041-1	01	1	0704-	●	●
17	07.039 GUSSET; 1ST C/MBR EXC. FRAME PRESS KOUGYOU<7RZ>	8-97088-205-1	02	1	0608-0703	●
17	07.039 GUSSET; 1ST C/MBR	8-97088-205-1	02	1	0608-0703		●
17	07.039 GUSSET; 1ST C/MBR	8-97088-205-1	02	1	0704-	●	●
20	07.012 MEMBER; CROSS,2ND EXC. FRAME PRESS KOUGYOU<7RZ>	8-97351-103-0	01	1	0608-0703	●
20	07.012 MEMBER; CROSS,2ND	8-97351-103-0	01	1	0608-0703		●
20	07.012 MEMBER; CROSS,2ND	8-97351-103-0	01	1	0704-	●	●
24	07.105 BRACKET; FRT SPR,FRT EXC. FRAME PRESS KOUGYOU<7RZ>	8-97020-865-1	01	1	0608-0703	●
24	07.105 BRACKET; FRT SPR,FRT	8-97020-865-1	01	1	0704-	●
24	07.105 BRACKET; FRT SPR,FRT EXC. FRAME PRESS KOUGYOU<7RZ>	8-97020-864-1	01	1	0608-0703	●
24	07.105 BRACKET; FRT SPR,FRT	8-97020-864-1	01	1	0704-	●
24	07.105 BRACKET; FRT SPR,FRT	8-94101-295-0	01	1	0608-		●
24	07.105 BRACKET; FRT SPR,FRT	8-94101-294-0	01	1	0608-		●
34	07.012 MEMBER; CROSS,3RD EXC. FRAME PRESS KOUGYOU<7RZ>	8-97042-818-0	01	1	0608-0703	●
34	07.012 MEMBER; CROSS,3RD	8-97042-818-0	01	1	0608-0703		●
34	07.012 MEMBER; CROSS,3RD	8-97042-818-0	01	1	0704-	●	●
42	07.011 MEMBER; CROSS,ENG MTG EXC. FRAME PRESS KOUGYOU<7RZ>	8-98011-486-1	01	1	0608-0703	●
42	07.011 MEMBER; CROSS,ENG MTG	8-98011-486-1	01	1	0608-0703		●
42	07.011 MEMBER; CROSS,ENG MTG	8-98011-486-1	01	1	0704-	●	●
74	07.039 GUSSET; 4TH C/MBR EXC. FRAME PRESS KOUGYOU<7RZ> RH UPPER,LH LOWER	8-97083-107-1	02	1	0608-0703	●
74	07.039 GUSSET; 4TH C/MBR RH UPPER,LH LOWER	8-97083-107-1	02	1	0704-	●
74	07.039 GUSSET; 4TH C/MBR EXC. FRAME PRESS KOUGYOU<7RZ> RH LOWER,LH UPPER	8-97083-108-1	02	1	0608-0703	●
74	07.039 GUSSET; 4TH C/MBR RH LOWER,LH UPPER	8-97083-108-1	02	1	0704-	●
188	07.039 BRACKET; SUPPORT,CTR BRG EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-97083-157-1	01	1	0608-0703	●
188	07.039 BRACKET; SUPPORT,CTR BRG (A)	8-97083-157-1	01	1	0704-	●
188	07.039 BRACKET; SUPPORT,CTR BRG (B)	8-97038-322-2	01	1	0608-		●
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA EXC. FRAME PRESS KOUGYOU<7RZ>	8-94129-569-1	01	1	0608-0703	●
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA	8-94129-569-1	01	1	0608-0703		●
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA	8-94129-569-1	01	1	0704-	●	●
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA EXC. FRAME PRESS KOUGYOU<7RZ>	8-94129-568-1	01	1	0608-0703	●
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA	8-94129-568-1	01	1	0608-0703		●
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA	8-94129-568-1	01	1	0704-	●	●
344	07.012 MEMBER; CROSS,4TH EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-97083-106-3	01	1	0608-0703	●
344	07.012 MEMBER; CROSS,4TH (B)	8-97083-106-3	01	1	0704-	●
344	07.012 MEMBER; CROSS,4TH (A)	8-97074-010-6	01	1	0608-		●

75 75 345 198 198 139 137 137 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
75	07.039 GUSSET; 5TH C/MBR EXC. FRAME PRESS KOUGYOU<7RZ> RH-UPPER, LH-LOWER	8-94258-068-1	02	1	0608-0703	●
75	07.039 GUSSET; 5TH C/MBR RH-UPPER, LH-LOWER	8-94258-068-1	02	1	0608-0703		●
75	07.039 GUSSET; 5TH C/MBR RH-UPPER, LH-LOWER	8-94258-068-1	02	1	0704-	●	●
75	07.039 GUSSET; 5TH C/MBR EXC. FRAME PRESS KOUGYOU<7RZ> RH-LOWER, LH-UPPER	8-94258-069-1	02	1	0608-0703	●
75	07.039 GUSSET; 5TH C/MBR RH-LOWER, LH-UPPER	8-94258-069-1	02	1	0608-0703		●
75	07.039 GUSSET; 5TH C/MBR RH-LOWER, LH-UPPER	8-94258-069-1	02	1	0704-	●	●
130	07.014 MEMBER; CROSS,END EXC. FRAME PRESS KOUGYOU<7RZ>	8-97179-414-0	01	1	0608-0703	●
130	07.014 MEMBER; CROSS,END	8-97179-414-0	01	1	0608-0703		●
130	07.014 MEMBER; CROSS,END	8-97179-414-0	01	1	0704-	●	●
137	07.629 BRACKET; SPARE TIRE EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-97076-885-1	01	1	0608-0703	●
137	07.629 BRACKET; SPARE TIRE (A)	8-97076-885-1	01	1	0704-	●
137	07.629 BRACKET; SPARE TIRE (B)	8-97077-331-1	01	1	0608-		●
139	07.012 MEMBER; CROSS,6TH EXC. FRAME PRESS KOUGYOU<7RZ>	8-94101-290-1	01	1	0608-0703	●
139	07.012 MEMBER; CROSS,6TH	8-94101-290-1	01	1	0608-0703		●
139	07.012 MEMBER; CROSS,6TH	8-94101-290-1	01	1	0704-	●	●
198	07.039 GUSSET; 6TH C/MBR EXC. FRAME PRESS KOUGYOU<7RZ> RH-LOWER, LH-UPPER	8-94258-068-1	02	1	0608-0703	●
198	07.039 GUSSET; 6TH C/MBR RH-LOWER, LH-UPPER	8-94258-068-1	02	1	0608-0703		●
198	07.039 GUSSET; 6TH C/MBR RH-LOWER, LH-UPPER	8-94258-068-1	02	1	0704-	●	●
198	07.039 GUSSET; 6TH C/MBR EXC. FRAME PRESS KOUGYOU<7RZ> RH-UPPER, LH-LOWER	8-94258-069-1	02	1	0608-0703	●
198	07.039 GUSSET; 6TH C/MBR RH-UPPER, LH-LOWER	8-94258-069-1	02	1	0608-0703		●
198	07.039 GUSSET; 6TH C/MBR RH-UPPER, LH-LOWER	8-94258-069-1	02	1	0704-	●	●
345	07.012 MEMBER; CROSS,5TH EXC. FRAME PRESS KOUGYOU<7RZ>	8-97095-654-1	01	1	0608-0703	●
345	07.012 MEMBER; CROSS,5TH	8-97095-654-1	01	1	0608-0703		●
345	07.012 MEMBER; CROSS,5TH	8-97095-654-1	01	1	0704-	●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

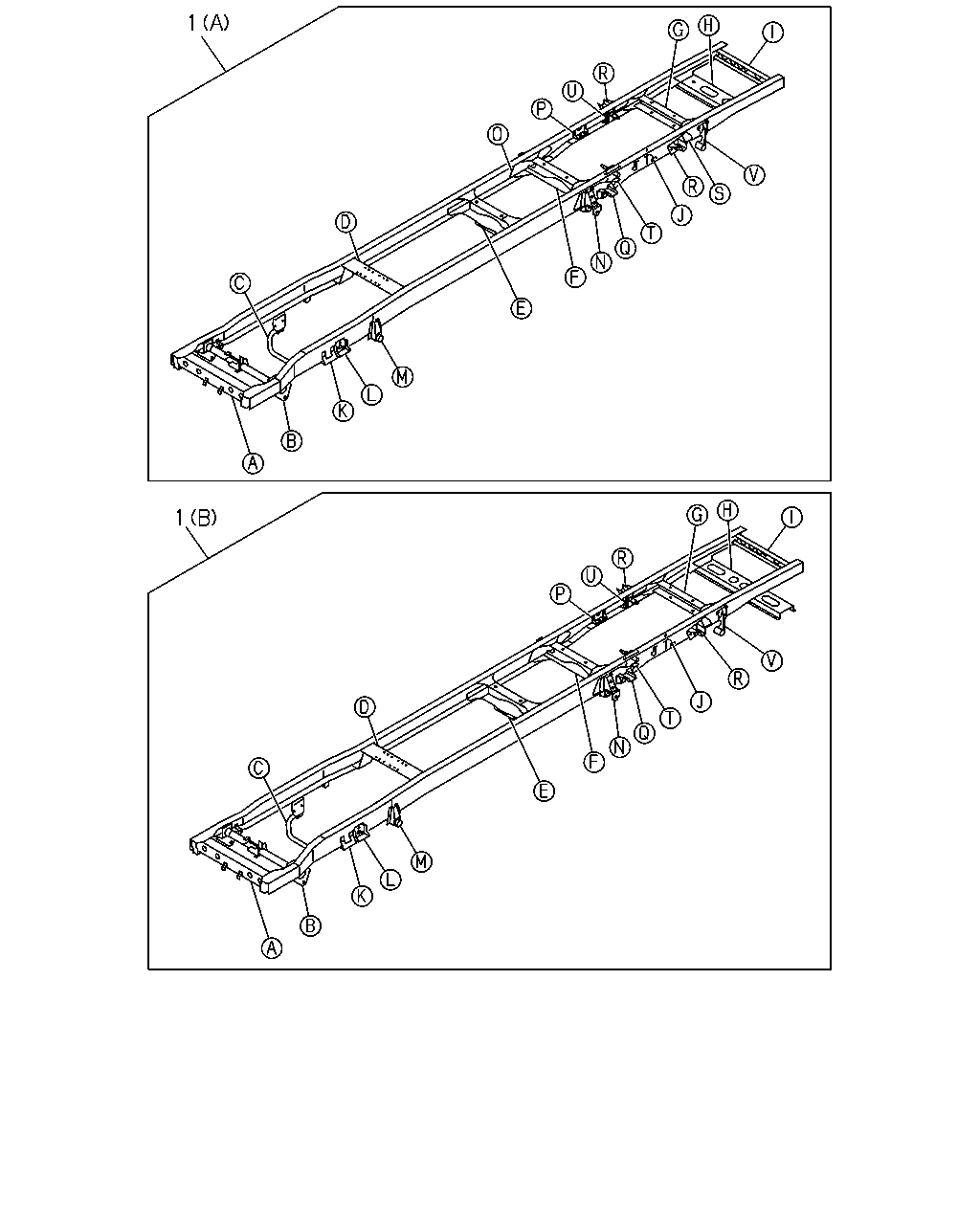

1	07.003 FRAME ASM FRAME PRESS KOUGYOU<7RZ> (A)	8-98073-768-0	01	1	0704-	●
1	07.003 FRAME ASM FRAME PRESS KOUGYOU<7RZ> (B)	8-98073-770-0	01	1	0704-		●
1	07.003 FRAME ASM EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-98020-575-0	01	1	0608-	●
1	07.003 FRAME ASM (B)	8-98020-583-0	01	1	0608-0703		●
1	07.003 FRAME ASM EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-98020-583-0	01	1	0704-		●

142 103 31 51 39 31 173 217 101 217 101 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	07.428 BUSHING; FRT SPR,RR EXC. FRAME PRESS KOUGYOU<7RZ> 07.524	8-97184-699-1	04	1	0608-0703	●
31	07.428 BUSHING; FRT SPR,RR 07.524	8-97184-699-1	04	1	0608-0703		●
31	07.428 BUSHING; FRT SPR,RR 07.524	8-97184-699-1	04	1	0704-	●	●
39	07.112 BRACKET; FRT SPR,RR EXC. FRAME PRESS KOUGYOU<7RZ>	8-97046-283-1	02	1	0608-0703	●
39	07.112 BRACKET; FRT SPR,RR	8-97046-283-1	02	1	0608-0703		●
39	07.112 BRACKET; FRT SPR,RR	8-97046-283-1	02	1	0704-	●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER EXC. FRAME PRESS KOUGYOU<7RZ>	8-97202-415-1	02	1	0608-0703	●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-97202-415-1	02	1	0704-	●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98003-782-0	02	1	0608-		●
101	07.112 BRACKET; RR SPR,FRT EXC. FRAME PRESS KOUGYOU<7RZ>	8-97042-245-1	02	1	0608-0703	●
101	07.112 BRACKET; RR SPR,FRT	8-97042-245-1	02	1	0704-	●
101	07.112 BRACKET; RR SPR,FRT	8-97034-156-1	02	1	0608-		●
103	07.420 STOPPER; SUB SPR EXC. FRAME PRESS KOUGYOU<7RZ> 07.112 (A)	8-94101-392-0	02	1	0608-0703	●
103	07.420 STOPPER; SUB SPR 07.112 (A)	8-94101-392-0	02	1	0608-0703		●
103	07.420 STOPPER; SUB SPR 07.112 (A)	8-94101-392-0	02	1	0704-	●	●
103	07.420 STOPPER; SUB SPR EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-97223-748-0	02	1	0608-0703	●
103	07.420 STOPPER; SUB SPR (B)	8-97223-748-0	02	1	0608-0703		●
103	07.420 STOPPER; SUB SPR (B)	8-97223-748-0	02	1	0704-	●	●
103	07.420 STOPPER; SUB SPR EXC. FRAME PRESS KOUGYOU<7RZ> (C)	8-97223-750-0	02	1	0608-0703	●
103	07.420 STOPPER; SUB SPR (C)	8-97223-750-0	02	1	0608-0703		●
103	07.420 STOPPER; SUB SPR (C)	8-97223-750-0	02	1	0704-	●	●
142	04.845 BRACKET; FLEX HOSE,BRAKE EXC. FRAME PRESS KOUGYOU<7RZ>	8-97040-876-3	01	1	0608-0703	●
142	04.845 BRACKET; FLEX HOSE,BRAKE	8-97040-876-3	01	1	0608-0703		●
142	04.845 BRACKET; FLEX HOSE,BRAKE	8-97040-876-3	01	1	0704-	●	●
173	07.112 STIFFENER; RR SPRING EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-94372-324-1	02	1	0608-0703	●
173	07.112 STIFFENER; RR SPRING (B)	8-94372-324-1	02	1	0704-	●
173	07.112 STIFFENER; RR SPRING EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-94408-191-2	01	1	0608-0703	●
173	07.112 STIFFENER; RR SPRING (A)	8-94408-191-2	01	1	0704-	●
173	07.112 STIFFENER; RR SPRING EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-94403-508-2	01	1	0608-0703	●
173	07.112 STIFFENER; RR SPRING (A)	8-94403-508-2	01	1	0704-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING EXC. FRAME PRESS KOUGYOU<7RZ>	8-97202-417-0	02	1	0608-0703	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-97202-417-0	02	1	0608-0703		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-97202-417-0	02	1	0704-	●	●

103 103 103 147 103 147 147 147 140 173 140 173 105 215 215 215 105 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
103	07.420 STOPPER; SUB SPR EXC. FRAME PRESS KOUGYOU<7RZ> 07.112 (A)	8-94101-392-0	02	1	0608-0703	●
103	07.420 STOPPER; SUB SPR 07.112 (A)	8-94101-392-0	02	1	0608-0703		●
103	07.420 STOPPER; SUB SPR 07.112 (A)	8-94101-392-0	02	1	0704-	●	●
103	07.420 STOPPER; SUB SPR EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-97223-748-0	02	1	0608-0703	●
103	07.420 STOPPER; SUB SPR (B)	8-97223-748-0	02	1	0608-0703		●
103	07.420 STOPPER; SUB SPR (B)	8-97223-748-0	02	1	0704-	●	●
103	07.420 STOPPER; SUB SPR EXC. FRAME PRESS KOUGYOU<7RZ> (C)	8-97223-750-0	02	1	0608-0703	●
103	07.420 STOPPER; SUB SPR (C)	8-97223-750-0	02	1	0608-0703		●
103	07.420 STOPPER; SUB SPR (C)	8-97223-750-0	02	1	0704-	●	●
105	07.112 BRACKET; RR SPR,RR EXC. FRAME PRESS KOUGYOU<7RZ>	8-94459-512-1	01	1	0608-0703	●
105	07.112 BRACKET; RR SPR,RR	8-94459-512-1	01	1	0608-0703		●
105	07.112 BRACKET; RR SPR,RR	8-94459-512-1	01	1	0704-	●	●
105	07.112 BRACKET; RR SPR,RR EXC. FRAME PRESS KOUGYOU<7RZ>	8-94459-511-1	01	1	0608-0703	●
105	07.112 BRACKET; RR SPR,RR	8-94459-511-1	01	1	0608-0703		●
105	07.112 BRACKET; RR SPR,RR	8-94459-511-1	01	1	0704-	●	●
140	07.112 BRACKET; S/ABS,RR EXC. FRAME PRESS KOUGYOU<7RZ> 07.395 (B)	8-94101-303-0	01	1	0608-0703	●
140	07.112 BRACKET; S/ABS,RR 07.395 (B)	8-94101-303-0	01	1	0608-0703		●
140	07.112 BRACKET; S/ABS,RR 07.395 (B)	8-94101-303-0	01	1	0704-	●	●
140	07.112 BRACKET; S/ABS,RR EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-97012-285-0	01	1	0608-0703	●
140	07.112 BRACKET; S/ABS,RR (A)	8-97012-285-0	01	1	0608-0703		●
140	07.112 BRACKET; S/ABS,RR (A)	8-97012-285-0	01	1	0704-	●	●
147	07.535 RUBBER; SUB SPRING EXC. FRAME PRESS KOUGYOU<7RZ>	8-97254-387-0	04	1	0608-0703	●
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	0608-0703		●
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	0704-	●	●
173	07.112 STIFFENER; RR SPRING EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-94372-324-1	02	1	0608-0703	●
173	07.112 STIFFENER; RR SPRING (B)	8-94372-324-1	02	1	0704-	●
173	07.112 STIFFENER; RR SPRING EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-94408-191-2	01	1	0608-0703	●
173	07.112 STIFFENER; RR SPRING (A)	8-94408-191-2	01	1	0704-	●
173	07.112 STIFFENER; RR SPRING EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-94403-508-2	01	1	0608-0703	●
173	07.112 STIFFENER; RR SPRING (A)	8-94403-508-2	01	1	0704-	●
215	07.524 BUSHING; BRKT,RR SPRING EXC. FRAME PRESS KOUGYOU<7RZ>	8-97184-699-1	04	1	0608-0703	●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	0608-0703		●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	0704-	●	●
