4-80 — ROAD WHEEL (#39091) — 48 parça

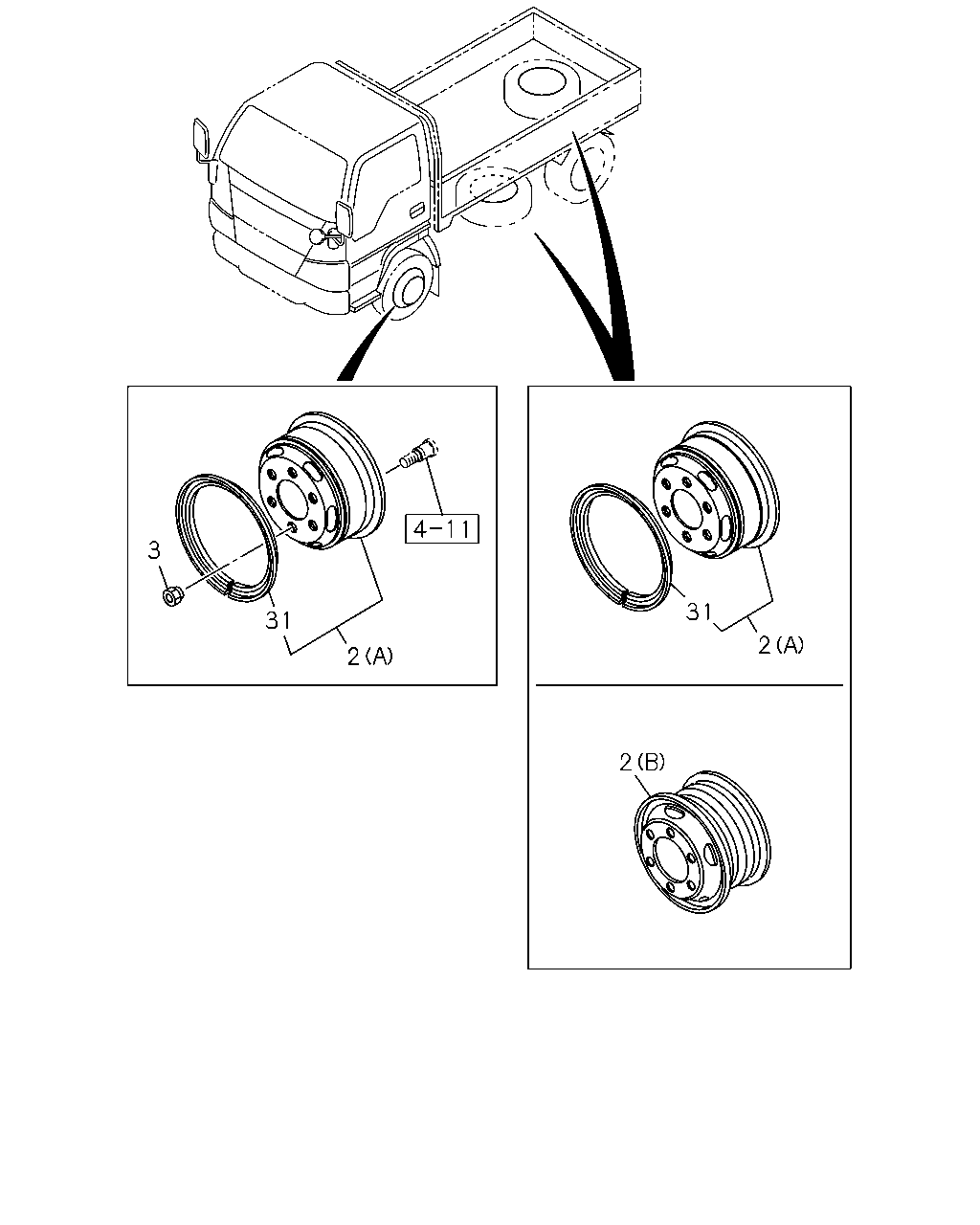

3 31 31 2 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE	8-94135-596-2	01	1	0608-	●
2	05.803 WHEEL; DISC FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE	8-94135-596-2	06	1	0608-	●
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-1 0L 5.5FX16-115 T/VLV TR177A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0608-	●
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-1 0L 5.5FX16-115 T/VLV TR177A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0608-	●
2	05.803 WHEEL; DISC FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J -112(CPT),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(CPU) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0608-		●
2	05.803 WHEEL; DISC FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J -112(CPT),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(CPU) (A) FRONT 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	02	1	0608-		●
2	05.803 WHEEL; DISC FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J -112(CPT),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(CPU) (B) SPARE 14X5J OFFSET=112.5 BLACK 6-HOLE	8-97145-820-1	01	1	0608-		●
2	05.803 WHEEL; DISC FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J -112(CPT),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(CPU) (B) REAR 14X5J OFFSET=112.5 BLACK 6-HOLE	8-97145-820-1	04	1	0608-		●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-94365-148-0	05	1	0608-0610	●	●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	0611-	●	●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-94365-147-0	05	1	0608-0610	●	●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	0611-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) SPARE 16X6.00GS STAMP, BLACK	8-94135-602-0	01	1	0608-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94135-602-0	06	1	0608-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-1 0L 5.5FX16-115 T/VLV TR177A(98H) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0608-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-1 0L 5.5FX16-115 T/VLV TR177A(98H) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0608-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J -112(CPT),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(CPU) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0608-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J -112(CPT),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(CPU) FRONT 16X5.50F STAMP, BLACK	8-94135-601-0	02	1	0608-		●

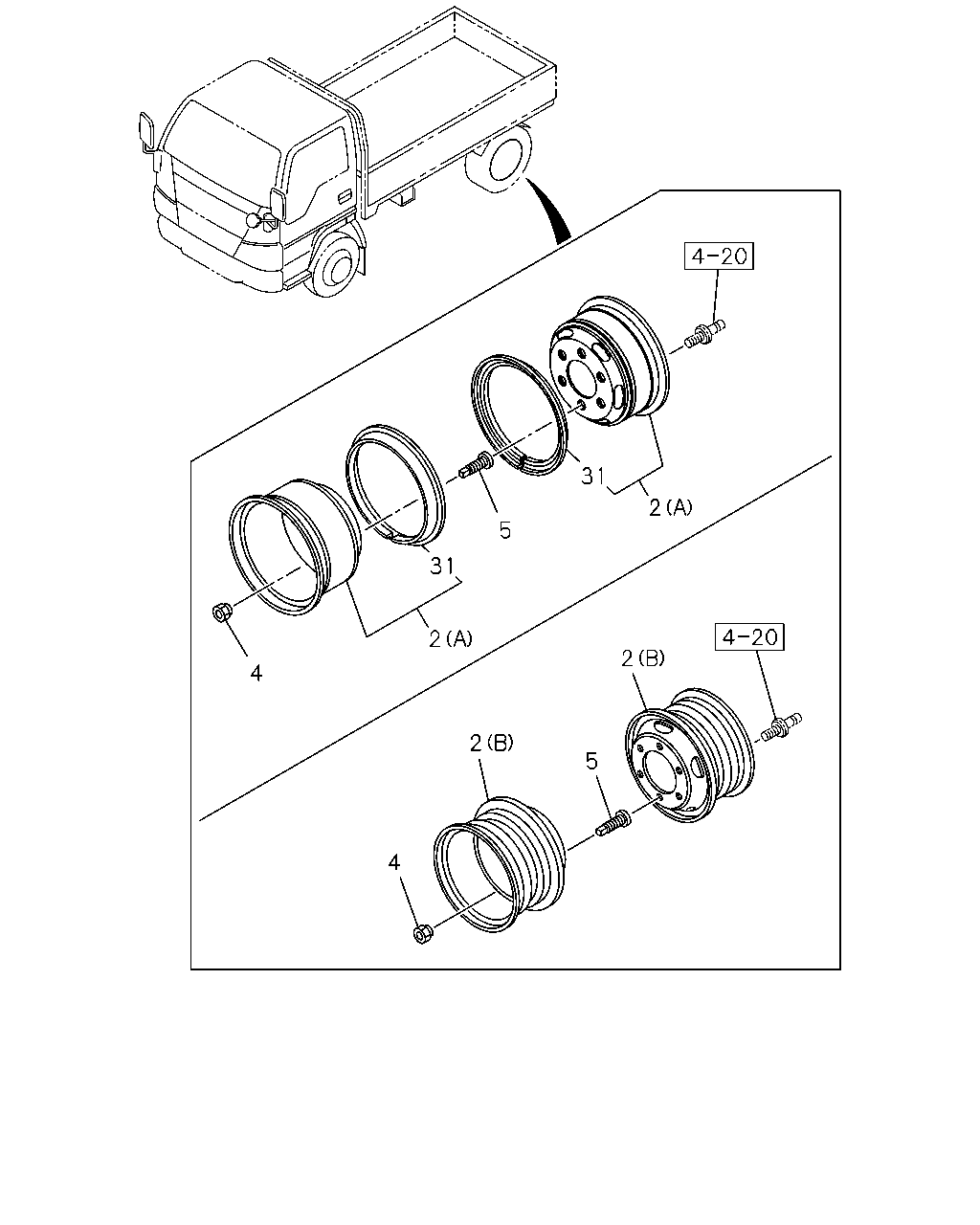

31 2 5 31 2 2 4 2 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE	8-94135-596-2	01	1	0608-	●
2	05.803 WHEEL; DISC FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE	8-94135-596-2	06	1	0608-	●
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-1 0L 5.5FX16-115 T/VLV TR177A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0608-	●
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-1 0L 5.5FX16-115 T/VLV TR177A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0608-	●
2	05.803 WHEEL; DISC FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J -112(CPT),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(CPU) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0608-		●
2	05.803 WHEEL; DISC FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J -112(CPT),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(CPU) (A) FRONT 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	02	1	0608-		●
2	05.803 WHEEL; DISC FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J -112(CPT),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(CPU) (B) SPARE 14X5J OFFSET=112.5 BLACK 6-HOLE	8-97145-820-1	01	1	0608-		●
2	05.803 WHEEL; DISC FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J -112(CPT),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(CPU) (B) REAR 14X5J OFFSET=112.5 BLACK 6-HOLE	8-97145-820-1	04	1	0608-		●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-94365-146-0	05	1	0608-0610	●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	0611-	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-94365-145-0	05	1	0608-0610	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	0611-	●
4	05.813 NUT; WHEEL,RR AXLE M25 LH THREAD	9-42334-009-0	06	1	0608-0610		●
4	05.813 NUT; WHEEL,RR AXLE M25 LH THREAD	8-98007-831-0	06	1	0611-		●
4	05.813 NUT; WHEEL,RR AXLE M25 RH THREAD	9-42333-015-0	06	1	0608-0610		●
4	05.813 NUT; WHEEL,RR AXLE M25 RH THREAD	8-98007-830-0	06	1	0611-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-94365-144-1	05	1	0608-0610	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	0611-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-94365-143-1	05	1	0608-0610	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	0611-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 LH THREAD	5-42336-001-1	06	1	0608-0610		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 LH THREAD	8-98007-829-0	06	1	0611-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 RH THREAD	5-42335-001-1	06	1	0608-0610		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 RH THREAD	8-98007-828-0	06	1	0611-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) SPARE 16X6.00GS STAMP, BLACK	8-94135-602-0	01	1	0608-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94135-602-0	06	1	0608-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-1 0L 5.5FX16-115 T/VLV TR177A(98H) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0608-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-1 0L 5.5FX16-115 T/VLV TR177A(98H) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0608-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J -112(CPT),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(CPU) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0608-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J -112(CPT),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(CPU) FRONT 16X5.50F STAMP, BLACK	8-94135-601-0	02	1	0608-		●
