4-65A — REAR LEAF SPRING (#39089) — 12 parça

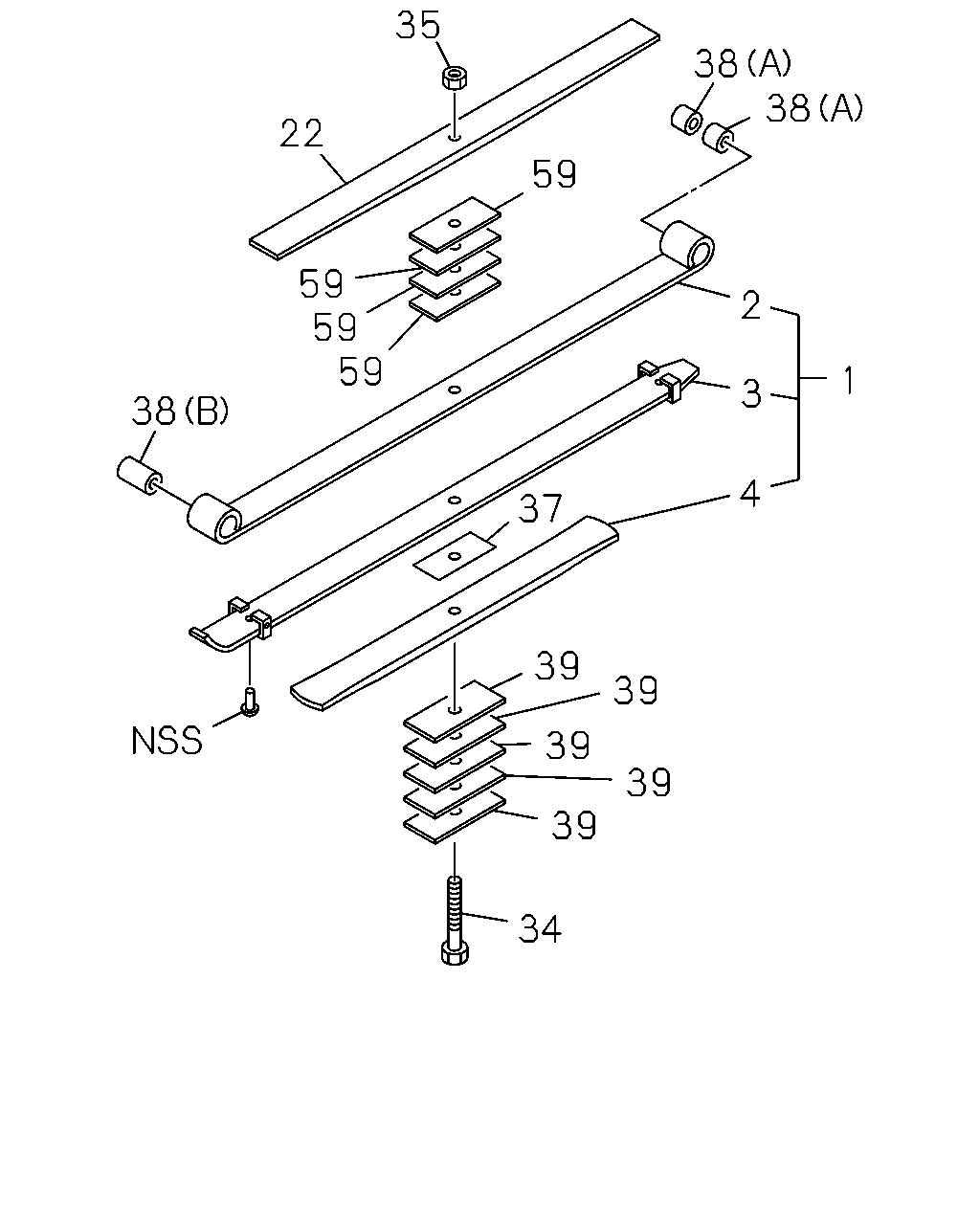

çizim 58937
35 38 38 22 59 59 59 59 2 1 3 38 4 37 39 39 39 39 39 34
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-97033-558-3, 97033558 		8-97088-804-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-97033-558-3, 97033558 		8-97088-805-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-97033-558-3, 97033558 		8-97088-806-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-97033-558-3, 97033558 		8-97088-807-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-97033-558-3, 97033558 		8-97088-827-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=145 ASM PART: A = 8-97033-558-3, 97033558 		8-94165-315-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-97033-558-3, 97033558 		9-99110-512-0 01 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-97033-558-3, 97033558 		8-97084-102-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (A) ASM PART: A = 8-97033-558-3, 97033558 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), OD=42 L=81 ASM PART: A = 8-97033-558-3, 97033558 		8-97074-826-0 01 1 -
39 07.518 SEAT; LEAF SPR,RR MAIN
T=8 ASM PART: A = 8-97033-558-3, 97033558 		8-97084-668-0 05 1 -
59 07.513 SEAT; RR SPRING,SUB
07.518, T=8 ASM PART: A = 8-97033-558-3, 97033558 		8-97084-668-0 04 1 -
