4-61 — SHOCK ABSORBER; REAR SUSPENSION (#39088) — 12 parça

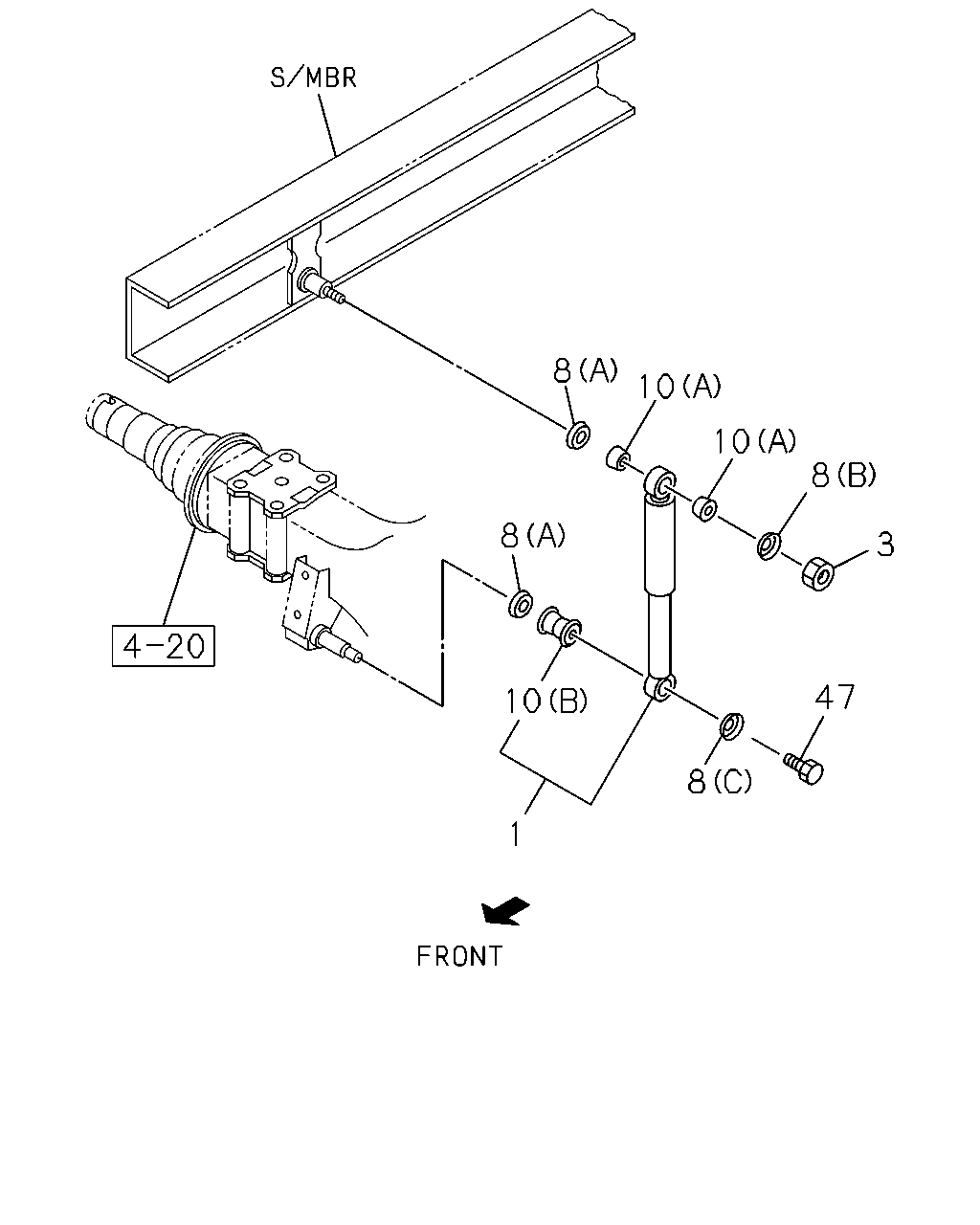

çizim 58639
8 10 10 8 8 3 47 10 8 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-651-2 02 1 0608- ● ●
3 07.347 NUT; S/ABS
06.515 M14 		0-91111-514-0 02 1 0608-0612 ● ●
3 07.347 NUT; S/ABS
07.833 M14 		0-91110-514-0 02 1 0701- ● ●
8 07.347 WASHER; S/ABS
(B) ID=15.0 		9-51679-012-0 02 1 0608-0611 ● ●
8 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 0612- ● ●
8 07.347 WASHER; S/ABS
(A) ID=20.0 		9-51679-013-0 04 1 0608-0611 ● ●
8 07.347 WASHER; S/ABS
(A) ID=20.0 		8-97360-057-0 04 1 0612- ● ●
8 07.347 WASHER; S/ABS
(C) ID=10.5 		9-51679-603-0 02 1 0608-0611 ● ●
8 07.347 WASHER; S/ABS
(C) ID=10.5 		8-97360-058-0 02 1 0612- ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 0608- ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 0608- ● ●
47 07.347 PIN; S/ABS SETTING
02.483 M10X16 FLANGE 		0-28051-016-0 02 1 0608- ● ●
