4-55B — FRONT LEAF SPRING (#39086) — 19 parça

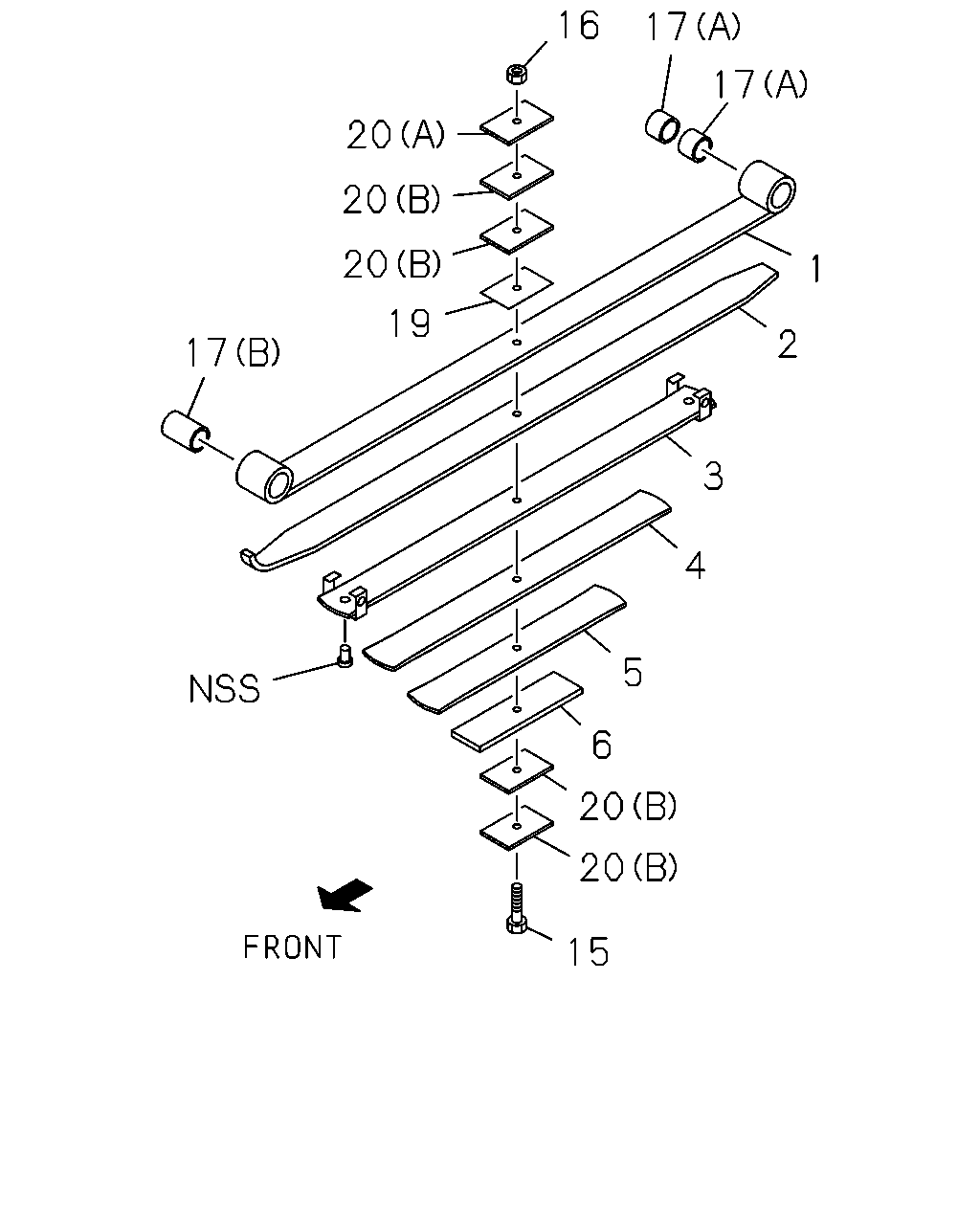

çizim 58628
16 17 17 20 20 20 1 19 2 17 3 4 5 6 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98043-019-0, 98043019 		8-98030-713-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98043-020-0, 98043020 		8-98030-719-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98043-019-0, 98043019 		8-98030-714-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98043-020-0, 98043020 		8-98030-720-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98043-019-0, 98043019 		8-98030-715-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98043-020-0, 98043020 		8-98030-721-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-98043-019-0, 98043019 		8-98030-716-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-98043-020-0, 98043020 		8-98030-722-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-98043-019-0, 98043019 		8-98030-717-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-98043-020-0, 98043020 		8-98030-723-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: A = 8-98043-019-0, 98043019 		8-98030-718-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: B = 8-98043-020-0, 98043020 		8-98030-724-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
ASM PART: A = 8-98043-019-0, 98043019, B = 8-98043-020-0, 98043020 		8-98045-600-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98043-019-0, 98043019, B = 8-98043-020-0, 98043020 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: A = 8-98043-019-0, 98043019, B = 8-98043-020-0, 98043020 		8-94118-588-1 02 1 -
17 07.413 BUSHING; LEAF SPR,FRT
(B), OD=42 L=81 ASM PART: A = 8-98043-019-0, 98043019, B = 8-98043-020-0, 98043020 		8-97081-586-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98043-019-0, 98043019, B = 8-98043-020-0, 98043020 		8-97084-845-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B), T=8 ASM PART: A = 8-98043-019-0, 98043019, B = 8-98043-020-0, 98043020 		8-97084-891-0 03 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: A = 8-98043-019-0, 98043019, B = 8-98043-020-0, 98043020 		8-98030-726-0 01 1 -
