4-55A — FRONT LEAF SPRING (#39085) — 14 parça

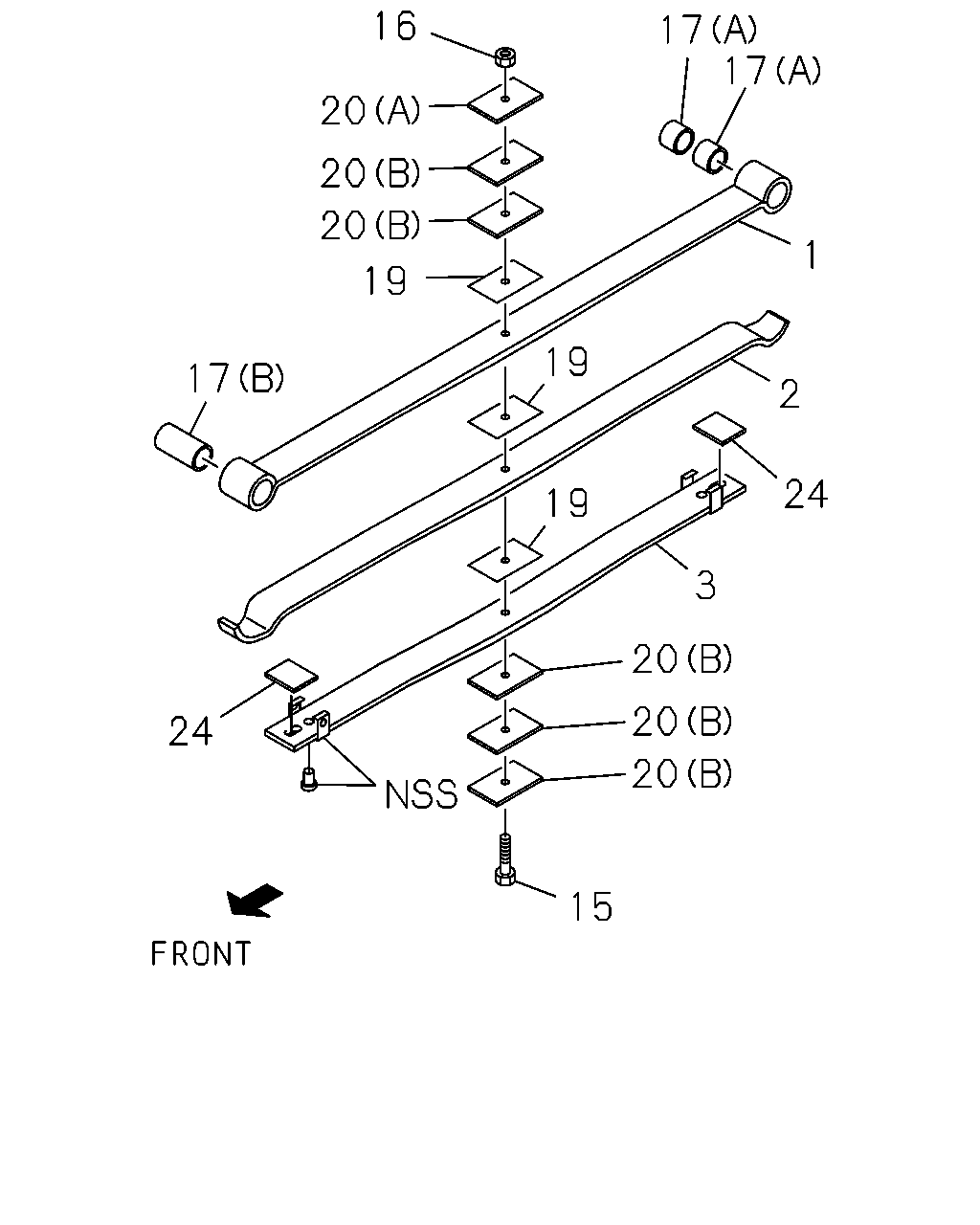

çizim 56291
16 17 17 20 20 20 1 19 19 17 2 24 19 3 20 20 24 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98043-009-0, 98043009 		8-97085-083-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98043-010-0, 98043010 		8-97085-086-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98043-010-0, 98043010 		8-97085-087-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
02.525 ASM PART: A = 8-98043-009-0, 98043009 		8-97385-084-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98043-009-0, 98043009 		8-97085-085-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98043-010-0, 98043010 		8-97085-088-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
ASM PART: A = 8-98043-009-0, 98043009, B = 8-98043-010-0, 98043010 		8-98045-600-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98043-009-0, 98043009, B = 8-98043-010-0, 98043010 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: A = 8-98043-009-0, 98043009, B = 8-98043-010-0, 98043010 		8-94118-588-1 02 1 -
17 07.413 BUSHING; LEAF SPR,FRT
(B), OD=42 L=81 ASM PART: A = 8-98043-009-0, 98043009, B = 8-98043-010-0, 98043010 		8-97081-586-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98043-009-0, 98043009, B = 8-98043-010-0, 98043010 		8-97084-845-0 03 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B), T=8 ASM PART: A = 8-98043-009-0, 98043009, B = 8-98043-010-0, 98043010 		8-97084-891-0 05 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: A = 8-98043-009-0, 98043009, B = 8-98043-010-0, 98043010 		8-98030-726-0 01 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
ASM PART: A = 8-98043-009-0, 98043009, B = 8-98043-010-0, 98043010 		8-97084-848-0 02 1 -
