◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51124 - NPR/NQR(RHD) EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#39082) — 13 parça

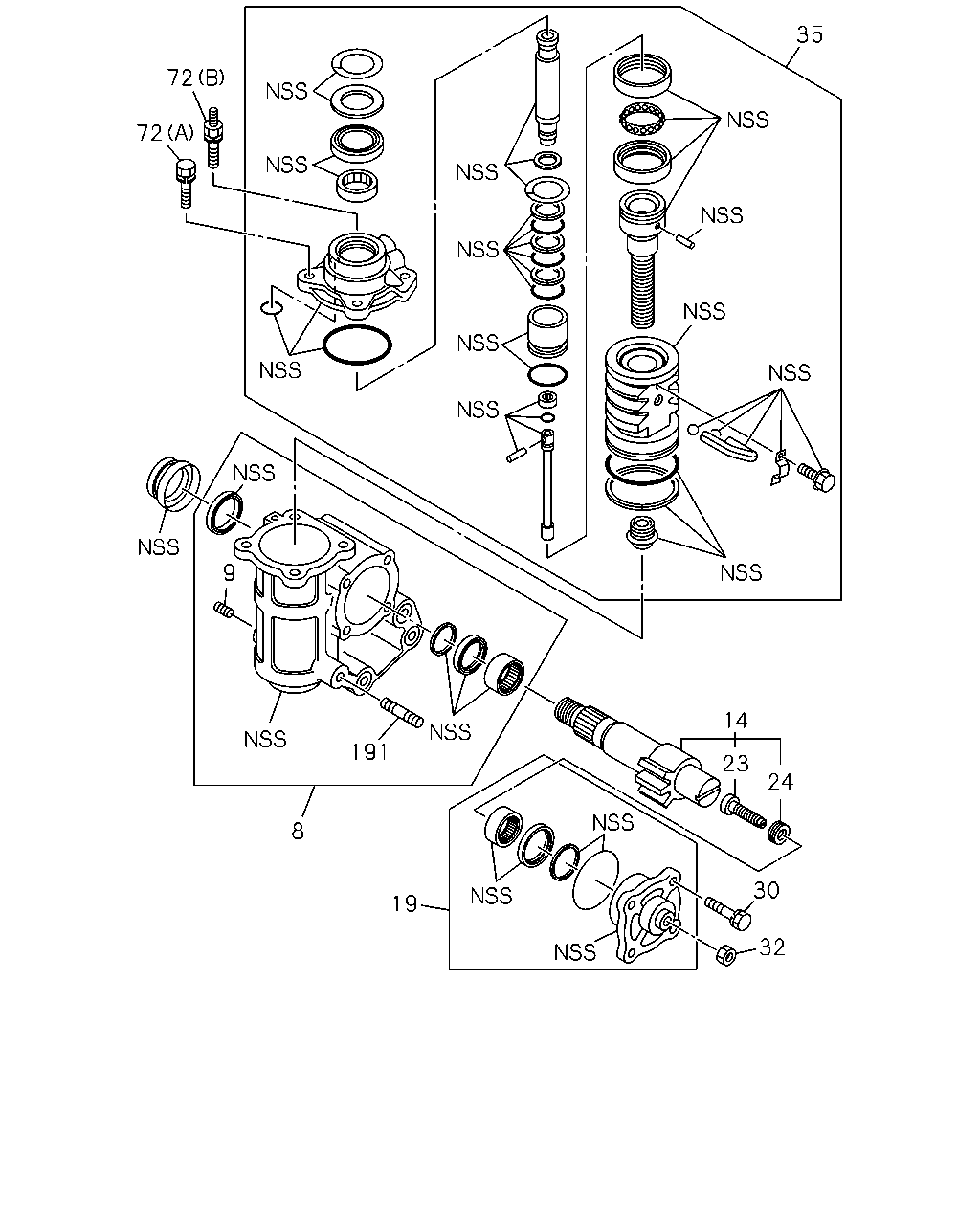

çizim 13402
35 72 72 9 14 191 23 24 8 30 19 32
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
06.507 ASM PART: A = 8-97287-197-8, 97287197 		8-97119-776-2 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97287-197-8, 97287197 		8-97014-820-0 02 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97287-197-8, 97287197 		8-97287-202-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97287-197-8, 97287197 		8-98036-333-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97287-197-8, 97287197 		8-97014-842-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: A = 8-97287-197-8, 97287197 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97287-197-8, 97287197 		8-98036-336-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97287-197-8, 97287197 		8-98036-337-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97287-197-8, 97287197 		8-98112-933-1 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: A = 8-97287-197-8, 97287197 		8-97078-178-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
(A) ASM PART: A = 8-97287-197-8, 97287197 		8-98036-335-0 03 1 -
191 06.809 STUD; STRG UNIT
ASM PART: A = 8-97287-197-8, 97287197 		8-97078-173-0 01 1 -

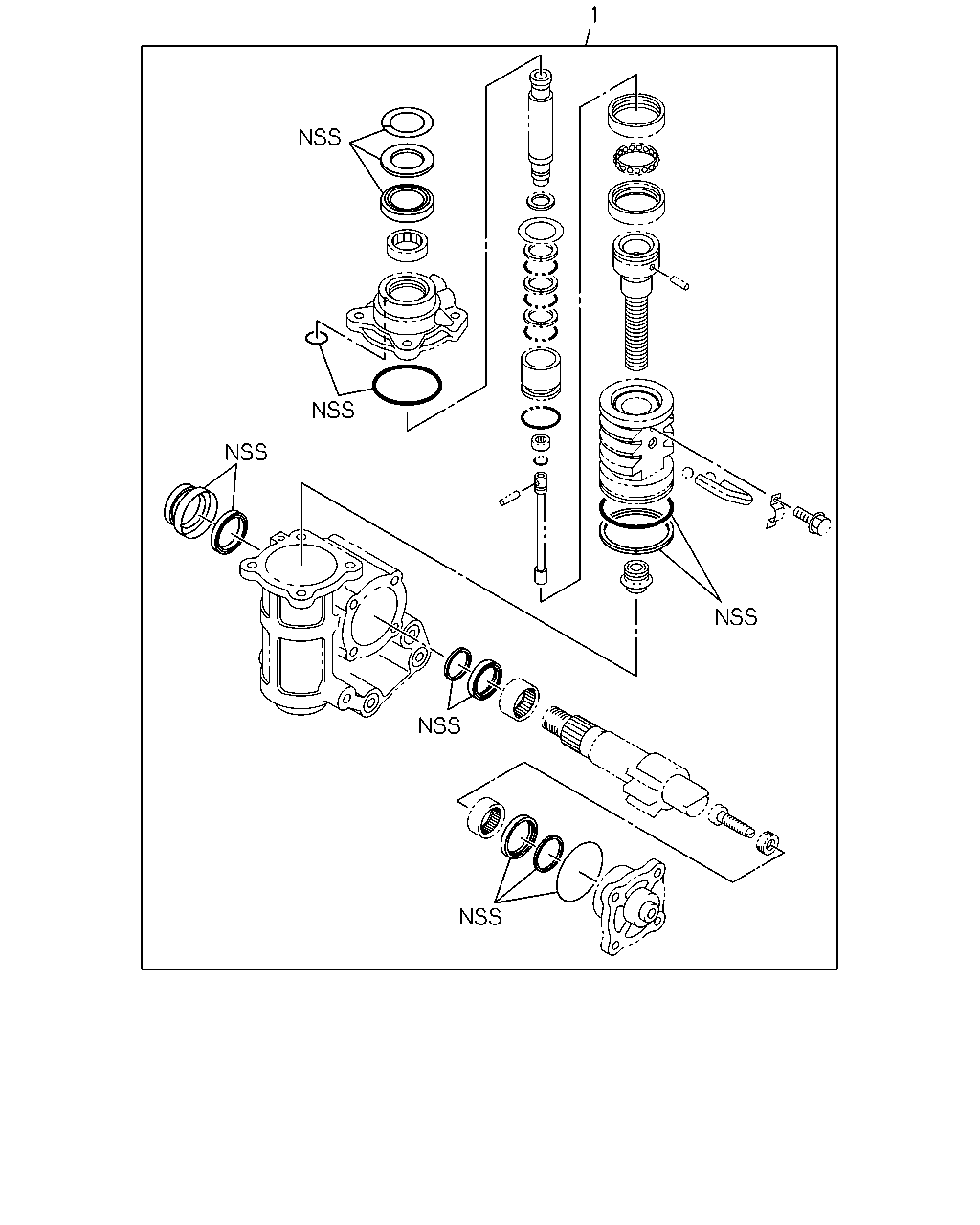

çizim 57639
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97287-197-8, 97287197 		8-98172-286-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
