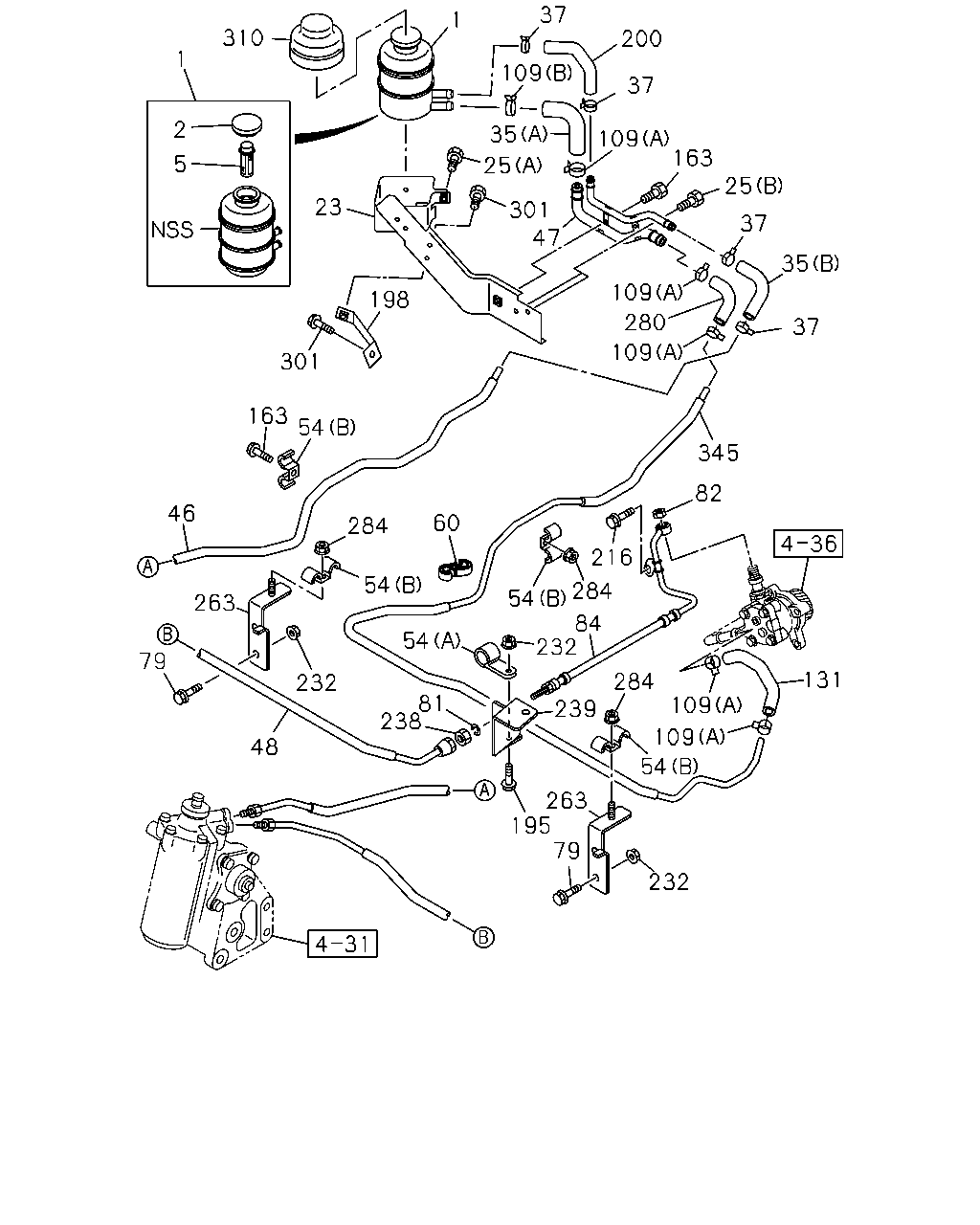

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#39080) — 42 parça

37 1 310 200 1 109 37 2 35 109 163 5 25 25 23 301 47 37 35 109 198 280 37 109 301 163 54 345 82 46 60 284 216 54 284 54 84 232 263 54 79 131 284 232 81 238 109 239 109 48 54 263 195 79 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0608-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0608-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0608-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-97101-040-1	01	1	0608-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0608-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0608-	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97080-108-1	01	1	0608-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	0608-	●	●
37	01.762 CLIP; HOSE,P/S 04.930 ID=16	8-94238-568-0	04	1	0608-0911	●	●
37	01.762 CLIP; HOSE,P/S 03.162 ID=16	8-98008-098-0	04	1	0912-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98000-431-3	01	1	0608-	●	●
47	06.671 PIPE; RETURN	8-97378-860-0	01	1	0608-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98000-430-0	01	1	0608-	●	●
54	06.672 CLIP; OIL PIPE (A) ID=16 L=28	0-95235-556-0	01	1	0608-	●	●
54	06.672 CLIP; OIL PIPE (B) ID=13 & 18 L=17 & 19	8-98008-128-1	04	1	0608-	●	●
60	06.672 CLAMP; PIPE,RETURN ID=12 & 15	1-09709-281-1	01	1	0608-	●	●
79	06.672 BOLT; BRKT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0608-	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0608-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0608-	●	●
84	06.670 HOSE; FLEX,P/S	8-98019-991-2	01	1	0608-	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	05	1	0608-0911	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	05	1	0912-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0608-1003	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●
131	06.673 HOSE; RUBBER,P/S	8-98030-736-2	01	1	0608-	●	●
163	06.671 BOLT; OIL PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0608-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0608-	●	●
195	06.635 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0608-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0608-	●	●
200	06.670 HOSE; RUBBER,RETURN	8-97080-109-0	01	1	0608-	●	●
216	06.672 BOLT; FLEX HOSE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0608-	●	●
232	06.672 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	03	1	0608-	●	●
238	06.670 NUT; FLEX HOSE 06.897 M16	8-94370-339-0	01	1	0608-	●	●
239	06.606 BRACKET; FLEX HOSE	8-98000-616-1	01	1	0608-	●	●
263	06.672 BRACKET; P/S PIPE	8-98000-497-2	02	1	0608-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98000-700-0	01	1	0608-1008	●	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98171-278-0	01	1	1009-	●	●
284	06.670 NUT; PIPE 01.062 M6 FLANGE	0-91180-106-0	03	1	0608-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0608-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0608-	●	●
345	06.671 PIPE; OIL,FLEX HOSE TO PUMP 06.670	8-98004-738-5	01	1	0608-0712	●	●
345	06.671 PIPE; OIL,FLEX HOSE TO PUMP	8-98087-846-0	01	1	0801-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
