4-30 — STEERING WHEEL AND COWL (#39077) — 13 parça

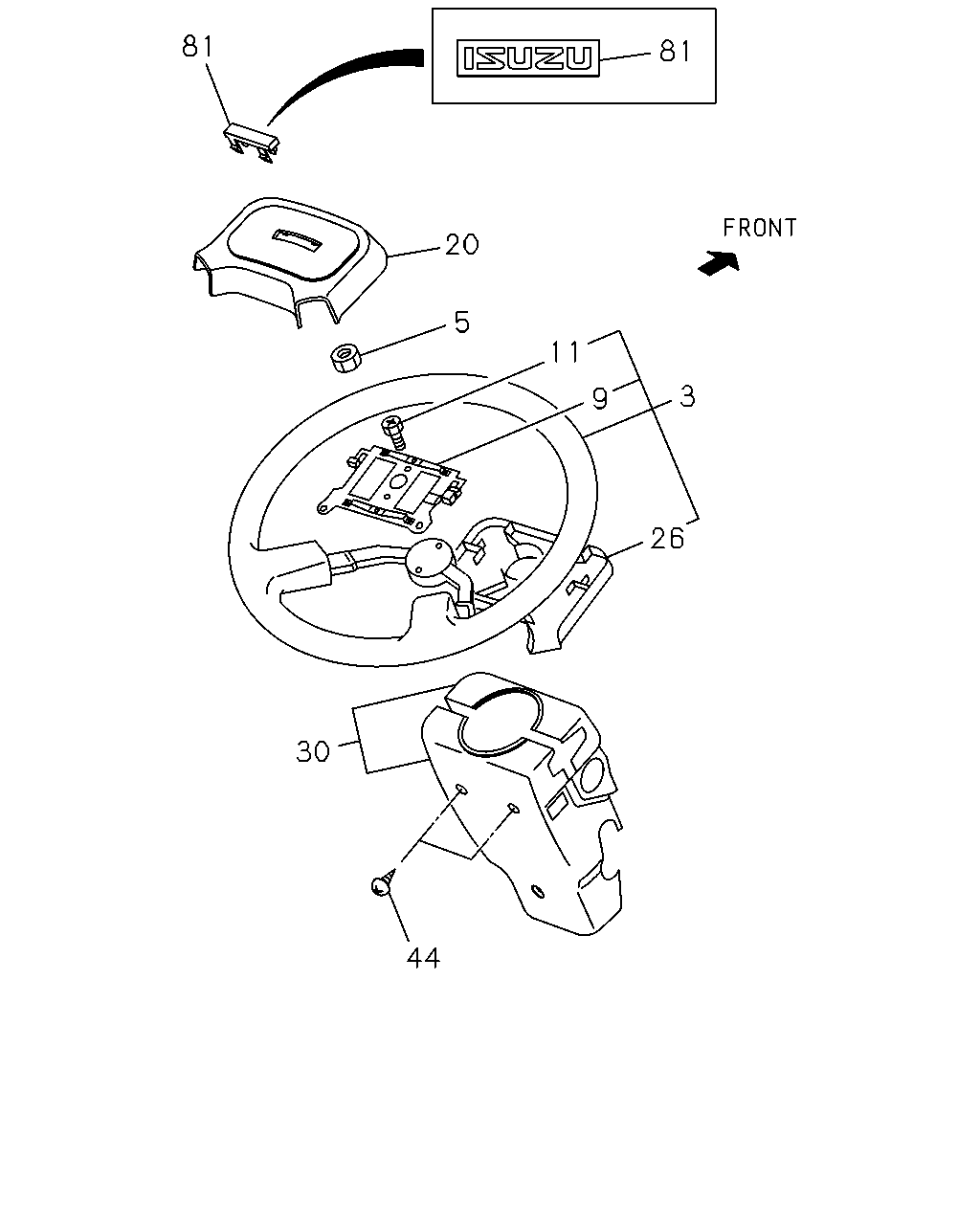

çizim 56449
81 81 20 5 11 3 9 26 30 44
BalonParca AdiParca NoAdetTipApplied Date A B
3 06.513 WHEEL; STRG
DARK GRAY 		8-97400-081-2 01 1 0608- ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0608- ● ●
9 02.819 PLATE; HORN CONTACT 8-97076-688-1 01 1 0608- ● ●
11 06.514 SCREW; PLATE TO BUTTON 8-97076-690-1 01 1 0608- ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97400-049-0 01 1 0608- ● ●
26 06.514 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97400-089-1 01 1 0608- ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK GRAY 		8-97588-867-7 01 1 0608- ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-825-8 01 1 0608- ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-824-8 01 1 0608- ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97587-492-7 01 1 0608- ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0608-0612 ● ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 02 1 0701- ● ●
81 02.820 EMBLEM; STRG WHEEL
DARK GRAY 		8-97400-060-0 01 1 0608- ● ●
