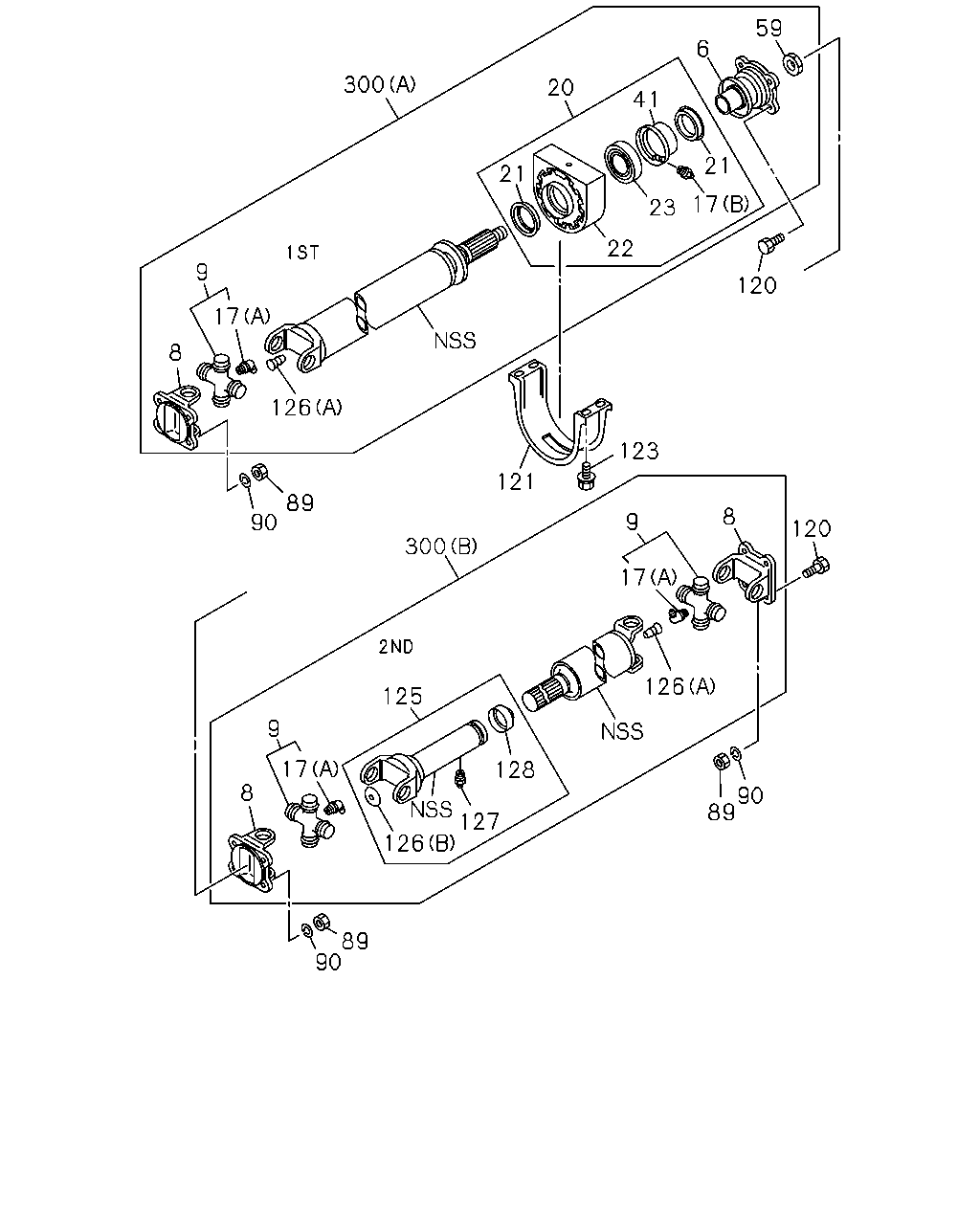

4-01 — PROPELLER SHAFT (#39072) — 67 parça

59 6 300 20 41 21 21 17 23 22 9 120 17 8 126 123 121 89 90 8 9 120 300 17 126 125 9 17 128 8 127 126 90 89 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT M/T MYY6S(RST)	8-97036-123-0	01	1	0608-	●
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT M/T MYY5T(RSM)	8-97036-123-0	01	1	0608-		●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MYY6S(RST)	8-97322-663-0	01	1	0608-	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MYY5T(RSM)	8-97322-663-0	01	1	0608-		●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MYY6S(RST)	8-97322-663-0	02	1	0608-	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MYY5T(RSM)	8-97322-663-0	02	1	0608-		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY6S(RST)	8-97322-749-0	01	1	0608-0612	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY5T(RSM)	8-97322-749-0	01	1	0608-0612		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY6S(RST)	8-98033-605-0	01	1	0701-	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY5T(RSM)	8-98033-605-0	01	1	0701-		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY6S(RST)	8-97322-749-0	02	1	0608-0612	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY5T(RSM)	8-97322-749-0	02	1	0608-0612		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY6S(RST)	8-98033-605-0	02	1	0701-	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY5T(RSM)	8-98033-605-0	02	1	0701-		●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY6S(RST) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0608-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0608-		●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY6S(RST) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0608-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0608-		●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY6S(RST) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0608-0608	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0608-0608		●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY6S(RST) (B) M6 STRAIGHT	0-90301-406-0	01	1	0608-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) (B) M6 STRAIGHT	0-90301-406-0	01	1	0608-		●
20	05.600 BEARING ASM; CTR,PROP SHAFT M/T MYY6S(RST) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-1	01	1	0608-0702	●
20	05.600 BEARING ASM; CTR,PROP SHAFT M/T MYY5T(RSM) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-1	01	1	0608-0702		●
20	05.600 BEARING ASM; CTR,PROP SHAFT M/T MYY6S(RST)	8-98020-880-0	01	1	0703-	●
20	05.600 BEARING ASM; CTR,PROP SHAFT M/T MYY5T(RSM)	8-98020-880-0	01	1	0703-		●
21	05.590 SEAL; OIL,CENTER BRG M/T MYY6S(RST) 05.601 ID=49	5-09625-067-1	02	1	0608-	●
21	05.590 SEAL; OIL,CENTER BRG M/T MYY5T(RSM) 05.601 ID=49	5-09625-067-1	02	1	0608-		●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST M/T MYY6S(RST)	5-37516-005-2	01	1	0608-0612	●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST M/T MYY5T(RSM)	5-37516-005-2	01	1	0608-0612		●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST M/T MYY6S(RST)	8-98020-875-0	01	1	0701-	●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST M/T MYY5T(RSM)	8-98020-875-0	01	1	0701-		●
23	05.600 BEARING; CENTER,PROP SHAFT M/T MYY6S(RST) OD=80	5-09800-068-0	01	1	0608-	●
23	05.600 BEARING; CENTER,PROP SHAFT M/T MYY5T(RSM) OD=80	5-09800-068-0	01	1	0608-		●
41	05.601 COVER; CENTER BRG,PROP SHAFT M/T MYY6S(RST)	5-37512-004-0	01	1	0608-0612	●
41	05.601 COVER; CENTER BRG,PROP SHAFT M/T MYY5T(RSM)	5-37512-004-0	01	1	0608-0612		●
41	05.601 COVER; CENTER BRG,PROP SHAFT M/T MYY6S(RST)	8-98020-795-0	01	1	0701-	●
41	05.601 COVER; CENTER BRG,PROP SHAFT M/T MYY5T(RSM)	8-98020-795-0	01	1	0701-		●
59	05.586 NUT; RET TO SUPPORT M/T MYY6S(RST) 04.412 M27 H=25	8-97253-126-0	01	1	0608-0612	●
59	05.586 NUT; RET TO SUPPORT M/T MYY5T(RSM) 04.412 M27 H=25	8-97253-126-0	01	1	0608-0612		●
59	05.586 NUT; RET TO SUPPORT M/T MYY6S(RST) 04.525 M27 H=25	8-97360-410-0	01	1	0701-	●
59	05.586 NUT; RET TO SUPPORT M/T MYY5T(RSM) 04.525 M27 H=25	8-97360-410-0	01	1	0701-		●
89	05.586 NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	0608-0610	●	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-0	12	1	0611-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	12	1	0608-	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	0608-0610	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	08	1	0611-	●	●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0608-	●	●
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0608-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MYY6S(RST) L=183	8-97327-979-1	01	1	0608-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MYY5T(RSM) L=183	8-97327-979-1	01	1	0608-		●
126	05.556 PLUG; SPLINED YOKE M/T MYY6S(RST) (A)	1-09600-023-0	01	1	0608-	●
126	05.556 PLUG; SPLINED YOKE M/T MYY6S(RST) (A)	1-09600-023-0	01	1	0608-	●
126	05.556 PLUG; SPLINED YOKE M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0608-		●
126	05.556 PLUG; SPLINED YOKE M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0608-		●
126	05.556 PLUG; SPLINED YOKE M/T MYY6S(RST) (B)	8-94366-900-0	01	1	0608-	●
126	05.556 PLUG; SPLINED YOKE M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0608-		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE M/T MYY6S(RST) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0608-0608	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE M/T MYY5T(RSM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0608-0608		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE M/T MYY6S(RST) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0608-	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE M/T MYY5T(RSM) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0608-		●
128	05.586 SEAL; SLEEVE M/T MYY6S(RST)	8-97145-746-0	01	1	0608-	●
128	05.586 SEAL; SLEEVE M/T MYY5T(RSM)	8-97145-746-0	01	1	0608-		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY6S(RST) (A) L=719	8-97350-384-3	01	1	0608-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY6S(RST) (B) L=1075	8-97350-389-2	01	1	0608-	●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) (B) L=1075	8-97350-389-2	01	1	0608-		●
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) (A) L=774	8-97350-385-3	01	1	0608-		●
