3-60 — BRAKE PIPING; VACUUM (#39071) — 116 parça

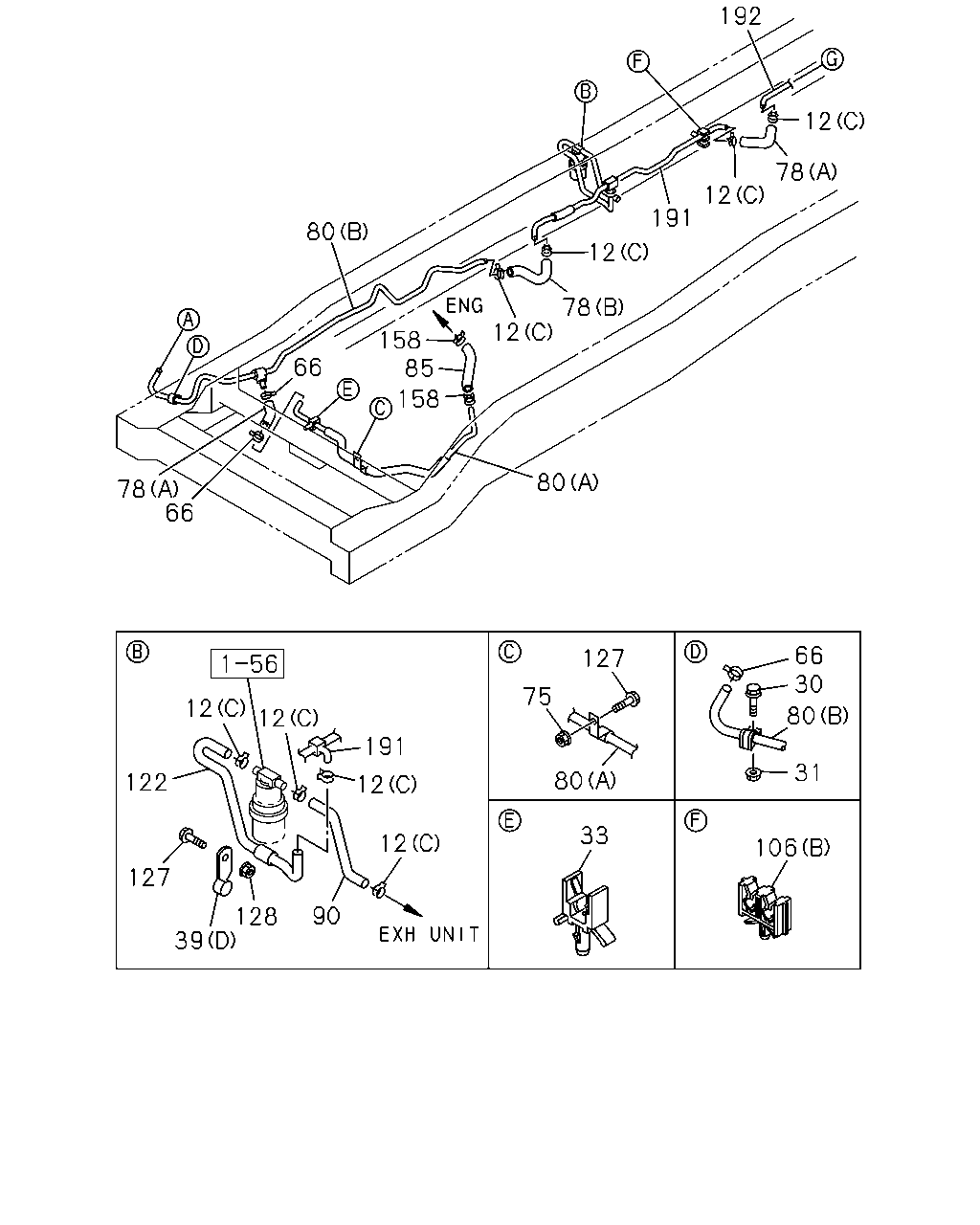

192 12 78 12 191 80 12 78 12 158 85 66 158 80 78 66 66 30 127 75 12 80 12 191 31 80 122 12 33 12 106 127 90 128 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	14	1	0608-0911	●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	14	1	0912-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0608-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5	8-94167-480-0	02	1	0608-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	02	1	0608-	●	●
12	04.681 CLIP; HOSE 02.559 (D) ID=28 L=60	1-09700-585-1	01	1	0608-		●
12	04.681 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	12	1	0608-0911		●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	12	1	0912-		●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0608-	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0608-	●	●
33	04.930 CLIP; VAC PIPE ID=10 H=40	8-94462-219-0	01	1	0608-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (D) ID=28 L=60	1-09700-585-1	01	1	0608-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	5-09707-023-2	02	1	0608-	●	●
39	04.681 CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0608-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	06	1	0608-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	03	1	0608-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	03	1	0608-0911	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	03	1	0912-	●	●
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE	0-91180-108-0	01	1	0608-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (A) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0608-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (A) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0608-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (B) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0608-	●	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98000-476-1	01	1	0608-	●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98002-194-2	01	1	0608-	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98000-702-2	01	1	0608-	●	●
90	04.931 HOSE; VAC,MAG VLV	8-98019-658-1	01	1	0608-	●	●
106	04.930 CLIP; PIPE (B) ID=10X2 H=47.5	8-97018-605-0	01	1	0608-	●
106	04.930 CLIP; PIPE (A) ID=10 H=40	8-94462-219-0	02	1	0608-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98019-657-2	01	1	0608-	●	●
127	04.930 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0608-	●	●
127	04.930 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0608-	●	●
127	04.930 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0608-		●
128	04.930 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0608-	●	●
128	04.930 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0608-		●
158	04.681 CLIP; HOSE 04.930 ID=16	8-94238-568-0	02	1	0608-0911	●	●
158	04.681 CLIP; HOSE 03.162 ID=16	8-98008-098-0	02	1	0912-	●	●
191	04.685 PIPE; VAC	8-98019-623-1	01	1	0608-	●	●
192	04.685 PIPE; VAC,HOSE TO MAG VLV	8-98006-634-3	01	1	0608-	●
192	04.685 PIPE; VAC,HOSE TO MAG VLV	8-98006-603-2	01	1	0608-		●

12 116 203 12 12 13 39 39 184 39 165 39 173 39 39 162 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	14	1	0608-0911	●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	14	1	0912-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0608-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5	8-94167-480-0	02	1	0608-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	02	1	0608-	●	●
12	04.681 CLIP; HOSE 02.559 (D) ID=28 L=60	1-09700-585-1	01	1	0608-		●
12	04.681 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	12	1	0608-0911		●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	12	1	0912-		●
13	04.681 JOINT; HOSE,VAC 04.686 (A) 3WAY	8-94441-184-0	01	1	0608-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	0608-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (D) ID=28 L=60	1-09700-585-1	01	1	0608-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	5-09707-023-2	02	1	0608-	●	●
39	04.681 CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0608-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	06	1	0608-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	03	1	0608-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-97314-596-1	01	1	0608-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0608-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97314-597-1	01	1	0608-	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-98000-392-0	01	1	0608-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97040-991-2	01	1	0608-	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0608-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0608-	●	●
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	0608-	●	●
202	04.686 SEAL EXC. POWER ASSIST CLUTCH(S2T) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0608-	●	●
203	04.690 VALVE; CHECK (B)	8-94386-540-0	01	1	0608-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (A)	8-94104-021-0	01	1	0608-	●	●

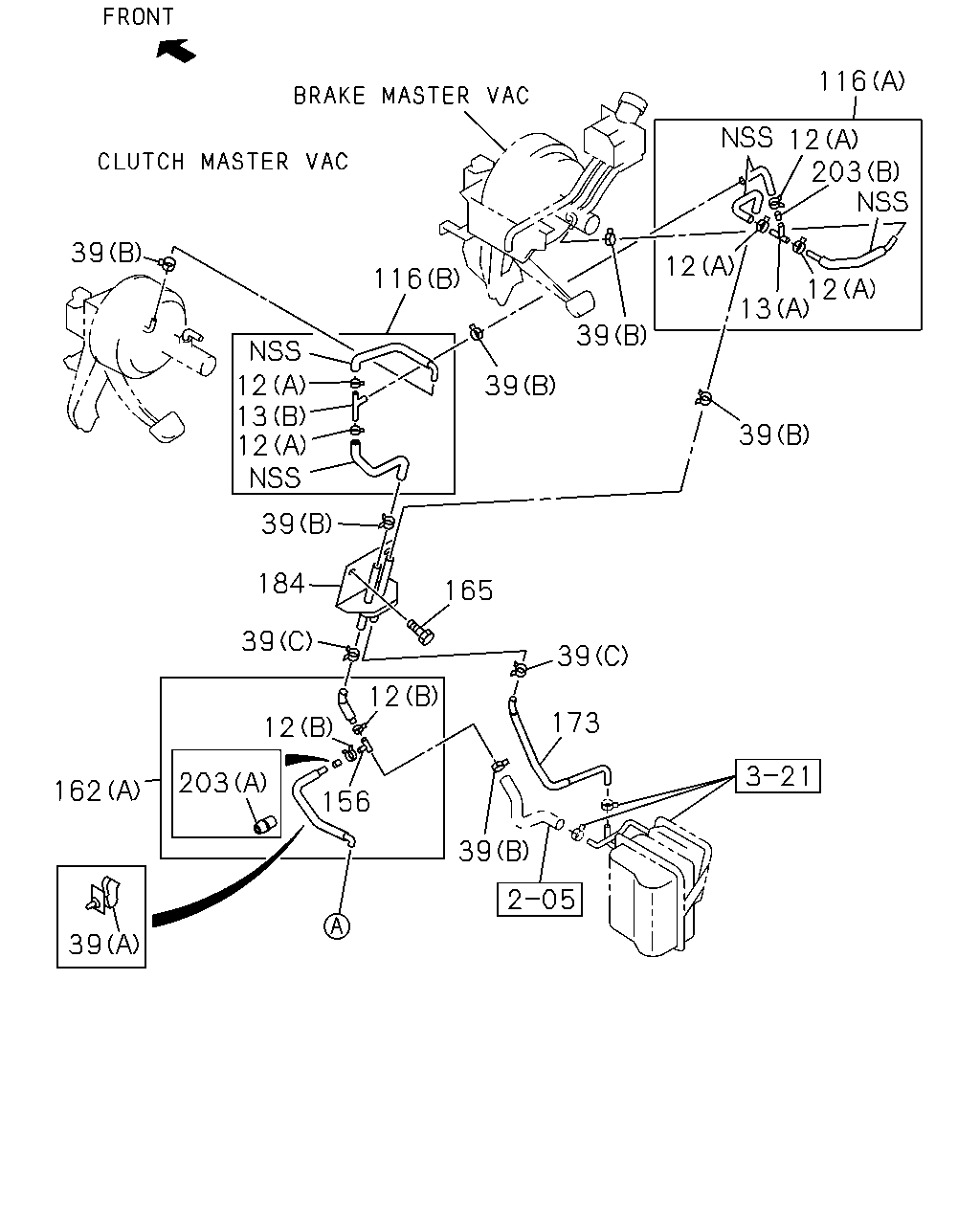

116 12 203 39 12 116 12 13 39 12 13 12 39 39 39 184 165 39 39 12 173 12 203 162 156 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	14	1	0608-0911	●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	14	1	0912-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0608-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5	8-94167-480-0	02	1	0608-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	02	1	0608-	●	●
12	04.681 CLIP; HOSE 02.559 (D) ID=28 L=60	1-09700-585-1	01	1	0608-		●
12	04.681 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	12	1	0608-0911		●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	12	1	0912-		●
13	04.681 JOINT; HOSE,VAC 04.686 (A) 3WAY	8-94441-184-0	01	1	0608-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	0608-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (D) ID=28 L=60	1-09700-585-1	01	1	0608-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	5-09707-023-2	02	1	0608-	●	●
39	04.681 CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0608-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	06	1	0608-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	03	1	0608-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-97314-596-1	01	1	0608-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0608-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97314-597-1	01	1	0608-	●	●
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 3WAY	8-94167-478-0	01	1	0608-	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-98000-392-0	01	1	0608-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97040-991-2	01	1	0608-	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0608-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0608-	●	●
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	0608-	●	●
203	04.690 VALVE; CHECK (B)	8-94386-540-0	01	1	0608-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (A)	8-94104-021-0	01	1	0608-	●	●

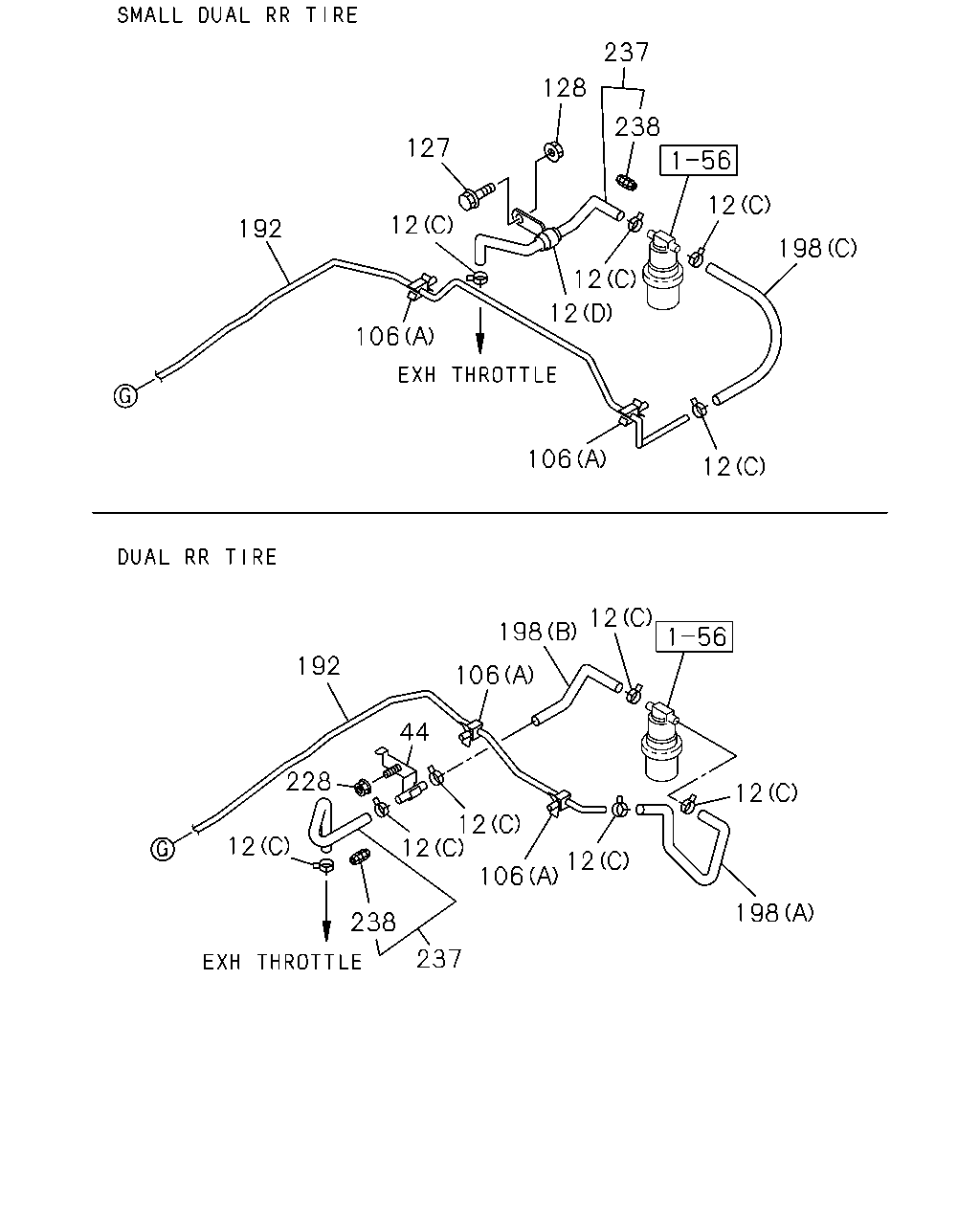

237 128 238 127 12 12 192 198 12 12 106 106 12 12 198 192 106 44 228 12 12 12 12 12 106 198 238 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	14	1	0608-0911	●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	14	1	0912-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0608-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5	8-94167-480-0	02	1	0608-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	02	1	0608-	●	●
12	04.681 CLIP; HOSE 02.559 (D) ID=28 L=60	1-09700-585-1	01	1	0608-		●
12	04.681 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	12	1	0608-0911		●
12	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	12	1	0912-		●
44	04.930 PIPE; VAC,MAG VLV	8-98019-530-1	01	1	0608-	●
106	04.930 CLIP; PIPE (B) ID=10X2 H=47.5	8-97018-605-0	01	1	0608-	●
106	04.930 CLIP; PIPE (A) ID=10 H=40	8-94462-219-0	02	1	0608-	●	●
127	04.930 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0608-	●	●
127	04.930 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0608-	●	●
127	04.930 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0608-		●
128	04.930 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0608-	●	●
128	04.930 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0608-		●
192	04.685 PIPE; VAC,HOSE TO MAG VLV	8-98006-634-3	01	1	0608-	●
192	04.685 PIPE; VAC,HOSE TO MAG VLV	8-98006-603-2	01	1	0608-		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV (A)	8-98036-849-0	01	1	0608-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV (B)	8-98036-850-0	01	1	0608-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 03.630 (C) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0608-		●
228	04.930 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0608-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE	8-98019-660-2	01	1	0608-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE	8-98019-659-0	01	1	0608-		●
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	0608-	●	●
