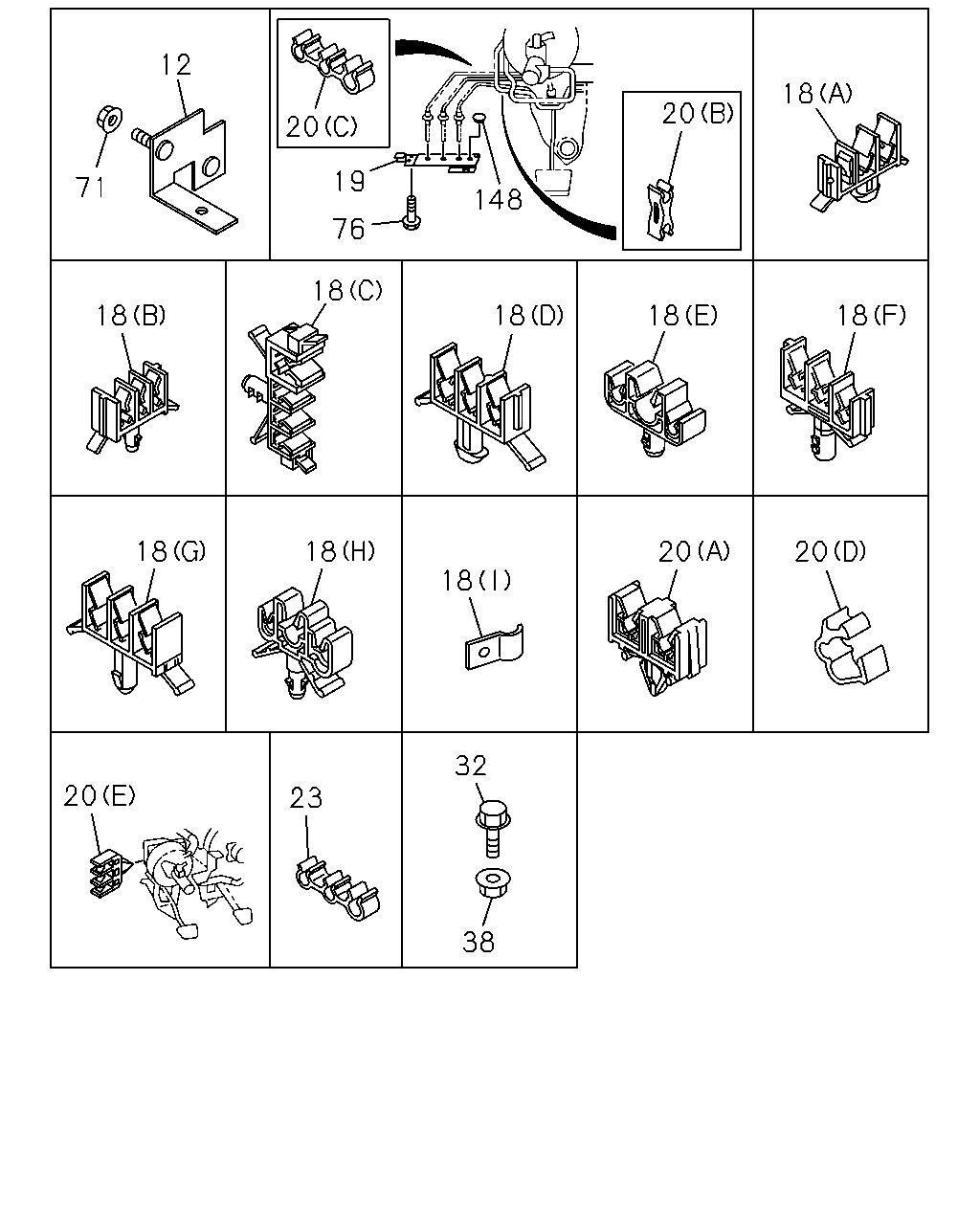

3-58 — FIXING PARTS; OIL PIPING
(#39070) — 27 parça
Tümü
A - NPC5SF
B - NPN5SF
12
18
20
20
148
19
71
76
18
18
18
18
18
18
18
20
20
18
32
20
23
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
04.686 BRACKET; OIL PIPE
8-98027-477-1
01
1
0608-
●
●
18
04.686 CLIP; BRK PIPE
(D) ID=6.5 & 4.8X2 H=35.5
8-94405-139-0
01
1
0608-
●
18
04.686 CLIP; BRK PIPE
(D) ID=6.5 & 4.8X2 H=35.5
8-94405-139-0
01
1
0608-
●
18
04.686 CLIP; BRK PIPE
(I) B=18 L=20
1-09700-372-0
02
1
0608-
●
●
18
04.686 CLIP; BRK PIPE
(A) ID=6.5 & 4.8X2 H=29
8-94249-689-2
03
1
0608-
●
●
18
04.686 CLIP; BRK PIPE
(H) ID=12 & 6.35 & 4.76
8-97202-954-1
02
1
0608-
●
●
18
04.686 CLIP; BRK PIPE
(H) ID=12 & 6.35 & 4.76
8-97202-954-1
02
1
0608-
●
●
18
04.686 CLIP; BRK PIPE
(E) ID=12 & 6.35 & 4.76
8-97305-169-1
01
1
0608-
●
●
18
04.686 CLIP; BRK PIPE
(B) ID=6.5 & 4.8X2
8-94131-710-2
01
1
0608-
●
●
18
04.686 CLIP; BRK PIPE
03.162 (F) ID=10 & 6.4 & 4.8
8-97064-484-1
01
1
0608-
●
●
18
04.686 CLIP; BRK PIPE
(A) ID=6.5 & 4.8X2 H=29
8-94249-689-2
02
1
0608-
●
●
18
04.686 CLIP; BRK PIPE
(G) ID=6.5 & 4.8X2
8-94424-234-0
01
1
0608-
●
●
18
04.686 CLIP; BRK PIPE
(C) ID=10 & 4.76X3
8-97326-158-1
02
1
0608-
●
●
18
04.686 CLIP; BRK PIPE
(C) ID=10 & 4.76X3
8-97326-158-1
08
1
0608-
●
●
18
04.686 CLIP; BRK PIPE
(D) ID=6.5 & 4.8X2 H=29
8-94249-689-2
01
1
0608-
●
19
04.686 BRACKET; OIL PIPE
8-97149-718-2
01
1
0608-
●
●
20
04.686 CLIP; BRK PIPE
(D) ID=6.35 & 4.76X2
8-94107-732-1
01
1
0608-
●
●
20
04.686 CLIP; BRK PIPE
(A) ID=4.8X2
8-94113-470-0
01
1
0608-
●
●
20
04.686 CLIP; BRK PIPE
(C) ID=6.4 & 4.8X2
8-94146-043-0
01
1
0608-
●
●
20
04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2
8-94241-454-0
01
1
0608-
●
●
20
04.686 CLIP; BRK PIPE
(E) ID=6.35 & 4.76X2
8-94250-923-2
01
1
0608-
●
●
23
04.686 CLAMP; PIPE
ID=6.4 & 4.8X2
8-94146-043-0
01
1
0608-
●
●
32
04.686 BOLT; CLIP,OIL PIPE
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0608-
●
●
38
04.686 NUT; CLIP FIX
01.062 M8 FLANGE
0-91180-108-0
02
1
0608-
●
●
71
04.686 NUT; BRKT
03.162 M10 FLANGE
0-91180-110-0
01
1
0608-
●
●
76
04.686 BOLT; BRKT,OIL PIPE
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0608-
●
●
148
04.686 GROMMET
03.483
8-94294-358-0
01
1
0608-
●
●
