3-52 — BRAKE PIPING; OIL,FRONT (#39068) — 23 parça

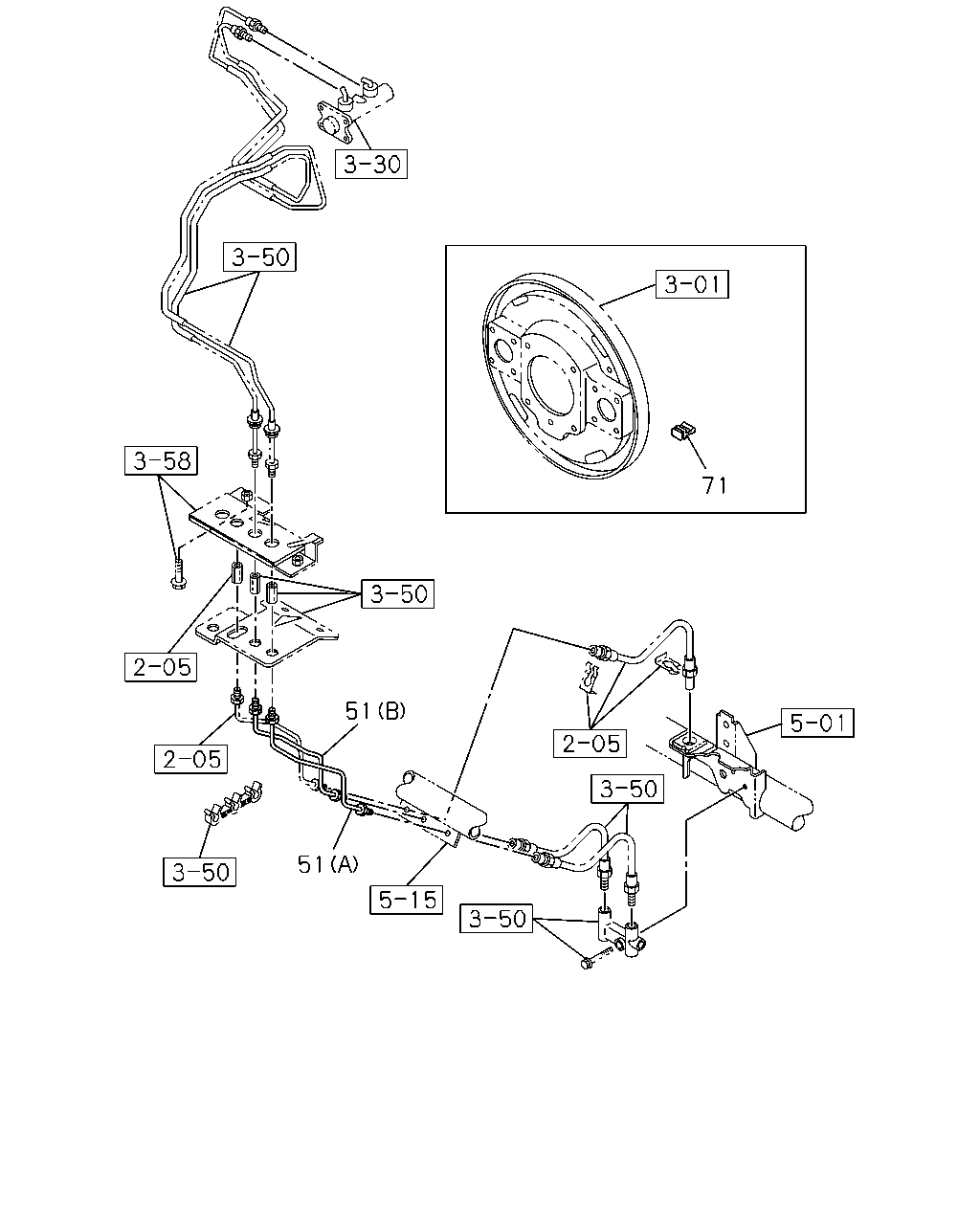

71 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	04.685 PIPE; BRK (A) FRONT	8-97209-514-0	01	1	0608-	●	●
51	04.685 PIPE; BRK (B) REAR	8-97209-515-0	01	1	0608-	●	●
71	04.686 GROMMET; OIL PIPE 05.002	9-09756-034-0	02	1	0608-	●

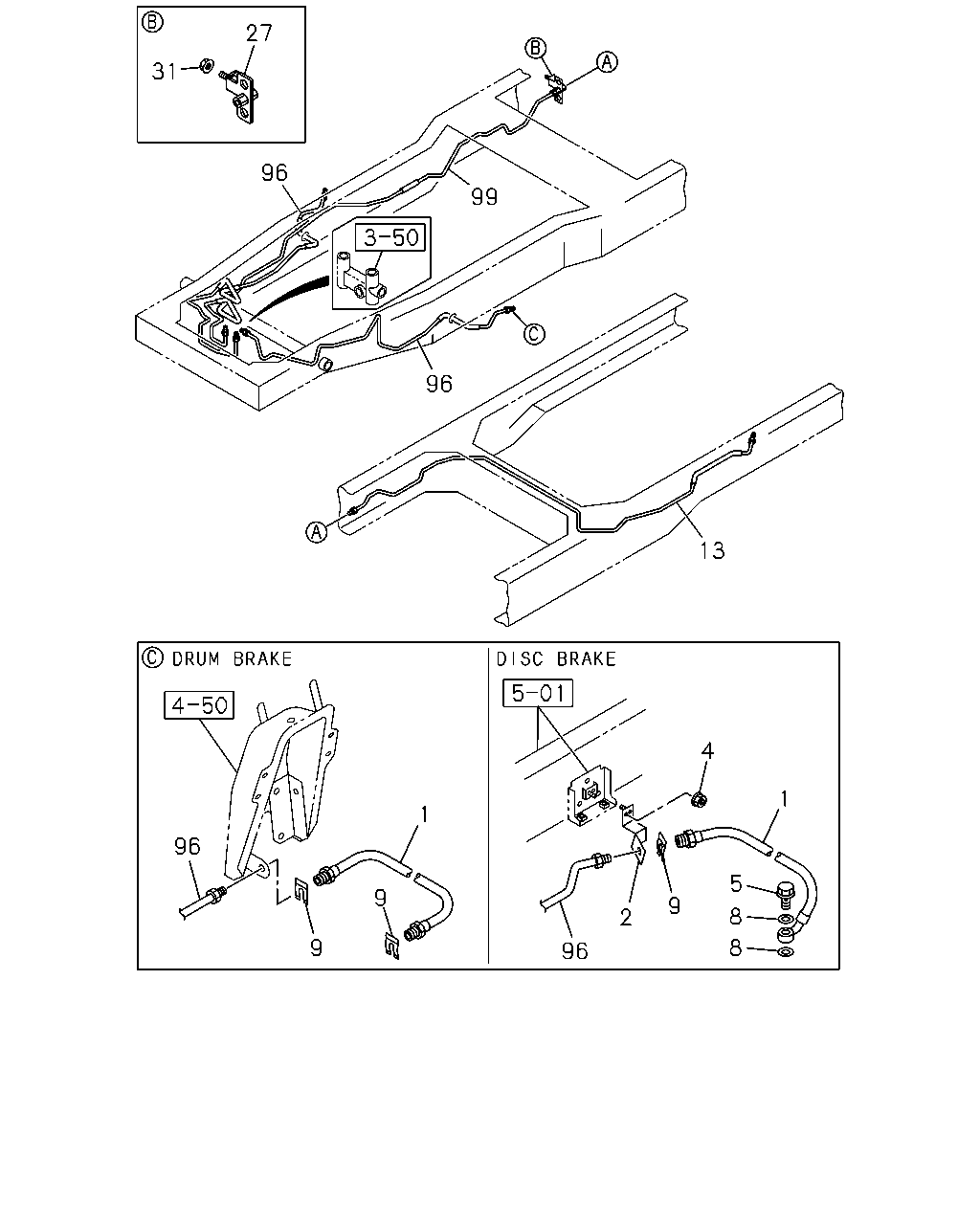

27 31 96 99 96 13 4 1 1 96 5 9 9 8 2 8 9 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.680 HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	0608-	●
1	04.680 HOSE; FLEX,FRT BRK	8-97365-481-0	02	1	0608-		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-97377-673-0	01	1	0608-		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-97377-672-0	01	1	0608-		●
4	04.686 NUT; FLEX HOSE BRKT,FRT BRK 01.062 M8 FLANGE	0-91180-108-0	02	1	0608-		●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-97381-454-0	02	1	0608-0610		●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-98014-005-0	02	1	0611-		●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	0608-		●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0608-0610	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0608-0610	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-	●
13	04.685 PIPE; OIL,UNION TO UNION	8-97325-778-1	01	1	0608-	●	●
27	04.686 UNION; BRK PIPE	8-97287-444-1	01	1	0608-	●	●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0608-	●	●
96	04.686 PIPE ASM; 6 WAY	8-98037-740-1	01	1	0608-	●
96	04.686 PIPE ASM; 6 WAY	8-98037-601-0	01	1	0608-	●
96	04.686 PIPE ASM; 6 WAY	8-98018-528-3	01	1	0608-		●
96	04.686 PIPE ASM; 6 WAY	8-98037-600-0	01	1	0608-		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-98037-603-0	01	1	0608-	●	●
