Isuzu WW
▶
TRUCKS
▶
NPR
▶
51124 - NPR/NQR(RHD) EURO4
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#39063) — 36 parça
Tümü
A - NPC5SF
B - NPN5SF
◀

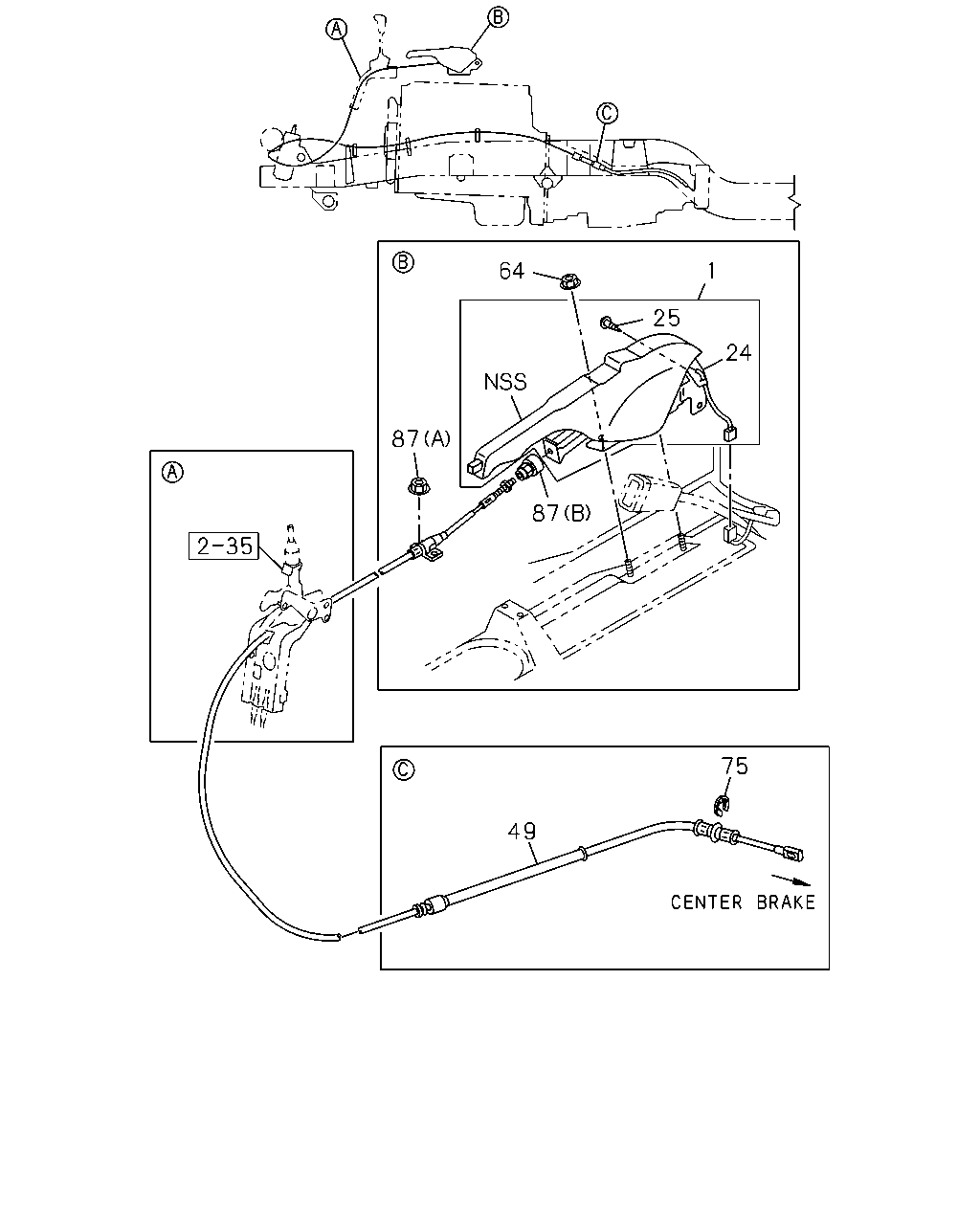

[311A] STEM AND CABLE (12 parça)
[311A] FIXING PARTS (24 parça)
▶
64
1
25
24
87
87
75
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97582-333-2
01
1
0608-0610
●
●
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97409-386-0
01
1
0611-
●
●
24
04.589 SWITCH ASM; PARK BRK
8-97995-828-1
01
1
0608-
●
●
25
04.589 SCREW; SW,PARKING BRK
8-98152-463-0
01
1
0608-
●
●
49
04.779 CABLE; PARKING BRK
M/T MYY6S(RST)
8-98019-996-1
01
1
0608-
●
49
04.779 CABLE; PARKING BRK
M/T MYY5T(RSM)
8-98019-993-1
01
1
0608-
●
64
04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER
8-94327-073-0
02
1
0608-0610
●
●
64
04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE
0-91380-008-0
02
1
0611-
●
●
75
04.790 RING; SNAP,HAND BRK CABLE
ID=12
0-91805-512-0
01
1
0608-
●
●
87
04.785 NUT
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
0608-
●
●
87
04.785 NUT
(B) M6
1-71996-312-0
01
1
0608-0611
●
●
87
04.785 NUT
(B) M6
8-98034-313-1
01
1
0612-
●
●
49
224
224
333
223
225
181
324
324
241
225
223
224
223
181
241
324
324
225
334
224
223
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
49
04.779 CABLE; PARKING BRK
M/T MYY6S(RST)
8-98019-996-1
01
1
0608-
●
49
04.779 CABLE; PARKING BRK
M/T MYY5T(RSM)
8-98019-993-1
01
1
0608-
●
181
04.785 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0608-
●
●
181
04.785 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0608-
●
●
223
04.785 CLIP; PARKING BRK CABLE
(D) ID=19 L=50
0-95235-886-0
01
1
0608-
●
●
223
04.785 CLIP; PARKING BRK CABLE
(A) ID=14.5 H=23 L=30
1-09700-859-0
01
1
0608-
●
●
223
04.785 CLIP; PARKING BRK CABLE
04.047 (B)
8-97036-333-1
01
1
0608-
●
●
223
04.785 CLIP; PARKING BRK CABLE
04.047 (C)
8-97039-517-1
01
1
0608-
●
●
224
04.785 BOLT; CABLE CLIP
01.531 M8X20 FLANGE
0-28650-820-0
01
1
0608-
●
●
224
04.785 BOLT; CABLE CLIP
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0608-
●
●
224
04.785 BOLT; CABLE CLIP
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0608-
●
●
224
04.785 BOLT; CABLE CLIP
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0608-
●
●
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
0608-
●
●
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
0608-
●
●
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
0608-
●
●
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
0608-
●
●
241
04.785 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0608-
●
241
04.785 NUT; BRKT
03.162 M10 FLANGE
0-91180-110-0
01
1
0608-
●
●
324
04.785 BRACKET
00.854 (B)
8-97288-446-0
01
1
0608-
●
●
324
04.785 BRACKET
(A)
8-98021-017-1
01
1
0608-
●
●
324
04.785 BRACKET
(C)
8-98024-540-1
01
1
0608-
●
●
324
04.785 BRACKET
(D)
8-98037-154-0
01
1
0608-
●
●
333
04.785 CLIP; CABLE
04.047
8-97036-333-1
01
1
0608-
●
●
334
04.785 PROTECTOR; EDGE
L=200
8-97096-423-0
01
1
0608-
●
●
