◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51124 - NPR/NQR(RHD) EURO4 ▶ 3 - Brakes, Brake System ▶ 3-08 - PARKING BRAKE ▶
3-08 — PARKING BRAKE (#39061) — 56 parça

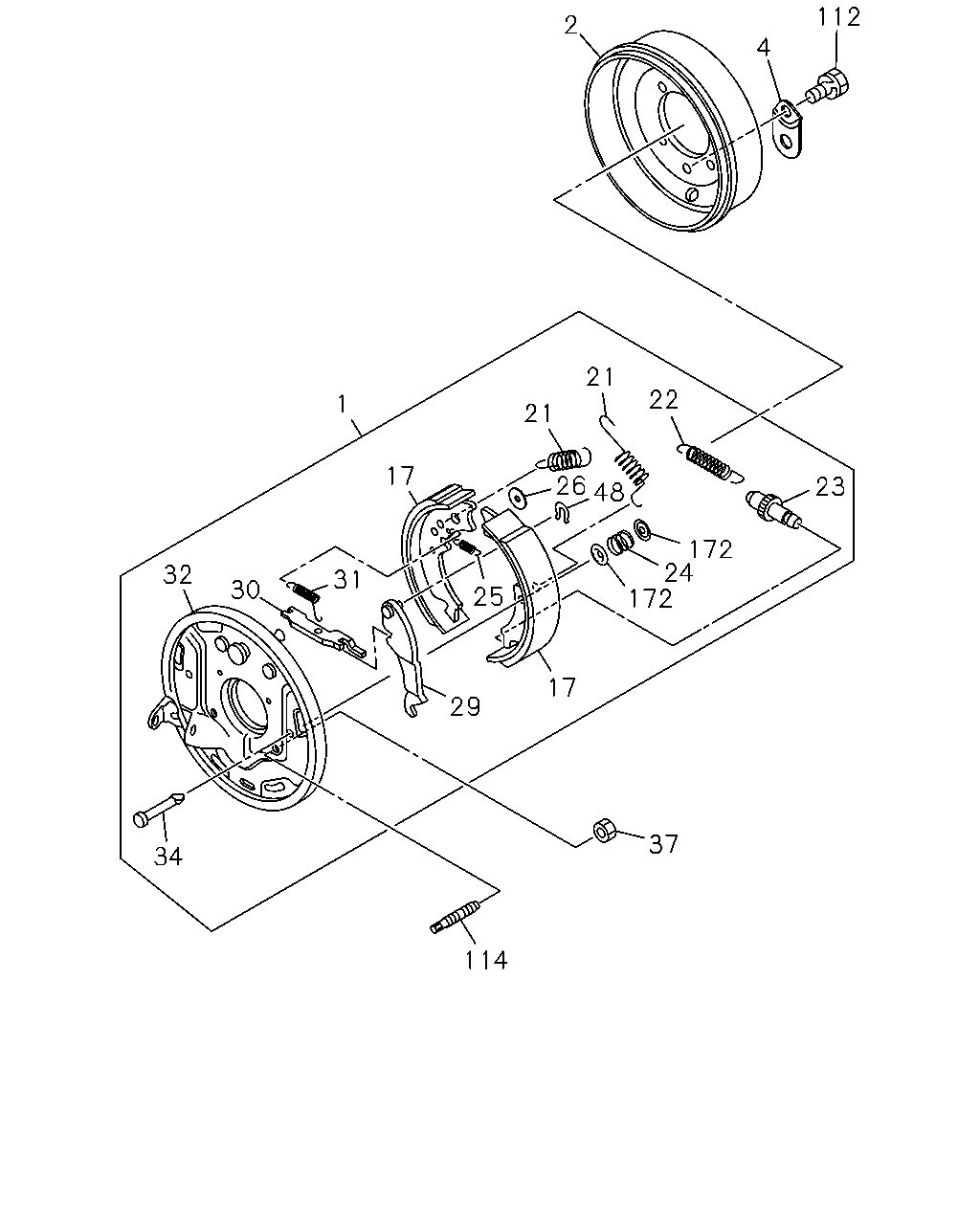

çizim 58782
112 2 4 21 22 1 21 17 26 48 23 172 24 172 31 32 30 25 17 29 37 34 114
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.610 BRAKE ASM; CENTER,PARKING
M/T MYY6S(RST) 		8-97308-175-0 01 1 0608-0611 ●
1 05.610 BRAKE ASM; CENTER,PARKING
M/T MYY5T(RSM) 		8-97308-175-0 01 1 0608-0611 ●
1 05.610 BRAKE ASM; CENTER,PARKING
M/T MYY6S(RST) 		8-98029-922-0 01 1 0612- ●
1 05.610 BRAKE ASM; CENTER,PARKING
M/T MYY5T(RSM) 		8-98029-922-0 01 1 0612- ●
2 05.605 DRUM; PARKING BRK
M/T MYY6S(RST) 		8-97033-989-1 01 1 0608- ●
2 05.605 DRUM; PARKING BRK
M/T MYY5T(RSM) 		8-97033-989-1 01 1 0608- ●
4 05.606 COVER; ADJ HOLE
M/T MYY6S(RST) 		8-98029-820-0 01 1 0608- ●
4 05.606 COVER; ADJ HOLE
M/T MYY5T(RSM) 		8-98029-820-0 01 1 0608- ●
17 05.606 SHOE; PARKING BRK
M/T MYY6S(RST) 		8-97020-250-2 02 1 0608- ●
17 05.606 SHOE; PARKING BRK
M/T MYY5T(RSM) 		8-97020-250-2 02 1 0608- ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MYY6S(RST) 05.605 		8-94132-157-0 02 1 0608- ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MYY5T(RSM) 05.605 		8-94132-157-0 02 1 0608- ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
M/T MYY6S(RST) 05.605 		8-94107-618-0 01 1 0608- ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
M/T MYY5T(RSM) 05.605 		8-94107-618-0 01 1 0608- ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MYY6S(RST) 		5-47165-025-0 01 1 0608-0611 ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MYY5T(RSM) 		5-47165-025-0 01 1 0608-0611 ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MYY6S(RST) 		8-98043-954-0 01 1 0612- ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MYY5T(RSM) 		8-98043-954-0 01 1 0612- ●
24 05.605 SPRING; BRK SHOE
M/T MYY6S(RST) 		8-94132-155-1 02 1 0608- ●
24 05.605 SPRING; BRK SHOE
M/T MYY5T(RSM) 		8-94132-155-1 02 1 0608- ●
25 05.605 SPRING; SHOE ALIGNMENT
M/T MYY6S(RST) 		8-94132-156-0 01 1 0608- ●
25 05.605 SPRING; SHOE ALIGNMENT
M/T MYY5T(RSM) 		8-94132-156-0 01 1 0608- ●
26 05.605 PLATE; SHOE GUIDE
M/T MYY6S(RST) 		9-09851-986-0 01 1 0608-0611 ●
26 05.605 PLATE; SHOE GUIDE
M/T MYY5T(RSM) 		9-09851-986-0 01 1 0608-0611 ●
26 05.605 PLATE; SHOE GUIDE
M/T MYY6S(RST) 		8-98043-959-0 01 1 0612- ●
26 05.605 PLATE; SHOE GUIDE
M/T MYY5T(RSM) 		8-98043-959-0 01 1 0612- ●
29 04.591 LEVER; PARKING BRK
M/T MYY6S(RST) 05.605 		8-97027-125-0 01 1 0608-0611 ●
29 04.591 LEVER; PARKING BRK
M/T MYY5T(RSM) 05.605 		8-97027-125-0 01 1 0608-0611 ●
29 04.591 LEVER; PARKING BRK
M/T MYY6S(RST) 		8-98043-949-0 01 1 0612- ●
29 04.591 LEVER; PARKING BRK
M/T MYY5T(RSM) 		8-98043-949-0 01 1 0612- ●
30 05.605 STRUT; PARKING BRK
M/T MYY6S(RST) 		8-94311-779-0 01 1 0608-0611 ●
30 05.605 STRUT; PARKING BRK
M/T MYY5T(RSM) 		8-94311-779-0 01 1 0608-0611 ●
30 05.605 STRUT; PARKING BRK
M/T MYY6S(RST) 		8-98043-953-0 01 1 0612- ●
30 05.605 STRUT; PARKING BRK
M/T MYY5T(RSM) 		8-98043-953-0 01 1 0612- ●
31 05.605 SPRING; SHOE TO STRUT
M/T MYY6S(RST) 		8-94132-158-0 01 1 0608- ●
31 05.605 SPRING; SHOE TO STRUT
M/T MYY5T(RSM) 		8-94132-158-0 01 1 0608- ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MYY6S(RST) 		8-97308-176-0 01 1 0608- ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MYY5T(RSM) 		8-97308-176-0 01 1 0608- ●
34 05.605 PIN; BRK SHOE
M/T MYY6S(RST) 		8-94132-159-0 02 1 0608-0611 ●
34 05.605 PIN; BRK SHOE
M/T MYY5T(RSM) 		8-94132-159-0 02 1 0608-0611 ●
34 05.605 PIN; BRK SHOE
M/T MYY6S(RST) 		8-98043-955-0 02 1 0612- ●
34 05.605 PIN; BRK SHOE
M/T MYY5T(RSM) 		8-98043-955-0 02 1 0612- ●
37 05.610 NUT; SUPPORT PLATE
M/T MYY6S(RST) M12 LOCK NUT 		8-98029-927-0 04 1 0608- ●
37 05.610 NUT; SUPPORT PLATE
M/T MYY5T(RSM) M12 LOCK NUT 		8-98029-927-0 04 1 0608- ●
48 05.605 RETAINER; PIN,PARKING BRK
M/T MYY6S(RST) 05.158 		9-46349-005-1 01 1 0608-0611 ●
48 05.605 RETAINER; PIN,PARKING BRK
M/T MYY5T(RSM) 05.158 		9-46349-005-1 01 1 0608-0611 ●
48 05.605 RETAINER; PIN,PARKING BRK
M/T MYY6S(RST) 		8-98043-958-0 01 1 0612- ●
48 05.605 RETAINER; PIN,PARKING BRK
M/T MYY5T(RSM) 		8-98043-958-0 01 1 0612- ●
112 05.606 BOLT; COVER TO BRK DRUM
M/T MYY6S(RST) 00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 0608- ●
112 05.606 BOLT; COVER TO BRK DRUM
M/T MYY5T(RSM) 00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 0608- ●
114 05.605 STUD; SUPPORT PLATE
M/T MYY6S(RST) 		8-98029-929-0 04 1 0608- ●
114 05.605 STUD; SUPPORT PLATE
M/T MYY5T(RSM) 		8-98029-929-0 04 1 0608- ●
172 05.605 CUP; SHOE HOLD
M/T MYY6S(RST) 05.043 		9-47162-033-0 04 1 0608-0611 ●
172 05.605 CUP; SHOE HOLD
M/T MYY5T(RSM) 05.043 		9-47162-033-0 04 1 0608-0611 ●
172 05.605 CUP; SHOE HOLD
M/T MYY6S(RST) 		8-98043-956-0 04 1 0612- ●
172 05.605 CUP; SHOE HOLD
M/T MYY5T(RSM) 		8-98043-956-0 04 1 0612- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
