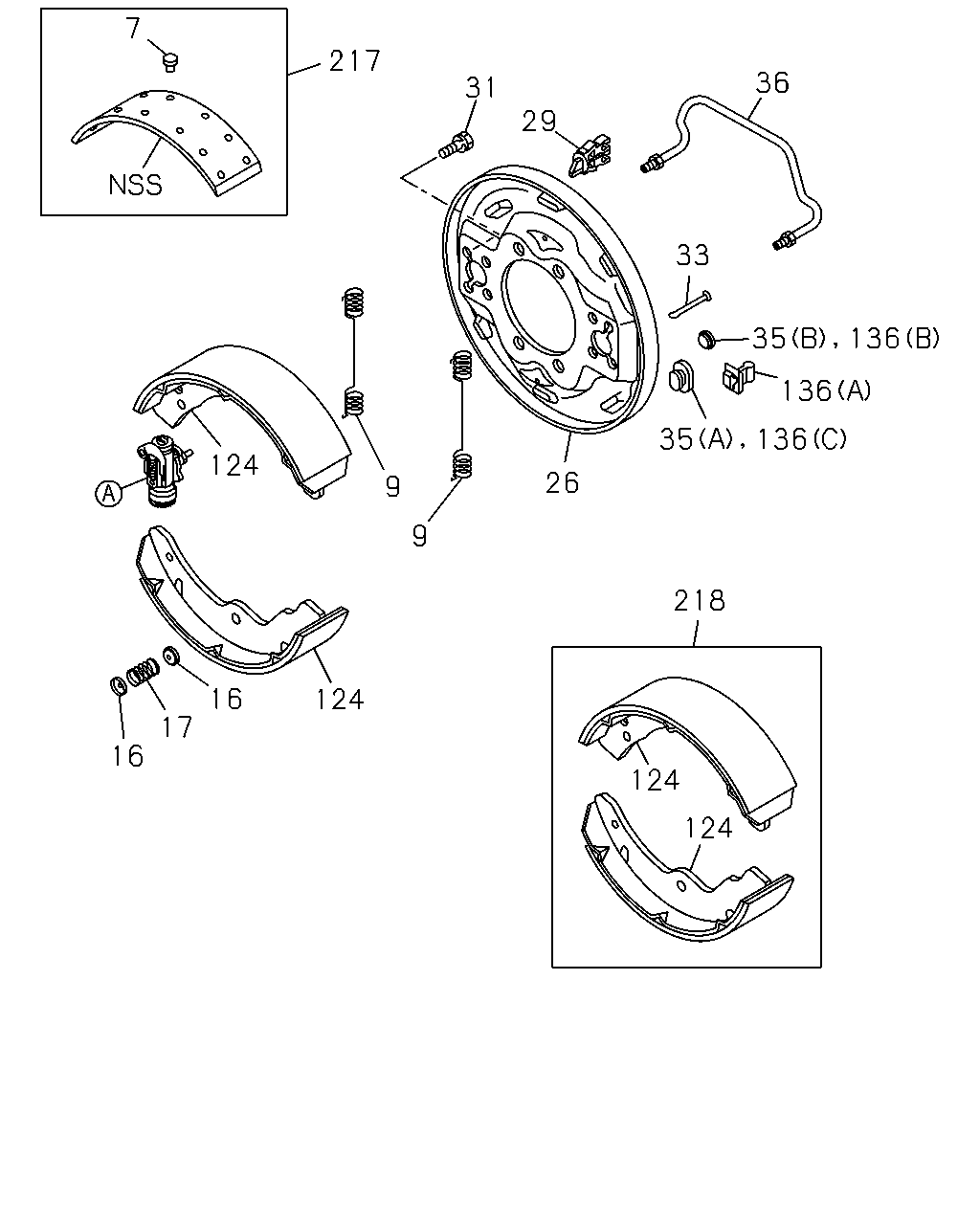

3-05 — REAR WHEEL BRAKE (#39060) — 62 parça
çizim 56650
7 217 36 31 29 33 136 35 136 35 136 124 26 9 9 218 16 124 17 16 124 124
BalonParca AdiParca NoAdetTipApplied Date A B
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 40 1 0608- ●
9 05.026 SPRING; RETURN,BRK SHOE 5-09583-118-0 04 1 0608- ●
9 05.026 SPRING; RETURN,BRK SHOE 8-94438-227-0 04 1 0608- ●
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0608- ●
16 05.043 CUP; SHOE HOLDING 9-47162-033-0 08 1 0608- ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 0608- ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		9-09940-989-1 04 1 0608- ●
26 05.001 PLATE; BACK,RR BRK 8-97078-606-0 01 1 0608- ●
26 05.001 PLATE; BACK,RR BRK 8-97078-605-0 01 1 0608- ●
26 05.001 PLATE; BACK,RR BRK 8-97079-853-0 01 1 0608- ●
26 05.001 PLATE; BACK,RR BRK 8-97079-852-0 01 1 0608- ●
29 04.685 CLIP; PIPE,BRK 8-94128-306-0 02 1 0608- ●
31 04.665 BOLT; RR WHEEL CYL 5-09030-016-1 16 1 0608- ● ●
33 05.043 PIN; SHOE HOLD DOWN 5-47162-001-0 04 1 0608- ●
33 05.043 PIN; SHOE HOLD DOWN
L=52 		9-47162-045-0 04 1 0608- ●
35 05.002 GROMMET; CHECK HOLE
(A) 		8-94171-287-0 02 1 0608- ●
35 05.002 GROMMET; CHECK HOLE
(B) 		8-94438-228-0 04 1 0608- ●
36 04.685 PIPE; OIL,RR BRK 8-94154-916-0 02 1 0608- ●
36 04.685 PIPE; OIL,RR BRK 8-94438-145-0 02 1 0608- ●
124 05.017 SHOE ASM; BRK,RR 8-97287-778-0 04 1 0608- ●
124 05.017 SHOE ASM; BRK,RR 8-97217-753-0 04 1 0608- ●
136 05.002 GROMMET
(A) 		9-09756-034-0 04 1 0608- ●
136 05.002 GROMMET
(C) 		8-94171-287-0 04 1 0608- ●
136 05.002 GROMMET
(B) 		8-94438-228-0 04 1 0608- ●
217 05.018 LINING KIT; RR BRK 5-87831-801-0 01 1 0608- ●
218 05.017 SHOE KIT; BRK,RR 5-87832-047-0 01 1 0608- ●
218 05.017 SHOE KIT; BRK,RR 5-87832-088-0 01 1 0608- ●

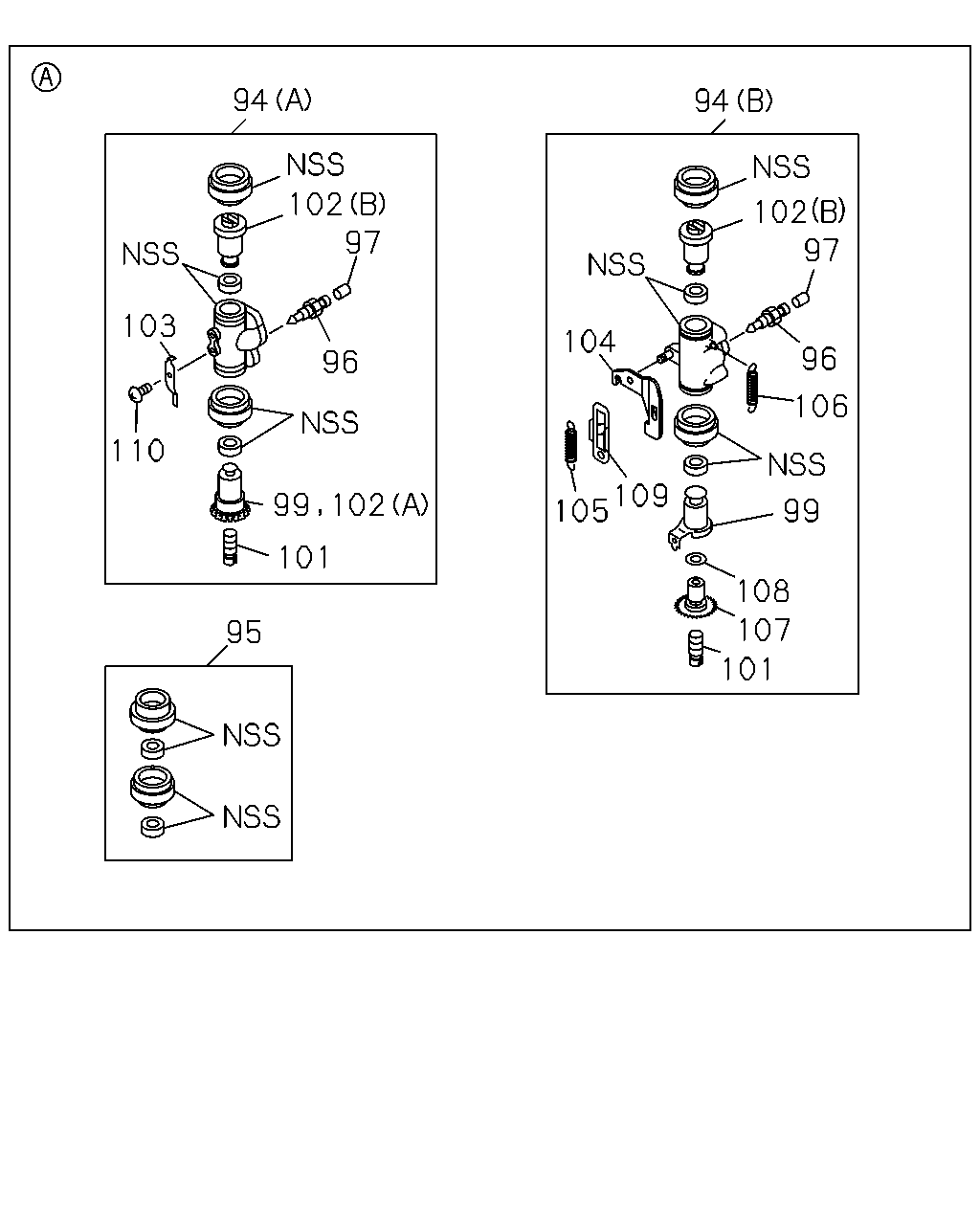

çizim 58720
94 94 102 97 102 97 103 104 96 96 106 110 109 105 102 99 101 108 107 95 101 99
BalonParca AdiParca NoAdetTipApplied Date A B
94 04.665 CYLINDER; WHEEL,RR BRK
(A) 		8-97179-352-0 02 1 0608- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) 		8-97179-350-0 01 1 0608- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) 		8-97179-351-0 01 1 0608- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) 		8-97139-835-0 02 1 0608- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) 		8-97139-833-0 01 1 0608- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) 		8-97139-834-0 01 1 0608- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-621-0 01 1 0608- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-622-0 01 1 0608- ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 01 1 0711-0711 ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 01 1 0712- ● ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 0608-0710 ● ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 0711-0711 ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 0711-0711 ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 0712- ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 0608-0710 ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 0711-0711 ●
99 04.668 PISTON; RR WHEEL CYL 8-97078-622-0 03 1 0608- ●
99 04.668 PISTON; RR WHEEL CYL
D=25.4 		8-94129-016-1 02 1 0608- ●
99 04.668 PISTON; RR WHEEL CYL
D=25.4 		8-94128-539-1 02 1 0608- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
05.110 		8-97078-623-0 04 1 0608- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
M10 LH THREAD 		5-47622-006-2 02 1 0608- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
M10 		5-47622-005-2 02 1 0608- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) D=25.4 		8-94128-531-1 04 1 0608- ●
102 04.668 PISTON; REAR WHEEL CYL
(A) 		8-97078-622-0 01 1 0608- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) D=25.4 		8-94128-537-1 04 1 0608- ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 0608- ●
104 05.103 LEVER; ADJ 5-47619-040-2 02 1 0608- ●
104 05.103 LEVER; ADJ 5-47619-039-2 02 1 0608- ●
105 05.107 SPRING; OVER TRAVEL,ADJ 5-09583-110-0 04 1 0608- ●
106 05.107 SPRING; ADJ LEVER 5-09585-046-0 04 1 0608- ●
107 05.110 GEAR; ADJ,RR W/CYL 5-47623-008-1 02 1 0608- ●
107 05.110 GEAR; ADJ,RR W/CYL 5-47623-007-1 02 1 0608- ●
108 05.110 WASHER; THRUST,GEAR ADJ
ID=8 		5-09503-085-0 04 1 0608- ●
109 04.665 FITTING; AUTO ADJ 5-47619-041-0 04 1 0608- ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 0608- ●
