Sayfa 0-36 - Isuzu EPC

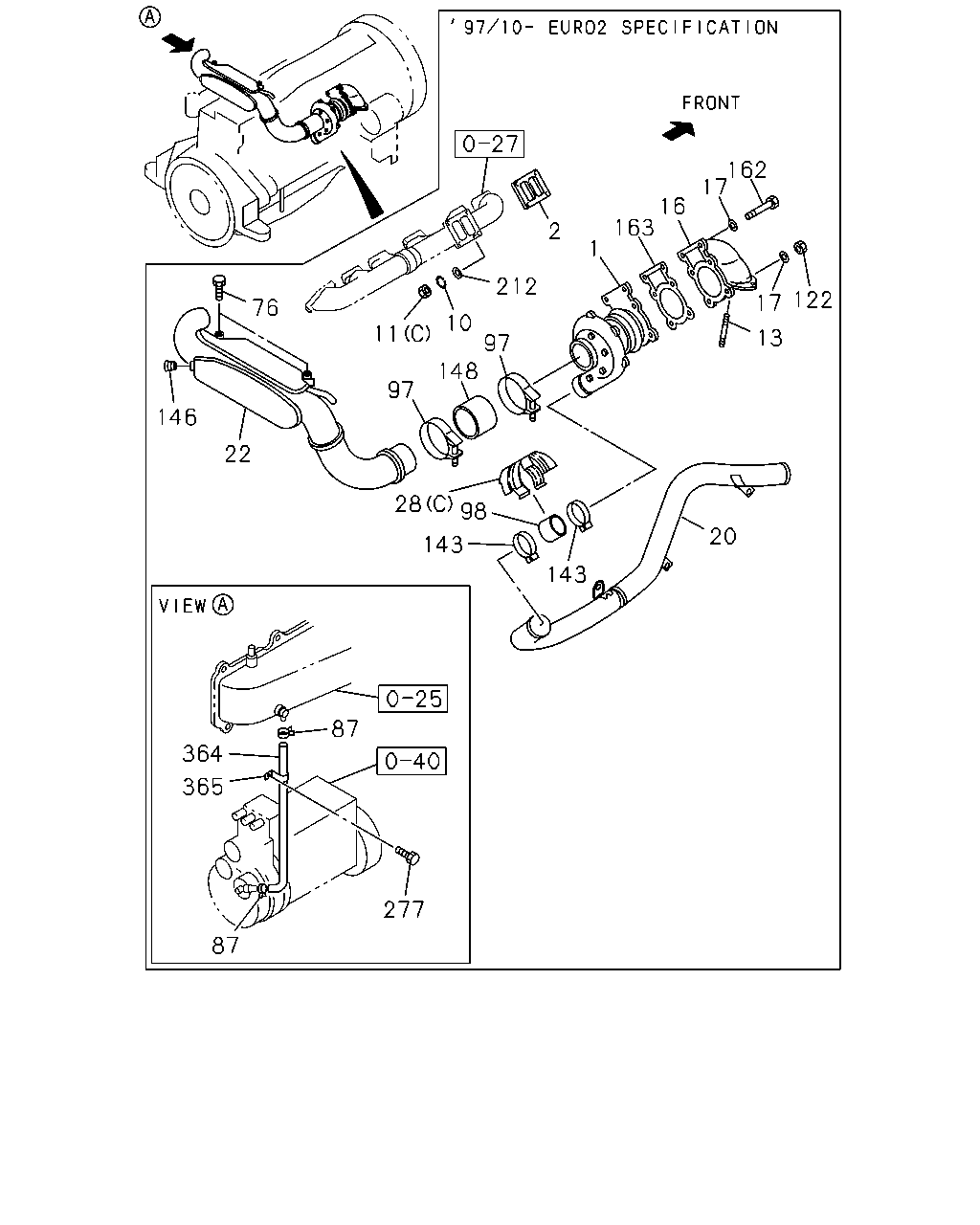

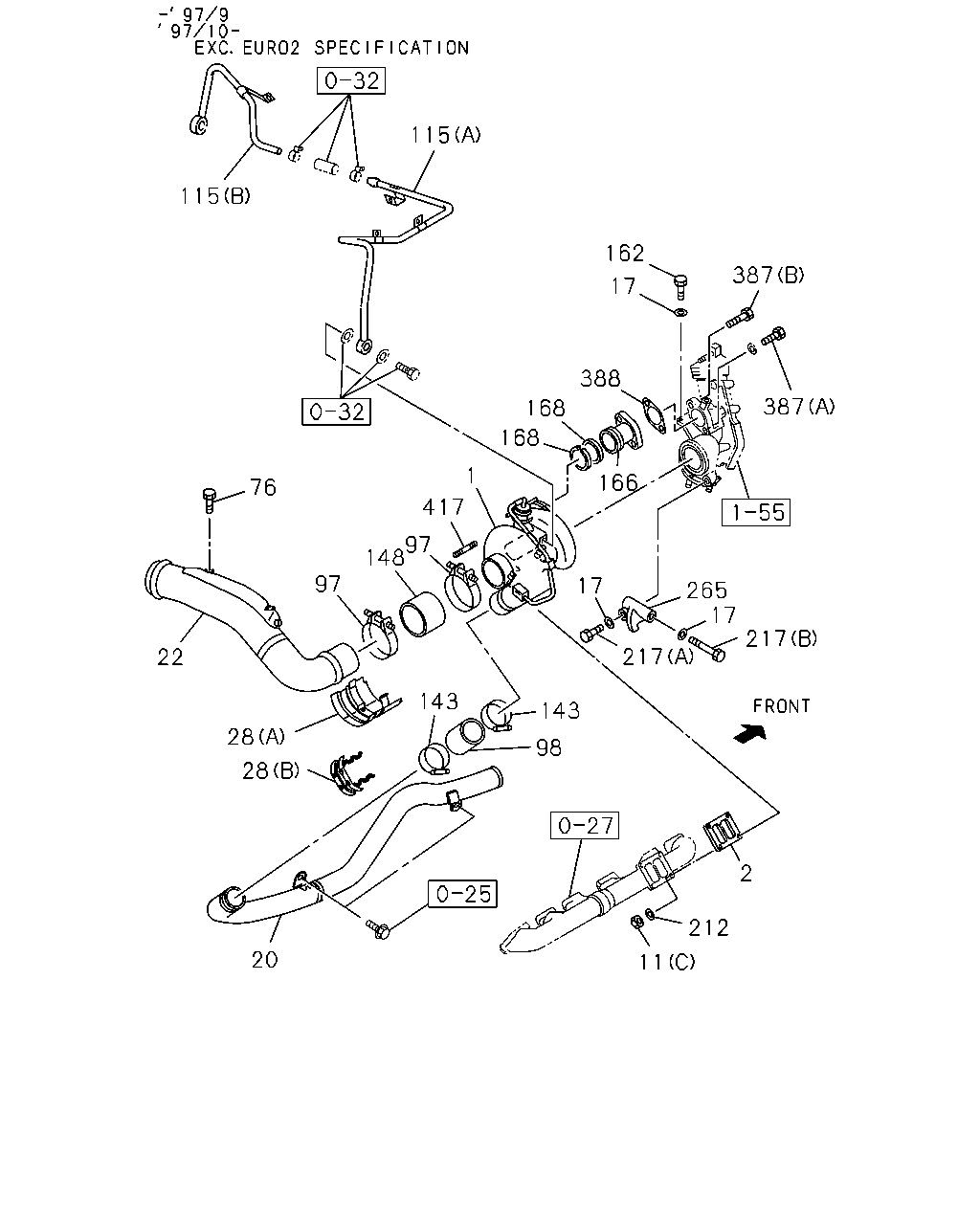

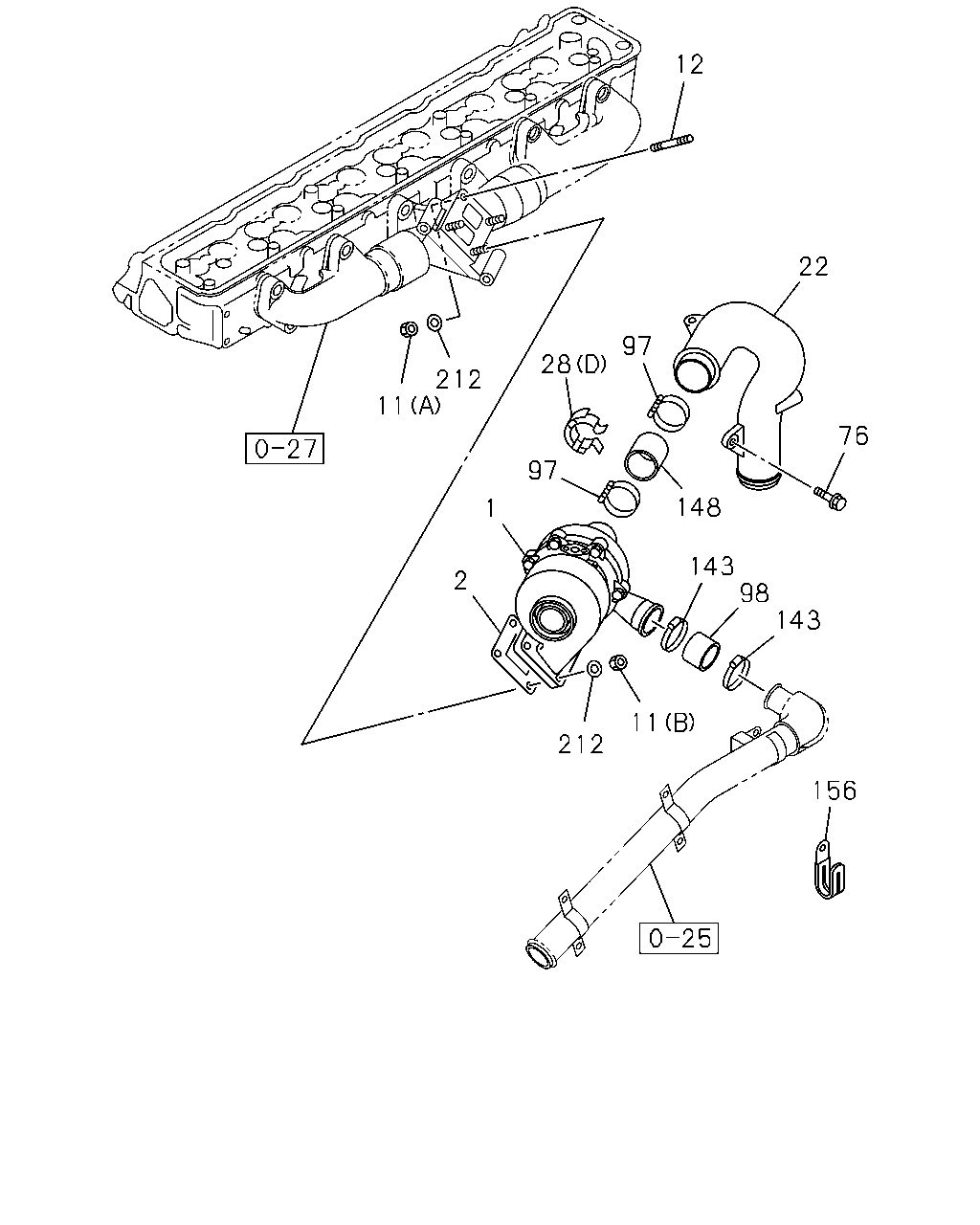

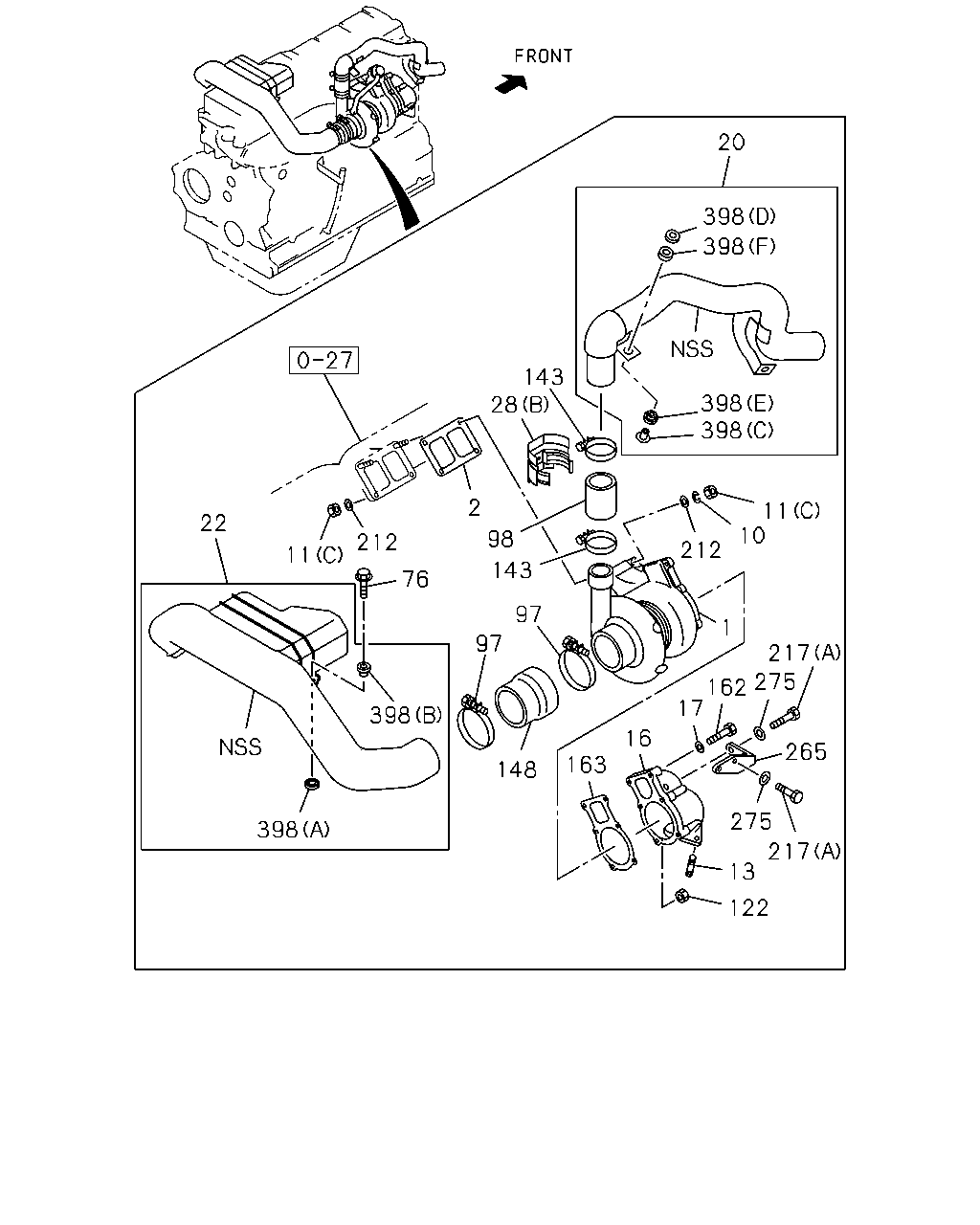

0-36 — TURBOCHARGER SYSTEM (#3906) — 630 parça

20 398 398 143 28 398 398 2 11 10 22 98 212 212 11 143 76 97 1 97 217 275 162 17 398 16 265 163 148 275 398 217 13 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94394-457-2	01	1	9601-9709	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	8-94394-457-3	01	1	9710-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK>	8-94390-650-0	01	1	9710-9710	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94390-650-0	01	1	9711-1007	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-98162-141-0	01	1	1008-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT VAR2<TAK>	8-94390-651-0	01	1	9710-9710	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-339-4	01	1	9601-9803		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	1-14400-339-5	01	1	9804-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	1-14400-356-0	01	1	9804-0004		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	1-14400-366-1	01	1	0005-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94394-283-1	01	1	9807-0004			●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97602-809-0	01	1	0608-				●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-0	01	1	9601-9709	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-121-0	01	1	9710-9806	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-0	01	1	9807-0004	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-0	01	1	9807-0004			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-121-1	01	1	0005-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN>	8-94390-044-0	01	1	9710-0607	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0608-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0608-				●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-181-0	01	1	9601-		●
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<THN> T=2.2	1-09556-015-0	02	1	9710-0607	●
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<THN> T=2.2	1-09556-015-0	02	1	0608-	●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	0608-				●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	9601-9806	●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	9807-0004	●		●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	0005-0607	●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	0608-	●			●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	01	1	9601-		●
11	NUT; TURBOCHARGER (B) M10 P=1.5 H=8	9-09842-007-0	03	1	9601-		●
13	STUD; EXH PIPE M12X123 L=141	1-09302-012-0	02	1	0608-				●
13	STUD; EXH PIPE EURO2 SPECIFICATION<THN> M12X103 L=123	8-94394-656-0	01	1	9710-	●
16	ADAPTER; EXH PIPE	8-97600-283-0	01	1	0608-				●
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<THN>	8-94391-161-1	01	1	9710-	●
17	WASHER; PL,ADAPTER ID=12.2	9-09851-933-0	04	1	9601-9709	●
17	WASHER; PL,ADAPTER EXC. EURO2 SPECIFICATION<THN> ID=12.2	9-09851-933-0	04	1	9710-9806	●
17	WASHER; PL,ADAPTER EXC. EURO2 SPECIFICATION<THN> ID=12.2	9-09851-933-0	04	1	9807-0004	●
17	WASHER; PL,ADAPTER ID=12.2	9-09851-933-0	04	1	9807-0004			●
17	WASHER; PL,ADAPTER EXC. EURO2 SPECIFICATION<THN> ID=12.2	9-09851-933-0	04	1	0005-	●
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<THN> T=1.9	5-09500-012-0	06	1	9710-0607	●
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<THN> T=1.9	5-09500-012-0	06	1	0608-	●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	0608-				●
20	PIPE; INL,TURBOCHARGER OUT	8-97600-383-1	01	1	0608-				●
20	PIPE; INL,TURBOCHARGER OUT	8-94394-399-0	01	1	9601-9709	●
20	PIPE; INL,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN>	8-94394-399-0	01	1	9710-9806	●
20	PIPE; INL,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN>	8-94394-399-1	01	1	9807-0004	●
20	PIPE; INL,TURBOCHARGER OUT	8-94394-399-1	01	1	9807-0004			●
20	PIPE; INL,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN>	8-94394-399-1	01	1	0005-	●
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<THN>	8-94390-649-2	01	1	9710-	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-97600-071-1	01	1	0608-				●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94394-401-1	01	1	9601-9709	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	9710-9806	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	9807-0004	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94394-401-1	01	1	9807-0004			●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	0005-	●
22	DUCT; INL,ACL TO TURBOCHARGER EURO2 SPECIFICATION<THN>	8-94390-407-0	01	1	9710-	●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-161-1	01	1	9601-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (A)	1-14181-220-0	01	1	9601-9709	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (A)	1-14181-220-0	01	1	9710-9806	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (A)	1-14181-220-0	01	1	9807-0004	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (A)	1-14181-220-0	01	1	9807-0004			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (A)	1-14181-220-0	01	1	0005-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	9601-9709	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	9710-9806	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	9807-0004	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	9807-0004			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	0005-0607	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	0608-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	0608-				●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EURO2 SPECIFICATION<THN> (C)	1-14181-264-0	01	1	9710-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (D)	1-14181-123-0	01	1	9601-9907		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (D)	1-14181-221-0	01	1	9908-		●
76	BOLT; AIR DUCT M8X35 FLANGE	0-28650-835-0	02	1	0608-				●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	9601-9806	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	9807-0004	●		●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	0005-0512	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28050-850-0	02	1	0601-	●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28081-090-0	02	1	9601-0512		●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28051-090-0	02	1	0601-		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	04	1	0608-0810				●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	02	1	0811-0811				●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0811-0811				●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	04	1	0812-				●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-114-0	02	1	9803-0306	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-198-0	04	1	0307-0810	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-114-0	04	1	0811-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9601-9709	●	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	9710-9806	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9710-9806		●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	9807-0004	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9807-0004		●	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	0005-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	0005-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=58.5 OD=65.5 L=80	8-94392-854-0	01	1	0608-				●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN>	1-09360-782-0	01	1	9710-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9601-9709	●	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	9710-9806	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9710-9806		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	9807-0004	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9807-0004		●	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	0005-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	0005-1408		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	8-98245-240-0	01	1	1409-		●
122	NUT; ADAPTER EURO2 SPECIFICATION<THN> M8	1-09400-118-1	01	1	9710-0607	●
122	NUT; ADAPTER EURO2 SPECIFICATION<THN> M8	1-09400-118-1	01	1	0608-	●
122	NUT; ADAPTER M8	1-09400-118-1	01	1	0608-				●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	04	1	0307-0809		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0810-0811	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0810-0811		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	0812-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-69	8-94316-991-0	02	1	9710-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-65	1-09707-204-0	02	1	0307-0810	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-69	8-94316-991-0	02	1	0811-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9601-9709	●	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	9710-9806	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9710-9806		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	9807-0004	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9807-0004		●	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	0005-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0005-0306		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0307-0607	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0608-0809	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0608-0809				●
148	HOSE; TURBOCHARGER,INL	8-94392-853-0	01	1	0608-				●
148	HOSE; TURBOCHARGER,INL	1-09360-600-0	01	1	9601-9709	●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	9710-9806	●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	9807-0004	●
148	HOSE; TURBOCHARGER,INL	1-09360-600-0	01	1	9807-0004			●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	0005-	●
148	HOSE; TURBOCHARGER,INL EURO2 SPECIFICATION<THN>	5-09360-846-0	01	1	9803-	●
148	HOSE; TURBOCHARGER,INL	1-09360-403-1	01	1	9601-		●
162	BOLT; ADAPTER M12X30	8-94394-324-0	02	1	9601-9709	●
162	BOLT; ADAPTER EXC. EURO2 SPECIFICATION<THN> M12X30	8-94394-324-0	02	1	9710-9806	●
162	BOLT; ADAPTER EXC. EURO2 SPECIFICATION<THN> M12X30	8-94394-324-0	02	1	9807-0004	●
162	BOLT; ADAPTER M12X30	8-94394-324-0	02	1	9807-0004			●
162	BOLT; ADAPTER EXC. EURO2 SPECIFICATION<THN> M12X30	8-94394-324-0	02	1	0005-	●
162	BOLT; ADAPTER EURO2 SPECIFICATION<THN> M8X57	5-09000-275-0	05	1	9710-0607	●
162	BOLT; ADAPTER EURO2 SPECIFICATION<THN> M8X57	5-09000-275-0	05	1	0608-	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	0608-				●
163	GASKET; ADAPTER TO EXH PIPE EURO2 SPECIFICATION<THN>	1-14145-162-0	01	1	9710-0607	●
163	GASKET; ADAPTER TO EXH PIPE EURO2 SPECIFICATION<THN>	1-14145-162-2	01	1	0608-	●
163	GASKET; ADAPTER TO EXH PIPE	1-14145-162-2	01	1	0608-				●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	9601-9806	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	9807-0004	●	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0005-0607	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0608-	●	●		●
217	BOLT; BRKT (A) M12X30	8-94394-324-0	03	1	0608-				●
217	BOLT; BRKT (A) M12X30	8-94394-324-0	01	1	9601-9709	●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (A) M12X30	8-94394-324-0	01	1	9710-9806	●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (A) M12X30	8-94394-324-0	01	1	9807-0004	●
217	BOLT; BRKT (A) M12X30	8-94394-324-0	01	1	9807-0004			●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (A) M12X30	8-94394-324-0	01	1	0005-	●
217	BOLT; BRKT (B) M12X85	8-94394-514-0	01	1	9601-9709	●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (B) M12X85	8-94394-514-0	01	1	9710-9806	●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (B) M12X85	8-94394-514-0	01	1	9807-0004	●
217	BOLT; BRKT (B) M12X85	8-94394-514-0	01	1	9807-0004			●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (B) M12X85	8-94394-514-0	01	1	0005-	●
265	BRACKET; EXH PIPE	8-94395-764-2	01	1	0608-				●
265	BRACKET; EXH PIPE	8-94394-373-0	01	1	9601-9709	●
265	BRACKET; EXH PIPE EXC. EURO2 SPECIFICATION<THN>	8-94394-373-0	01	1	9710-9806	●
265	BRACKET; EXH PIPE EXC. EURO2 SPECIFICATION<THN>	8-94394-373-0	01	1	9807-0004	●
265	BRACKET; EXH PIPE	8-94394-373-0	01	1	9807-0004			●
265	BRACKET; EXH PIPE EXC. EURO2 SPECIFICATION<THN>	8-94394-373-0	01	1	0005-	●
275	WASHER; PL ID=12.2	1-09503-008-0	03	1	0608-				●
398	MOUNTING (F) ID=19 OD=26	8-94160-177-0	01	1	0608-				●
398	MOUNTING (A) ID=19.5	8-94202-456-3	02	1	0608-				●
398	MOUNTING (C) OD=28	8-94390-551-1	01	1	0608-				●
398	MOUNTING (D) ID=13 OD=28	8-94394-504-0	01	1	0608-				●
398	MOUNTING (E) OD=26	8-94394-529-0	01	1	0608-				●
398	MOUNTING (B)	8-97600-053-0	02	1	0608-				●

12 22 97 28 212 11 76 97 148 1 143 98 143 2 11 212 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94394-457-2	01	1	9601-9709	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	8-94394-457-3	01	1	9710-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK>	8-94390-650-0	01	1	9710-9710	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94390-650-0	01	1	9711-1007	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-98162-141-0	01	1	1008-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT VAR2<TAK>	8-94390-651-0	01	1	9710-9710	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-339-4	01	1	9601-9803		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	1-14400-339-5	01	1	9804-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	1-14400-356-0	01	1	9804-0004		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	1-14400-366-1	01	1	0005-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94394-283-1	01	1	9807-0004			●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97602-809-0	01	1	0608-				●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-0	01	1	9601-9709	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-121-0	01	1	9710-9806	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-0	01	1	9807-0004	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-0	01	1	9807-0004			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-121-1	01	1	0005-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN>	8-94390-044-0	01	1	9710-0607	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0608-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0608-				●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-181-0	01	1	9601-		●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	9601-9806	●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	9807-0004	●		●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	0005-0607	●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	0608-	●			●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	01	1	9601-		●
11	NUT; TURBOCHARGER (B) M10 P=1.5 H=8	9-09842-007-0	03	1	9601-		●
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<THN> M10X80	9-04731-080-0	02	1	1008-	●
12	STUD; TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	01	1	9601-		●
22	DUCT; INL,ACL TO TURBOCHARGER	8-97600-071-1	01	1	0608-				●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94394-401-1	01	1	9601-9709	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	9710-9806	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	9807-0004	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94394-401-1	01	1	9807-0004			●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	0005-	●
22	DUCT; INL,ACL TO TURBOCHARGER EURO2 SPECIFICATION<THN>	8-94390-407-0	01	1	9710-	●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-161-1	01	1	9601-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (A)	1-14181-220-0	01	1	9601-9709	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (A)	1-14181-220-0	01	1	9710-9806	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (A)	1-14181-220-0	01	1	9807-0004	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (A)	1-14181-220-0	01	1	9807-0004			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (A)	1-14181-220-0	01	1	0005-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	9601-9709	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	9710-9806	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	9807-0004	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	9807-0004			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	0005-0607	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	0608-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	0608-				●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EURO2 SPECIFICATION<THN> (C)	1-14181-264-0	01	1	9710-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (D)	1-14181-123-0	01	1	9601-9907		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (D)	1-14181-221-0	01	1	9908-		●
76	BOLT; AIR DUCT M8X35 FLANGE	0-28650-835-0	02	1	0608-				●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	9601-9806	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	9807-0004	●		●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	0005-0512	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28050-850-0	02	1	0601-	●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28081-090-0	02	1	9601-0512		●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28051-090-0	02	1	0601-		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	04	1	0608-0810				●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	02	1	0811-0811				●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0811-0811				●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	04	1	0812-				●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-114-0	02	1	9803-0306	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-198-0	04	1	0307-0810	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-114-0	04	1	0811-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9601-9709	●	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	9710-9806	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9710-9806		●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	9807-0004	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9807-0004		●	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	0005-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	0005-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=58.5 OD=65.5 L=80	8-94392-854-0	01	1	0608-				●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN>	1-09360-782-0	01	1	9710-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9601-9709	●	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	9710-9806	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9710-9806		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	9807-0004	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9807-0004		●	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	0005-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	0005-1408		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	8-98245-240-0	01	1	1409-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	04	1	0307-0809		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0810-0811	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0810-0811		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	0812-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-69	8-94316-991-0	02	1	9710-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-65	1-09707-204-0	02	1	0307-0810	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-69	8-94316-991-0	02	1	0811-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9601-9709	●	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	9710-9806	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9710-9806		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	9807-0004	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9807-0004		●	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	0005-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0005-0306		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0307-0607	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0608-0809	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0608-0809				●
148	HOSE; TURBOCHARGER,INL	8-94392-853-0	01	1	0608-				●
148	HOSE; TURBOCHARGER,INL	1-09360-600-0	01	1	9601-9709	●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	9710-9806	●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	9807-0004	●
148	HOSE; TURBOCHARGER,INL	1-09360-600-0	01	1	9807-0004			●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	0005-	●
148	HOSE; TURBOCHARGER,INL EURO2 SPECIFICATION<THN>	5-09360-846-0	01	1	9803-	●
148	HOSE; TURBOCHARGER,INL	1-09360-403-1	01	1	9601-		●
156	CLIP; GLOW HARNESS ID=18 L=44	8-94225-185-0	01	1	9601-0801		●			●
156	CLIP; GLOW HARNESS ID=18 L=44	8-97367-985-1	01	1	0802-		●			●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	9601-9806	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	9807-0004	●	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0005-0607	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0608-	●	●		●

162 17 16 163 2 1 212 17 122 76 10 11 13 97 148 97 146 22 28 98 20 143 143 87 364 365 277 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94394-457-2	01	1	9601-9709	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	8-94394-457-3	01	1	9710-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK>	8-94390-650-0	01	1	9710-9710	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94390-650-0	01	1	9711-1007	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-98162-141-0	01	1	1008-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT VAR2<TAK>	8-94390-651-0	01	1	9710-9710	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-339-4	01	1	9601-9803		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	1-14400-339-5	01	1	9804-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	1-14400-356-0	01	1	9804-0004		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	1-14400-366-1	01	1	0005-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94394-283-1	01	1	9807-0004			●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97602-809-0	01	1	0608-				●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-0	01	1	9601-9709	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-121-0	01	1	9710-9806	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-0	01	1	9807-0004	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-0	01	1	9807-0004			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-121-1	01	1	0005-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN>	8-94390-044-0	01	1	9710-0607	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0608-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0608-				●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-181-0	01	1	9601-		●
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<THN> T=2.2	1-09556-015-0	02	1	9710-0607	●
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<THN> T=2.2	1-09556-015-0	02	1	0608-	●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	0608-				●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	9601-9806	●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	9807-0004	●		●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	0005-0607	●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	0608-	●			●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	01	1	9601-		●
11	NUT; TURBOCHARGER (B) M10 P=1.5 H=8	9-09842-007-0	03	1	9601-		●
13	STUD; EXH PIPE M12X123 L=141	1-09302-012-0	02	1	0608-				●
13	STUD; EXH PIPE EURO2 SPECIFICATION<THN> M12X103 L=123	8-94394-656-0	01	1	9710-	●
16	ADAPTER; EXH PIPE	8-97600-283-0	01	1	0608-				●
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<THN>	8-94391-161-1	01	1	9710-	●
17	WASHER; PL,ADAPTER ID=12.2	9-09851-933-0	04	1	9601-9709	●
17	WASHER; PL,ADAPTER EXC. EURO2 SPECIFICATION<THN> ID=12.2	9-09851-933-0	04	1	9710-9806	●
17	WASHER; PL,ADAPTER EXC. EURO2 SPECIFICATION<THN> ID=12.2	9-09851-933-0	04	1	9807-0004	●
17	WASHER; PL,ADAPTER ID=12.2	9-09851-933-0	04	1	9807-0004			●
17	WASHER; PL,ADAPTER EXC. EURO2 SPECIFICATION<THN> ID=12.2	9-09851-933-0	04	1	0005-	●
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<THN> T=1.9	5-09500-012-0	06	1	9710-0607	●
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<THN> T=1.9	5-09500-012-0	06	1	0608-	●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	0608-				●
20	PIPE; INL,TURBOCHARGER OUT	8-97600-383-1	01	1	0608-				●
20	PIPE; INL,TURBOCHARGER OUT	8-94394-399-0	01	1	9601-9709	●
20	PIPE; INL,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN>	8-94394-399-0	01	1	9710-9806	●
20	PIPE; INL,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN>	8-94394-399-1	01	1	9807-0004	●
20	PIPE; INL,TURBOCHARGER OUT	8-94394-399-1	01	1	9807-0004			●
20	PIPE; INL,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN>	8-94394-399-1	01	1	0005-	●
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<THN>	8-94390-649-2	01	1	9710-	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-97600-071-1	01	1	0608-				●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94394-401-1	01	1	9601-9709	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	9710-9806	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	9807-0004	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94394-401-1	01	1	9807-0004			●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	0005-	●
22	DUCT; INL,ACL TO TURBOCHARGER EURO2 SPECIFICATION<THN>	8-94390-407-0	01	1	9710-	●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-161-1	01	1	9601-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (A)	1-14181-220-0	01	1	9601-9709	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (A)	1-14181-220-0	01	1	9710-9806	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (A)	1-14181-220-0	01	1	9807-0004	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (A)	1-14181-220-0	01	1	9807-0004			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (A)	1-14181-220-0	01	1	0005-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	9601-9709	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	9710-9806	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	9807-0004	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	9807-0004			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	0005-0607	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	0608-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	0608-				●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EURO2 SPECIFICATION<THN> (C)	1-14181-264-0	01	1	9710-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (D)	1-14181-123-0	01	1	9601-9907		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (D)	1-14181-221-0	01	1	9908-		●
76	BOLT; AIR DUCT M8X35 FLANGE	0-28650-835-0	02	1	0608-				●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	9601-9806	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	9807-0004	●		●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	0005-0512	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28050-850-0	02	1	0601-	●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28081-090-0	02	1	9601-0512		●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28051-090-0	02	1	0601-		●
87	CLIP; RUBBER HOSE FIX EURO2 SPECIFICATION<THN> ID=11	8-94238-570-0	02	1	9710-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	04	1	0608-0810				●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	02	1	0811-0811				●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0811-0811				●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	04	1	0812-				●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-114-0	02	1	9803-0306	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-198-0	04	1	0307-0810	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-114-0	04	1	0811-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9601-9709	●	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	9710-9806	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9710-9806		●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	9807-0004	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9807-0004		●	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	0005-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	0005-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=58.5 OD=65.5 L=80	8-94392-854-0	01	1	0608-				●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN>	1-09360-782-0	01	1	9710-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9601-9709	●	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	9710-9806	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9710-9806		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	9807-0004	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9807-0004		●	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	0005-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	0005-1408		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	8-98245-240-0	01	1	1409-		●
122	NUT; ADAPTER EURO2 SPECIFICATION<THN> M8	1-09400-118-1	01	1	9710-0607	●
122	NUT; ADAPTER EURO2 SPECIFICATION<THN> M8	1-09400-118-1	01	1	0608-	●
122	NUT; ADAPTER M8	1-09400-118-1	01	1	0608-				●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	04	1	0307-0809		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0810-0811	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0810-0811		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	0812-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-69	8-94316-991-0	02	1	9710-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-65	1-09707-204-0	02	1	0307-0810	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-69	8-94316-991-0	02	1	0811-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9601-9709	●	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	9710-9806	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9710-9806		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	9807-0004	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9807-0004		●	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	0005-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0005-0306		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0307-0607	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0608-0809	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0608-0809				●
146	PLUG; INL PIPE EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT VAR2<TAK> PT1	1-09605-021-0	01	1	9710-9710	●
148	HOSE; TURBOCHARGER,INL	8-94392-853-0	01	1	0608-				●
148	HOSE; TURBOCHARGER,INL	1-09360-600-0	01	1	9601-9709	●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	9710-9806	●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	9807-0004	●
148	HOSE; TURBOCHARGER,INL	1-09360-600-0	01	1	9807-0004			●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	0005-	●
148	HOSE; TURBOCHARGER,INL EURO2 SPECIFICATION<THN>	5-09360-846-0	01	1	9803-	●
148	HOSE; TURBOCHARGER,INL	1-09360-403-1	01	1	9601-		●
162	BOLT; ADAPTER M12X30	8-94394-324-0	02	1	9601-9709	●
162	BOLT; ADAPTER EXC. EURO2 SPECIFICATION<THN> M12X30	8-94394-324-0	02	1	9710-9806	●
162	BOLT; ADAPTER EXC. EURO2 SPECIFICATION<THN> M12X30	8-94394-324-0	02	1	9807-0004	●
162	BOLT; ADAPTER M12X30	8-94394-324-0	02	1	9807-0004			●
162	BOLT; ADAPTER EXC. EURO2 SPECIFICATION<THN> M12X30	8-94394-324-0	02	1	0005-	●
162	BOLT; ADAPTER EURO2 SPECIFICATION<THN> M8X57	5-09000-275-0	05	1	9710-0607	●
162	BOLT; ADAPTER EURO2 SPECIFICATION<THN> M8X57	5-09000-275-0	05	1	0608-	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	0608-				●
163	GASKET; ADAPTER TO EXH PIPE EURO2 SPECIFICATION<THN>	1-14145-162-0	01	1	9710-0607	●
163	GASKET; ADAPTER TO EXH PIPE EURO2 SPECIFICATION<THN>	1-14145-162-2	01	1	0608-	●
163	GASKET; ADAPTER TO EXH PIPE	1-14145-162-2	01	1	0608-				●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	9601-9806	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	9807-0004	●	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0005-0607	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0608-	●	●		●
277	BOLT; CLIP EURO2 SPECIFICATION<THN> M6X10 FLANGE	0-28080-610-0	01	1	9710-0512	●
277	BOLT; CLIP EURO2 SPECIFICATION<THN> M6X10 FLANGE	0-28050-610-0	01	1	0601-	●
364	HOSE; BOOST EURO2 SPECIFICATION<THN> L=200 SERVICED BY L=3000	0-04770-300-0	01	1	9710-	●
365	CLIP; RUBBER HOSE,BOOST EURO2 SPECIFICATION<THN> D=11 H=40 L=20	8-94246-610-0	01	1	9710-	●

115 115 162 387 17 388 387 168 168 1 166 76 417 97 148 97 17 265 17 217 217 22 143 143 28 98 28 2 212 20 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94394-457-2	01	1	9601-9709	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	8-94394-457-3	01	1	9710-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK>	8-94390-650-0	01	1	9710-9710	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94390-650-0	01	1	9711-1007	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-98162-141-0	01	1	1008-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT VAR2<TAK>	8-94390-651-0	01	1	9710-9710	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-339-4	01	1	9601-9803		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	1-14400-339-5	01	1	9804-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	1-14400-356-0	01	1	9804-0004		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	1-14400-366-1	01	1	0005-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94394-283-1	01	1	9807-0004			●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97602-809-0	01	1	0608-				●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-0	01	1	9601-9709	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-121-0	01	1	9710-9806	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-0	01	1	9807-0004	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-0	01	1	9807-0004			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-121-1	01	1	0005-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN>	8-94390-044-0	01	1	9710-0607	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0608-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0608-				●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-181-0	01	1	9601-		●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	9601-9806	●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	9807-0004	●		●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	0005-0607	●
11	NUT; TURBOCHARGER (C) M10	1-09420-005-0	04	1	0608-	●			●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	01	1	9601-		●
11	NUT; TURBOCHARGER (B) M10 P=1.5 H=8	9-09842-007-0	03	1	9601-		●
17	WASHER; PL,ADAPTER ID=12.2	9-09851-933-0	04	1	9601-9709	●
17	WASHER; PL,ADAPTER EXC. EURO2 SPECIFICATION<THN> ID=12.2	9-09851-933-0	04	1	9710-9806	●
17	WASHER; PL,ADAPTER EXC. EURO2 SPECIFICATION<THN> ID=12.2	9-09851-933-0	04	1	9807-0004	●
17	WASHER; PL,ADAPTER ID=12.2	9-09851-933-0	04	1	9807-0004			●
17	WASHER; PL,ADAPTER EXC. EURO2 SPECIFICATION<THN> ID=12.2	9-09851-933-0	04	1	0005-	●
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<THN> T=1.9	5-09500-012-0	06	1	9710-0607	●
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<THN> T=1.9	5-09500-012-0	06	1	0608-	●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	0608-				●
20	PIPE; INL,TURBOCHARGER OUT	8-97600-383-1	01	1	0608-				●
20	PIPE; INL,TURBOCHARGER OUT	8-94394-399-0	01	1	9601-9709	●
20	PIPE; INL,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN>	8-94394-399-0	01	1	9710-9806	●
20	PIPE; INL,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN>	8-94394-399-1	01	1	9807-0004	●
20	PIPE; INL,TURBOCHARGER OUT	8-94394-399-1	01	1	9807-0004			●
20	PIPE; INL,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN>	8-94394-399-1	01	1	0005-	●
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<THN>	8-94390-649-2	01	1	9710-	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-97600-071-1	01	1	0608-				●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94394-401-1	01	1	9601-9709	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	9710-9806	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	9807-0004	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94394-401-1	01	1	9807-0004			●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	0005-	●
22	DUCT; INL,ACL TO TURBOCHARGER EURO2 SPECIFICATION<THN>	8-94390-407-0	01	1	9710-	●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-161-1	01	1	9601-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (A)	1-14181-220-0	01	1	9601-9709	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (A)	1-14181-220-0	01	1	9710-9806	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (A)	1-14181-220-0	01	1	9807-0004	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (A)	1-14181-220-0	01	1	9807-0004			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (A)	1-14181-220-0	01	1	0005-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	9601-9709	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	9710-9806	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	9807-0004	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	9807-0004			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	0005-0607	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	0608-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	0608-				●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EURO2 SPECIFICATION<THN> (C)	1-14181-264-0	01	1	9710-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (D)	1-14181-123-0	01	1	9601-9907		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (D)	1-14181-221-0	01	1	9908-		●
76	BOLT; AIR DUCT M8X35 FLANGE	0-28650-835-0	02	1	0608-				●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	9601-9806	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	9807-0004	●		●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	0005-0512	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28050-850-0	02	1	0601-	●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28081-090-0	02	1	9601-0512		●
76	BOLT; AIR DUCT M10X90 FLANGE	0-28051-090-0	02	1	0601-		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	04	1	0608-0810				●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	02	1	0811-0811				●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0811-0811				●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	04	1	0812-				●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-114-0	02	1	9803-0306	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-198-0	04	1	0307-0810	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-114-0	04	1	0811-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9601-9709	●	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	9710-9806	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9710-9806		●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	9807-0004	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9807-0004		●	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	0005-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	0005-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=58.5 OD=65.5 L=80	8-94392-854-0	01	1	0608-				●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN>	1-09360-782-0	01	1	9710-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9601-9709	●	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	9710-9806	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9710-9806		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	9807-0004	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9807-0004		●	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	0005-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	0005-1408		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	8-98245-240-0	01	1	1409-		●
115	PIPE; WATER,TURBOCHARGER OUT (A)	8-94394-691-0	01	1	9601-9709	●
115	PIPE; WATER,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN> (A)	8-94394-691-0	01	1	9710-9806	●
115	PIPE; WATER,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN> (A)	8-94394-691-0	01	1	9807-0004	●
115	PIPE; WATER,TURBOCHARGER OUT (A)	8-94394-691-0	01	1	9807-0004			●
115	PIPE; WATER,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN> (A)	8-94394-691-1	01	1	0005-	●
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-94395-454-3	01	1	9601-9709	●
115	PIPE; WATER,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN> (B)	8-94395-454-3	01	1	9710-9806	●
115	PIPE; WATER,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN> (B)	8-94395-454-4	01	1	9807-0004	●
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-94395-454-4	01	1	9807-0004			●
115	PIPE; WATER,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN> (B)	8-94395-454-4	01	1	0005-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	04	1	0307-0809		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0810-0811	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0810-0811		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	0812-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-69	8-94316-991-0	02	1	9710-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-65	1-09707-204-0	02	1	0307-0810	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-69	8-94316-991-0	02	1	0811-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9601-9709	●	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	9710-9806	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9710-9806		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	9807-0004	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9807-0004		●	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	0005-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0005-0306		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0307-0607	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0608-0809	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0608-0809				●
148	HOSE; TURBOCHARGER,INL	8-94392-853-0	01	1	0608-				●
148	HOSE; TURBOCHARGER,INL	1-09360-600-0	01	1	9601-9709	●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	9710-9806	●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	9807-0004	●
148	HOSE; TURBOCHARGER,INL	1-09360-600-0	01	1	9807-0004			●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	0005-	●
148	HOSE; TURBOCHARGER,INL EURO2 SPECIFICATION<THN>	5-09360-846-0	01	1	9803-	●
148	HOSE; TURBOCHARGER,INL	1-09360-403-1	01	1	9601-		●
162	BOLT; ADAPTER M12X30	8-94394-324-0	02	1	9601-9709	●
162	BOLT; ADAPTER EXC. EURO2 SPECIFICATION<THN> M12X30	8-94394-324-0	02	1	9710-9806	●
162	BOLT; ADAPTER EXC. EURO2 SPECIFICATION<THN> M12X30	8-94394-324-0	02	1	9807-0004	●
162	BOLT; ADAPTER M12X30	8-94394-324-0	02	1	9807-0004			●
162	BOLT; ADAPTER EXC. EURO2 SPECIFICATION<THN> M12X30	8-94394-324-0	02	1	0005-	●
162	BOLT; ADAPTER EURO2 SPECIFICATION<THN> M8X57	5-09000-275-0	05	1	9710-0607	●
162	BOLT; ADAPTER EURO2 SPECIFICATION<THN> M8X57	5-09000-275-0	05	1	0608-	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	0608-				●
166	PIPE; EXH	8-94393-151-0	01	1	9601-9709	●
166	PIPE; EXH EXC. EURO2 SPECIFICATION<THN>	8-94393-151-0	01	1	9710-9806	●
166	PIPE; EXH EXC. EURO2 SPECIFICATION<THN>	8-94393-151-0	01	1	9807-0004	●
166	PIPE; EXH	8-94393-151-0	01	1	9807-0004			●
166	PIPE; EXH EXC. EURO2 SPECIFICATION<THN>	8-94393-151-0	01	1	0005-	●
168	RING; SEAL,EXH PIPE	1-14149-083-1	02	1	9601-9709	●
168	RING; SEAL,EXH PIPE EXC. EURO2 SPECIFICATION<THN>	1-14149-083-1	02	1	9710-9806	●
168	RING; SEAL,EXH PIPE EXC. EURO2 SPECIFICATION<THN>	1-14149-083-1	02	1	9807-0004	●
168	RING; SEAL,EXH PIPE	1-14149-083-1	02	1	9807-0004			●
168	RING; SEAL,EXH PIPE EXC. EURO2 SPECIFICATION<THN>	1-14149-083-1	02	1	0005-	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	9601-9806	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	9807-0004	●	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0005-0607	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0608-	●	●		●
217	BOLT; BRKT (A) M12X30	8-94394-324-0	03	1	0608-				●
217	BOLT; BRKT (A) M12X30	8-94394-324-0	01	1	9601-9709	●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (A) M12X30	8-94394-324-0	01	1	9710-9806	●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (A) M12X30	8-94394-324-0	01	1	9807-0004	●
217	BOLT; BRKT (A) M12X30	8-94394-324-0	01	1	9807-0004			●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (A) M12X30	8-94394-324-0	01	1	0005-	●
217	BOLT; BRKT (B) M12X85	8-94394-514-0	01	1	9601-9709	●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (B) M12X85	8-94394-514-0	01	1	9710-9806	●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (B) M12X85	8-94394-514-0	01	1	9807-0004	●
217	BOLT; BRKT (B) M12X85	8-94394-514-0	01	1	9807-0004			●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (B) M12X85	8-94394-514-0	01	1	0005-	●
265	BRACKET; EXH PIPE	8-94395-764-2	01	1	0608-				●
265	BRACKET; EXH PIPE	8-94394-373-0	01	1	9601-9709	●
265	BRACKET; EXH PIPE EXC. EURO2 SPECIFICATION<THN>	8-94394-373-0	01	1	9710-9806	●
265	BRACKET; EXH PIPE EXC. EURO2 SPECIFICATION<THN>	8-94394-373-0	01	1	9807-0004	●
265	BRACKET; EXH PIPE	8-94394-373-0	01	1	9807-0004			●
265	BRACKET; EXH PIPE EXC. EURO2 SPECIFICATION<THN>	8-94394-373-0	01	1	0005-	●
387	BOLT; EXH PIPE (A) M10X40	8-94393-700-0	01	1	9601-9709	●
387	BOLT; EXH PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X40	8-94393-700-0	01	1	9710-9806	●
387	BOLT; EXH PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X40	8-94393-700-0	01	1	9807-0004	●
387	BOLT; EXH PIPE (A) M10X40	8-94393-700-0	01	1	9807-0004			●
387	BOLT; EXH PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X40	8-94393-700-0	01	1	0005-	●
387	BOLT; EXH PIPE (B) M10X70	8-94394-698-0	01	1	9601-9709	●
387	BOLT; EXH PIPE EXC. EURO2 SPECIFICATION<THN> (B) M10X70	8-94394-698-0	01	1	9710-9806	●
387	BOLT; EXH PIPE EXC. EURO2 SPECIFICATION<THN> (B) M10X70	8-94394-698-0	01	1	9807-0004	●
387	BOLT; EXH PIPE (B) M10X70	8-94394-698-0	01	1	9807-0004			●
387	BOLT; EXH PIPE EXC. EURO2 SPECIFICATION<THN> (B) M10X70	8-94394-698-0	01	1	0005-	●
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-139-0	01	1	9601-9709	●
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-139-0	01	1	9710-9806	●
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-139-0	01	1	9807-0004	●
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-139-0	01	1	9807-0004			●
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-139-0	01	1	0005-	●
417	STUD; ADAPTER TO EXH PIPE EURO2 SPECIFICATION<THN> M8X25	9-04130-825-0	01	1	1008-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
