Isuzu WW
▶
TRUCKS
▶
NPR
▶
51124 - NPR/NQR(RHD) EURO4
▶
3 - Brakes, Brake System
▶
3-02 - FRONT DISC BRAKE CALIPER
▶

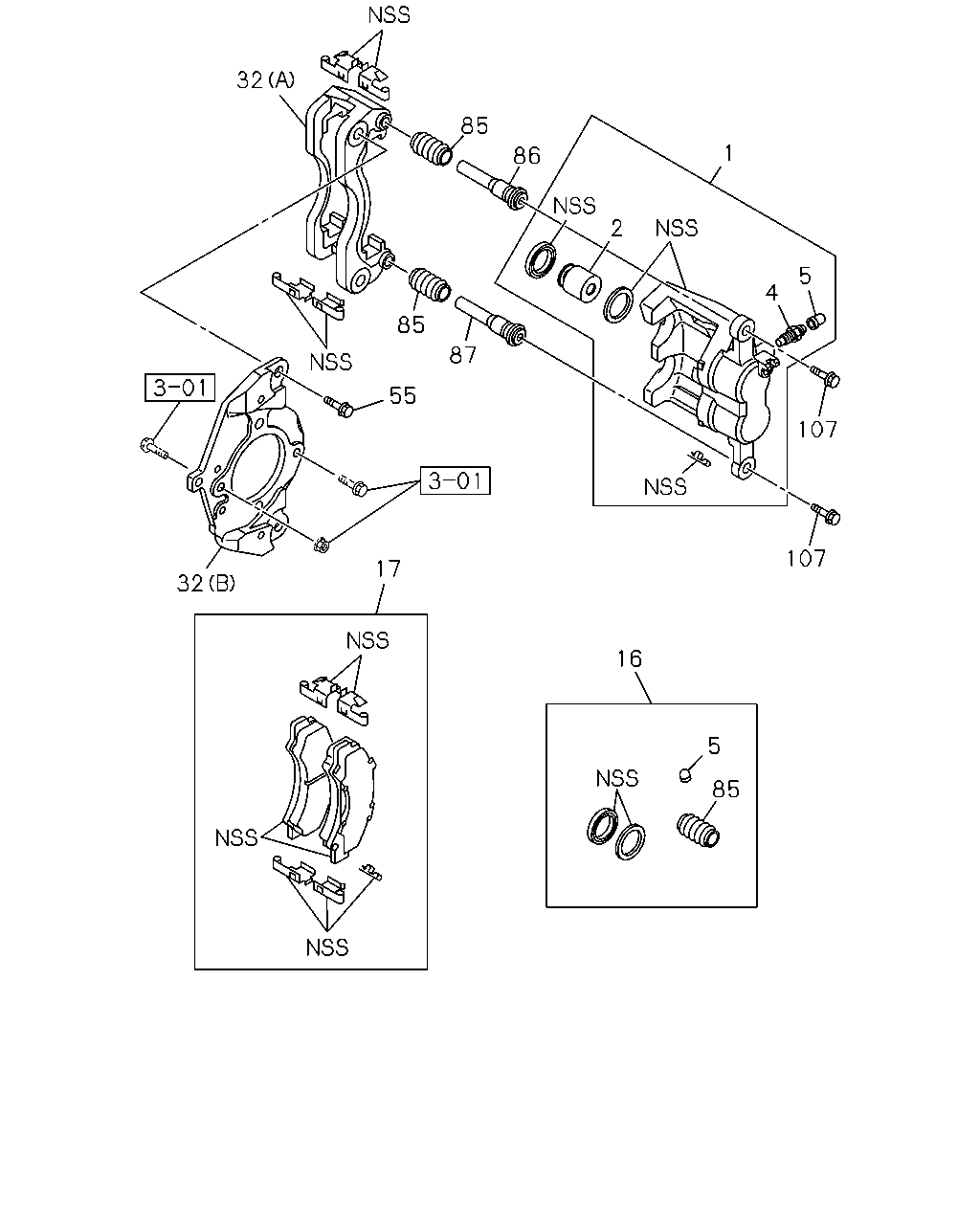

3-02 — FRONT DISC BRAKE CALIPER
(#39059) — 19 parça
32
85
86
1
2
4
5
107
107
16
5
85
17
32
85
55
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.665 CALIPER; FRT DISC BRK
8-97365-908-0
01
1
0608-
1
04.665 CALIPER; FRT DISC BRK
8-97365-907-0
01
1
0608-
2
04.668 PISTON; CALIPER,DISC BRK,FRT
8-97365-269-0
04
1
0608-
4
04.666 SCREW; BLEEDER,DISC BRK,FRT
1-47615-027-0
02
1
0608-
5
04.666 CAP; BLEEDER,DISC BRK,FRT
1-47619-009-0
02
1
0608-
16
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
8-98120-357-0
01
1
0608-
17
05.017 PAD KIT; CALIPER,DISC BRK,FRT
8-97329-266-0
01
1
0608-
32
04.665 SUPPORT; FRT DISC BRK
(A)
8-97365-271-0
02
1
0608-
32
04.665 SUPPORT; FRT DISC BRK
(B)
8-97179-592-1
01
1
0608-
32
04.665 SUPPORT; FRT DISC BRK
(B)
8-97179-591-1
01
1
0608-
55
04.681 BOLT; SUPPORT BRKT TO DISC BRK
8-97168-639-0
04
1
0608-0611
55
04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE
8-97359-816-0
04
1
0612-
85
04.665 BOOT; PIN
8-97365-265-0
04
1
0608-0901
85
04.665 BOOT; PIN
8-98120-354-0
04
1
0902-
86
04.665 PIN; GUIDE
8-97365-275-0
02
1
0608-0610
86
04.665 PIN; GUIDE
8-98047-529-0
02
1
0611-
87
04.665 PIN; LOCK
8-97365-276-0
02
1
0608-0610
87
04.665 PIN; LOCK
8-98047-531-0
02
1
0611-
107
04.665 BOLT; PIN
8-97365-264-0
04
1
0608-
