◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51124 - NPR/NQR(RHD) EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#39050) — 8 parça

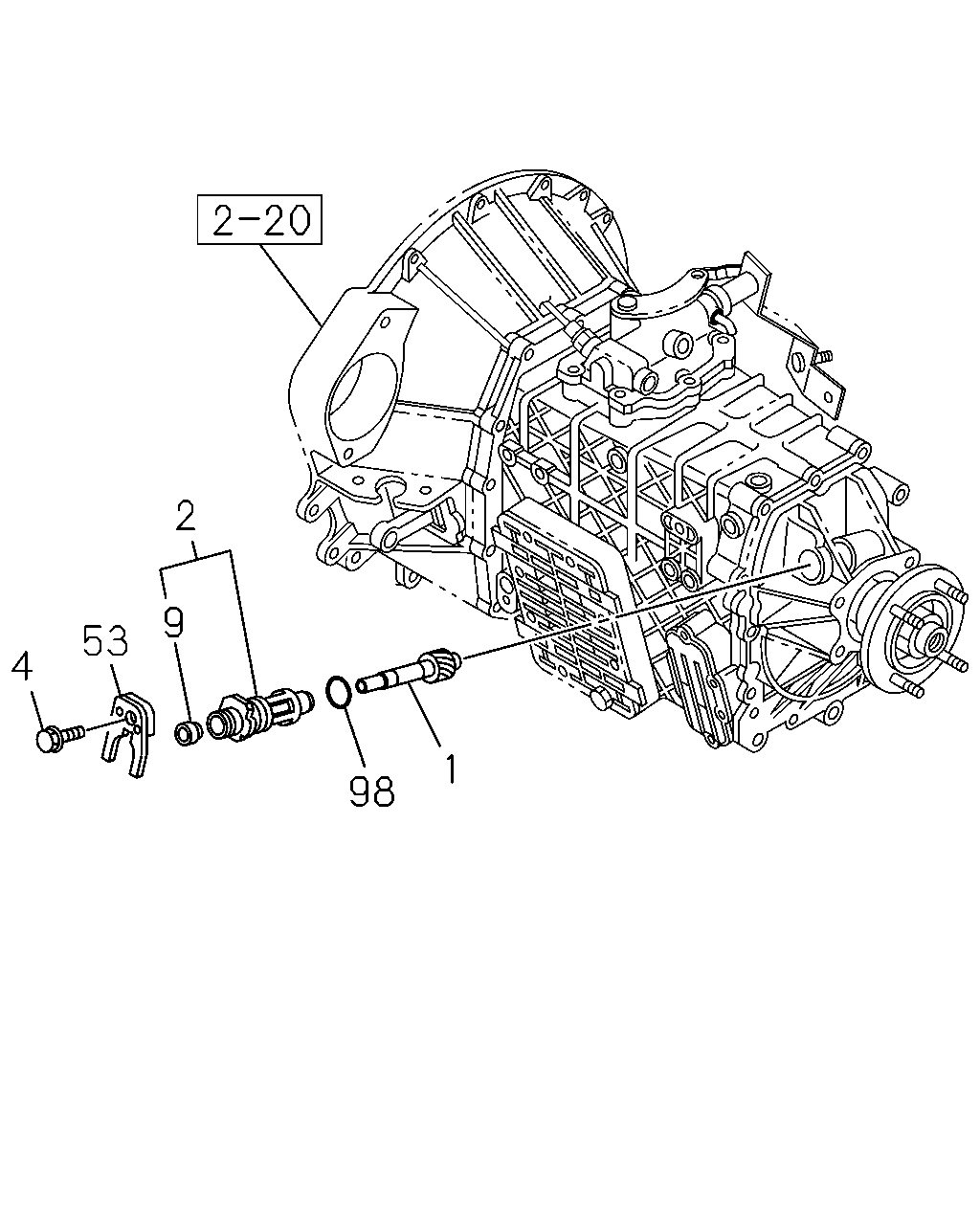

çizim 57702
2 9 53 4 1 98
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.337 GEAR; DRIVEN,SPD
M/T MYY6S(RST) FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-106GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H), FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16- 10L 5.5FX16-115 T/VLV TR177A(98H) Z=11 		8-97253-559-1 01 1 0608- ●
1 04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM) Z=13 		8-97253-562-1 01 1 0608- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY6S(RST) FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-106GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H), FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16- 10L 5.5FX16-115 T/VLV TR177A(98H) MARK "10,11,16,17" 		8-97253-124-0 01 1 0608- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM) MARK "12,13,14,15" 		8-97253-125-0 01 1 0608- ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0608- ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 0608- ● ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-98046-217-0 01 1 0608- ● ●
98 04.338 SEAL; OIL,BUSH
04.439 		9-09561-324-0 01 1 0608- ● ●
