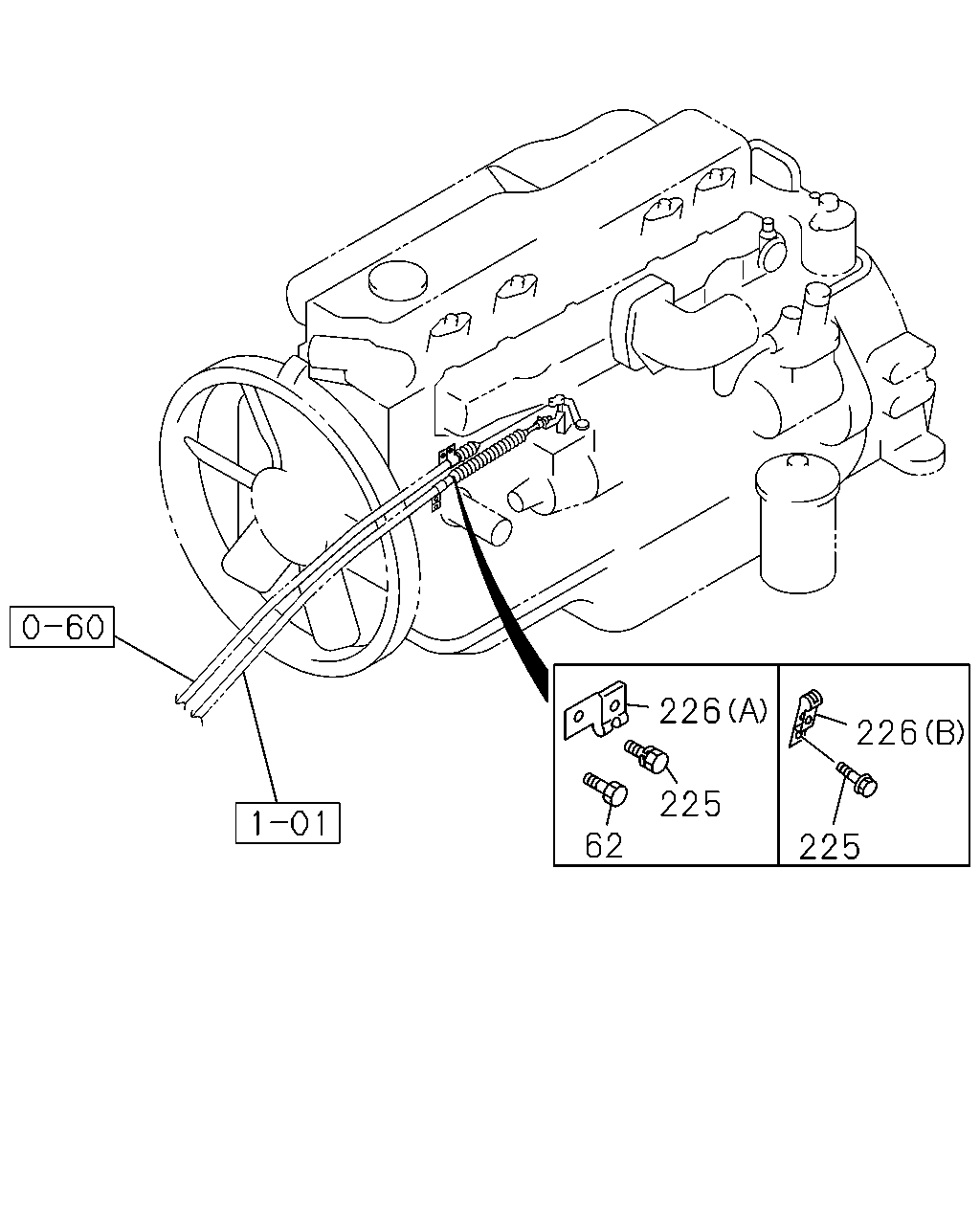

0-35 — ENGINE CONTROL VALVE AND LEVER (#3905) — 100 parça

226 226 225 62 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
62	BOLT; CABLE END M6X20 FLANGE	0-28080-620-0	02	1	9601-9606	●	●
62	BOLT; CABLE END M6X25 FLANGE	0-28680-625-0	02	1	9607-9702	●	●
62	BOLT; CABLE END EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	01	1	9710-0004	●	●
62	BOLT; CABLE END EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	01	1	0005-0108	●
62	BOLT; CABLE END EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	02	1	0109-0512	●
62	BOLT; CABLE END EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
62	BOLT; CABLE END M6X16 FLANGE	0-28080-616-0	02	1	9601-9606			●	●
62	BOLT; CABLE END M6X20 FLANGE	0-28680-620-0	02	1	9607-9702			●	●
62	BOLT; CABLE END M6X20 FLANGE	0-28680-620-0	02	1	9703-9709	●	●	●	●
62	BOLT; CABLE END EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE	0-28680-620-0	02	1	9710-9806	●	●
62	BOLT; CABLE END M6X20 FLANGE	0-28680-620-0	02	1	9710-9806			●	●
62	BOLT; CABLE END EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE	0-28680-620-0	02	1	9807-0004	●	●			●
62	BOLT; CABLE END M6X20 FLANGE	0-28680-620-0	02	1	9807-0004			●	●
62	BOLT; CABLE END EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE	0-28680-620-0	02	1	0005-0512	●	●
62	BOLT; CABLE END M6X20 FLANGE	0-28680-620-0	02	1	0005-0512			●	●
62	BOLT; CABLE END EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE	0-28650-620-0	02	1	0601-	●	●
62	BOLT; CABLE END M6X20 FLANGE	0-28650-620-0	02	1	0601-			●	●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
225	BOLT; CLIP FIX M8X25 FLANGE	0-28680-825-0	02	1	9607-9612	●	●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	9701-9806	●	●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	9807-0004	●	●			●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
225	BOLT; CLIP FIX M6X16 FLANGE	0-28080-616-0	02	1	9601-0512				●
225	BOLT; CLIP FIX M6X16 FLANGE	0-28050-616-0	02	1	0601-				●
225	BOLT; CLIP FIX M8X16 FLANGE	0-28080-816-0	02	1	9601-0512			●
225	BOLT; CLIP FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
226	CLIP; CABLE END EURO2 SPECIFICATION<THN> (B)	8-94397-228-0	01	1	9710-9803	●
226	CLIP; CABLE END EURO2 SPECIFICATION<THN> (B)	8-94397-228-0	01	1	9805-	●
226	CLIP; CABLE END (A)	1-09700-787-1	01	1	9601-9709	●	●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN> (A)	1-09700-787-1	01	1	9710-9806	●	●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN> (A)	1-09700-787-1	01	1	9807-0004	●	●			●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN> (A)	1-09700-787-1	01	1	0005-	●	●
226	CLIP; CABLE END (B) L=30	1-09700-326-0	01	1	9601-9709	●	●		●
226	CLIP; CABLE END (B) L=30	1-09700-326-0	01	1	9601-9709				●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN> (B) L=30	1-09700-326-0	01	1	9710-9803	●	●		●
226	CLIP; CABLE END (B) L=30	1-09700-326-0	01	1	9710-9803				●
226	CLIP; CABLE END (B) L=30	1-09700-326-0	01	1	9804-9804	●	●		●
226	CLIP; CABLE END (B) L=30	1-09700-326-0	01	1	9804-9804				●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN> (B) L=30	1-09700-326-0	01	1	9805-9806	●	●		●
226	CLIP; CABLE END (B) L=30	1-09700-326-0	01	1	9805-9806				●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN> (B) L=30	1-09700-326-0	01	1	9807-0004	●	●		●	●
226	CLIP; CABLE END (B) L=30	1-09700-326-0	01	1	9807-0004				●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN> (B) L=30	1-09700-326-0	01	1	0005-	●	●		●
226	CLIP; CABLE END (B) L=30	1-09700-326-0	01	1	0005-				●
226	CLIP; CABLE END (B) L=16	1-09700-597-0	01	1	9601-9803			●
226	CLIP; CABLE END (B) L=16	1-09700-597-0	01	1	9804-			●
226	CLIP; CABLE END (A)	1-23219-032-0	01	1	9601-9709			●
226	CLIP; CABLE END EURO2 SPECIFICATION<THN> (A)	1-23219-032-0	01	1	9710-	●
226	CLIP; CABLE END (A)	1-23219-032-0	01	1	9710-			●

226 62 225 226 62 226 226 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
62	BOLT; CABLE END M6X20 FLANGE	0-28080-620-0	02	1	9601-9606	●	●
62	BOLT; CABLE END M6X25 FLANGE	0-28680-625-0	02	1	9607-9702	●	●
62	BOLT; CABLE END EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	01	1	9710-0004	●	●
62	BOLT; CABLE END EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	01	1	0005-0108	●
62	BOLT; CABLE END EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	02	1	0109-0512	●
62	BOLT; CABLE END EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
62	BOLT; CABLE END M6X16 FLANGE	0-28080-616-0	02	1	9601-9606			●	●
62	BOLT; CABLE END M6X20 FLANGE	0-28680-620-0	02	1	9607-9702			●	●
62	BOLT; CABLE END M6X20 FLANGE	0-28680-620-0	02	1	9703-9709	●	●	●	●
62	BOLT; CABLE END EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE	0-28680-620-0	02	1	9710-9806	●	●
62	BOLT; CABLE END M6X20 FLANGE	0-28680-620-0	02	1	9710-9806			●	●
62	BOLT; CABLE END EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE	0-28680-620-0	02	1	9807-0004	●	●			●
62	BOLT; CABLE END M6X20 FLANGE	0-28680-620-0	02	1	9807-0004			●	●
62	BOLT; CABLE END EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE	0-28680-620-0	02	1	0005-0512	●	●
62	BOLT; CABLE END M6X20 FLANGE	0-28680-620-0	02	1	0005-0512			●	●
62	BOLT; CABLE END EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE	0-28650-620-0	02	1	0601-	●	●
62	BOLT; CABLE END M6X20 FLANGE	0-28650-620-0	02	1	0601-			●	●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
225	BOLT; CLIP FIX M8X25 FLANGE	0-28680-825-0	02	1	9607-9612	●	●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	9701-9806	●	●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	9807-0004	●	●			●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
225	BOLT; CLIP FIX M6X16 FLANGE	0-28080-616-0	02	1	9601-0512				●
225	BOLT; CLIP FIX M6X16 FLANGE	0-28050-616-0	02	1	0601-				●
225	BOLT; CLIP FIX M8X16 FLANGE	0-28080-816-0	02	1	9601-0512			●
225	BOLT; CLIP FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
226	CLIP; CABLE END EURO2 SPECIFICATION<THN> (B)	8-94397-228-0	01	1	9710-9803	●
226	CLIP; CABLE END EURO2 SPECIFICATION<THN> (B)	8-94397-228-0	01	1	9805-	●
226	CLIP; CABLE END (A)	1-09700-787-1	01	1	9601-9709	●	●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN> (A)	1-09700-787-1	01	1	9710-9806	●	●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN> (A)	1-09700-787-1	01	1	9807-0004	●	●			●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN> (A)	1-09700-787-1	01	1	0005-	●	●
226	CLIP; CABLE END (B) L=30	1-09700-326-0	01	1	9601-9709	●	●		●
226	CLIP; CABLE END (B) L=30	1-09700-326-0	01	1	9601-9709				●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN> (B) L=30	1-09700-326-0	01	1	9710-9803	●	●		●
226	CLIP; CABLE END (B) L=30	1-09700-326-0	01	1	9710-9803				●
226	CLIP; CABLE END (B) L=30	1-09700-326-0	01	1	9804-9804	●	●		●
226	CLIP; CABLE END (B) L=30	1-09700-326-0	01	1	9804-9804				●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN> (B) L=30	1-09700-326-0	01	1	9805-9806	●	●		●
226	CLIP; CABLE END (B) L=30	1-09700-326-0	01	1	9805-9806				●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN> (B) L=30	1-09700-326-0	01	1	9807-0004	●	●		●	●
226	CLIP; CABLE END (B) L=30	1-09700-326-0	01	1	9807-0004				●
226	CLIP; CABLE END EXC. EURO2 SPECIFICATION<THN> (B) L=30	1-09700-326-0	01	1	0005-	●	●		●
226	CLIP; CABLE END (B) L=30	1-09700-326-0	01	1	0005-				●
226	CLIP; CABLE END (B) L=16	1-09700-597-0	01	1	9601-9803			●
226	CLIP; CABLE END (B) L=16	1-09700-597-0	01	1	9804-			●
226	CLIP; CABLE END (A)	1-23219-032-0	01	1	9601-9709			●
226	CLIP; CABLE END EURO2 SPECIFICATION<THN> (A)	1-23219-032-0	01	1	9710-	●
226	CLIP; CABLE END (A)	1-23219-032-0	01	1	9710-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
