2-08 — CLUTCH MASTER CYLINDER (#39047) — 73 parça

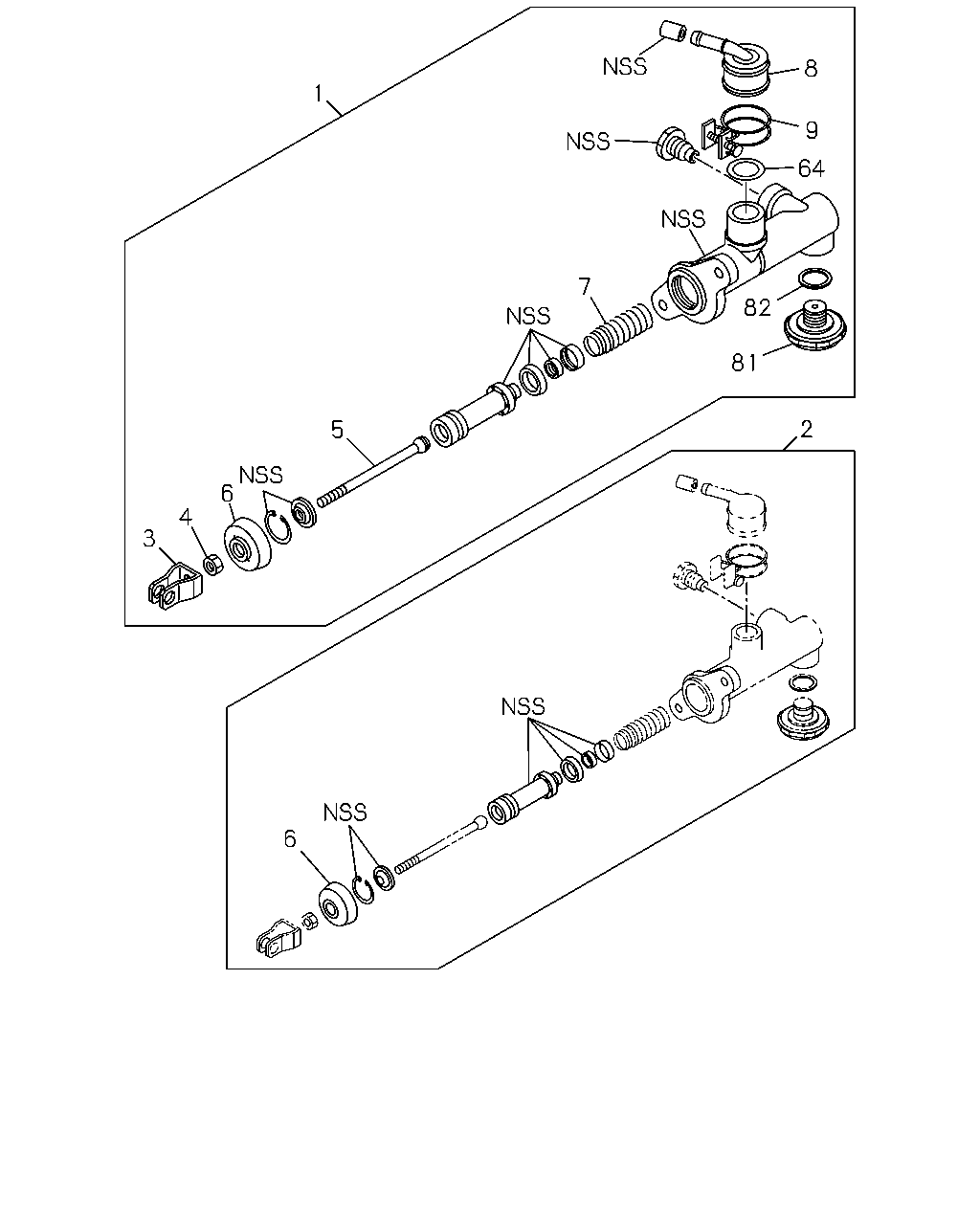

çizim 57605
8 1 9 64 7 82 81 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> 		8-98098-250-0 01 1 0710- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-747-1 01 1 0608-0610 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98004-782-2 01 1 0611-0709 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98062-277-0 01 1 0710- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-97300-210-0 01 1 0608-0803 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-98117-641-0 01 1 0804- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0608-0709 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 0710- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0608-0803 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0804- ● ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 0608- ● ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 0608- ● ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 0608- ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 0608-0709 ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0608- ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0608-0709 ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 0710- ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0608- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-154-0 01 1 0608-0709 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 0608-0709 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 0710- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0608-0610 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98061-352-0 01 1 0611-0709 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0608-0709 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0710- ● ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0608-0709 ● ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 0710- ● ●
81 00.777 DAMPER; MASTER CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97190-913-0 01 1 0608- ● ●
82 00.777 GASKET; DAMPER
EXC. POWER ASSIST CLUTCH(S2T) 		8-97191-396-0 01 1 0608- ● ●

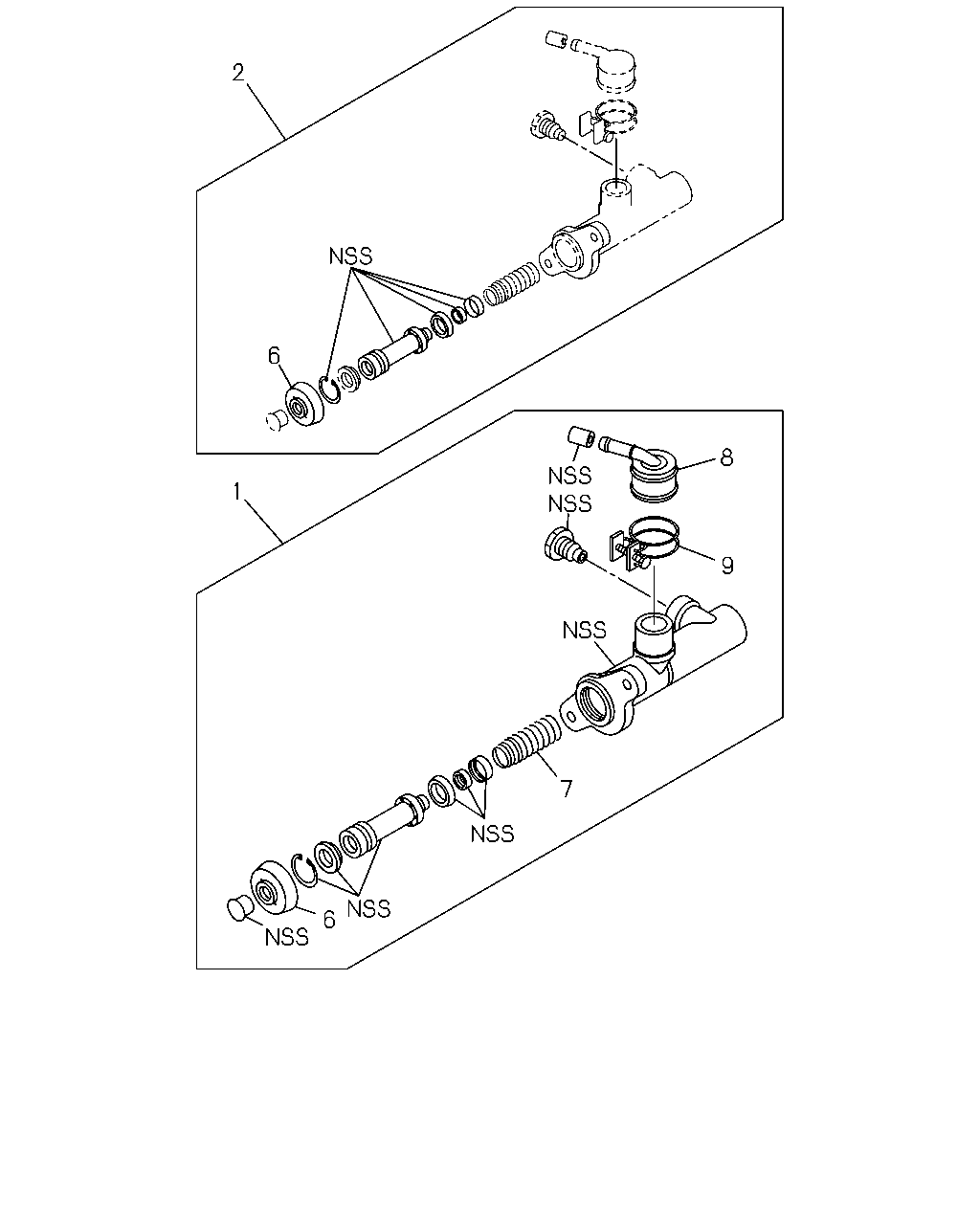

çizim 57637
2 6 8 1 9 7 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> 		8-98098-250-0 01 1 0710- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-747-1 01 1 0608-0610 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98004-782-2 01 1 0611-0709 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98062-277-0 01 1 0710- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-97300-210-0 01 1 0608-0803 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-98117-641-0 01 1 0804- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0608-0709 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 0710- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0608-0803 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0804- ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 0608-0709 ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0608- ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0608-0709 ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 0710- ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0608- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-154-0 01 1 0608-0709 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 0608-0709 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 0710- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0608-0610 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98061-352-0 01 1 0611-0709 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0608-0709 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0710- ● ●
çizim 58191
8 1 9 64 7 2 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> 		8-98098-250-0 01 1 0710- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-747-1 01 1 0608-0610 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98004-782-2 01 1 0611-0709 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98062-277-0 01 1 0710- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-97300-210-0 01 1 0608-0803 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-98117-641-0 01 1 0804- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0608-0709 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 0710- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0608-0803 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0804- ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0608-0709 ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 0710- ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0608- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-154-0 01 1 0608-0709 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 0608-0709 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 0710- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0608-0610 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98061-352-0 01 1 0611-0709 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0608-0709 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0710- ● ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0608-0709 ● ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 0710- ● ●
