6-75 — MAT AND CARPET (#39045) — 83 parça

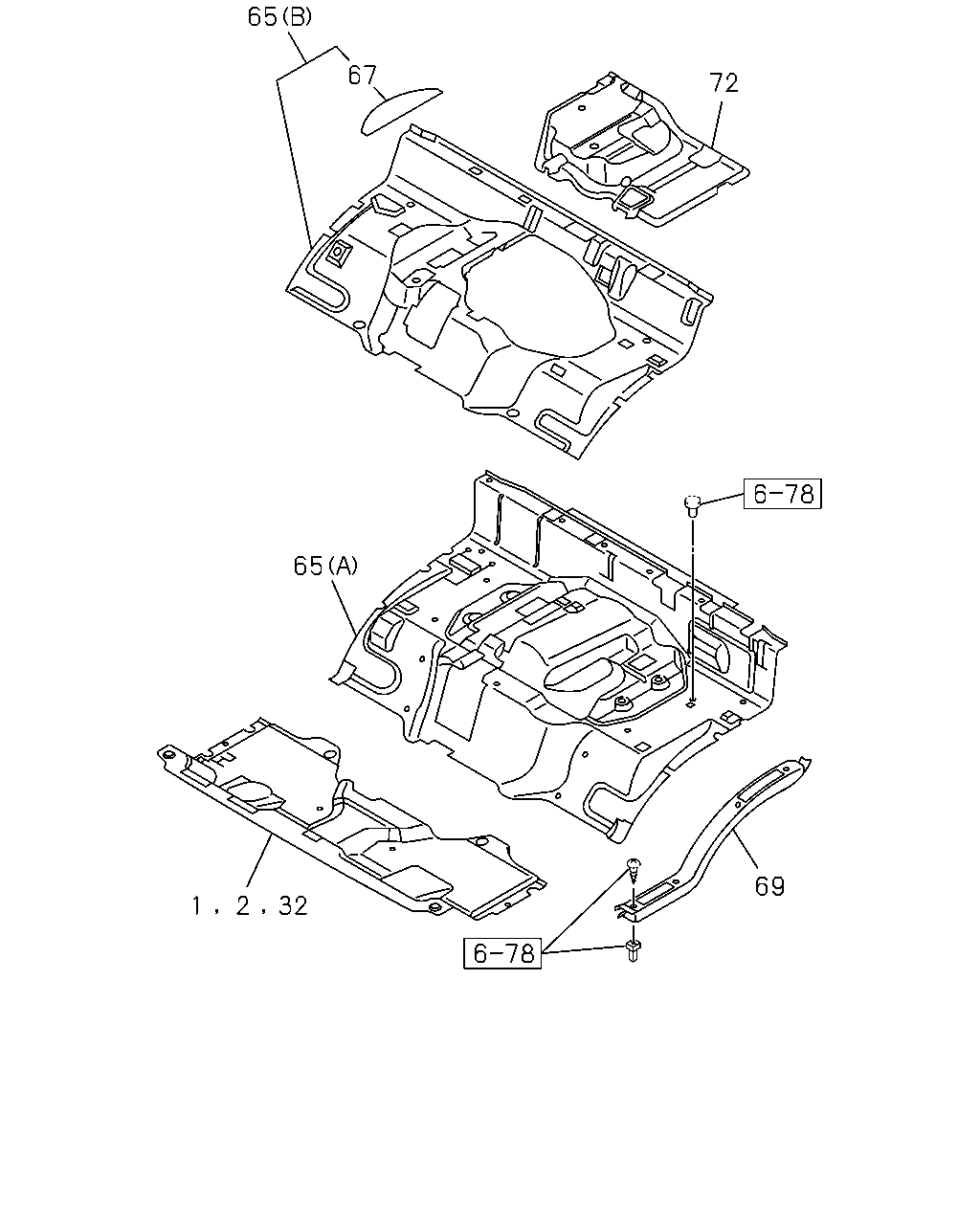

65 67 72 65 69 2 32 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.850 CARPET; FLOOR,FRT CUSTOM PACKAGE<YM8> TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY	8-97407-274-2	01	1	0710-1101	●
1	16.850 CARPET; FLOOR,FRT CUSTOM PACKAGE<YM8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) DARK GRAY	8-97407-273-2	01	1	0710-1101	●
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97405-148-6	01	1	0710-		●	●	●	●	●
2	16.800 MAT; FLOOR STANDARD CAB<SAY> TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97405-148-6	01	1	0710-	●
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97405-147-6	01	1	0710-		●	●	●	●	●
2	16.800 MAT; FLOOR STANDARD CAB<SAY> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97405-147-6	01	1	0710-	●
32	16.800 CARPET; FLOOR CUSTOM PACKAGE<YM8> TRANSMISSION CONTROL-SMOOTHER(8GF) DARK BLUE	8-97423-061-0	01	1	1102-	●
32	16.800 CARPET; FLOOR CUSTOM PACKAGE<YM8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) DARK BLUE	8-97423-060-0	01	1	1102-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-4	01	1	0710-0804		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR STANDARD CAB<SAY> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-4	01	1	0710-0804	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-5	01	1	0805-0805		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR STANDARD CAB<SAY> EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-5	01	1	0805-0805	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSPENSION SEAT<SA3> (A) GRAY	8-97405-198-6	01	1	0806-		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR STANDARD CAB<SAY> EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-6	01	1	0806-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR CUSTOM PACKAGE<YM8> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97407-275-2	01	1	0710-0804	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR CUSTOM PACKAGE<YM8> EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97407-275-4	01	1	0805-1101	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR CUSTOM PACKAGE<YM8> EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) DARK BLUE	8-97423-066-0	01	1	1102-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-5	01	1	0710-0805		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-5	01	1	0710-0805	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-6	01	1	0806-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97415-681-0	01	1	0805-0805		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR STANDARD CAB<SAY> SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97415-681-0	01	1	0805-0805	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSPENSION SEAT<SA3> (A) GRAY	8-97415-681-1	01	1	0806-		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR STANDARD CAB<SAY> SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97415-681-1	01	1	0806-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97405-201-5	01	1	0710-				●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSPENSION SEAT<SA3> CUSTOM PACKAGE<YM8> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97415-683-2	01	1	0805-1101	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSPENSION SEAT<SA3> CUSTOM PACKAGE<YM8> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK BLUE	8-97423-067-0	01	1	1102-	●
67	16.549 LID; COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97408-863-0	01	1	0710-0805		●	●
67	16.549 LID; COVER STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> GRAY	8-97408-863-0	01	1	0710-0805	●
67	16.549 LID; COVER GRAY	8-97408-863-0	01	1	0710-0805				●	●	●
67	16.549 LID; COVER STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> GRAY	8-97408-863-0	01	1	0806-0904	●
67	16.549 LID; COVER GRAY	8-97408-863-0	01	1	0806-0904				●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0710-	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0710-	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	0710-0805		●	●
72	16.800 MAT; SILENCER,ENG COVER STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	0710-0805	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97406-252-3	01	1	0710-0805				●	●	●
72	16.800 MAT; SILENCER,ENG COVER STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	0806-	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97406-252-3	01	1	0806-				●	●	●

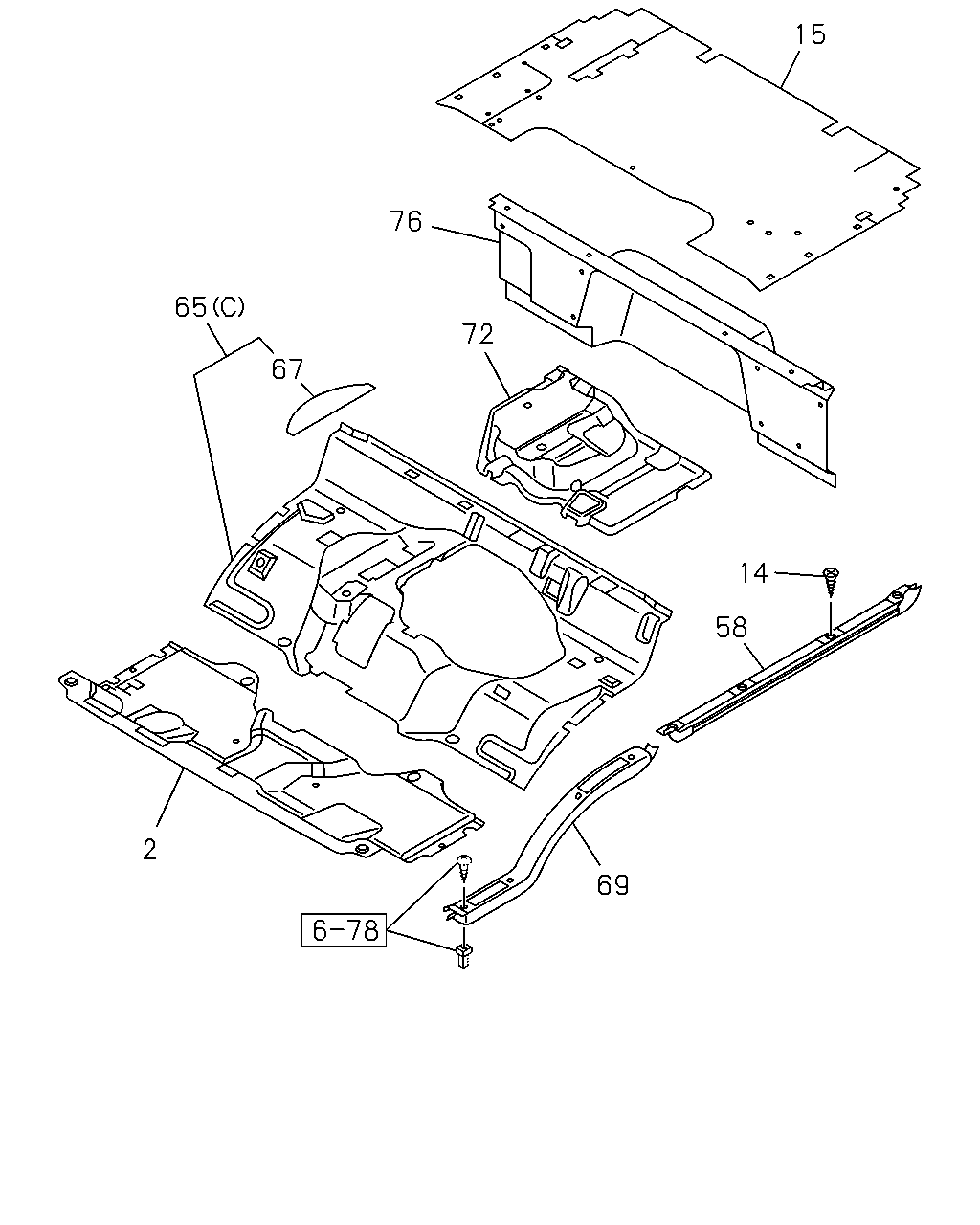

15 76 65 72 67 14 58 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97405-148-6	01	1	0710-		●	●	●	●	●
2	16.800 MAT; FLOOR STANDARD CAB<SAY> TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97405-148-6	01	1	0710-	●
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97405-147-6	01	1	0710-		●	●	●	●	●
2	16.800 MAT; FLOOR STANDARD CAB<SAY> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97405-147-6	01	1	0710-	●
14	16.870 SCREW; PLATE 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	0710-				●	●	●
15	16.800 MAT; FLOOR REAR 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97412-603-2	01	1	0710-				●
15	16.800 MAT; FLOOR REAR 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97412-601-2	01	1	0710-				●
15	16.800 MAT; FLOOR REAR 4HK1-TCN ENG(RDQ) GRAY	8-97412-602-1	01	1	0710-					●
15	16.800 MAT; FLOOR REAR 4HK1-TCS ENG(RJS) GRAY	8-97412-602-1	01	1	0710-						●
58	08.153 PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	0710-				●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-4	01	1	0710-0804		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR STANDARD CAB<SAY> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-4	01	1	0710-0804	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-5	01	1	0805-0805		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR STANDARD CAB<SAY> EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-5	01	1	0805-0805	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSPENSION SEAT<SA3> (A) GRAY	8-97405-198-6	01	1	0806-		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR STANDARD CAB<SAY> EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-6	01	1	0806-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR CUSTOM PACKAGE<YM8> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97407-275-2	01	1	0710-0804	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR CUSTOM PACKAGE<YM8> EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97407-275-4	01	1	0805-1101	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR CUSTOM PACKAGE<YM8> EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) DARK BLUE	8-97423-066-0	01	1	1102-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-5	01	1	0710-0805		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-5	01	1	0710-0805	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-6	01	1	0806-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97415-681-0	01	1	0805-0805		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR STANDARD CAB<SAY> SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97415-681-0	01	1	0805-0805	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSPENSION SEAT<SA3> (A) GRAY	8-97415-681-1	01	1	0806-		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR STANDARD CAB<SAY> SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97415-681-1	01	1	0806-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97405-201-5	01	1	0710-				●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSPENSION SEAT<SA3> CUSTOM PACKAGE<YM8> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97415-683-2	01	1	0805-1101	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSPENSION SEAT<SA3> CUSTOM PACKAGE<YM8> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK BLUE	8-97423-067-0	01	1	1102-	●
67	16.549 LID; COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97408-863-0	01	1	0710-0805		●	●
67	16.549 LID; COVER STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> GRAY	8-97408-863-0	01	1	0710-0805	●
67	16.549 LID; COVER GRAY	8-97408-863-0	01	1	0710-0805				●	●	●
67	16.549 LID; COVER STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> GRAY	8-97408-863-0	01	1	0806-0904	●
67	16.549 LID; COVER GRAY	8-97408-863-0	01	1	0806-0904				●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0710-	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0710-	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	0710-0805		●	●
72	16.800 MAT; SILENCER,ENG COVER STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	0710-0805	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97406-252-3	01	1	0710-0805				●	●	●
72	16.800 MAT; SILENCER,ENG COVER STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	0806-	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97406-252-3	01	1	0806-				●	●	●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4JJ1-TCS ENG(LFB) GRAY	8-97405-204-4	01	1	0710-				●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4HK1-TCN ENG(RDQ) GRAY	8-97412-600-1	01	1	0710-					●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4HK1-TCS ENG(RJS) GRAY	8-97412-600-1	01	1	0710-						●
