6-20 — SIDE PANEL AND STEP (#39031) — 188 parça

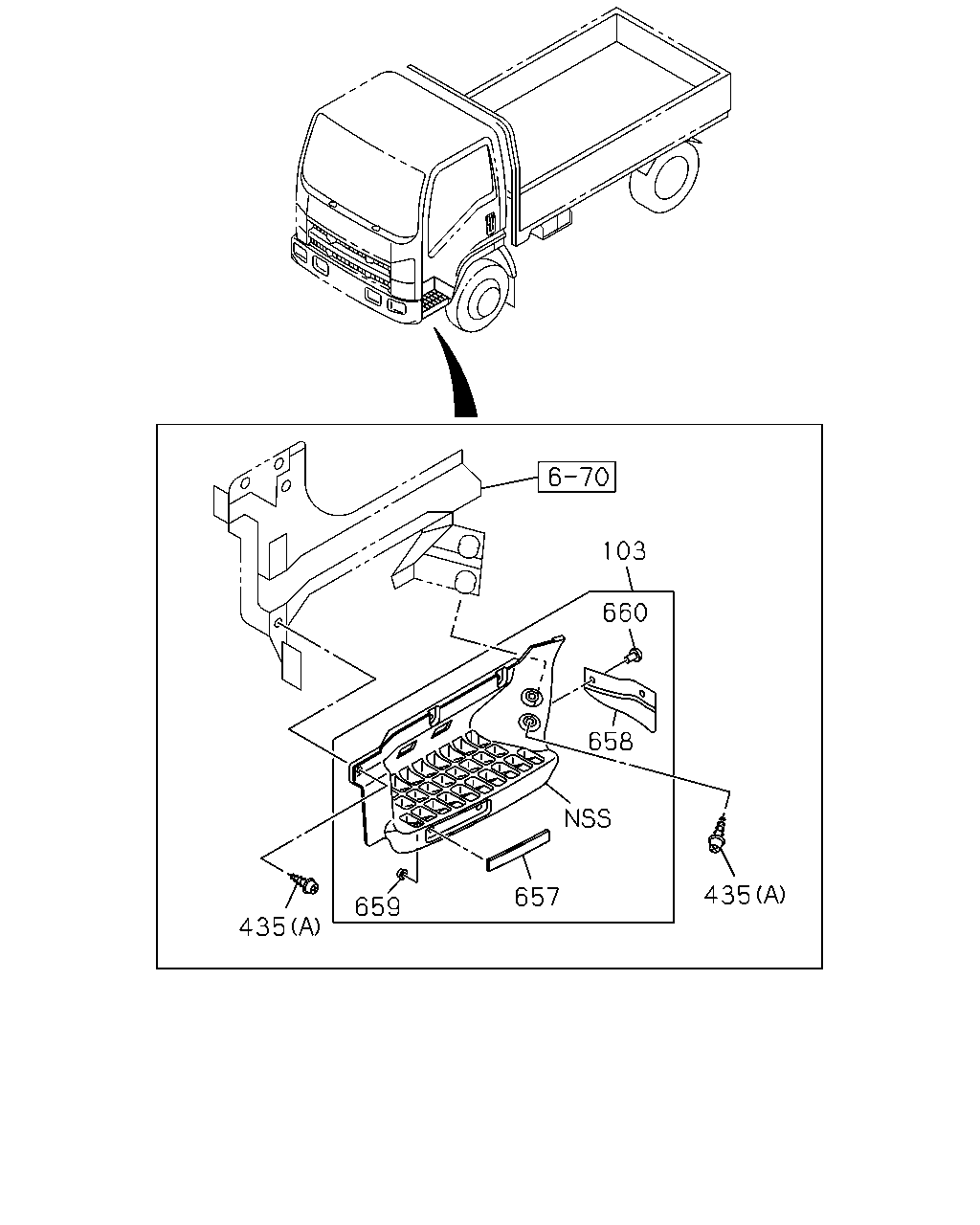

çizim 35490
103 660 658 435 657 659 435
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
103 08.228 PLATE; STEP 8-98022-774-3 01 1 0710- ● ● ● ● ● ●
103 08.228 PLATE; STEP 8-98022-775-3 01 1 0710- ● ● ● ● ● ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 0710- ● ● ● ● ● ●
435 08.225 BOLT; RR STEP
01.531 (B) M8X20 FLANGE 		0-28650-820-0 08 1 0710- ● ● ●
657 16.585 REFLECTOR; REFLEX 8-97378-910-0 02 1 0710- ● ● ● ● ● ●
658 08.228 FLAP; STEP 8-98037-560-1 02 1 0710- ● ● ● ● ● ●
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 0710- ● ● ● ● ● ●
660 08.131 CLIP; FLAP
16.320 OD=8.3 		8-97997-832-0 04 1 0710-0803 ● ● ● ● ● ●
660 08.131 CLIP; FLAP 8-98111-558-0 04 1 0804- ● ● ● ● ● ●

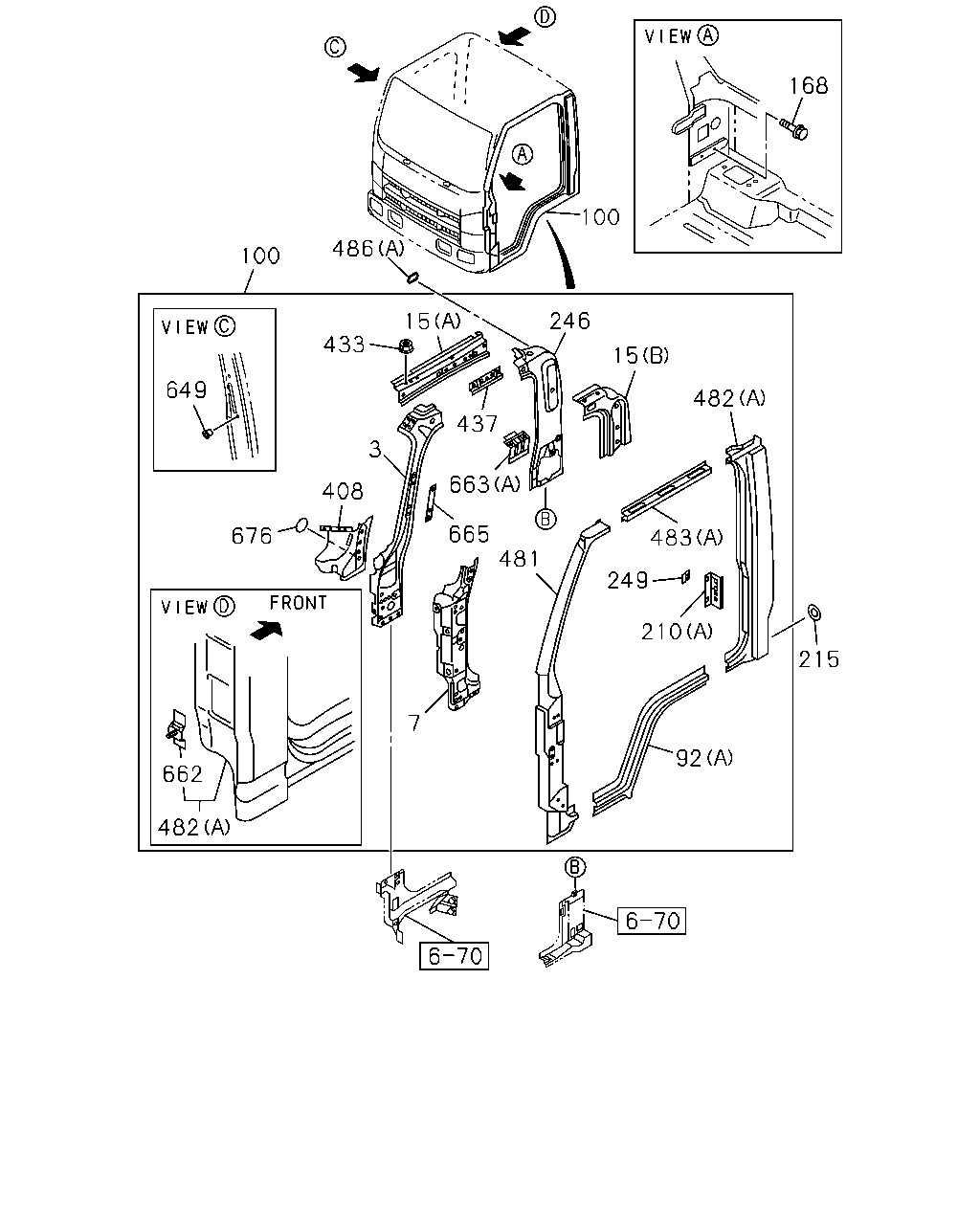

çizim 35491
168 100 486 100 246 15 433 15 649 482 437 3 663 408 665 481 676 483 249 210 215 7 92 662 482
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0710- ● ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0710- ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-2 01 1 0710- ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-3 01 1 0710- ● ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 0710- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 0710- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 0710- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 0710- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 0710- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 0710- ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 0710- ● ● ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 0710- ● ● ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
16.507 (B) 		8-98069-113-0 02 1 0710- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-545-1 01 1 0710-0811 ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-034-6 01 1 0812- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-547-2 01 1 0710-0811 ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 0812- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-545-1 01 1 0710-0811 ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-034-6 01 1 0812- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-547-2 01 1 0710-0811 ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 0812- ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0710-0803 ● ● ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0804- ● ● ● ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 0710- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 0710- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 0710- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 0710- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 0710- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 0710- ● ● ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 0710- ● ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 0710- ● ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 0710- ● ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 0710- ● ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 0710- ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 0710- ● ● ● ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 0710- ● ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0710- ● ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0710- ● ● ● ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 0710- ● ● ● ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 0710- ● ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-714-1 01 1 0710- ● ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0710- ● ● ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 0710- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 0710-0807 ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98092-921-0 01 1 0808-0901 ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 0902- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-472-0 01 1 0710-0807 ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98092-918-0 01 1 0808-0811 ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98092-920-0 01 1 0812-0901 ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-463-0 01 1 0902- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-241-0 01 1 0710-0811 ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 0812- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 0710- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 0710- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 0710- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 0710- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
16.592 (C) 		8-98069-095-0 02 1 0710- ● ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR FT ORANGE(609),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0710-0802 ●
486 16.570 SEAL; BODY SIDE
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0803-0903 ●
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),B ODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEA TLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890) ,BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0904- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0710-0903 ●
486 16.570 SEAL; BODY SIDE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0904- ●
486 16.570 SEAL; BODY SIDE
(B) DARK GRAY 		8-97405-303-2 02 1 0710-0912 ● ● ●
486 16.570 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1001- ● ● ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 0710- ● ● ● ● ● ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 0710- ● ● ●
662 16.570 BRACKET; DUCT 8-98006-778-1 01 1 0710- ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 0710- ● ● ● ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 0710- ● ● ● ● ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 0710- ● ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 0710- ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0710- ● ● ● ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0710- ● ● ● ● ● ●
676 16.520 SEAL
16.592 OD=20 T=0.4 BLACK 		1-76798-020-0 01 1 0710-0711 ● ● ● ● ● ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0712- ● ● ● ● ● ●

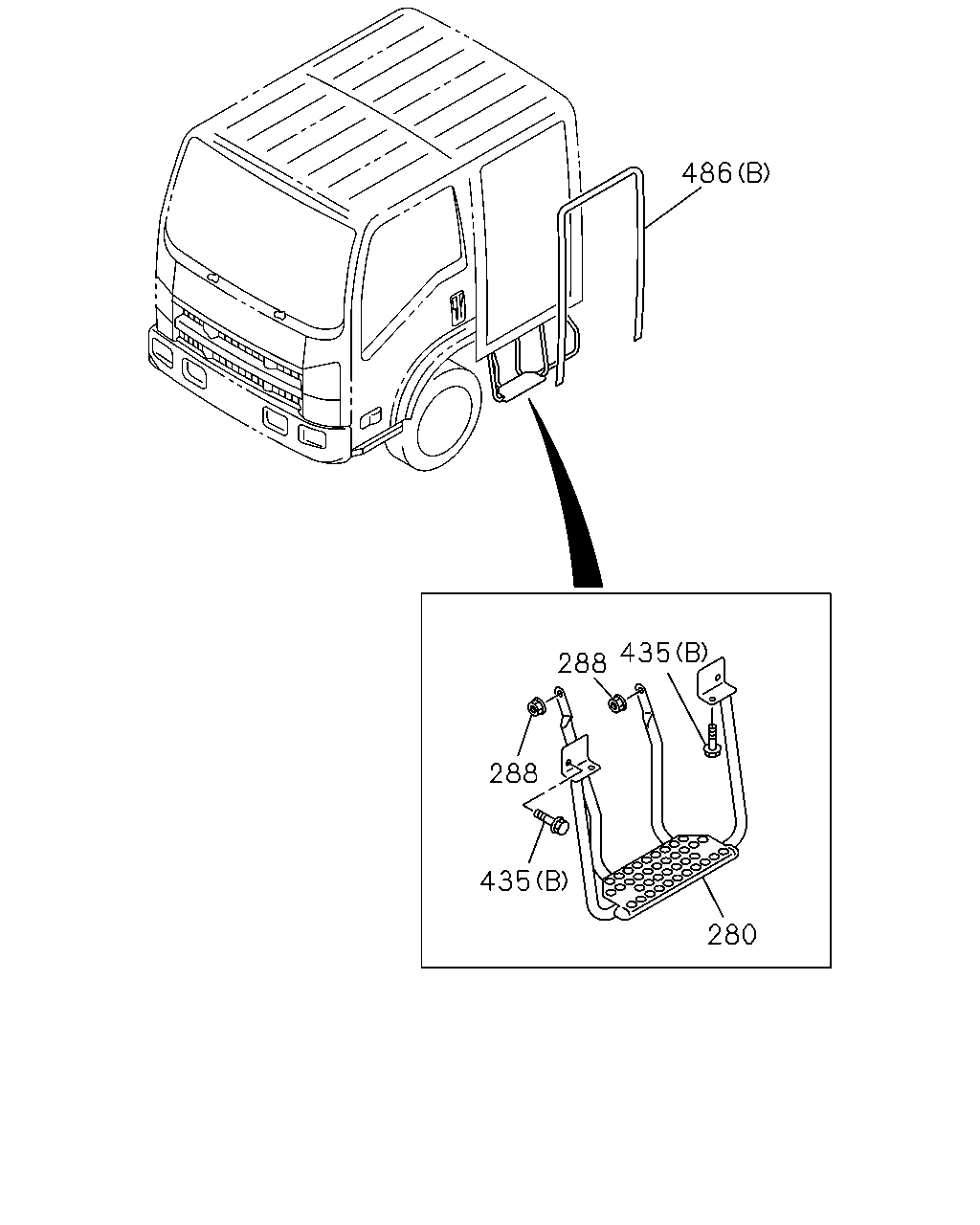

çizim 100000
486 435 288 288 435 280
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
280 08.225 STEP ASM; RR 8-98084-128-1 01 1 0710- ● ● ●
280 08.225 STEP ASM; RR 8-98084-129-1 01 1 0710- ● ● ●
288 08.225 NUT; STEP
01.062 M8 FLANGE 		0-91180-108-0 04 1 0710- ● ● ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 0710- ● ● ● ● ● ●
435 08.225 BOLT; RR STEP
01.531 (B) M8X20 FLANGE 		0-28650-820-0 08 1 0710- ● ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR FT ORANGE(609),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0710-0802 ●
486 16.570 SEAL; BODY SIDE
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0803-0903 ●
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),B ODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEA TLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890) ,BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0904- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0710-0903 ●
486 16.570 SEAL; BODY SIDE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0904- ●
486 16.570 SEAL; BODY SIDE
(B) DARK GRAY 		8-97405-303-2 02 1 0710-0912 ● ● ●
486 16.570 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1001- ● ● ●

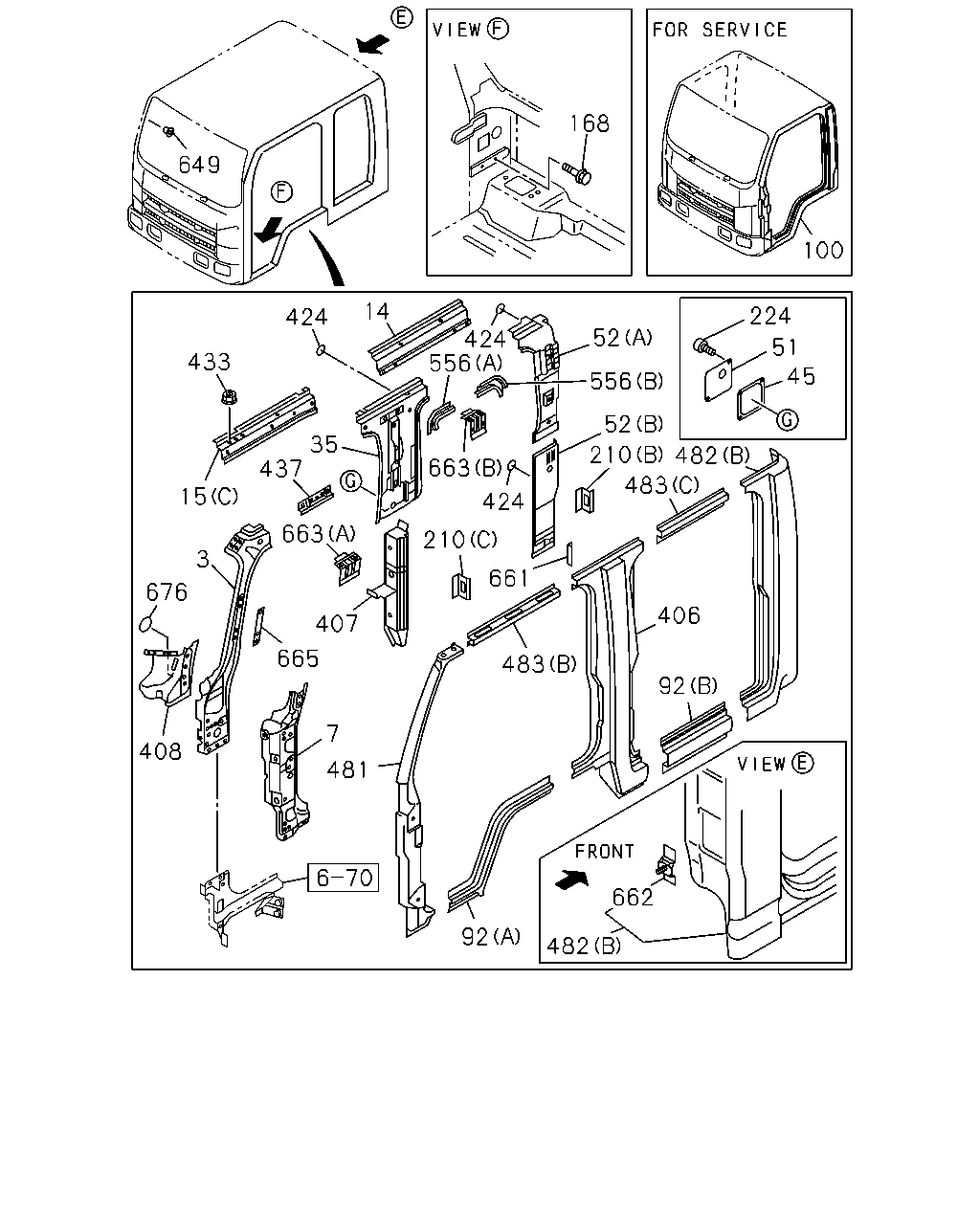

çizim 100056
168 649 100 14 224 424 52 424 556 51 433 45 556 52 35 437 210 482 663 483 15 424 663 210 3 661 676 406 407 665 483 92 7 408 481 662 92 482
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0710- ● ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0710- ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-2 01 1 0710- ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-3 01 1 0710- ● ● ● ● ● ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 0710- ● ● ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 0710- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 0710- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 0710- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 0710- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 0710- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 0710- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 0710- ● ● ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-97583-703-4 01 1 0710- ● ● ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-98013-489-4 01 1 0710- ● ● ●
45 16.570 SEAL; B-C POST 8-97853-731-2 02 1 0710- ● ● ●
51 16.570 COVER; HOLE,B-C POST 8-94273-658-0 02 1 0710- ● ● ●
52 16.588 PANEL; D-POST UPR
(A) 		8-97583-707-4 01 1 0710- ● ● ●
52 16.588 PANEL; D-POST UPR
(A) 		8-97583-708-4 01 1 0710- ● ● ●
52 16.588 PANEL; D-POST UPR
(B) 		8-97583-779-2 01 1 0710- ● ● ●
52 16.588 PANEL; D-POST UPR
(B) 		8-97583-780-2 01 1 0710- ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 0710- ● ● ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 0710- ● ● ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
16.507 (B) 		8-98069-113-0 02 1 0710- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-545-1 01 1 0710-0811 ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-034-6 01 1 0812- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-547-2 01 1 0710-0811 ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 0812- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-545-1 01 1 0710-0811 ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-034-6 01 1 0812- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-547-2 01 1 0710-0811 ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 0812- ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0710-0803 ● ● ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0804- ● ● ● ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 0710- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 0710- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 0710- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 0710- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 0710- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 0710- ● ● ●
224 16.570 SCREW; COVER
T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0710- ● ● ●
406 16.570 PILLAR; CENTER 8-98097-233-0 01 1 0710-0901 ● ● ●
406 16.570 PILLAR; CENTER 8-98069-085-0 01 1 0902- ● ● ●
406 16.570 PILLAR; CENTER 8-98097-234-0 01 1 0710-0901 ● ● ●
406 16.570 PILLAR; CENTER 8-98069-086-0 01 1 0902- ● ● ●
407 16.570 PILLAR; HINGE,RR DOOR 8-97410-822-2 01 1 0710- ● ● ●
407 16.570 PILLAR; HINGE,RR DOOR 8-98089-274-1 01 1 0710-0811 ● ● ●
407 16.570 PILLAR; HINGE,RR DOOR 8-97410-824-2 01 1 0812- ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 0710- ● ● ● ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 0710- ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 12 1 0710-0802 ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 12 1 0803-0903 ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),B ODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEA TLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890) ,BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 12 1 0904- ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 12 1 0710-0903 ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 12 1 0904- ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0710- ● ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0710- ● ● ● ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 0710- ● ● ● ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 0710- ● ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-714-1 01 1 0710- ● ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0710- ● ● ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 0710- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 0710-0807 ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98092-921-0 01 1 0808-0901 ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 0902- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-472-0 01 1 0710-0807 ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98092-918-0 01 1 0808-0811 ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98092-920-0 01 1 0812-0901 ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-463-0 01 1 0902- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-241-0 01 1 0710-0811 ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 0812- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 0710- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 0710- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 0710- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 0710- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
16.592 (C) 		8-98069-095-0 02 1 0710- ● ● ●
556 16.570 PATCH; ROOF SIDE
(A) 		8-98024-390-0 01 1 0710- ● ● ●
556 16.570 PATCH; ROOF SIDE
(A) 		8-98024-391-0 01 1 0710- ● ● ●
556 16.570 PATCH; ROOF SIDE
(B) 		8-98024-392-0 01 1 0710- ● ● ●
556 16.570 PATCH; ROOF SIDE
(B) 		8-98024-393-0 01 1 0710- ● ● ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 0710- ● ● ● ● ● ●
661 16.570 BRACKET; SIDE PANEL 8-98012-621-1 01 1 0710- ● ● ●
661 16.570 BRACKET; SIDE PANEL 8-98012-623-1 01 1 0710- ● ● ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 0710- ● ● ●
662 16.570 BRACKET; DUCT 8-98006-778-1 01 1 0710- ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 0710- ● ● ● ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 0710- ● ● ● ● ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 0710- ● ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 0710- ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0710- ● ● ● ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0710- ● ● ● ● ● ●
676 16.520 SEAL
16.592 OD=20 T=0.4 BLACK 		1-76798-020-0 01 1 0710-0711 ● ● ● ● ● ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
