0-13 — OIL PAN AND LEVEL GAUGE (#39027) — 29 parça

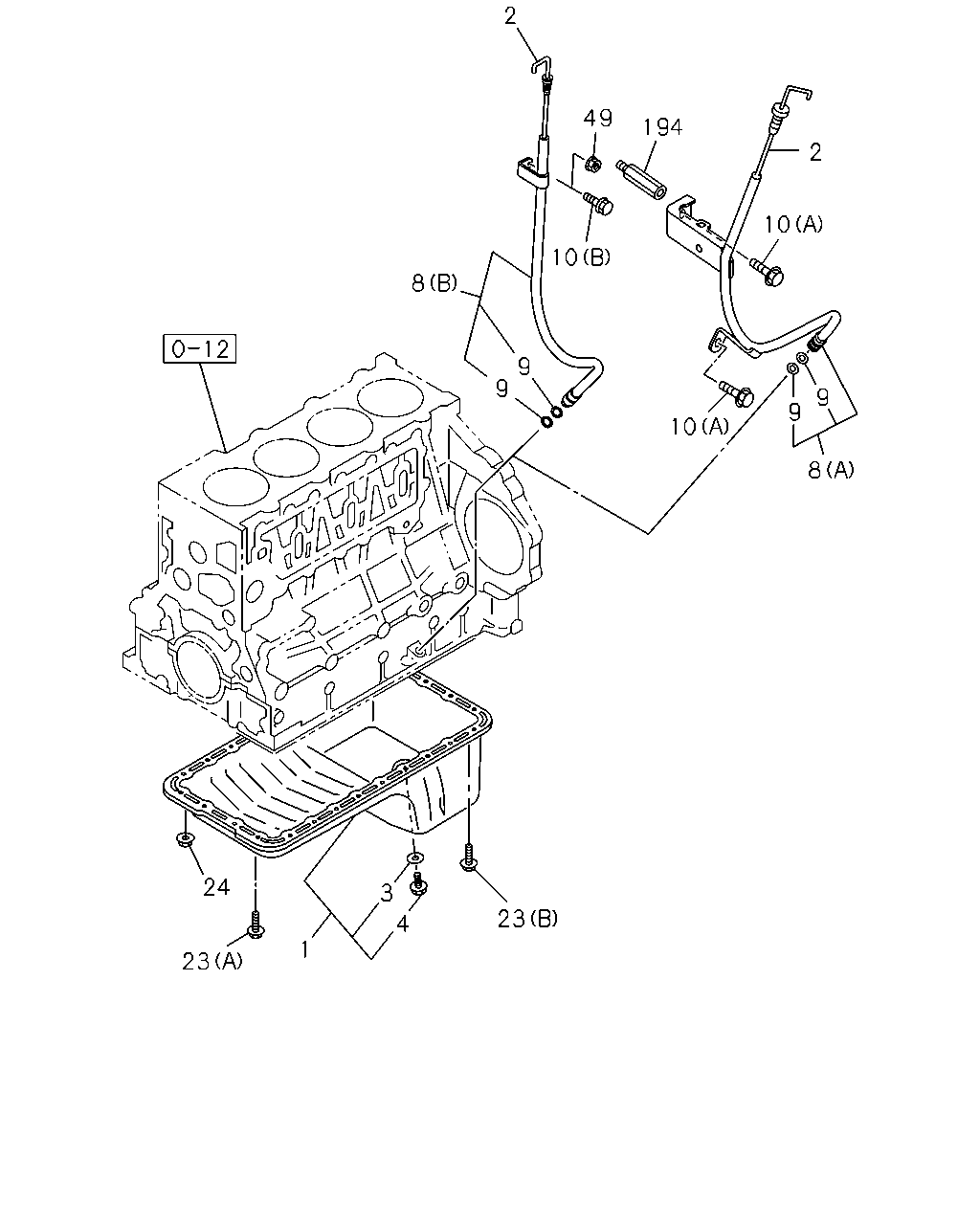

çizim 35927
2 49 194 2 10 10 8 9 9 9 9 10 8 24 3 23 4 1 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.426 PAN ASM; OIL 8-97149-314-0 01 1 0301-0501 ●
1 01.426 PAN ASM; OIL 8-97149-314-0 01 1 0502- ●
2 01.516 GAUGE; OIL LEVEL 8-97019-885-1 01 1 0301-0501 ●
2 01.516 GAUGE; OIL LEVEL 8-97019-885-1 01 1 0502- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0301-0501 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0502- ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0301-0501 ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0502- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-97354-831-0 01 1 0301-0501 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-97374-290-0 01 1 0502-0502 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-97357-173-0 01 1 0503-0506 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-97354-831-0 01 1 0507- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0507- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0301-0501 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0502-0502 ●
10 01.516 BOLT; GUIDE TUBE
02.664 (A) M8X20 FLANGE 		0-28680-820-0 02 1 0301-0501 ●
10 01.516 BOLT; GUIDE TUBE
01.428 (B) M8X20 L=32 		9-04110-820-0 01 1 0502-0502 ●
10 01.516 BOLT; GUIDE TUBE
02.664 (A) M8X20 FLANGE 		0-28680-820-0 02 1 0503-0512 ●
10 01.516 BOLT; GUIDE TUBE
01.531 (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
23 01.428 BOLT; OIL PAN
(A) M8X14 W/SCOTCH GRIP 		8-97047-004-1 01 1 0301-0501 ●
23 01.428 BOLT; OIL PAN
(A) M8X14 W/SCOTCH GRIP 		8-97047-004-1 01 1 0502- ●
23 01.428 BOLT; OIL PAN
(B) M8X14 		8-97047-005-0 18 1 0301-0501 ●
23 01.428 BOLT; OIL PAN
(B) M8X14 		8-97047-005-0 18 1 0502- ●
24 01.453 NUT; OIL PAN
07.833 M8 W/LK WASHER 		8-94327-073-0 07 1 0301-0501 ●
24 01.453 NUT; OIL PAN
07.833 M8 W/LK WASHER 		8-94327-073-0 07 1 0502-0805 ●
24 01.453 NUT; OIL PAN
03.417 M8 W/LK WASHER 		8-97581-234-0 07 1 0806- ●
49 01.516 NUT; GUIDE TUBE
07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0502 ●
194 01.429 SPACER; GUIDE TUBE 8-97101-215-0 01 1 0503- ●
194 01.429 SPACER; GUIDE TUBE 8-97101-215-0 01 1 0301-0501 ●
