◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51409 - NPS(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶

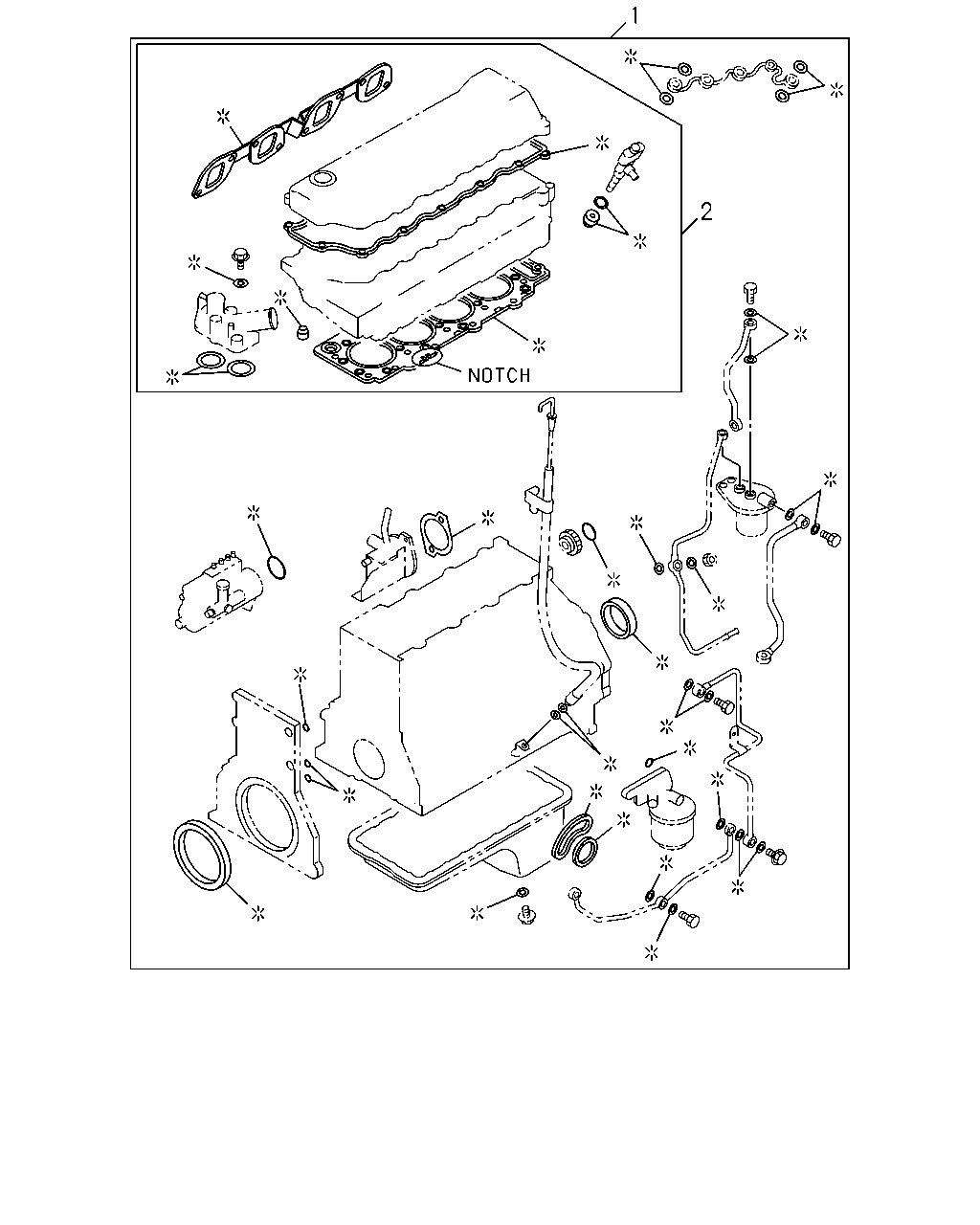

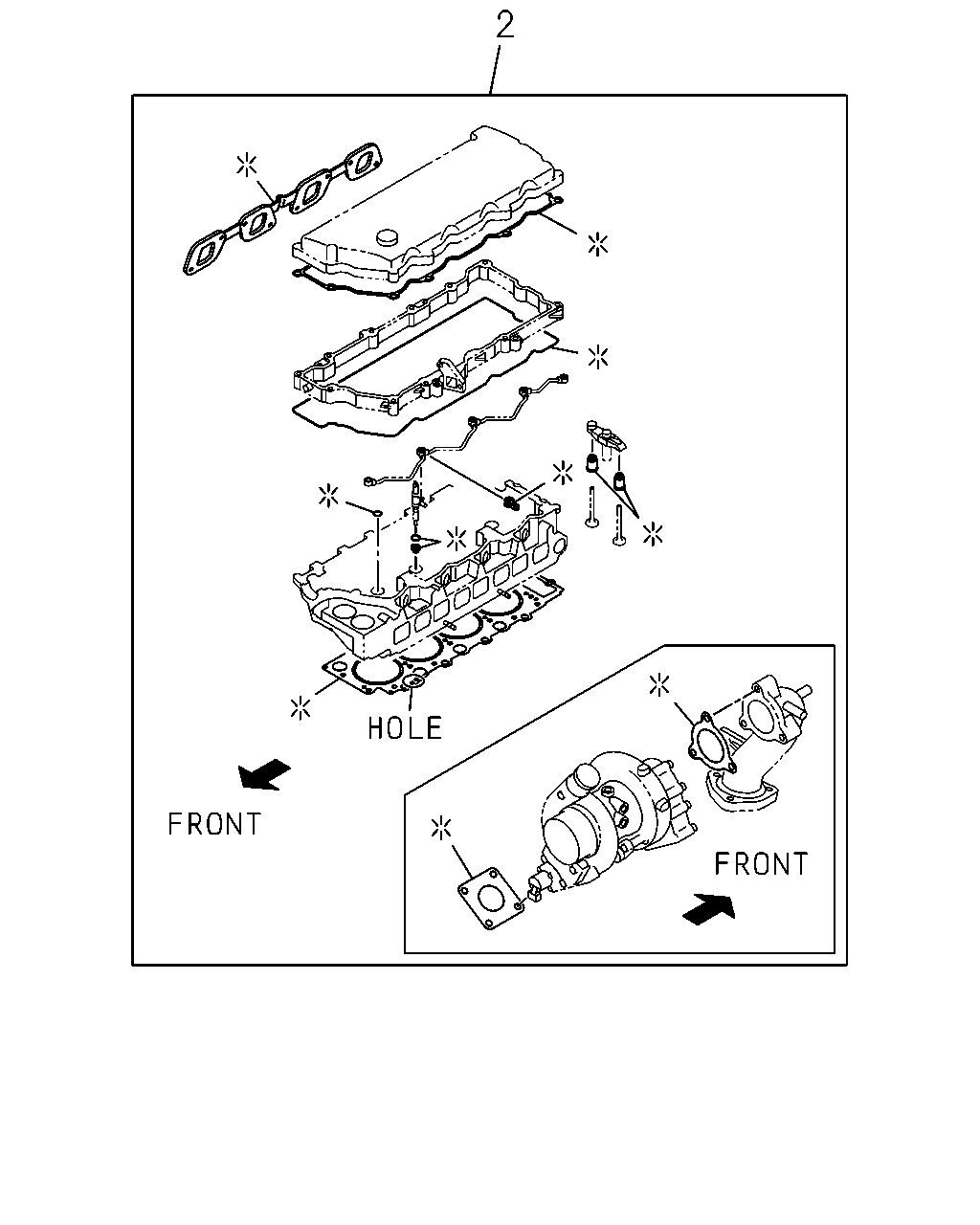

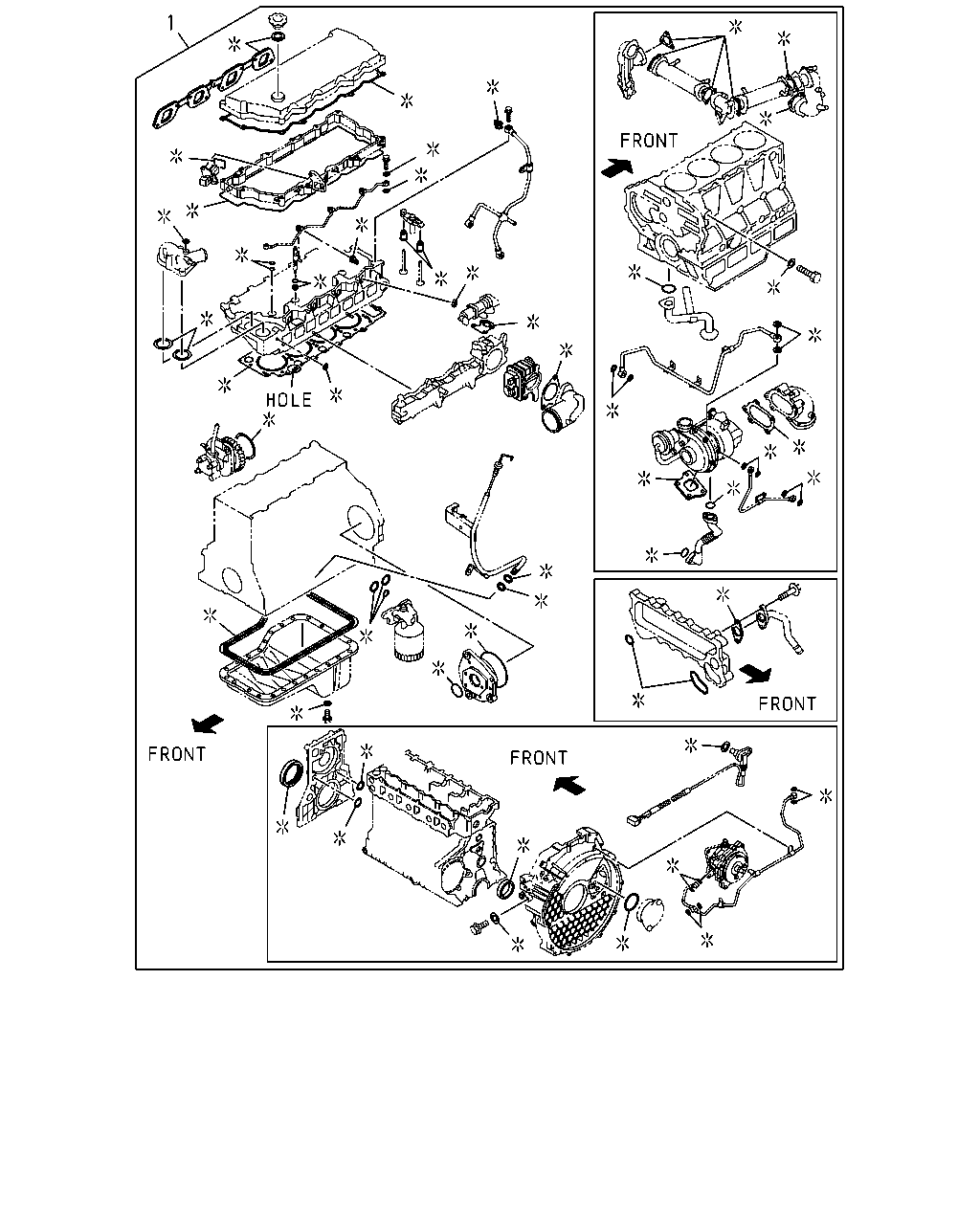

0-05 — ENGINE GASKET KIT (#39023) — 96 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 WO/NOTCH	5-87814-338-2	01	1	0301-0501	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87814-691-0	01	1	0502-0507		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87814-884-0	01	1	0508-0512		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87814-938-0	01	1	0601-0707		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-127-1	01	1	0708-0908		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-543-3	01	1	0909-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.75 1-NOTCH	5-87814-339-2	01	1	0301-0501	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87814-692-0	01	1	0502-0507		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87814-885-0	01	1	0508-0512		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87814-939-0	01	1	0601-0707		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-128-1	01	1	0708-0908		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-544-3	01	1	0909-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.80 2-NOTCH	5-87814-340-2	01	1	0301-0501	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87814-693-0	01	1	0502-0507		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87814-886-0	01	1	0508-0512		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87814-940-0	01	1	0601-0707		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-129-1	01	1	0708-0908		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-545-3	01	1	0909-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 WO/NOTCH	5-87814-332-1	01	1	0301-0307	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 WO/NOTCH	5-87814-433-1	01	1	0308-0501	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-770-0	01	1	0502-0507		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-881-2	01	1	0508-0707		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-193-1	01	1	0708-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-473-0	01	1	0903-0908		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-540-1	01	1	0909-1005		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-786-0	01	1	1006-1006		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-792-0	01	1	1007-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-999-2	01	1	1102-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.75 1-NOTCH	5-87814-333-1	01	1	0301-0307	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.75 1-NOTCH	5-87814-434-1	01	1	0308-0501	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-771-0	01	1	0502-0507		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-882-2	01	1	0508-0707		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-194-1	01	1	0708-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-474-0	01	1	0903-0908		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-541-1	01	1	0909-1005		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-787-0	01	1	1006-1006		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-793-0	01	1	1007-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87816-001-2	01	1	1102-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.80 2-NOTCH	5-87814-334-1	01	1	0301-0307	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.80 2-NOTCH	5-87814-435-1	01	1	0308-0501	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-772-0	01	1	0502-0507		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-883-2	01	1	0508-0707		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-195-1	01	1	0708-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-475-0	01	1	0903-0908		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-542-1	01	1	0909-1005		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-788-0	01	1	1006-1006		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-794-0	01	1	1007-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87816-002-2	01	1	1102-		●

1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 WO/NOTCH	5-87814-332-1	01	1	0301-0307	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 WO/NOTCH	5-87814-433-1	01	1	0308-0501	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-770-0	01	1	0502-0507		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-881-2	01	1	0508-0707		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-193-1	01	1	0708-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-473-0	01	1	0903-0908		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-540-1	01	1	0909-1005		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-786-0	01	1	1006-1006		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-792-0	01	1	1007-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-999-2	01	1	1102-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.75 1-NOTCH	5-87814-333-1	01	1	0301-0307	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.75 1-NOTCH	5-87814-434-1	01	1	0308-0501	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-771-0	01	1	0502-0507		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-882-2	01	1	0508-0707		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-194-1	01	1	0708-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-474-0	01	1	0903-0908		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-541-1	01	1	0909-1005		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-787-0	01	1	1006-1006		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-793-0	01	1	1007-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87816-001-2	01	1	1102-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.80 2-NOTCH	5-87814-334-1	01	1	0301-0307	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.80 2-NOTCH	5-87814-435-1	01	1	0308-0501	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-772-0	01	1	0502-0507		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-883-2	01	1	0508-0707		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-195-1	01	1	0708-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-475-0	01	1	0903-0908		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-542-1	01	1	0909-1005		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-788-0	01	1	1006-1006		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-794-0	01	1	1007-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87816-002-2	01	1	1102-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 WO/NOTCH	5-87814-338-2	01	1	0301-0501	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87814-691-0	01	1	0502-0507		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87814-884-0	01	1	0508-0512		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87814-938-0	01	1	0601-0707		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-127-1	01	1	0708-0908		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-543-3	01	1	0909-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.75 1-NOTCH	5-87814-339-2	01	1	0301-0501	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87814-692-0	01	1	0502-0507		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87814-885-0	01	1	0508-0512		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87814-939-0	01	1	0601-0707		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-128-1	01	1	0708-0908		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-544-3	01	1	0909-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.80 2-NOTCH	5-87814-340-2	01	1	0301-0501	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87814-693-0	01	1	0502-0507		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87814-886-0	01	1	0508-0512		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87814-940-0	01	1	0601-0707		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-129-1	01	1	0708-0908		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-545-3	01	1	0909-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
