0-31 — THERMOSTAT AND HOUSING (#3902) — 390 parça

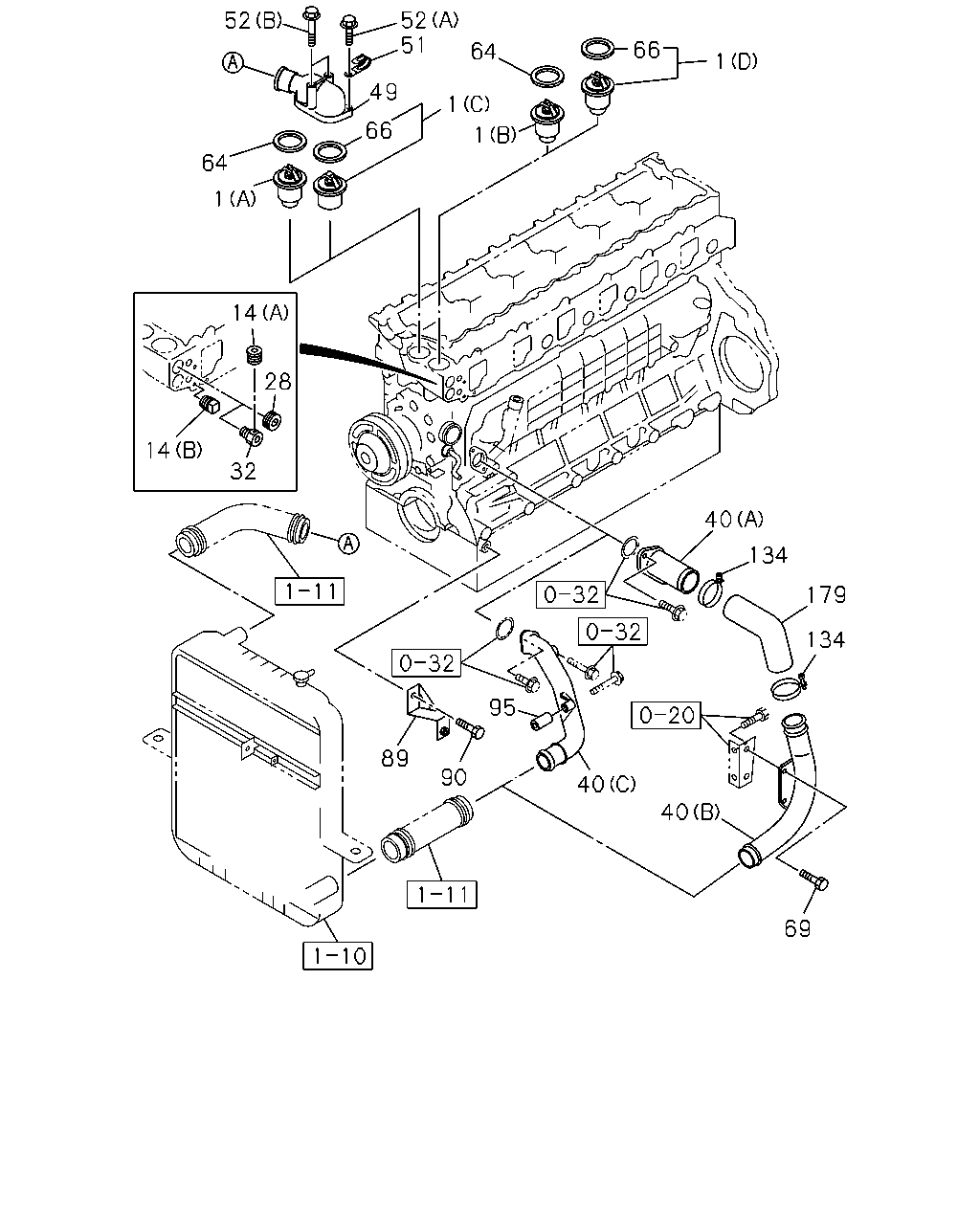

çizim 37881
52 51 52 66 64 1 49 1 66 1 64 1 14 28 14 32 40 134 179 134 95 89 90 40 40 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9601-9806 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (A) 82 CELSIUS 		8-94397-310-0 01 1 9601-9806 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9807-0004 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (A) 82 CELSIUS 		8-94397-310-0 01 1 9807-0004 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 0005-0105 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (A) 82 CELSIUS 		8-94397-310-0 01 1 0005-0105 ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-97602-048-1 01 1 0106-0607 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (C) 82 CELSIUS 		8-97602-048-1 01 1 0106-0607 ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-97602-048-3 01 1 0608- ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (C) 82 CELSIUS 		8-97602-048-3 01 1 0608- ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9601-9806 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-94397-311-0 01 1 9601-9806 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9807-9807 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-94397-311-0 01 1 9807-9807 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9808-0004 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-94392-817-0 01 1 9808-0004 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 0005-0105 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-94392-817-0 01 1 0005-0105 ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (D) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-393-0 01 1 0201-0607 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (D) 82 CELSIUS 		8-97602-393-0 01 1 0201-0607 ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-393-1 01 1 0608-1501 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (D) 82 CELSIUS 		8-97602-393-1 01 1 0608-1501 ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (D) 82 CELSIUS 		8-98295-921-0 01 1 1502- ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (A) 76.5 CELSIUS 		8-94393-349-1 01 1 9601-0004 ●
1 THERMOSTAT
ENG OIL PUMP HEAVY DUTY<Q1V> (A) 76.5 CELSIUS 		8-94393-349-1 01 1 0005-0105 ●
1 THERMOSTAT
ENG OIL PUMP HEAVY DUTY<Q1V> (C) 76.5 CELSIUS 		8-97602-036-0 01 1 0106-0112 ●
1 THERMOSTAT
ENG OIL PUMP HEAVY DUTY<Q1V> (C) 76.5 CELSIUS 		8-97602-392-2 01 1 0201- ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (B) 76.5 CELSIUS 		8-94393-350-1 01 1 9601-9807 ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (B) 76.5 CELSIUS 		8-94392-816-0 01 1 9808-0004 ●
1 THERMOSTAT
ENG OIL PUMP HEAVY DUTY<Q1V> (B) 76.5 CELSIUS 		8-94392-816-0 01 1 0005-0105 ●
1 THERMOSTAT
ENG OIL PUMP HEAVY DUTY<Q1V> (D) 76.5 CELSIUS 		8-97602-035-3 01 1 0106- ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (E) 65 CELSIUS 		1-13770-087-0 01 1 9601-9803 ●
1 THERMOSTAT
OIL FILTER SETTING DOWNWARD<E7V> (E) 65 CELSIUS 		1-13770-087-0 01 1 9804- ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (E) 76.5 CELSIUS 		1-13770-085-0 01 1 9601- ●
1 THERMOSTAT
(E) 76.5 CELSIUS 		1-13770-085-0 01 1 9601- ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9601-9806 ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9807-0004 ● ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0005-0607 ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0608- ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9601-9806 ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9807-0004 ● ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 0005- ● ● ●
14 PLUG; SW
(B) PT3/8 T=8.0 		1-09605-066-0 01 1 9601-9806 ● ●
14 PLUG; SW
(B) PT3/8 T=8.0 		1-09605-066-0 01 1 9807- ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 9601-0607 ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0608- ● ●
32 CONNECTOR; HTR
EURO2 SPECIFICATION<THN> 		8-98177-501-0 01 1 1009- ●
32 CONNECTOR; HTR 8-94393-847-0 01 1 9601-9604 ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 9605-9806 ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 9807-0004 ● ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 0005-1008 ●
32 CONNECTOR; HTR
EXC. EURO2 SPECIFICATION<THN> 		8-94395-851-1 01 1 1009- ●
40 DUCT; WATER,SUCTION
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EURO2 SPECIFICATION<THN> (C) 		8-94395-326-1 01 1 9806-9806 ●
40 DUCT; WATER,SUCTION
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EURO2 SPECIFICATION<THN> (C) 		8-94395-326-1 01 1 9807-0004 ●
40 DUCT; WATER,SUCTION
(C) 		8-94395-326-1 01 1 9807-0004 ●
40 DUCT; WATER,SUCTION
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EURO2 SPECIFICATION<THN> (C) 		8-94395-326-2 01 1 0005- ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-403-1 01 1 9601-9611 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9612-9803 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9804-9805 ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 9806-0607 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 0608- ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9601-9805 ● ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> (B) 		8-94394-404-1 01 1 9806-9806 ●
40 DUCT; WATER,SUCTION
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 		8-94394-404-1 01 1 9806-9806 ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9806-9806 ●
40 DUCT; WATER,SUCTION
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 		8-94394-404-1 01 1 9807-0004 ● ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> (B) 		8-94394-404-1 01 1 9807-0004 ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9807-0004 ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> (B) 		8-94394-404-1 01 1 0005-0607 ●
40 DUCT; WATER,SUCTION
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 		8-94394-404-1 01 1 0005-0607 ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0005-0607 ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> (B) 		8-94394-404-1 01 1 0608-0703 ● ●
40 DUCT; WATER,SUCTION
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 		8-94394-404-1 01 1 0608-0703 ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0608-0703 ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0704- ● ● ●
40 DUCT; WATER,SUCTION
(D) 		1-13711-675-0 01 1 9601- ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9601-9803 ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9804-0004 ● ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 0005-0105 ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0106-0607 ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0608- ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9601-9803 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9804-0004 ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0005-0607 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0608-0801 ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ●
51 CLIP; JOINT,THERMOSTAT
EURO2 SPECIFICATION<THN> L=300 		1-09707-001-1 01 1 9804- ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X22 FLANGE 		0-28080-822-0 02 1 9601-9709 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9710-9803 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9804-0004 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0607 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0608- ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X79 FLANGE 		8-94311-617-1 02 1 9601-9611 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9612-9806 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9807-0004 ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 0005-0512 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0601-0607 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0608- ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9601-9806 ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9807-0004 ● ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 0005-0105 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0106-0607 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0608-1501 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9712 ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 9801-9805 ● ●
69 BOLT; DUCT,WATER OUTLET
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 02 1 9806-9806 ●
69 BOLT; DUCT,WATER OUTLET
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M8X20 FLANGE 		0-28680-820-0 02 1 9806-9806 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 9806-9806 ●
69 BOLT; DUCT,WATER OUTLET
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M8X20 FLANGE 		0-28680-820-0 02 1 9807-0004 ● ●
69 BOLT; DUCT,WATER OUTLET
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 02 1 9807-0004 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 9807-0004 ●
69 BOLT; DUCT,WATER OUTLET
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ●
69 BOLT; DUCT,WATER OUTLET
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ●
69 BOLT; DUCT,WATER OUTLET
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28650-820-0 02 1 0601-0607 ●
69 BOLT; DUCT,WATER OUTLET
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0607 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 0601-0607 ●
69 BOLT; DUCT,WATER OUTLET
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28650-820-0 02 1 0608-0703 ● ●
69 BOLT; DUCT,WATER OUTLET
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M8X20 FLANGE 		0-28650-820-0 02 1 0608-0703 ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 0608-0703 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 0704- ● ● ●
89 BRACKET 8-94390-983-2 01 1 0608- ●
89 BRACKET
HEATER & DEFROSTER(C41) OIL FILTER SETTING DOWNWARD<E7V> 		1-14119-434-0 01 1 9904- ●
89 BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		1-14119-389-0 01 1 9601-9903 ●
89 BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-14119-389-0 01 1 9904- ●
90 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 01 1 0608- ●
95 DISTANCE; WATER DUCT
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EURO2 SPECIFICATION<THN> 		1-21559-235-0 01 1 9806-9806 ●
95 DISTANCE; WATER DUCT
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EURO2 SPECIFICATION<THN> 		1-21559-235-0 01 1 9807-0004 ●
95 DISTANCE; WATER DUCT 1-21559-235-0 01 1 9807-0004 ●
95 DISTANCE; WATER DUCT
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EURO2 SPECIFICATION<THN> 		1-21559-235-0 01 1 0005- ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9601-9803 ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9804-9805 ● ● ● ● ●
134 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<THN> ID=63 		1-09704-067-0 02 1 9806-9806 ●
134 CLIP; RUBBER HOSE
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=63 		1-09704-067-0 02 1 9806-9806 ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9806-9806 ● ● ●
134 CLIP; RUBBER HOSE
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=63 		1-09704-067-0 02 1 9807-0004 ● ●
134 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<THN> ID=63 		1-09704-067-0 02 1 9807-0004 ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9807-0004 ● ● ●
134 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<THN> ID=63 		1-09704-067-0 02 1 0005-0607 ●
134 CLIP; RUBBER HOSE
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=63 		1-09704-067-0 02 1 0005-0607 ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0005-0607 ● ● ●
134 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<THN> ID=63 		1-09704-067-0 02 1 0608-0703 ● ●
134 CLIP; RUBBER HOSE
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=63 		1-09704-067-0 02 1 0608-0703 ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0608-0703 ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0704- ● ● ● ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-1 01 1 9601-9805 ● ●
179 HOSE; RUBBER,WATER DUCT
EURO2 SPECIFICATION<THN> 		8-94394-535-1 01 1 9806-9806 ●
179 HOSE; RUBBER,WATER DUCT
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		8-94394-535-1 01 1 9806-9806 ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-1 01 1 9806-9806 ●
179 HOSE; RUBBER,WATER DUCT
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		8-94394-535-1 01 1 9807-0004 ● ●
179 HOSE; RUBBER,WATER DUCT
EURO2 SPECIFICATION<THN> 		8-94394-535-1 01 1 9807-0004 ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-1 01 1 9807-0004 ●
179 HOSE; RUBBER,WATER DUCT
EURO2 SPECIFICATION<THN> 		8-94394-535-2 01 1 0005-0607 ●
179 HOSE; RUBBER,WATER DUCT
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		8-94394-535-2 01 1 0005-0607 ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 0005-0607 ●
179 HOSE; RUBBER,WATER DUCT
EURO2 SPECIFICATION<THN> 		8-94394-535-2 01 1 0608-0703 ● ●
179 HOSE; RUBBER,WATER DUCT
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		8-94394-535-2 01 1 0608-0703 ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 0608-0703 ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 0704- ● ● ●

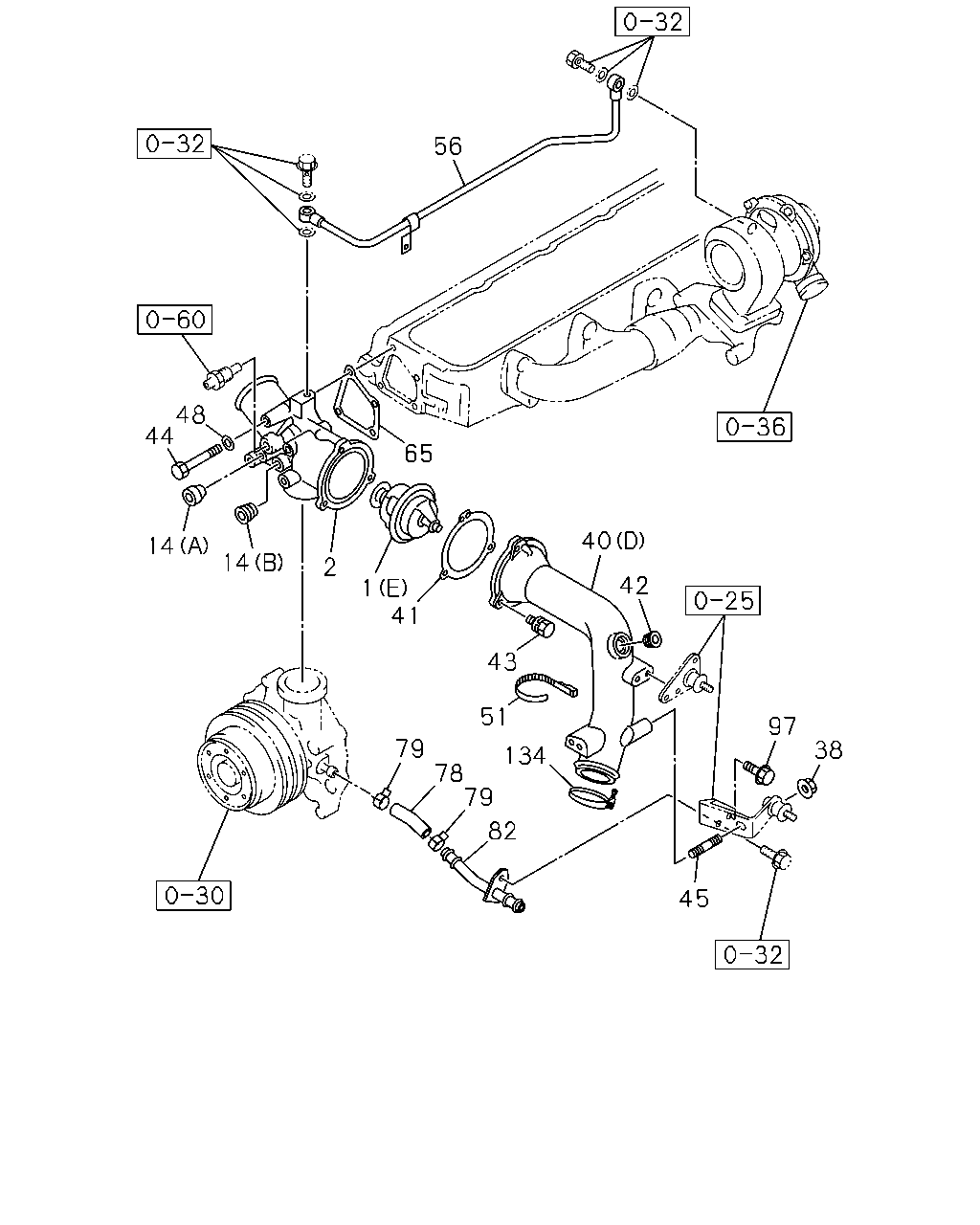

çizim 38456
56 48 44 65 40 14 14 2 42 1 41 43 51 97 79 38 134 78 79 82 45
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9601-9806 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (A) 82 CELSIUS 		8-94397-310-0 01 1 9601-9806 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9807-0004 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (A) 82 CELSIUS 		8-94397-310-0 01 1 9807-0004 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 0005-0105 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (A) 82 CELSIUS 		8-94397-310-0 01 1 0005-0105 ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-97602-048-1 01 1 0106-0607 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (C) 82 CELSIUS 		8-97602-048-1 01 1 0106-0607 ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-97602-048-3 01 1 0608- ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (C) 82 CELSIUS 		8-97602-048-3 01 1 0608- ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9601-9806 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-94397-311-0 01 1 9601-9806 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9807-9807 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-94397-311-0 01 1 9807-9807 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9808-0004 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-94392-817-0 01 1 9808-0004 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 0005-0105 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-94392-817-0 01 1 0005-0105 ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (D) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-393-0 01 1 0201-0607 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (D) 82 CELSIUS 		8-97602-393-0 01 1 0201-0607 ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-393-1 01 1 0608-1501 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (D) 82 CELSIUS 		8-97602-393-1 01 1 0608-1501 ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (D) 82 CELSIUS 		8-98295-921-0 01 1 1502- ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (A) 76.5 CELSIUS 		8-94393-349-1 01 1 9601-0004 ●
1 THERMOSTAT
ENG OIL PUMP HEAVY DUTY<Q1V> (A) 76.5 CELSIUS 		8-94393-349-1 01 1 0005-0105 ●
1 THERMOSTAT
ENG OIL PUMP HEAVY DUTY<Q1V> (C) 76.5 CELSIUS 		8-97602-036-0 01 1 0106-0112 ●
1 THERMOSTAT
ENG OIL PUMP HEAVY DUTY<Q1V> (C) 76.5 CELSIUS 		8-97602-392-2 01 1 0201- ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (B) 76.5 CELSIUS 		8-94393-350-1 01 1 9601-9807 ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (B) 76.5 CELSIUS 		8-94392-816-0 01 1 9808-0004 ●
1 THERMOSTAT
ENG OIL PUMP HEAVY DUTY<Q1V> (B) 76.5 CELSIUS 		8-94392-816-0 01 1 0005-0105 ●
1 THERMOSTAT
ENG OIL PUMP HEAVY DUTY<Q1V> (D) 76.5 CELSIUS 		8-97602-035-3 01 1 0106- ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (E) 65 CELSIUS 		1-13770-087-0 01 1 9601-9803 ●
1 THERMOSTAT
OIL FILTER SETTING DOWNWARD<E7V> (E) 65 CELSIUS 		1-13770-087-0 01 1 9804- ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (E) 76.5 CELSIUS 		1-13770-085-0 01 1 9601- ●
1 THERMOSTAT
(E) 76.5 CELSIUS 		1-13770-085-0 01 1 9601- ●
2 HOUSING; THERMOSTAT 1-13716-180-0 01 1 9601- ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9601-9806 ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9807-0004 ● ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0005-0607 ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0608- ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9601-9806 ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9807-0004 ● ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 0005- ● ● ●
14 PLUG; SW
(B) PT3/8 T=8.0 		1-09605-066-0 01 1 9601-9806 ● ●
14 PLUG; SW
(B) PT3/8 T=8.0 		1-09605-066-0 01 1 9807- ●
38 NUT; DUCT,SUCTION
M10 FLANGE 		0-91150-110-0 01 1 9601-0602 ● ●
38 NUT; DUCT,SUCTION
M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
40 DUCT; WATER,SUCTION
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EURO2 SPECIFICATION<THN> (C) 		8-94395-326-1 01 1 9806-9806 ●
40 DUCT; WATER,SUCTION
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EURO2 SPECIFICATION<THN> (C) 		8-94395-326-1 01 1 9807-0004 ●
40 DUCT; WATER,SUCTION
(C) 		8-94395-326-1 01 1 9807-0004 ●
40 DUCT; WATER,SUCTION
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EURO2 SPECIFICATION<THN> (C) 		8-94395-326-2 01 1 0005- ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-403-1 01 1 9601-9611 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9612-9803 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9804-9805 ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 9806-0607 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 0608- ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9601-9805 ● ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> (B) 		8-94394-404-1 01 1 9806-9806 ●
40 DUCT; WATER,SUCTION
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 		8-94394-404-1 01 1 9806-9806 ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9806-9806 ●
40 DUCT; WATER,SUCTION
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 		8-94394-404-1 01 1 9807-0004 ● ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> (B) 		8-94394-404-1 01 1 9807-0004 ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9807-0004 ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> (B) 		8-94394-404-1 01 1 0005-0607 ●
40 DUCT; WATER,SUCTION
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 		8-94394-404-1 01 1 0005-0607 ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0005-0607 ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> (B) 		8-94394-404-1 01 1 0608-0703 ● ●
40 DUCT; WATER,SUCTION
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 		8-94394-404-1 01 1 0608-0703 ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0608-0703 ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0704- ● ● ●
40 DUCT; WATER,SUCTION
(D) 		1-13711-675-0 01 1 9601- ● ●
41 GASKET; DUCT TO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13742-026-0 01 1 9601- ● ●
42 PLUG; WATER DUCT
PT3/4 		9-09664-005-0 01 1 9601- ● ●
43 BOLT; WATER DUCT
M8X28 W/LK&PL WASHER 		0-50140-828-0 03 1 9601-0906 ● ●
43 BOLT; WATER DUCT
M8X28 W/LK&PL WASHER 		0-50640-828-0 03 1 0907- ● ●
44 BOLT; HSG TO HD
M8X100 		0-10805-800-0 04 1 9601-0512 ● ●
44 BOLT; HSG TO HD
M8X100 		0-10855-800-0 04 1 0601- ● ●
45 STUD; DUCT
M10X20 L=35 		9-04411-020-0 01 1 9601- ● ●
48 WASHER; PL,THERMOSTAT HSG
ID=8.4 		9-09160-508-0 04 1 9601-0605 ● ●
48 WASHER; PL,THERMOSTAT HSG
ID=8.4 OD=16 		0-91610-508-0 04 1 0606- ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9601-9803 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9804-0004 ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0005-0607 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0608-0801 ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ●
51 CLIP; JOINT,THERMOSTAT
EURO2 SPECIFICATION<THN> L=300 		1-09707-001-1 01 1 9804- ●
56 PIPE; WATER,THERMOSTAT HSG 1-13721-628-0 01 1 9601- ●
65 GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-13743-028-0 01 1 9601- ● ●
78 HOSE; RUBBER,WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		1-09360-626-0 01 1 9708- ● ●
79 CLIP; RUBBER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=20 		1-09707-084-1 02 1 9708- ● ●
82 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		1-13711-698-1 01 1 9601- ● ●
97 BOLT; PIPE STAY
M10X20 FLANGE 		0-28181-020-0 02 1 9601-0512 ● ●
97 BOLT; PIPE STAY
M10X20 FLANGE 		0-28151-020-0 02 1 0601- ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9601-9803 ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9804-9805 ● ● ● ● ●
134 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<THN> ID=63 		1-09704-067-0 02 1 9806-9806 ●
134 CLIP; RUBBER HOSE
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=63 		1-09704-067-0 02 1 9806-9806 ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9806-9806 ● ● ●
134 CLIP; RUBBER HOSE
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=63 		1-09704-067-0 02 1 9807-0004 ● ●
134 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<THN> ID=63 		1-09704-067-0 02 1 9807-0004 ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9807-0004 ● ● ●
134 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<THN> ID=63 		1-09704-067-0 02 1 0005-0607 ●
134 CLIP; RUBBER HOSE
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=63 		1-09704-067-0 02 1 0005-0607 ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0005-0607 ● ● ●
134 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<THN> ID=63 		1-09704-067-0 02 1 0608-0703 ● ●
134 CLIP; RUBBER HOSE
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=63 		1-09704-067-0 02 1 0608-0703 ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0608-0703 ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0704- ● ● ● ● ●

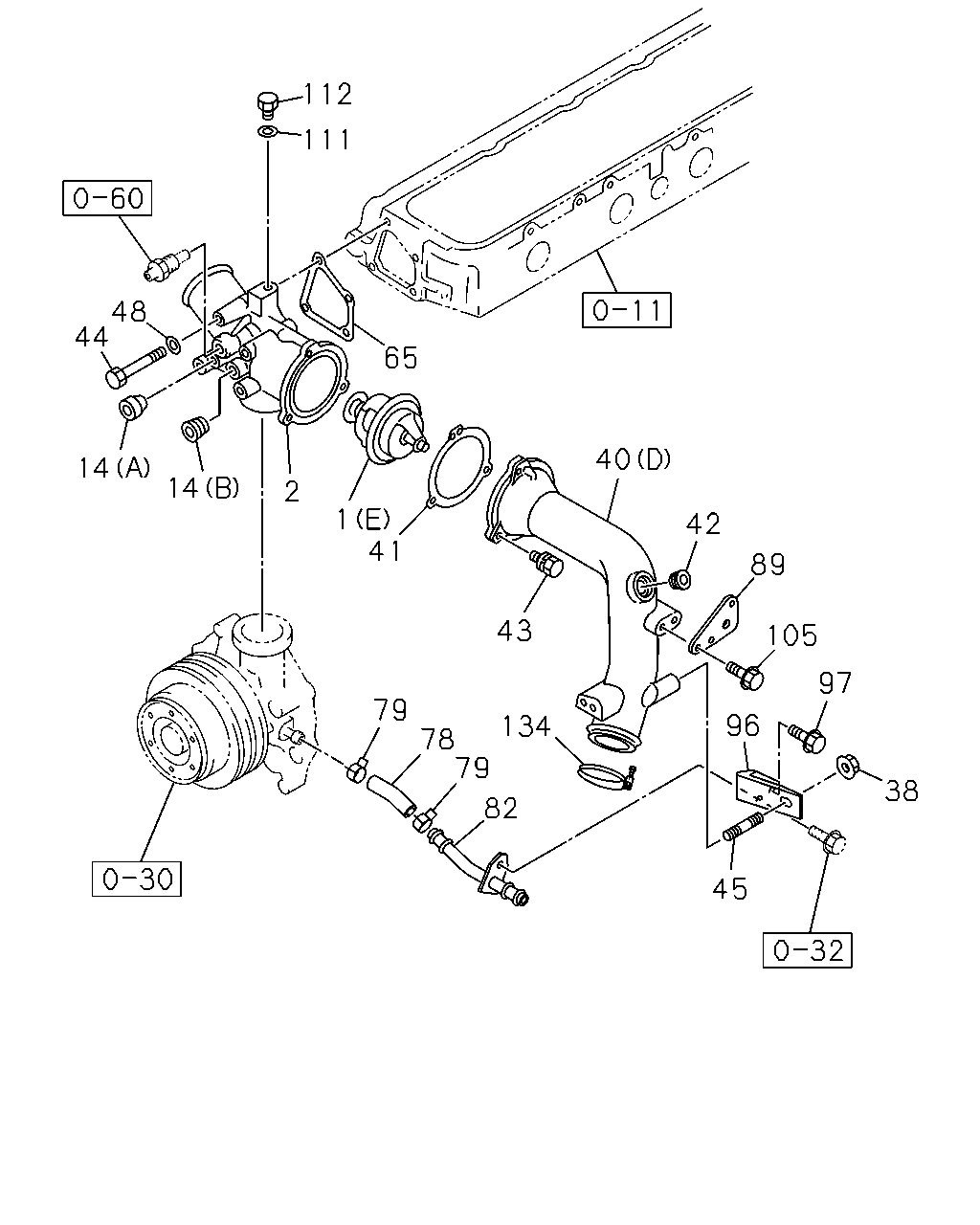

çizim 40871
112 111 48 44 65 40 14 14 2 1 41 42 89 43 105 97 79 96 134 78 79 38 82 45
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9601-9806 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (A) 82 CELSIUS 		8-94397-310-0 01 1 9601-9806 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9807-0004 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (A) 82 CELSIUS 		8-94397-310-0 01 1 9807-0004 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 0005-0105 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (A) 82 CELSIUS 		8-94397-310-0 01 1 0005-0105 ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-97602-048-1 01 1 0106-0607 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (C) 82 CELSIUS 		8-97602-048-1 01 1 0106-0607 ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-97602-048-3 01 1 0608- ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (C) 82 CELSIUS 		8-97602-048-3 01 1 0608- ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9601-9806 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-94397-311-0 01 1 9601-9806 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9807-9807 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-94397-311-0 01 1 9807-9807 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9808-0004 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-94392-817-0 01 1 9808-0004 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 0005-0105 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (B) 82 CELSIUS 		8-94392-817-0 01 1 0005-0105 ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (D) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-393-0 01 1 0201-0607 ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (D) 82 CELSIUS 		8-97602-393-0 01 1 0201-0607 ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-393-1 01 1 0608-1501 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (D) 82 CELSIUS 		8-97602-393-1 01 1 0608-1501 ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (D) 82 CELSIUS 		8-98295-921-0 01 1 1502- ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (A) 76.5 CELSIUS 		8-94393-349-1 01 1 9601-0004 ●
1 THERMOSTAT
ENG OIL PUMP HEAVY DUTY<Q1V> (A) 76.5 CELSIUS 		8-94393-349-1 01 1 0005-0105 ●
1 THERMOSTAT
ENG OIL PUMP HEAVY DUTY<Q1V> (C) 76.5 CELSIUS 		8-97602-036-0 01 1 0106-0112 ●
1 THERMOSTAT
ENG OIL PUMP HEAVY DUTY<Q1V> (C) 76.5 CELSIUS 		8-97602-392-2 01 1 0201- ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (B) 76.5 CELSIUS 		8-94393-350-1 01 1 9601-9807 ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (B) 76.5 CELSIUS 		8-94392-816-0 01 1 9808-0004 ●
1 THERMOSTAT
ENG OIL PUMP HEAVY DUTY<Q1V> (B) 76.5 CELSIUS 		8-94392-816-0 01 1 0005-0105 ●
1 THERMOSTAT
ENG OIL PUMP HEAVY DUTY<Q1V> (D) 76.5 CELSIUS 		8-97602-035-3 01 1 0106- ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> (E) 65 CELSIUS 		1-13770-087-0 01 1 9601-9803 ●
1 THERMOSTAT
OIL FILTER SETTING DOWNWARD<E7V> (E) 65 CELSIUS 		1-13770-087-0 01 1 9804- ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> (E) 76.5 CELSIUS 		1-13770-085-0 01 1 9601- ●
1 THERMOSTAT
(E) 76.5 CELSIUS 		1-13770-085-0 01 1 9601- ●
2 HOUSING; THERMOSTAT 1-13716-180-0 01 1 9601- ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9601-9806 ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9807-0004 ● ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0005-0607 ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0608- ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9601-9806 ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9807-0004 ● ● ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 0005- ● ● ●
14 PLUG; SW
(B) PT3/8 T=8.0 		1-09605-066-0 01 1 9601-9806 ● ●
14 PLUG; SW
(B) PT3/8 T=8.0 		1-09605-066-0 01 1 9807- ●
38 NUT; DUCT,SUCTION
M10 FLANGE 		0-91150-110-0 01 1 9601-0602 ● ●
38 NUT; DUCT,SUCTION
M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
40 DUCT; WATER,SUCTION
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EURO2 SPECIFICATION<THN> (C) 		8-94395-326-1 01 1 9806-9806 ●
40 DUCT; WATER,SUCTION
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EURO2 SPECIFICATION<THN> (C) 		8-94395-326-1 01 1 9807-0004 ●
40 DUCT; WATER,SUCTION
(C) 		8-94395-326-1 01 1 9807-0004 ●
40 DUCT; WATER,SUCTION
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EURO2 SPECIFICATION<THN> (C) 		8-94395-326-2 01 1 0005- ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-403-1 01 1 9601-9611 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9612-9803 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9804-9805 ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 9806-0607 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 0608- ● ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9601-9805 ● ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> (B) 		8-94394-404-1 01 1 9806-9806 ●
40 DUCT; WATER,SUCTION
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 		8-94394-404-1 01 1 9806-9806 ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9806-9806 ●
40 DUCT; WATER,SUCTION
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 		8-94394-404-1 01 1 9807-0004 ● ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> (B) 		8-94394-404-1 01 1 9807-0004 ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9807-0004 ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> (B) 		8-94394-404-1 01 1 0005-0607 ●
40 DUCT; WATER,SUCTION
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 		8-94394-404-1 01 1 0005-0607 ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0005-0607 ●
40 DUCT; WATER,SUCTION
EURO2 SPECIFICATION<THN> (B) 		8-94394-404-1 01 1 0608-0703 ● ●
40 DUCT; WATER,SUCTION
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 		8-94394-404-1 01 1 0608-0703 ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0608-0703 ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0704- ● ● ●
40 DUCT; WATER,SUCTION
(D) 		1-13711-675-0 01 1 9601- ● ●
41 GASKET; DUCT TO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13742-026-0 01 1 9601- ● ●
42 PLUG; WATER DUCT
PT3/4 		9-09664-005-0 01 1 9601- ● ●
43 BOLT; WATER DUCT
M8X28 W/LK&PL WASHER 		0-50140-828-0 03 1 9601-0906 ● ●
43 BOLT; WATER DUCT
M8X28 W/LK&PL WASHER 		0-50640-828-0 03 1 0907- ● ●
44 BOLT; HSG TO HD
M8X100 		0-10805-800-0 04 1 9601-0512 ● ●
44 BOLT; HSG TO HD
M8X100 		0-10855-800-0 04 1 0601- ● ●
45 STUD; DUCT
M10X20 L=35 		9-04411-020-0 01 1 9601- ● ●
48 WASHER; PL,THERMOSTAT HSG
ID=8.4 		9-09160-508-0 04 1 9601-0605 ● ●
48 WASHER; PL,THERMOSTAT HSG
ID=8.4 OD=16 		0-91610-508-0 04 1 0606- ● ●
65 GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-13743-028-0 01 1 9601- ● ●
78 HOSE; RUBBER,WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		1-09360-626-0 01 1 9708- ● ●
79 CLIP; RUBBER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=20 		1-09707-084-1 02 1 9708- ● ●
82 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		1-13711-698-1 01 1 9601- ● ●
89 BRACKET 8-94390-983-2 01 1 0608- ●
89 BRACKET
HEATER & DEFROSTER(C41) OIL FILTER SETTING DOWNWARD<E7V> 		1-14119-434-0 01 1 9904- ●
89 BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		1-14119-389-0 01 1 9601-9903 ●
89 BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-14119-389-0 01 1 9904- ●
96 STAY; WATER PIPE 1-13719-089-0 01 1 9601- ●
97 BOLT; PIPE STAY
M10X20 FLANGE 		0-28181-020-0 02 1 9601-0512 ● ●
97 BOLT; PIPE STAY
M10X20 FLANGE 		0-28151-020-0 02 1 0601- ● ●
105 BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M8X16 FLANGE 		0-28080-816-0 02 1 9601-0512 ●
105 BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
111 GASKET; PLUG,WATER PIPE HOLE
ID=14.2 OD=19.2 		1-09630-085-0 01 1 9601-1312 ●
111 GASKET; PLUG,WATER PIPE HOLE
ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ●
112 PLUG
M14X9 		9-99202-314-0 01 1 9601-0805 ●
112 PLUG
M14X9 		8-98042-944-0 01 1 0806- ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9601-9803 ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9804-9805 ● ● ● ● ●
134 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<THN> ID=63 		1-09704-067-0 02 1 9806-9806 ●
134 CLIP; RUBBER HOSE
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=63 		1-09704-067-0 02 1 9806-9806 ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9806-9806 ● ● ●
134 CLIP; RUBBER HOSE
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=63 		1-09704-067-0 02 1 9807-0004 ● ●
134 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<THN> ID=63 		1-09704-067-0 02 1 9807-0004 ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9807-0004 ● ● ●
134 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<THN> ID=63 		1-09704-067-0 02 1 0005-0607 ●
134 CLIP; RUBBER HOSE
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=63 		1-09704-067-0 02 1 0005-0607 ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0005-0607 ● ● ●
134 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<THN> ID=63 		1-09704-067-0 02 1 0608-0703 ● ●
134 CLIP; RUBBER HOSE
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=63 		1-09704-067-0 02 1 0608-0703 ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0608-0703 ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0704- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
