Isuzu WW
▶
TRUCKS
▶
NHR
▶
51405 - NHR(RHD)EURO4 W/DOC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-75 - CONDENSER
▶
8-75 — CONDENSER
(#39018) — 14 parça
◀

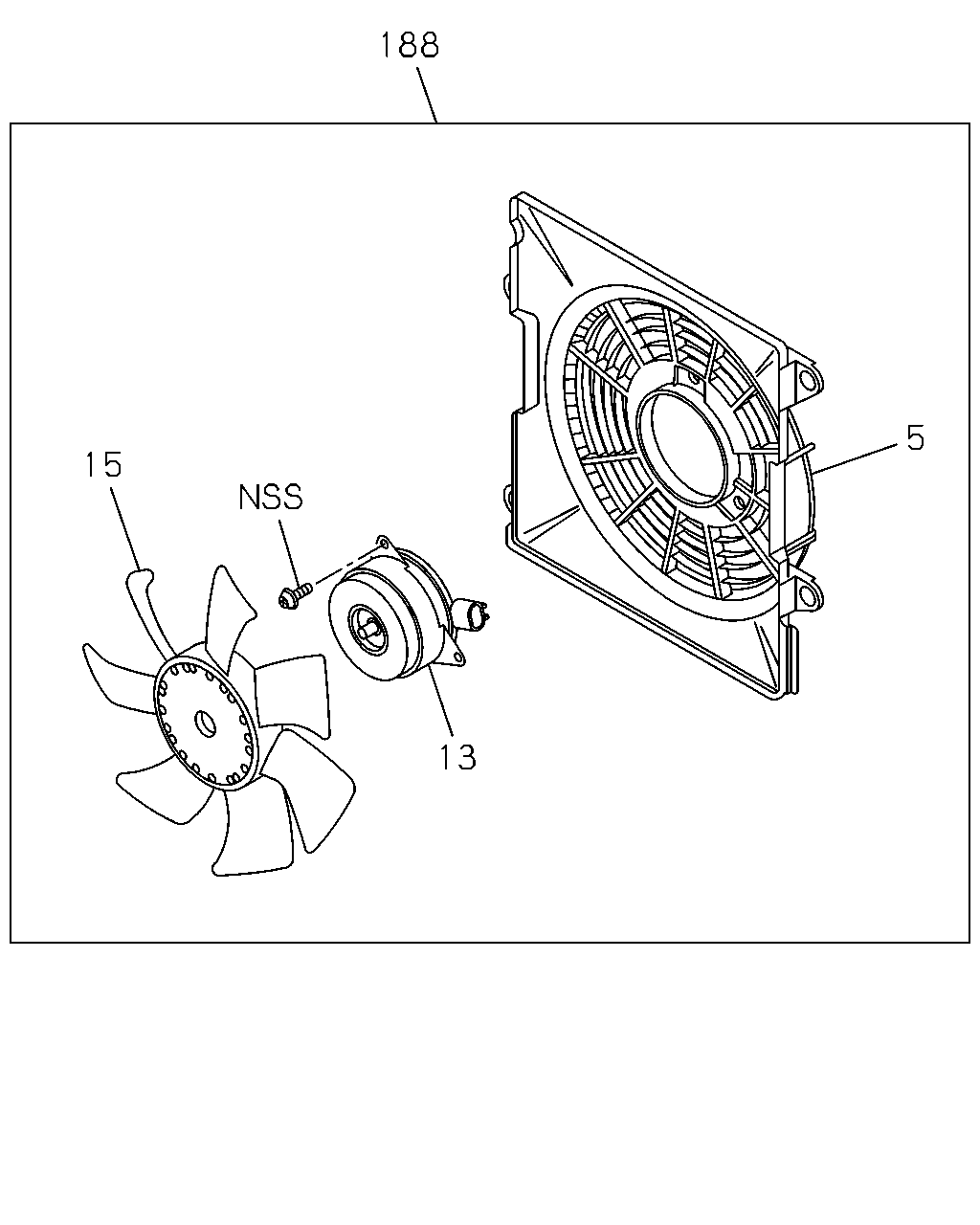

[875A] COMPONENT;BLOWER (4 parça)

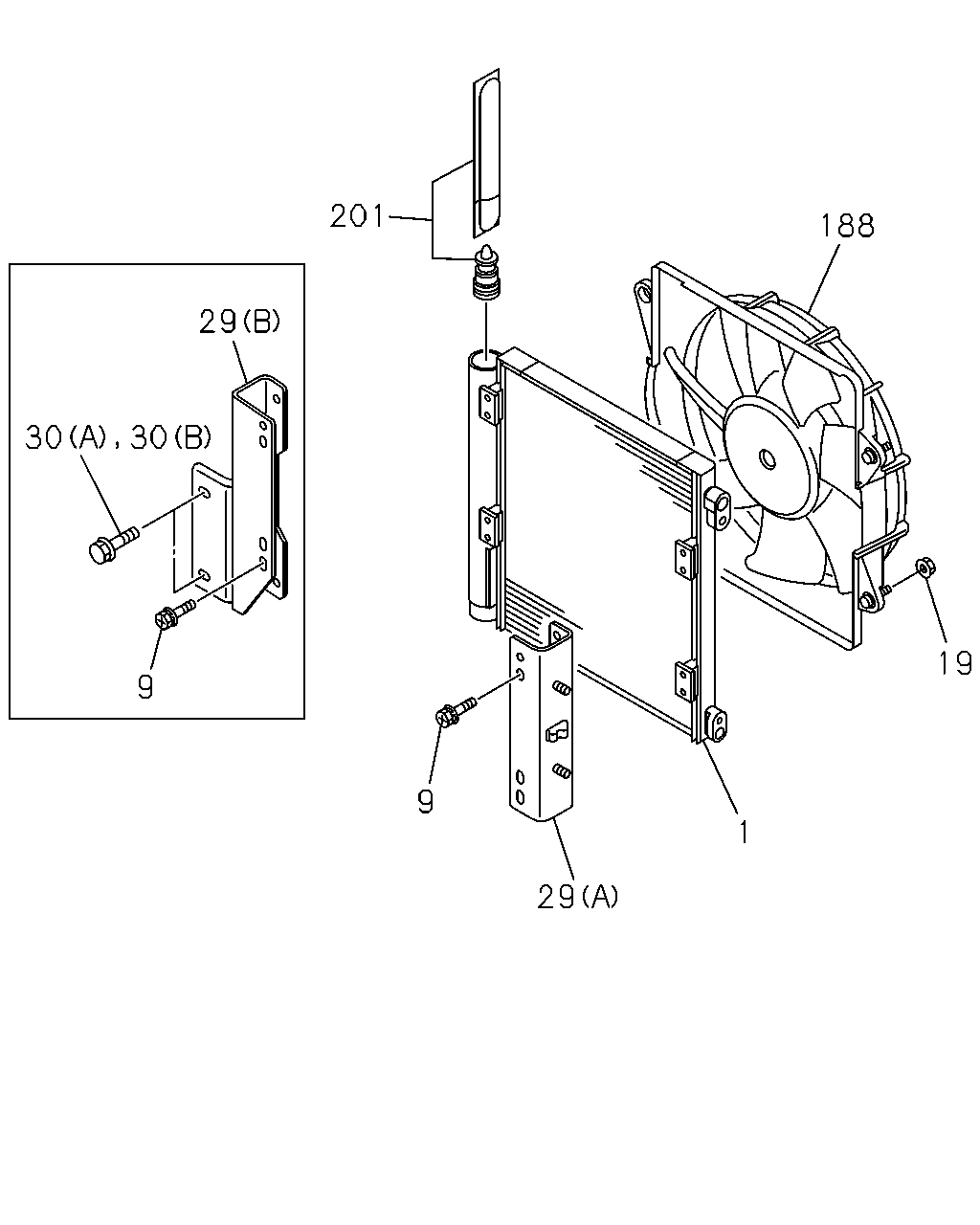

[875A] CONDENSER;AIR CONDITIONER (10 parça)
▶
188
5
15
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
09.216 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60)
8-98183-620-0
01
1
1202-
13
09.215 MOTOR; FAN
AIR CONDITIONER MANUAL CONT(C60)
8-98076-091-0
01
1
1202-
15
09.216 FAN; MOTOR
AIR CONDITIONER MANUAL CONT(C60)
8-98152-860-0
01
1
1202-
188
09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60)
8-98163-619-0
01
1
1202-
201
188
29
30
30
19
9
9
1
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60)
8-98133-042-1
01
1
1202-
9
09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X14
1-83539-382-0
08
1
1202-
19
09.190 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6
1-83539-354-0
04
1
1202-
29
09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (A)
8-98133-044-0
01
1
1202-
29
09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (B)
8-98164-999-0
01
1
1202-
30
09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE
0-28650-825-0
02
1
1202-
30
09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 00.029 (B) M10X30 FLANGE
0-28651-030-0
03
1
1202-
188
09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60)
8-98163-619-0
01
1
1202-
201
09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60)
1-83535-097-0
01
1
1202-1409
201
09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60)
8-98282-482-0
01
1
1410-
