8-73 — BLOWER UNIT (#39017) — 19 parça

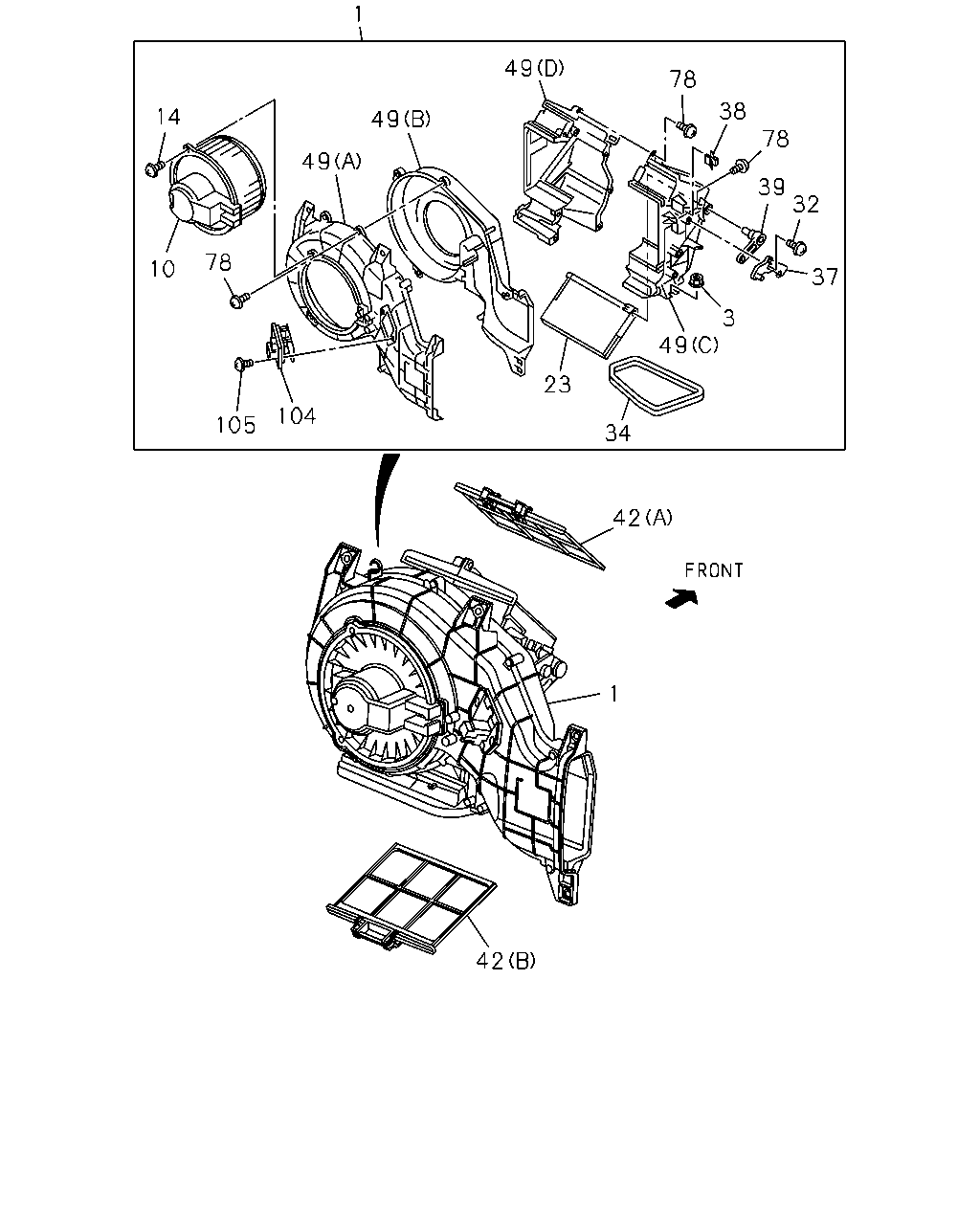

çizim 115086
1 49 78 38 14 49 78 49 39 32 78 10 37 3 49 23 104 105 34 42 1 42
BalonParca AdiParca NoAdetTipApplied Date
1 08.855 BLOWER ASM
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98183-592-0 01 1 1202-
3 08.855 NUT; CASE
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 09.190 M8 		1-83539-319-0 02 1 1202-
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98183-924-0 01 1 1202-
14 08.857 SCREW; COVER TO CASE
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98047-448-0 03 1 1202-
23 08.857 SHUTTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-761-0 01 1 1202-
32 08.856 SCREW; LEVER
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 01 1 1202-
34 08.856 LINING; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-764-0 01 1 1202-
37 09.786 LEVER; MODE LEVER
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-765-0 01 1 1202-
38 09.787 CLIP; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 08.854 		8-98047-417-0 01 1 1202-
39 09.786 LEVER; SHUTTER,BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-454-0 01 1 1202-
42 08.857 FILTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98025-006-1 01 1 1202-
42 08.857 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97387-096-1 01 1 1202-
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98047-757-0 01 1 1202-
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98047-758-0 01 1 1202-
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-759-0 01 1 1202-
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-760-0 01 1 1202-
78 08.857 SCREW; CASE TO CASE
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 19 1 1202-
104 08.855 RESISTOR; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-113-0 01 1 1202-
105 08.855 SCREW; RESISTOR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 02 1 1202-
