8-65 — CONTROL LEVER; HEATER AND AIR CON (#39015) — 16 parça

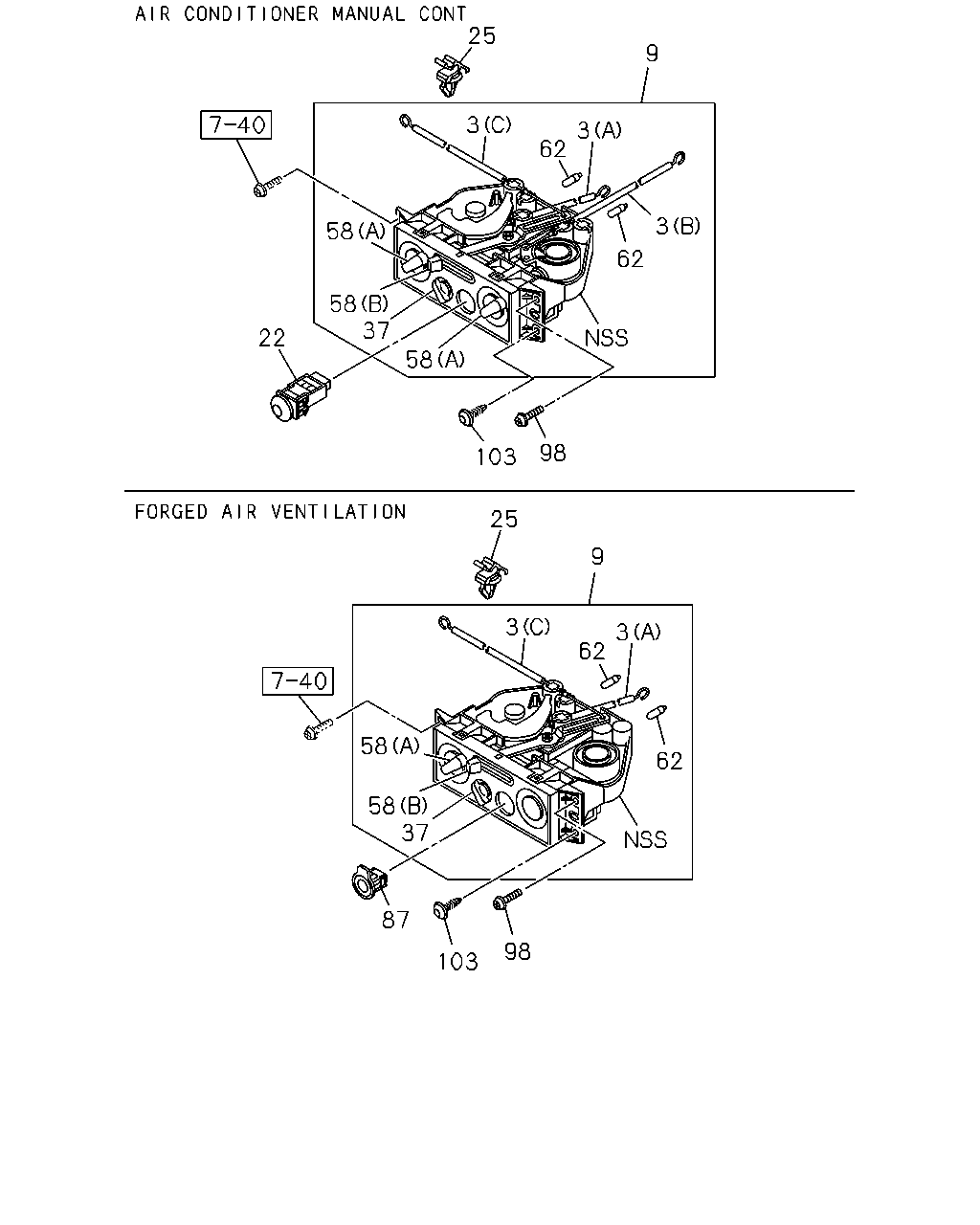

çizim 115074
25 9 3 3 62 3 58 62 58 37 58 22 98 103 25 9 3 3 62 58 62 58 37 87 98 103
BalonParca AdiParca NoAdetTipApplied Date
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-249-1 01 1 1202-
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-252-0 01 1 1202-
3 09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (B) MIX 		8-98054-196-0 01 1 1202-
9 08.852 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) 		8-98152-694-0 01 1 1202-
9 08.852 LEVER ASM; HTR & A/C CONT
AIR CONDITIONER MANUAL CONT(C60) 		8-98037-362-1 01 1 1202-
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-98021-982-0 01 1 1202-
25 08.854 CLIP; CABLE,CONT LEVER
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 1202-
37 08.852 KNOB; SW,HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 1202-
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39) (A) 		8-98037-369-0 01 1 1202-
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 1202-
58 09.787 KNOB; LVR,HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98037-369-0 02 1 1202-
62 08.991 BULB; HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 1202-
87 08.849 CAP; A/C SWITCH
FORGED AIR VENTILATION(C39) 		8-98006-089-0 01 1 1202-
98 08.852 SCREW; CONT PANEL
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1202-1212
98 08.852 SCREW; CONT PANEL
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301-
103 08.854 CLIP
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 1202-
