8-60 — HEATER UNIT; FRONT (#39014) — 83 parça

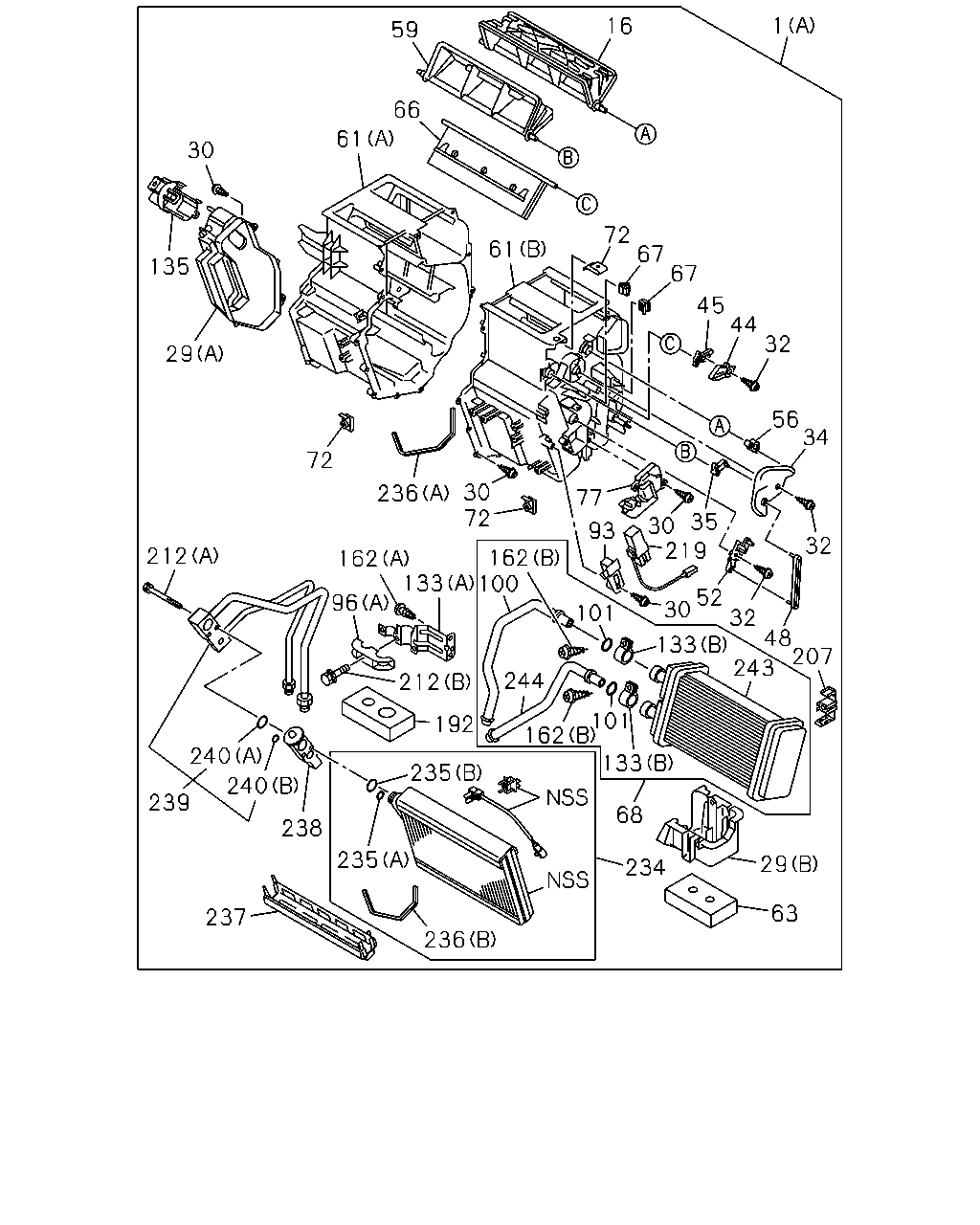

1 16 59 66 61 30 72 67 67 61 135 45 44 32 29 56 34 72 30 72 236 77 35 30 219 93 32 212 162 162 133 52 30 32 48 133 207 243 96 101 244 212 101 162 192 240 133 235 240 239 68 238 235 29 234 63 237 236 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (B)	8-98152-692-1	01	1	1202-
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98031-088-4	01	1	1202-
16	09.786 SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	1202-
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98074-119-0	01	1	1202-
29	08.857 COVER; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-714-0	01	1	1202-
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING	8-97957-708-0	20	1	1202-
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	24	1	1202-
32	08.852 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16	8-98047-416-0	02	1	1202-
32	08.852 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M4X16	8-98047-416-0	03	1	1202-
34	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	1202-
35	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-392-0	01	1	1202-
44	08.852 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	1202-
45	09.786 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	1202-
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1202-
52	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	1202-
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-393-0	01	1	1202-
59	08.845 SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	1202-
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39) (D)	8-98077-423-0	01	1	1202-
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39) (C)	8-98161-063-0	01	1	1202-
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1202-
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-710-0	01	1	1202-
63	08.856 LINING; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-721-0	01	1	1202-
66	09.786 SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1202-
67	08.854 CLIP; HTR UNIT FORGED AIR VENTILATION(C39)	8-98047-417-0	01	1	1202-
67	08.854 CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1202-
68	08.854 CORE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-717-0	01	1	1202-
72	08.845 NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	1202-
77	08.857 COVER; HTR CASE FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-414-0	01	1	1202-
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-427-0	01	1	1202-
96	08.845 PLATE; HTR UNIT FORGED AIR VENTILATION(C39) (B)	8-98048-815-0	01	1	1202-
96	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-719-0	01	1	1202-
100	08.854 PIPE; CORE,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98072-533-0	01	1	1202-
101	08.845 GASKET; CORE,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1202-
133	08.845 CLIP; PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-720-0	01	1	1202-
133	08.845 CLIP; PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98072-530-0	02	1	1202-
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60)	8-98047-384-0	01	1	1202-
162	08.845 SCREW; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) 08.852 (A) M4X16 TAPPING	8-97957-708-0	02	1	1202-
162	08.845 SCREW; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) (B)	8-98072-529-0	02	1	1202-
192	08.856 LINING; PIPE,EVAP AIR CONDITIONER MANUAL CONT(C60)	8-98047-722-0	01	1	1202-
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-716-0	01	1	1202-
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (A) M5X61	8-98047-415-0	02	1	1202-
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-725-0	01	1	1202-
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1202-
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-116-1	01	1	1202-
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7	8-97095-907-0	01	1	1202-
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1202-
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1202-
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1202-
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-98047-382-0	01	1	1202-
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-98047-383-0	01	1	1202-
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98047-718-0	01	1	1202-
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4	8-97095-906-0	01	1	1202-
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5	8-97095-908-0	01	1	1202-
243	08.854 CORE AIR CONDITIONER MANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1202-
244	08.854 PIPE; INLET AIR CONDITIONER MANUAL CONT(C60)	8-98048-509-0	01	1	1202-

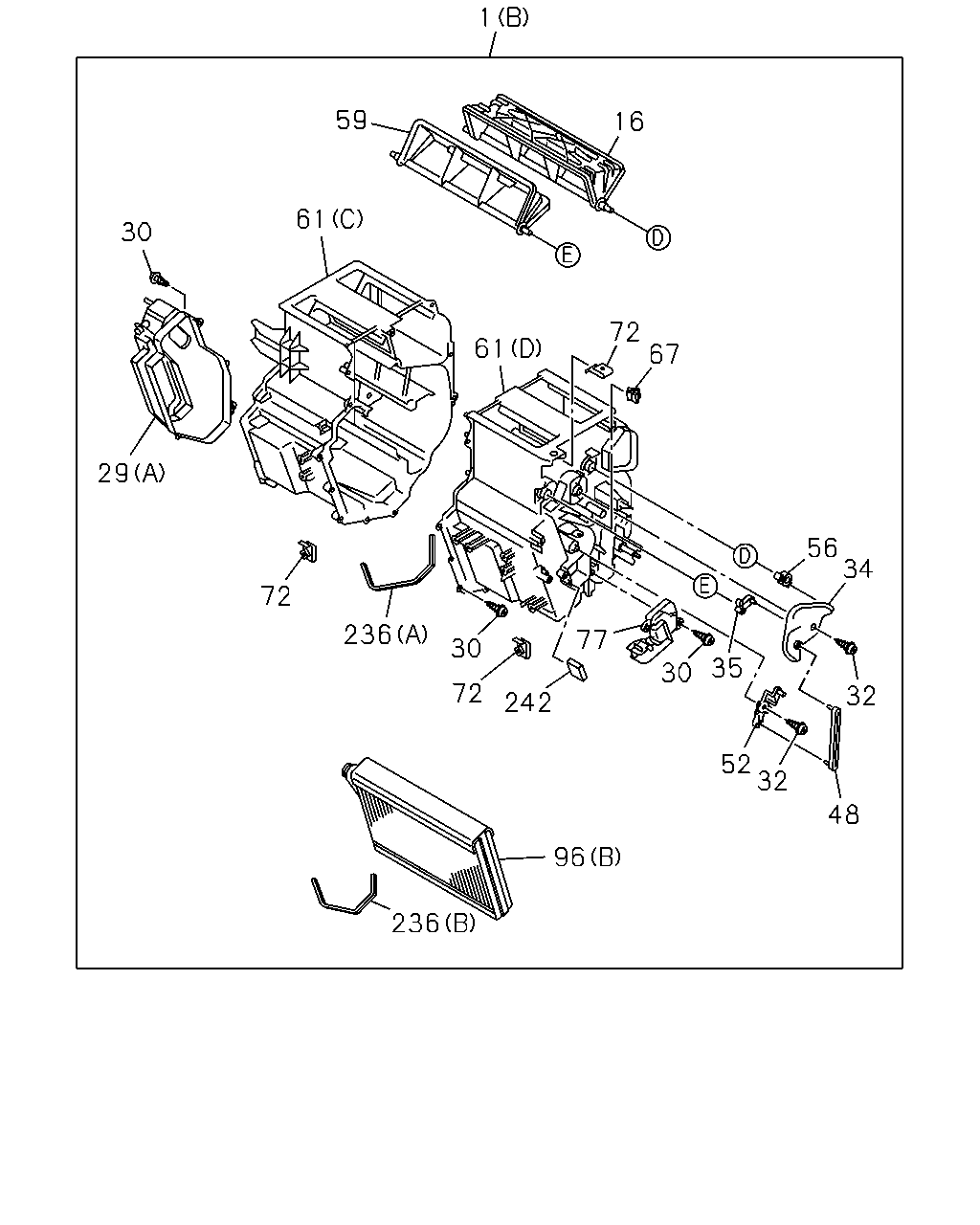

1 59 16 61 30 72 67 61 29 56 34 72 77 236 30 35 30 72 32 242 52 32 48 96 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (B)	8-98152-692-1	01	1	1202-
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98031-088-4	01	1	1202-
16	09.786 SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	1202-
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98074-119-0	01	1	1202-
29	08.857 COVER; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-714-0	01	1	1202-
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING	8-97957-708-0	20	1	1202-
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	24	1	1202-
32	08.852 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16	8-98047-416-0	02	1	1202-
32	08.852 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M4X16	8-98047-416-0	03	1	1202-
34	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	1202-
35	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-392-0	01	1	1202-
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1202-
52	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	1202-
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-393-0	01	1	1202-
59	08.845 SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	1202-
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39) (D)	8-98077-423-0	01	1	1202-
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39) (C)	8-98161-063-0	01	1	1202-
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1202-
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-710-0	01	1	1202-
67	08.854 CLIP; HTR UNIT FORGED AIR VENTILATION(C39)	8-98047-417-0	01	1	1202-
67	08.854 CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1202-
72	08.845 NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	1202-
77	08.857 COVER; HTR CASE FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-98047-414-0	01	1	1202-
96	08.845 PLATE; HTR UNIT FORGED AIR VENTILATION(C39) (B)	8-98048-815-0	01	1	1202-
96	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-719-0	01	1	1202-
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1202-
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1202-
242	08.855 GASKET; CASE FORGED AIR VENTILATION(C39) 08.845	8-98048-816-0	01	1	1202-1411

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
