8-50 — AIR CONDITIONING SYSTEM; FRONT (#39012) — 15 parça

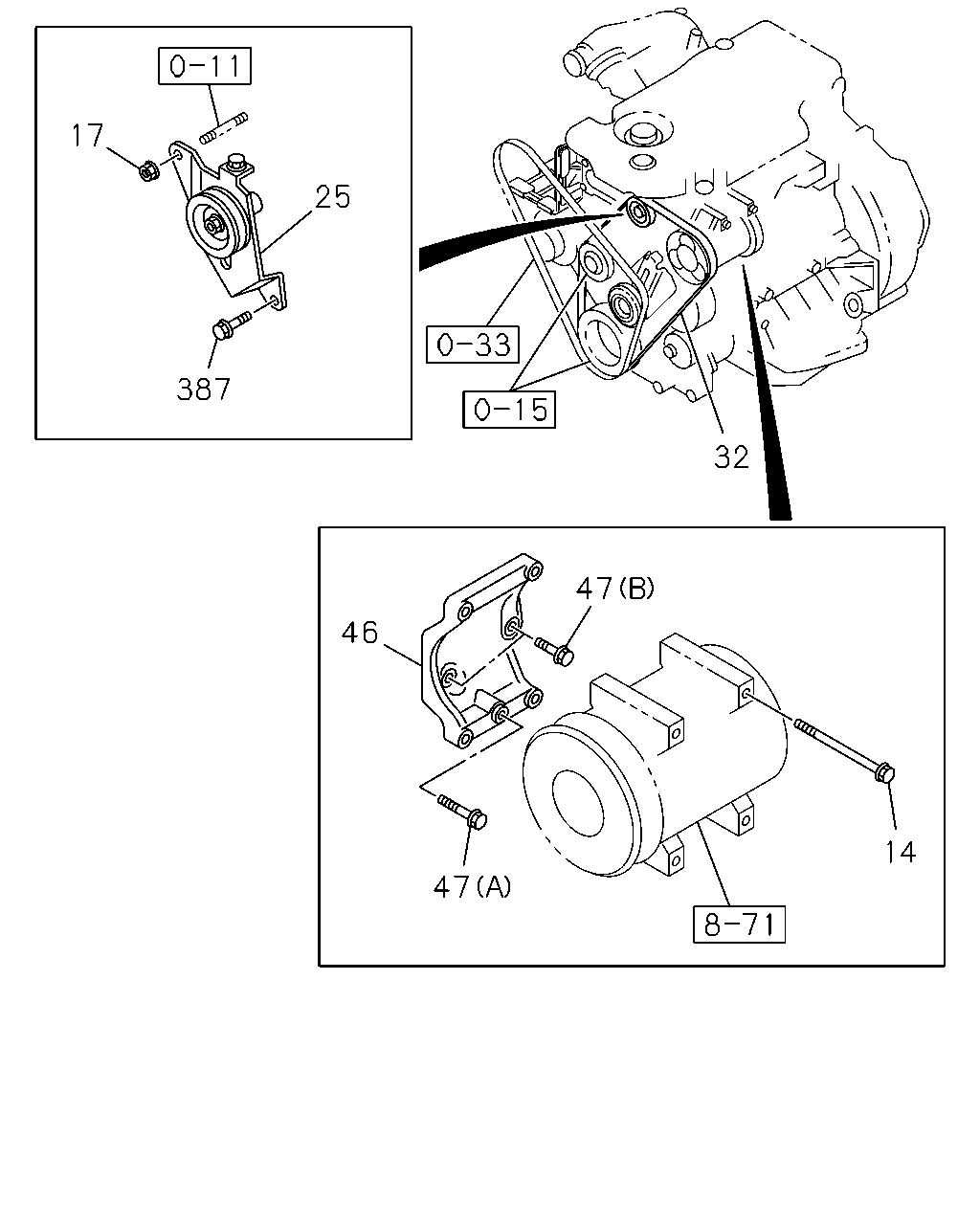

çizim 115056
17 25 387 32 47 46 14 47
BalonParca AdiParca NoAdetTipApplied Date
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE 		0-28050-800-0 04 1 1202-
17 09.171 NUT; CMPR
AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE 		0-91180-208-0 01 1 1202-
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98114-437-0 01 1 1202-
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 1202-
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-103-0 01 1 1202-
46 09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) 09.242 		8-98037-322-0 01 1 1202-
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) (A) M8X45 FLANGE 		0-28050-845-0 01 1 1202-
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1202-
387 09.190 BOLT; TENSIONER FIX
AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1202-

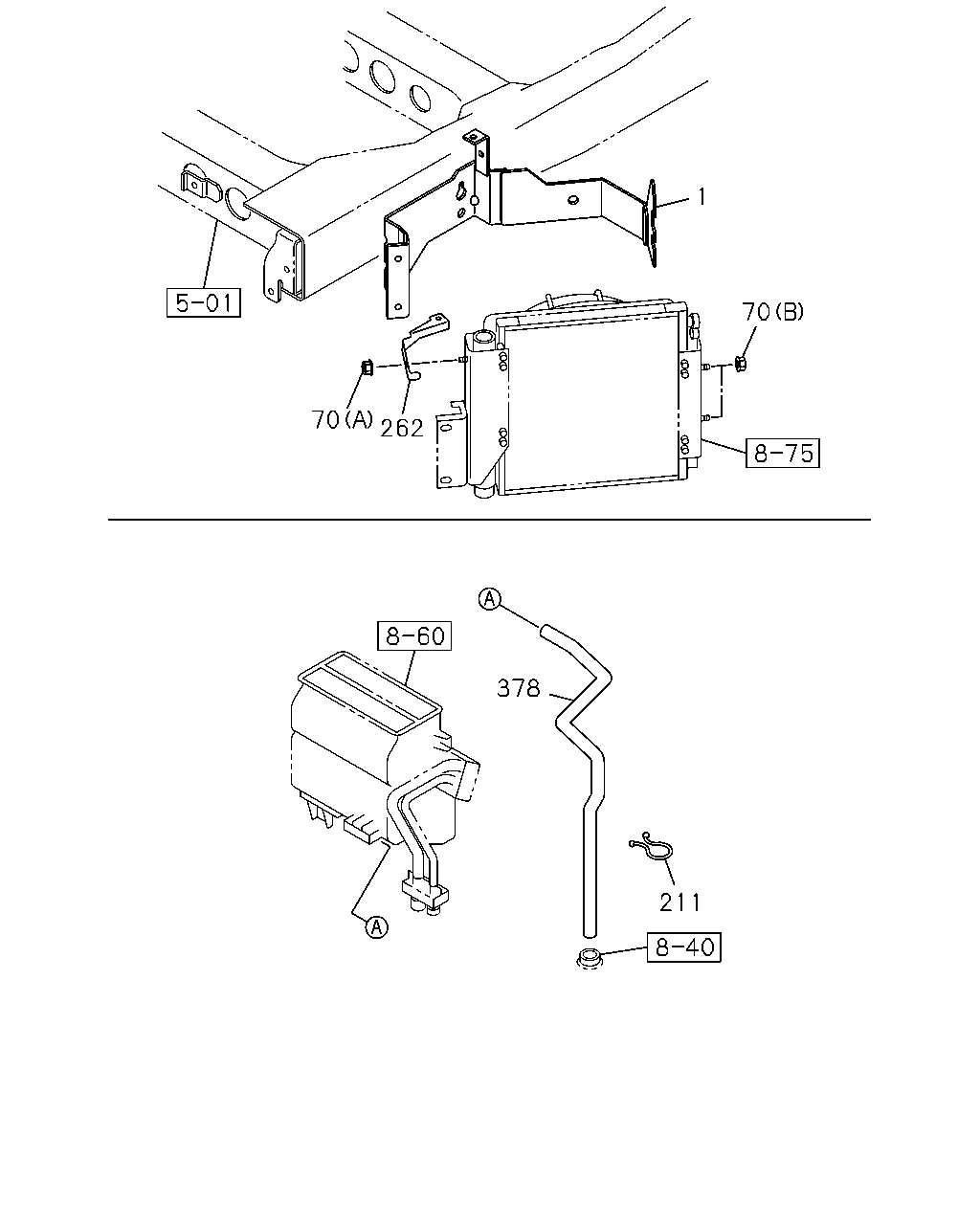

çizim 115060
1 70 70 262 378 211
BalonParca AdiParca NoAdetTipApplied Date
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98146-843-0 01 1 1202-
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1202-
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1202-
211 09.190 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60) 01.540 ID=30 		8-94315-423-0 01 1 1202-
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		8-98174-735-0 01 1 1202-
378 09.211 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98001-242-2 01 1 1202-
