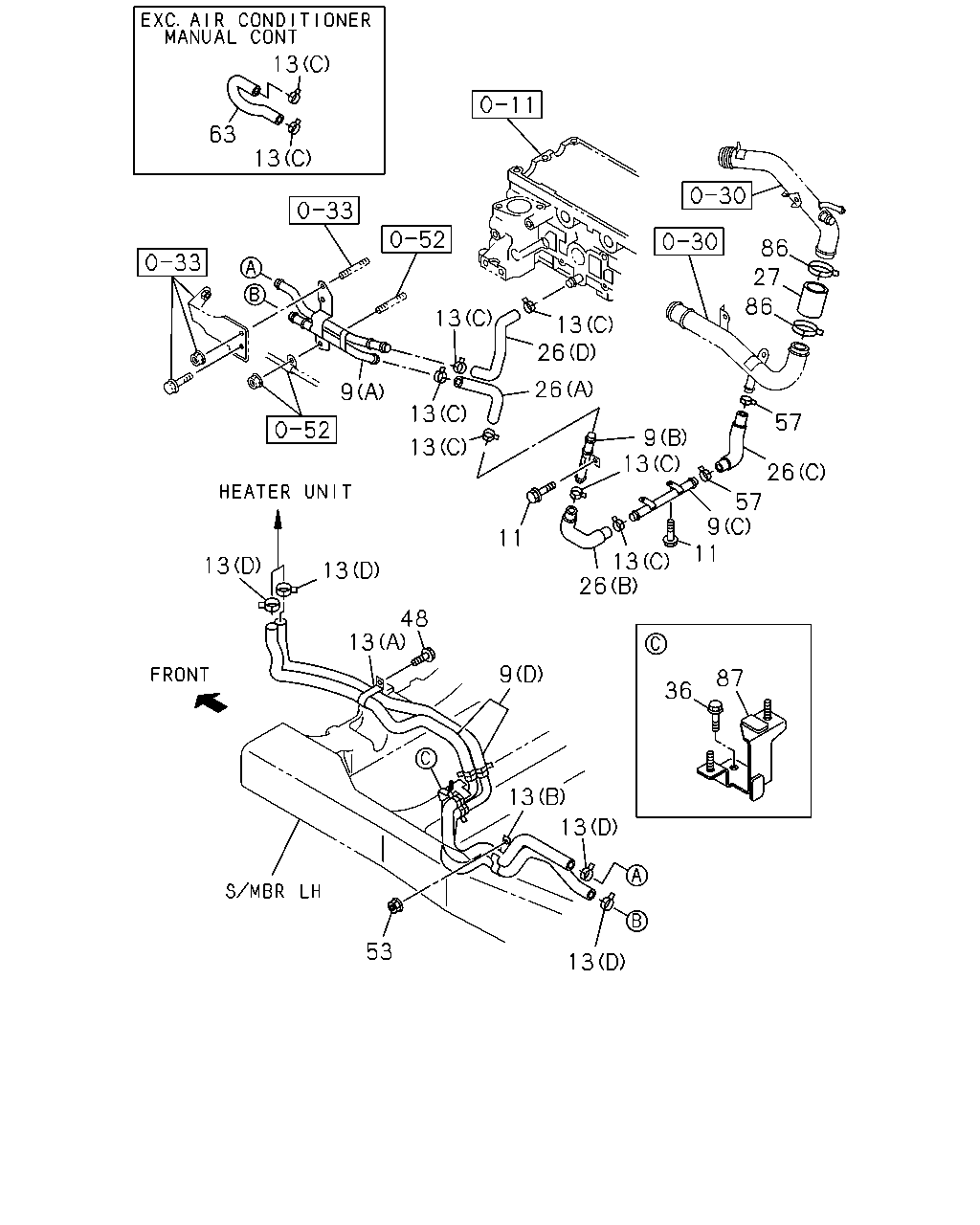

8-45 — HEATER PIPING (#39011) — 44 parça

9 26 13 26 13 13 103 13 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	08.846 PIPE; HTR AIR CONDITIONER MANUAL CONT(C60) (D)	8-98178-786-2	01	1	1202-
9	08.846 PIPE; HTR (B)	8-97381-481-3	01	1	1202-
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	1202-
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	1202-
13	08.846 CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	08	1	1202-
13	08.846 CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1202-
13	08.846 CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	1202-
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	1202-
13	08.846 CLIP; HTR HOSE EXC. AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1202-
26	08.846 HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) (E)	8-98180-262-0	01	1	1202-
26	08.846 HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) (F)	8-98180-263-0	01	1	1202-
26	08.846 HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) (G)	8-98180-270-0	01	1	1202-
26	08.846 HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) (H)	8-98180-271-0	01	1	1202-
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	1202-
26	08.846 HOSE; HTR (B)	8-98000-099-1	01	1	1202-
26	08.846 HOSE; HTR (C)	8-98000-101-2	01	1	1202-
26	08.846 HOSE; HTR (A)	8-98143-868-0	01	1	1202-
103	08.866 CONNECTOR; HOSE AIR CONDITIONER MANUAL CONT(C60)	8-98180-274-0	01	1	1202-

13 63 13 86 27 86 13 13 26 26 9 13 57 9 13 13 26 57 9 11 11 13 26 13 13 48 13 9 87 36 13 13 53 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	08.846 PIPE; HTR AIR CONDITIONER MANUAL CONT(C60) (D)	8-98178-786-2	01	1	1202-
9	08.846 PIPE; HTR (B)	8-97381-481-3	01	1	1202-
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	1202-
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	1202-
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1202-
13	08.846 CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	08	1	1202-
13	08.846 CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1202-
13	08.846 CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	1202-
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	1202-
13	08.846 CLIP; HTR HOSE EXC. AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1202-
26	08.846 HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) (E)	8-98180-262-0	01	1	1202-
26	08.846 HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) (F)	8-98180-263-0	01	1	1202-
26	08.846 HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) (G)	8-98180-270-0	01	1	1202-
26	08.846 HOSE; HTR AIR CONDITIONER MANUAL CONT(C60) (H)	8-98180-271-0	01	1	1202-
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	1202-
26	08.846 HOSE; HTR (B)	8-98000-099-1	01	1	1202-
26	08.846 HOSE; HTR (C)	8-98000-101-2	01	1	1202-
26	08.846 HOSE; HTR (A)	8-98143-868-0	01	1	1202-
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI	8-98106-016-0	01	1	1202-
36	08.846 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1202-
48	09.262 BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1202-
53	08.845 NUT; HOSE CLIP AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1202-
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	1202-
63	08.846 HOSE; WATER EXC. AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	1202-
86	08.846 CLIP; HTR HOSE	8-98110-004-0	02	1	1202-
87	08.846 BRACKET; HTR HOSE CLIP AIR CONDITIONER MANUAL CONT(C60)	8-98179-460-1	01	1	1202-
