8-28 — CHASSIS ELECTRICAL (#39009) — 16 parça

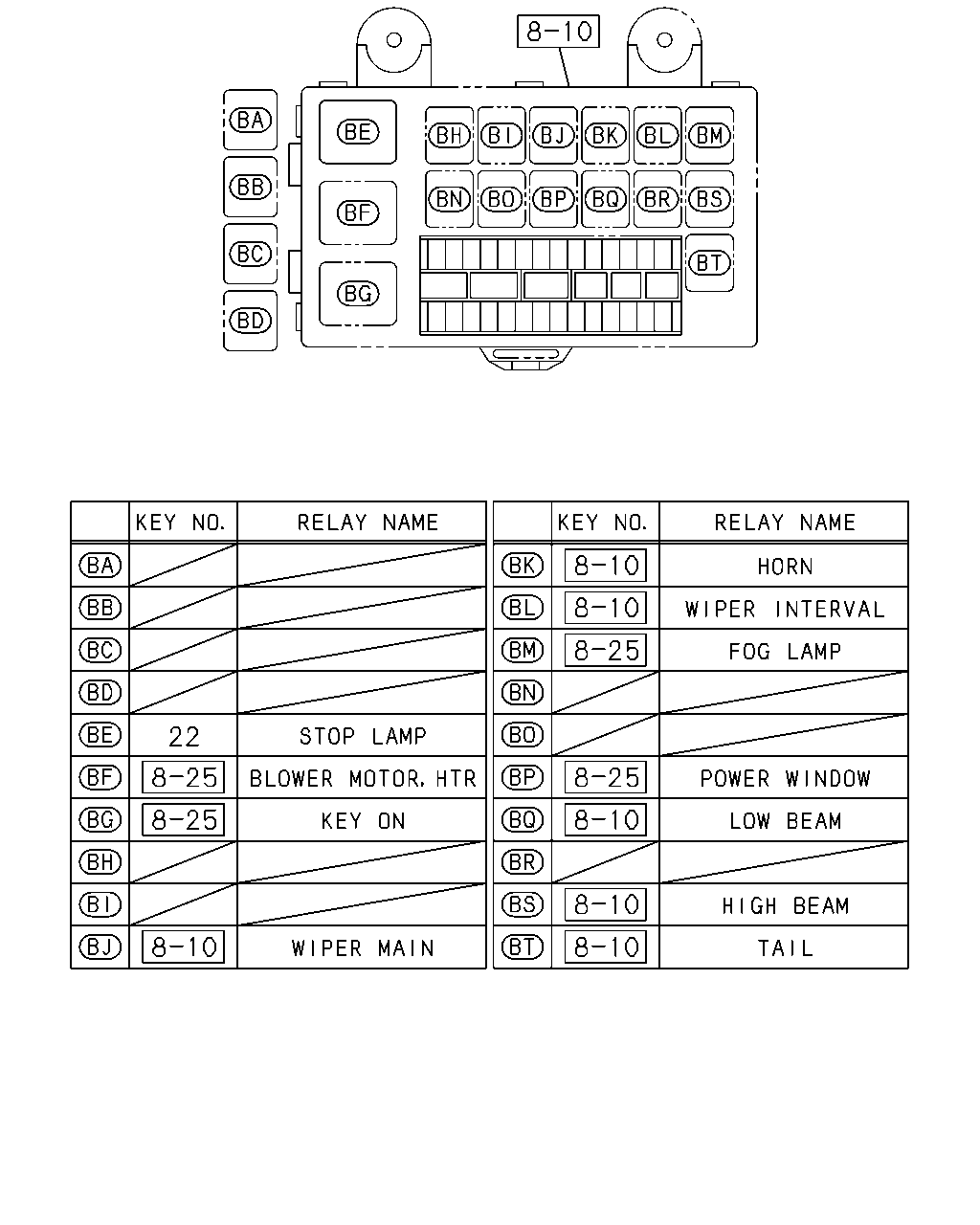

çizim 115057

22

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1202-

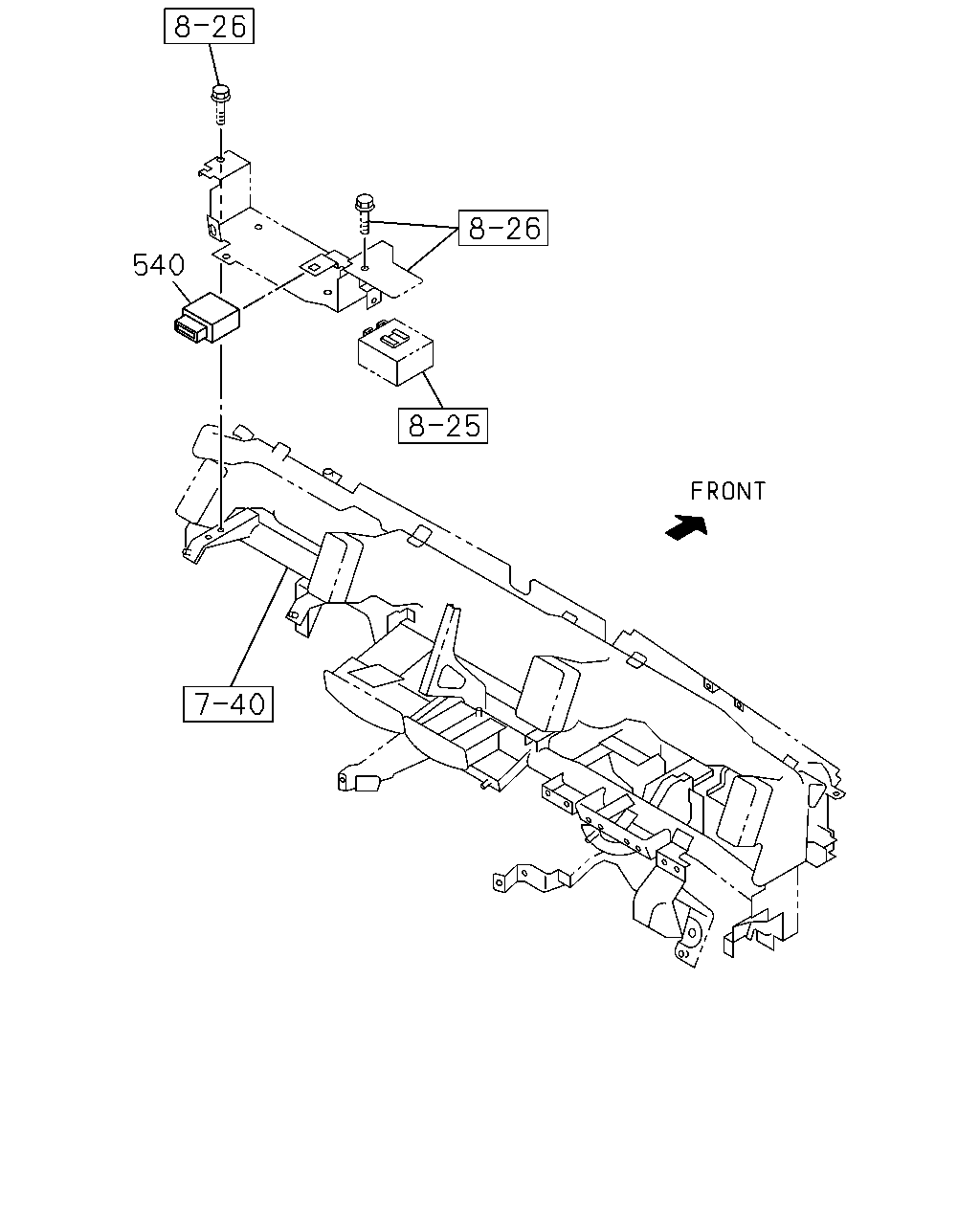

çizim 115063

540

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	1202-1308
	540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-

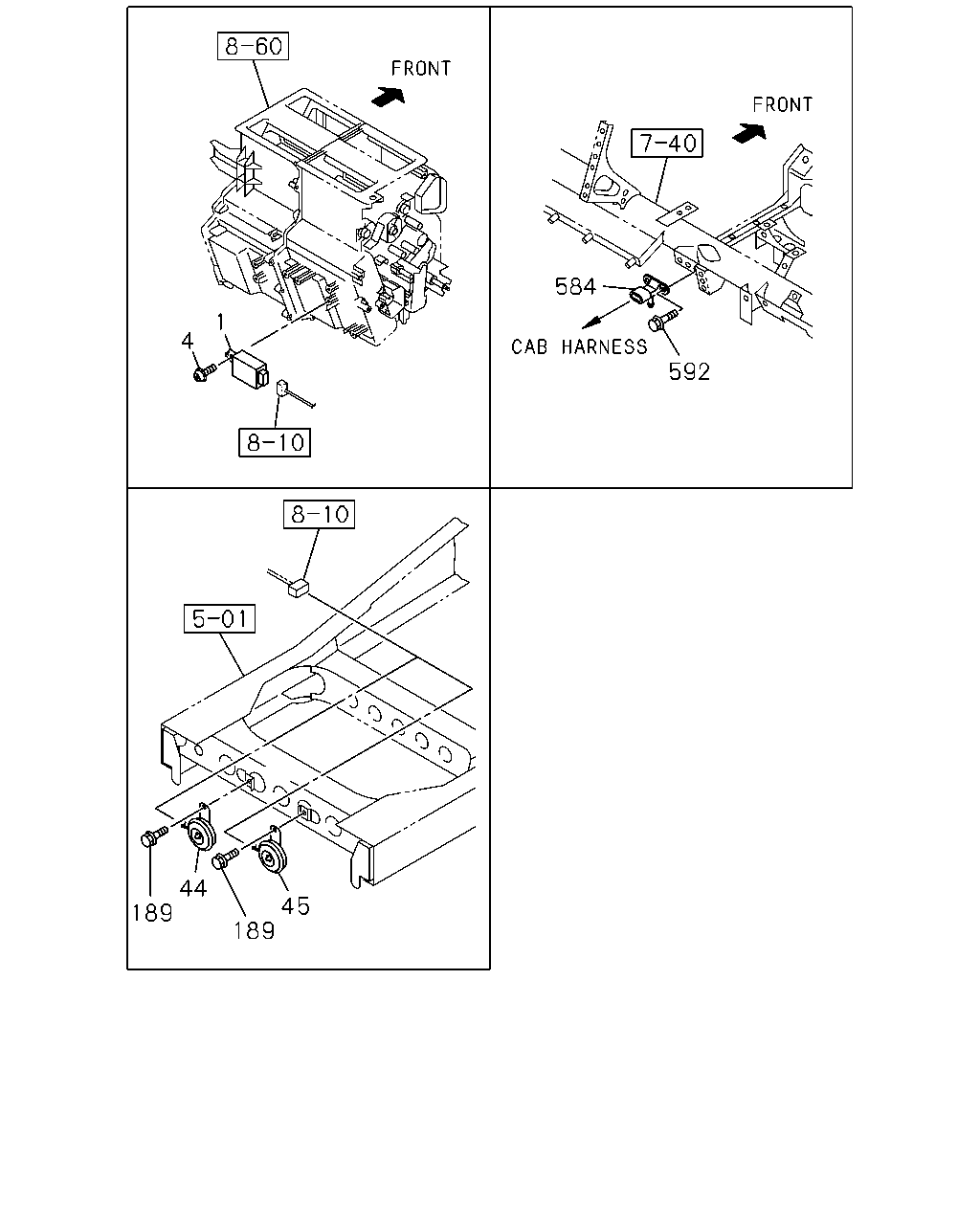

çizim 115066

584 1 4 592 44 189 45 189

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	02.575 UNIT; FLASHER	1-83470-057-0	01	1	1202-
	4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1202-1212
	4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
	44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK)	8-98022-022-0	01	1	1202-
	45	02.810 HORN; LOW NOTE	8-98022-023-0	01	1	1202-
	189	02.812 BOLT; HORN 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1202-
	189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1202-
	584	02.440 SENSOR; PRESSURE 03.331	8-98020-514-0	01	1	1202-
	592	02.490 BOLT; SENSOR 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1202-

çizim 115067

531 666

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	531	02.769 RELAY; MAIN 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	1202-1402
	531	02.769 RELAY; MAIN 02.485 24V 30A MITSUBA	8-98259-779-0	01	1	1403-
	666	02.173 RELAY; STARTER 24V 10A PANASONIC	8-98167-173-0	01	1	1202-

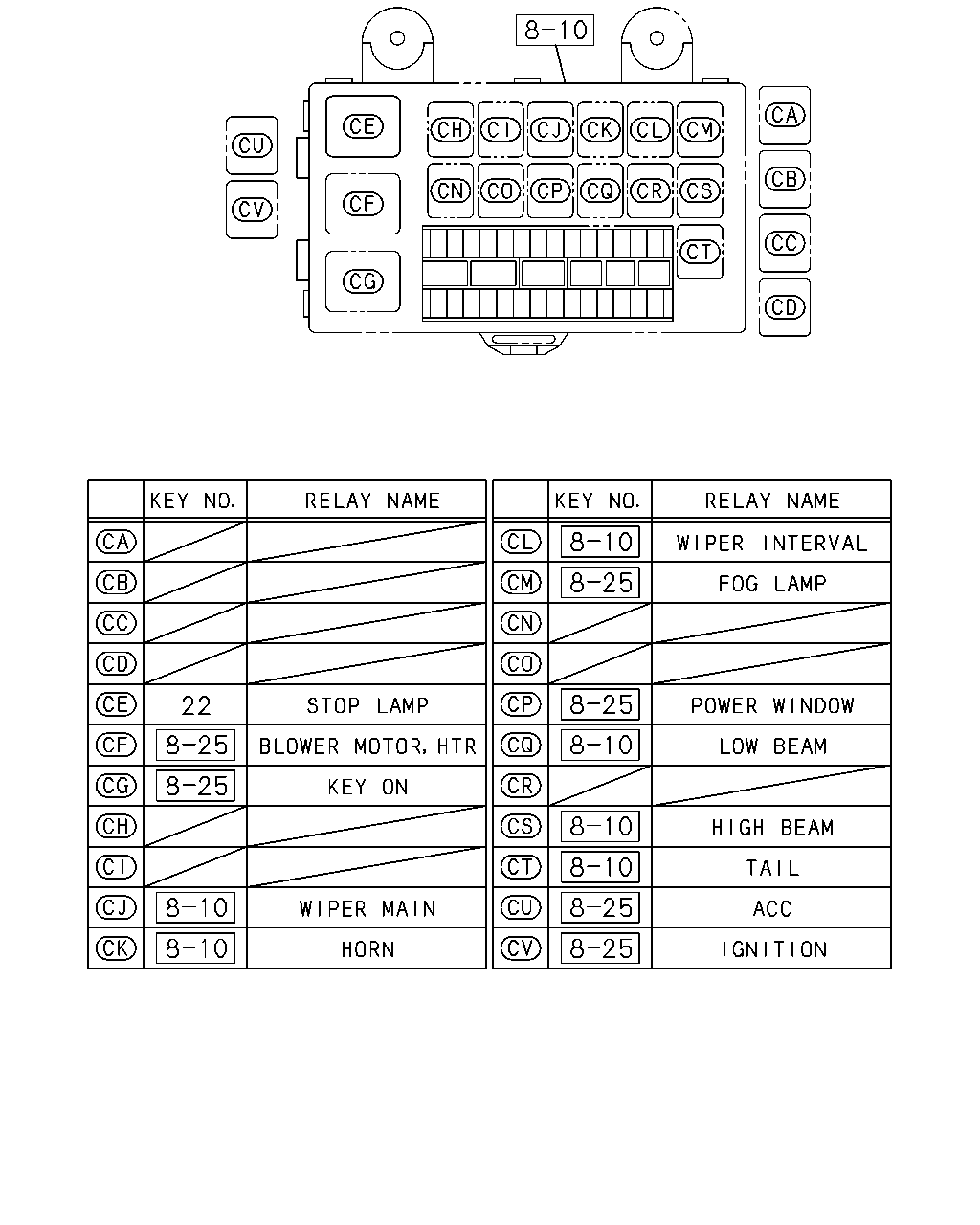

çizim 283409

22

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1202-
