8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#39008) — 10 parça

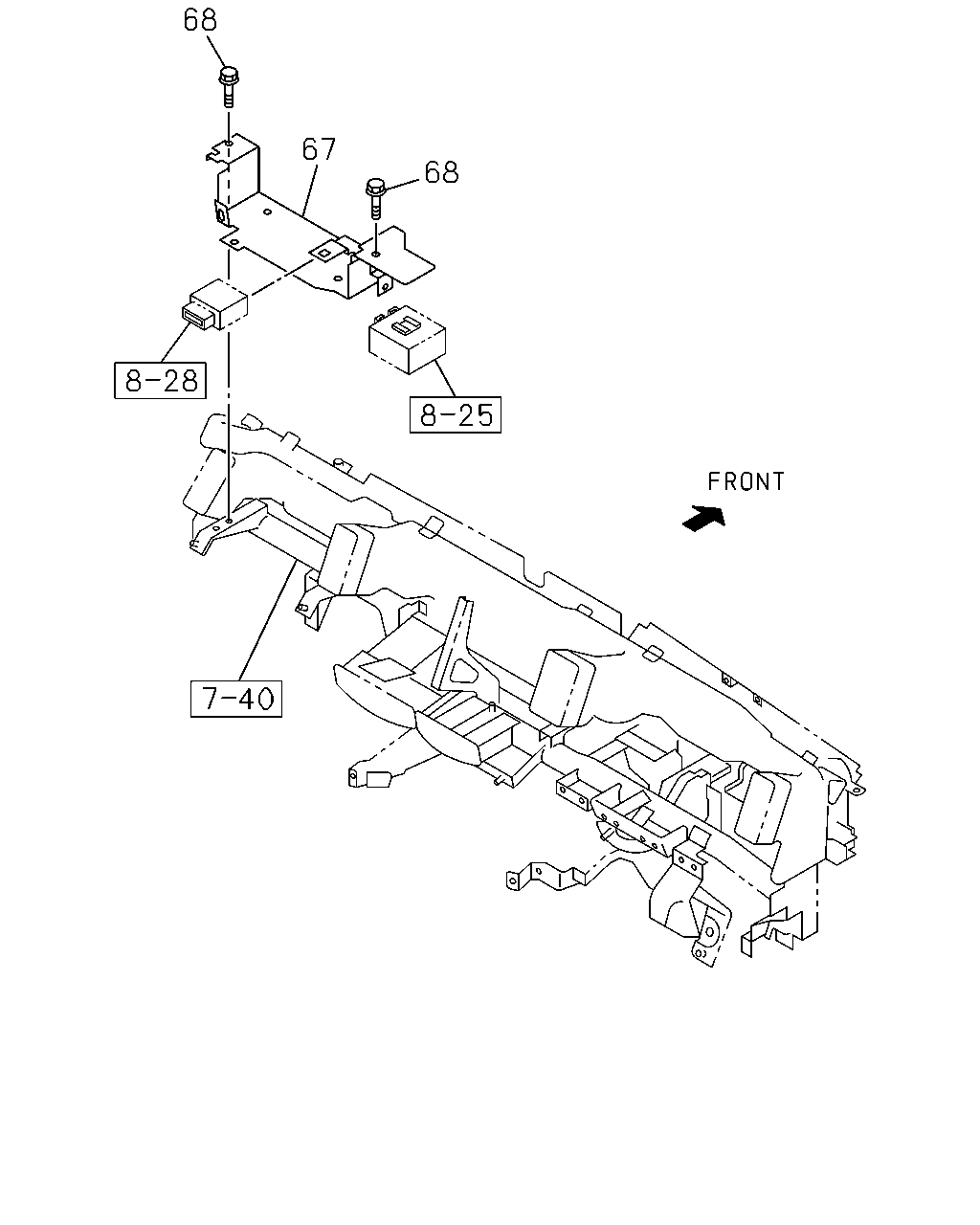

çizim 115048
68 67 68
BalonParca AdiParca NoAdetTipApplied Date
67 03.887 BRACKET; CONT UNIT 8-98074-793-1 01 1 1202-1212
67 03.887 BRACKET; CONT UNIT 8-98237-553-0 01 1 1301-1404
67 03.887 BRACKET; CONT UNIT 8-98074-793-1 01 1 1405-
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 02 1 1202-

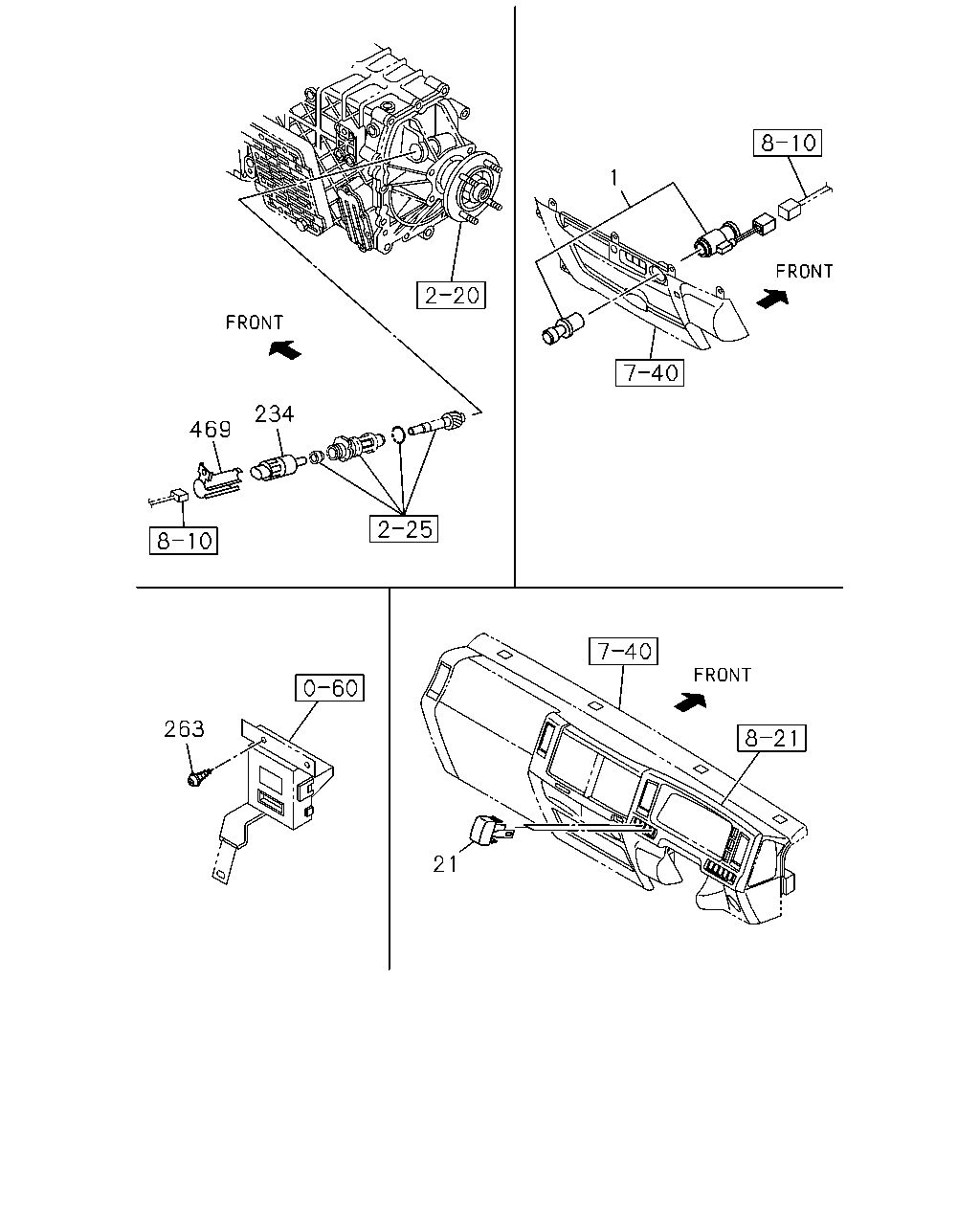

çizim 115072
1 234 469 263 21
BalonParca AdiParca NoAdetTipApplied Date
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 1202-
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 02 1 1202-
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1202-
263 04.115 BOLT; CONT UNIT
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1202-1212
263 04.115 BOLT; CONT UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301-
469 03.682 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 1202-
