8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#39007) — 39 parça
◀

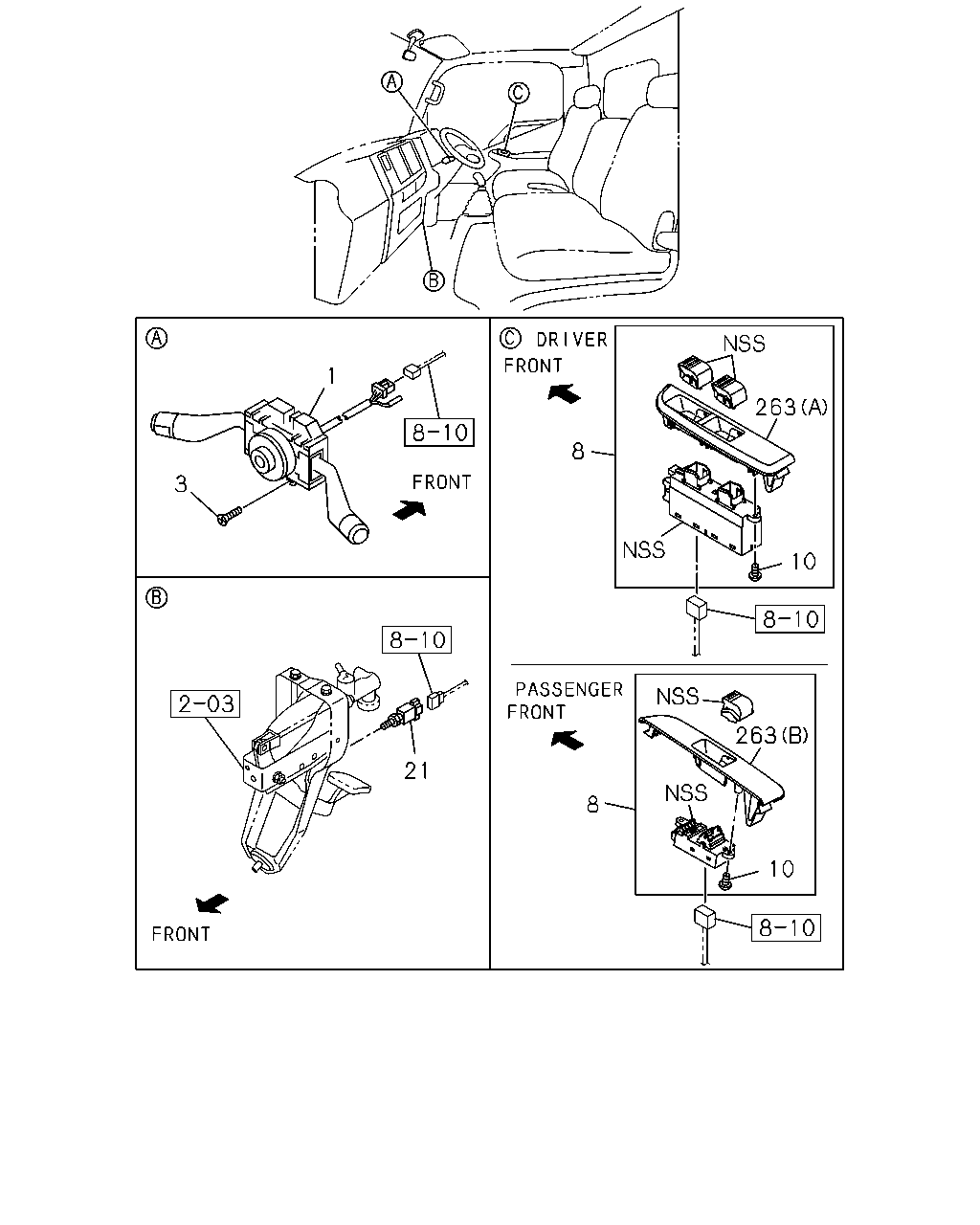

[825A] SWITCH(NO.1) (13 parça)

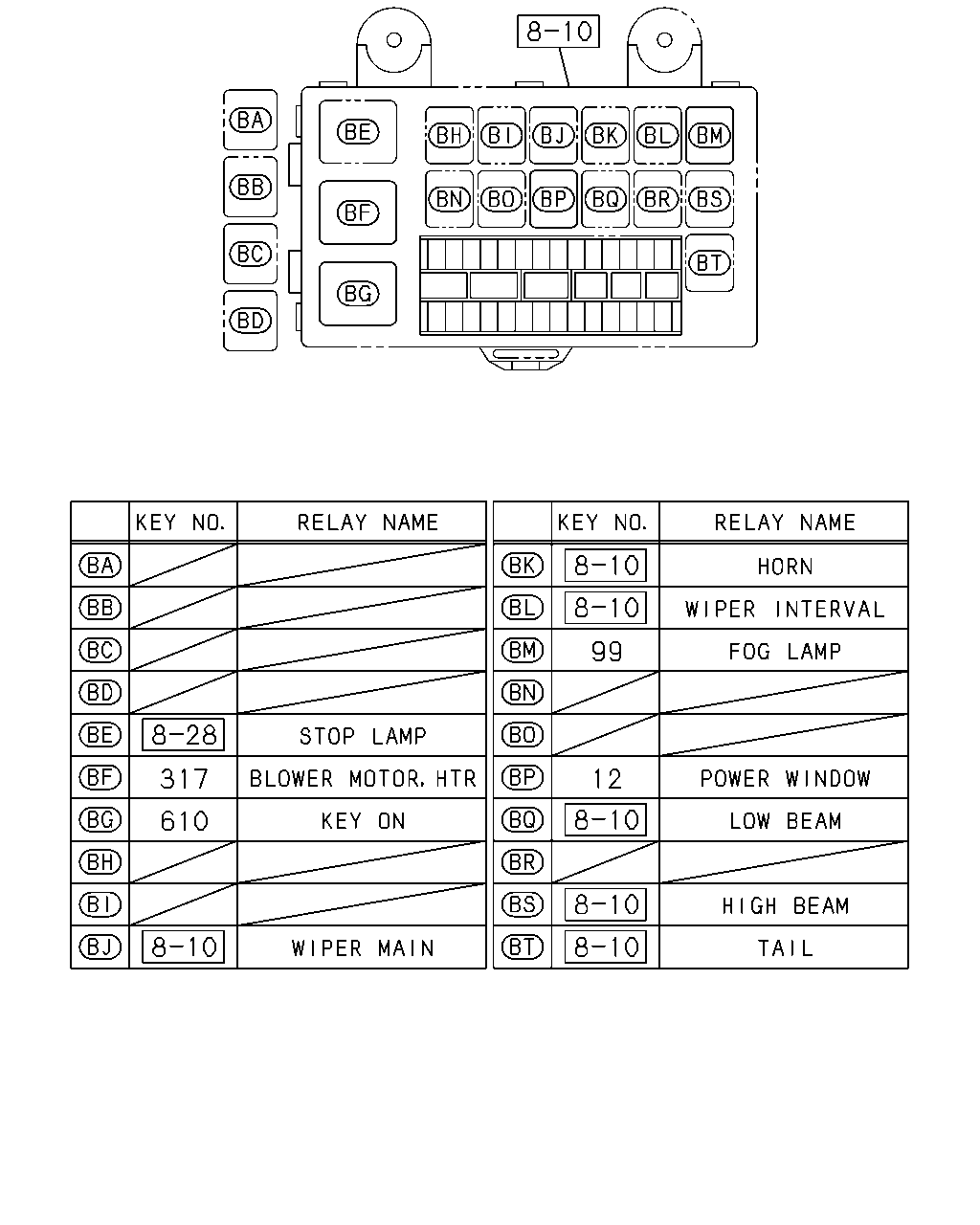

[825A] -'12/2 RELAY;CAB HARNESS (5 parça)
[825A] RELAY;FRAME HARNESS (2 parça)
[825A] SWITCH(NO.2) (6 parça)

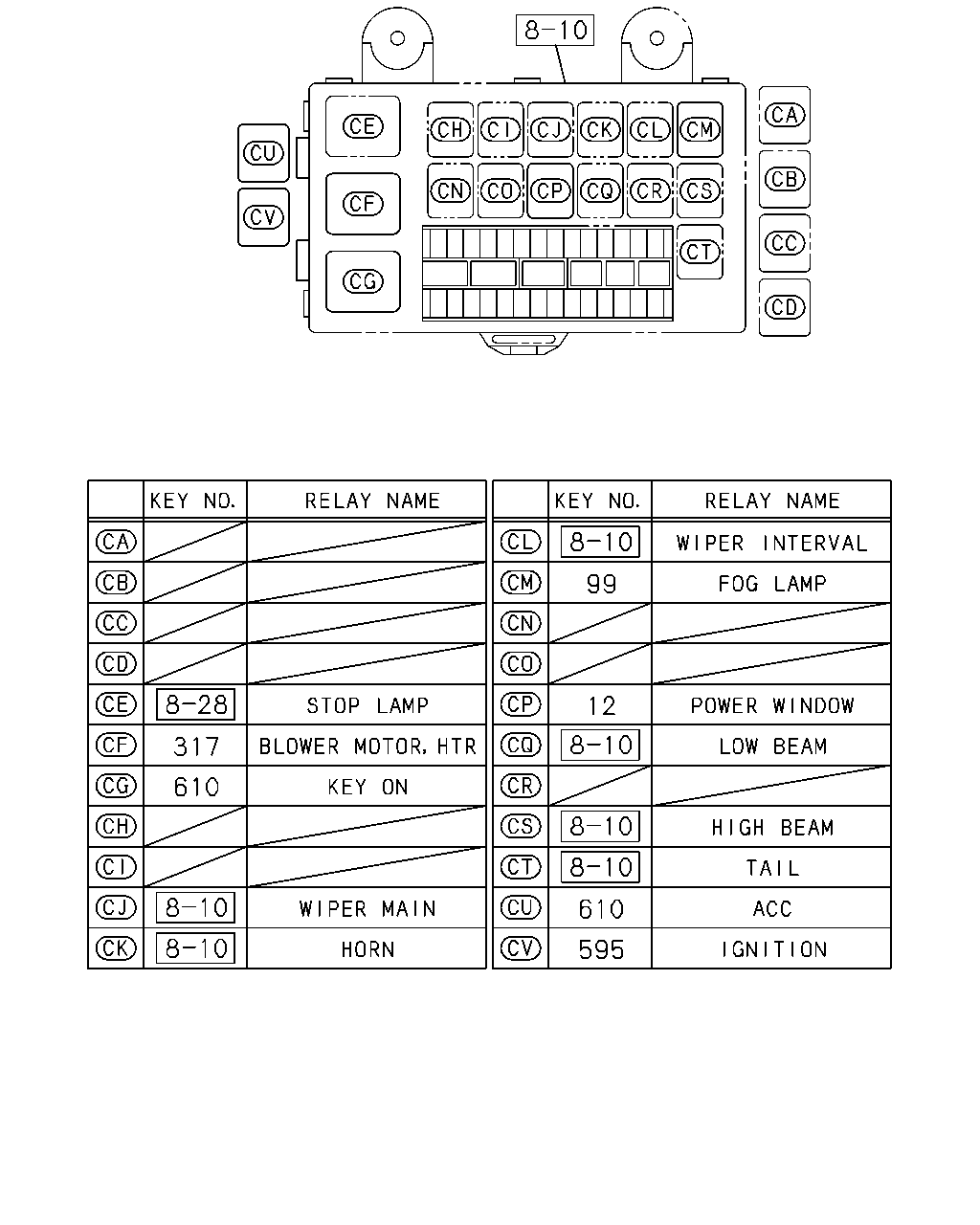

[825A] '12/3- RELAY;CAB HARNESS (6 parça)
[825A] SWITCH(NO.3) (7 parça)
▶
1
263
8
3
10
263
21
8
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.895 SWITCH; COMB
INTERMITTENT WIPER<C13>
8-98072-665-1
01
1
1202-1310
1
02.895 SWITCH; COMB
INTERMITTENT WIPER<C13>
8-98243-731-0
01
1
1311-
1
02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>
8-98072-663-2
01
1
1202-1310
1
02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>
8-98243-732-0
01
1
1311-
3
02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1202-
8
16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE
8-98001-739-1
01
1
1202-1509
8
16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE
8-98316-426-0
01
1
1510-
8
16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE
8-98159-549-0
01
1
1202-1509
8
16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE
8-98298-759-0
01
1
1510-
10
03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32>
8-98153-865-0
03
1
1202-
21
02.575 SWITCH; CLU
8-97358-248-0
01
1
1202-
263
16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (A)
8-98153-834-0
01
1
1202-
263
16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (B)
8-98153-839-0
01
1
1202-
99
317
12
610
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC
8-97173-035-1
01
1
1202-
99
02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC
8-97173-035-1
01
1
1202-
317
02.510 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC
8-97262-933-0
01
1
1202-
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1202-1202
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
02
1
1203-
151
154
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
151
09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC
8-97262-933-0
01
1
1202-
154
09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC
8-97173-035-1
01
1
1202-

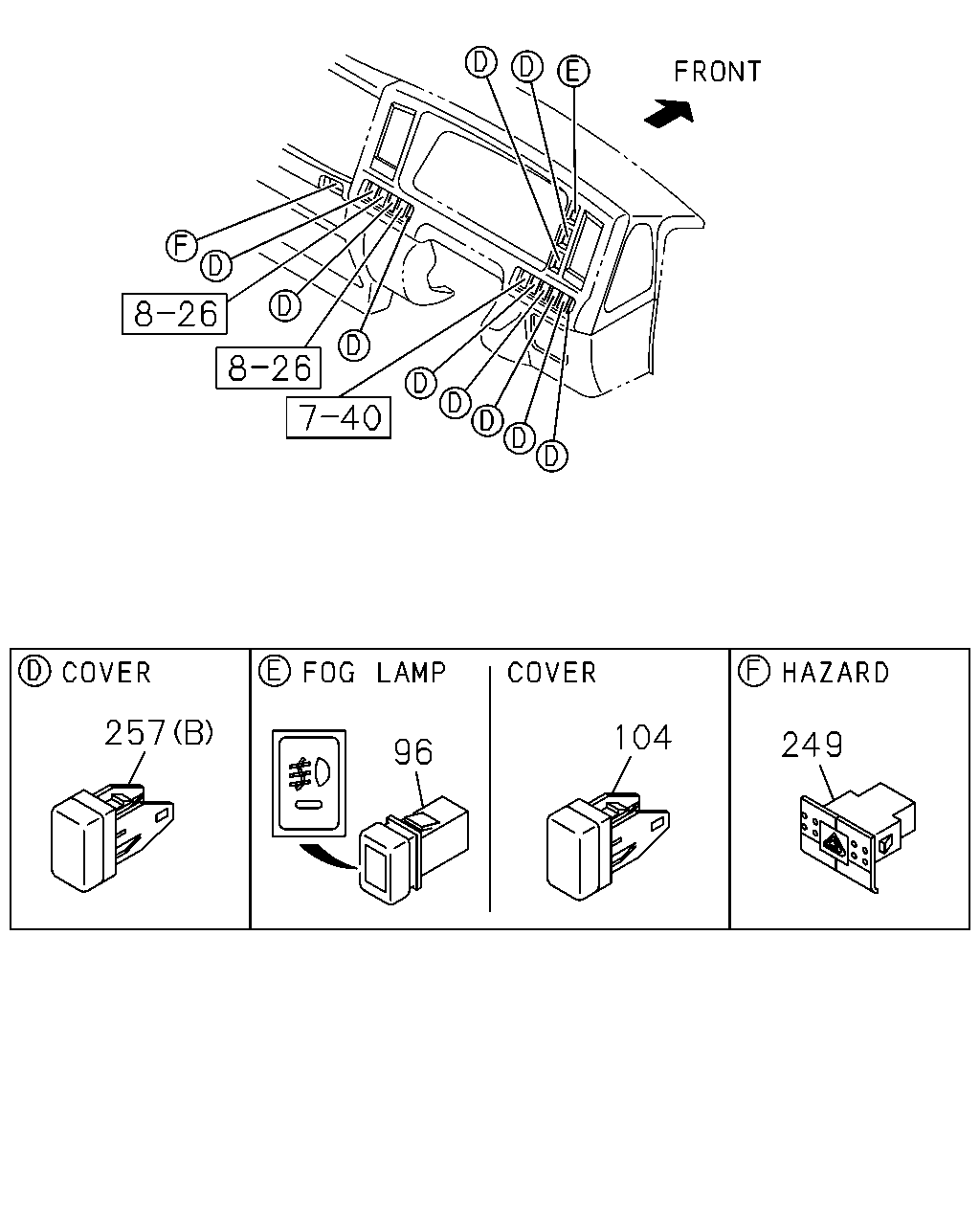

257
104
249
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
96
02.485 SWITCH; FOG LAMP
FOG LAMP<T96>
8-97387-031-4
01
1
1202-
104
09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081
8-98025-954-1
01
1
1202-
249
02.485 SWITCH; HAZARD
8-97386-922-1
01
1
1202-
257
16.081 COVER; HOLE,SW
16.494 (A)
8-94229-914-1
01
1
1202-
257
16.081 COVER; HOLE,SW
(B)
8-98025-954-1
01
1
1202-
257
16.081 COVER; HOLE,SW
(B)
8-98025-954-1
09
1
1202-
99
12
317
610
610
595
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC
8-97173-035-1
01
1
1202-
99
02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC
8-97173-035-1
01
1
1202-
317
02.510 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC
8-97262-933-0
01
1
1202-
595
02.510 RELAY; IGNITION
24V 12.5A PANASONIC
8-97262-933-0
01
1
1203-
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1202-1202
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
02
1
1203-

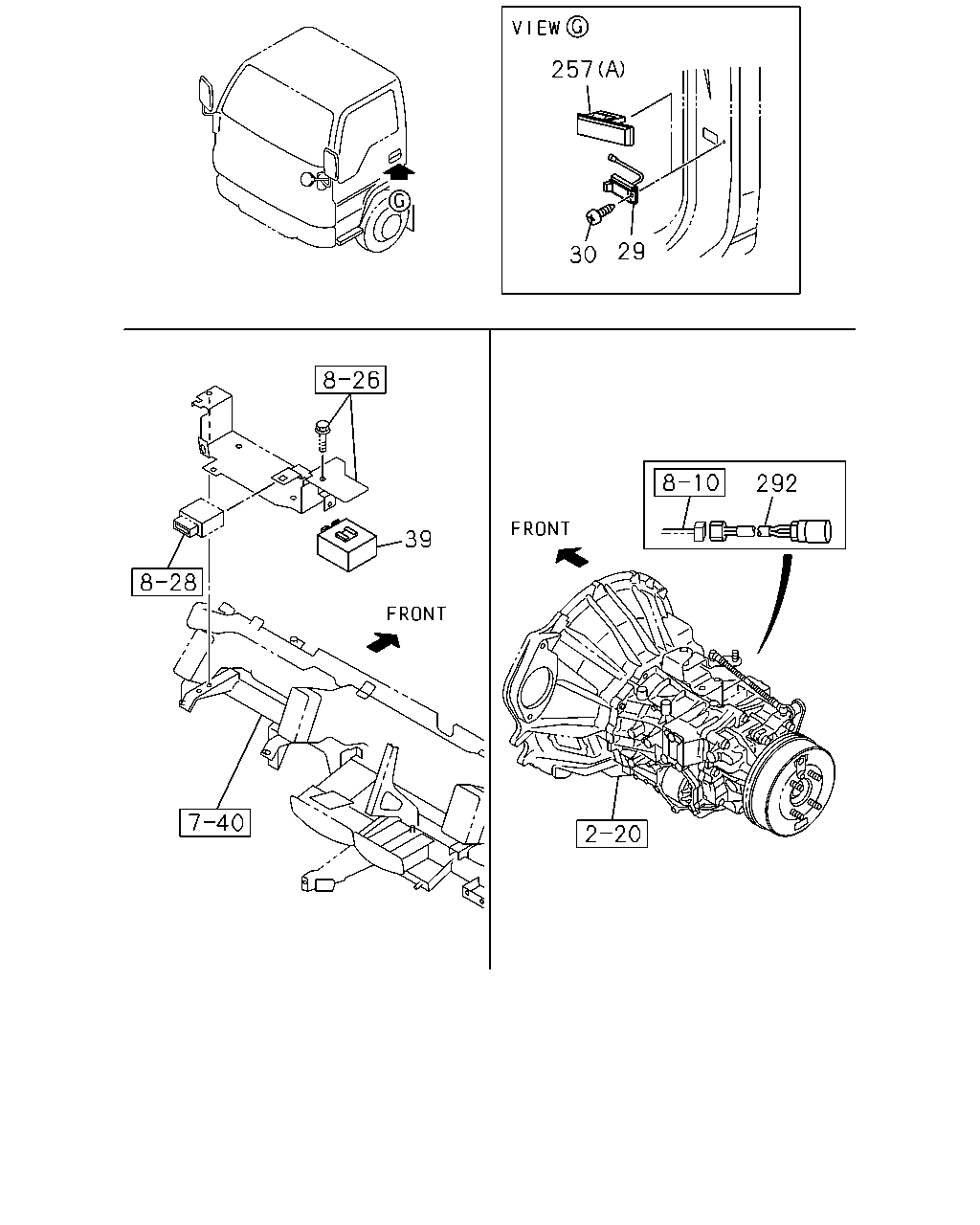

257
29
30
292
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
16.263 SWITCH; DOOR
8-97855-032-3
01
1
1202-
30
16.263 SCREW; DOOR SW
M5X16
8-94279-341-0
01
1
1202-
39
16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4>
8-98060-789-0
01
1
1202-
257
16.081 COVER; HOLE,SW
16.494 (A)
8-94229-914-1
01
1
1202-
257
16.081 COVER; HOLE,SW
(B)
8-98025-954-1
01
1
1202-
257
16.081 COVER; HOLE,SW
(B)
8-98025-954-1
09
1
1202-
292
16.263 SWITCH; BACKUP LAMP
8-98184-536-0
01
1
1202-
