8-21 — METER ASM (#39006) — 12 parça

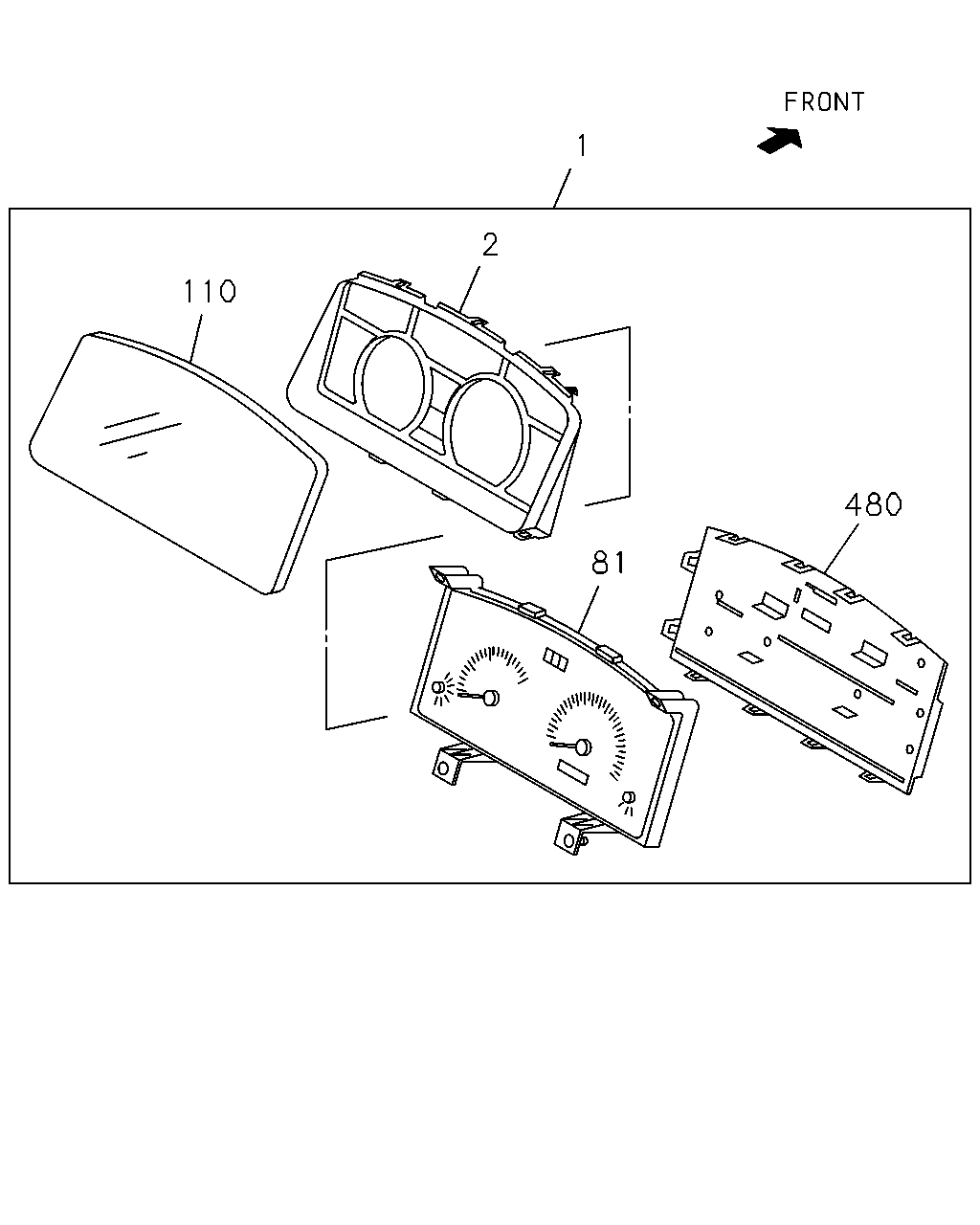

çizim 115059
1 2 110 480 81
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER 8-98161-295-0 01 1 1202-
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1202-
81 09.735 METER SUB ASM 8-98176-353-0 01 1 1202-
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1202-
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 1202-

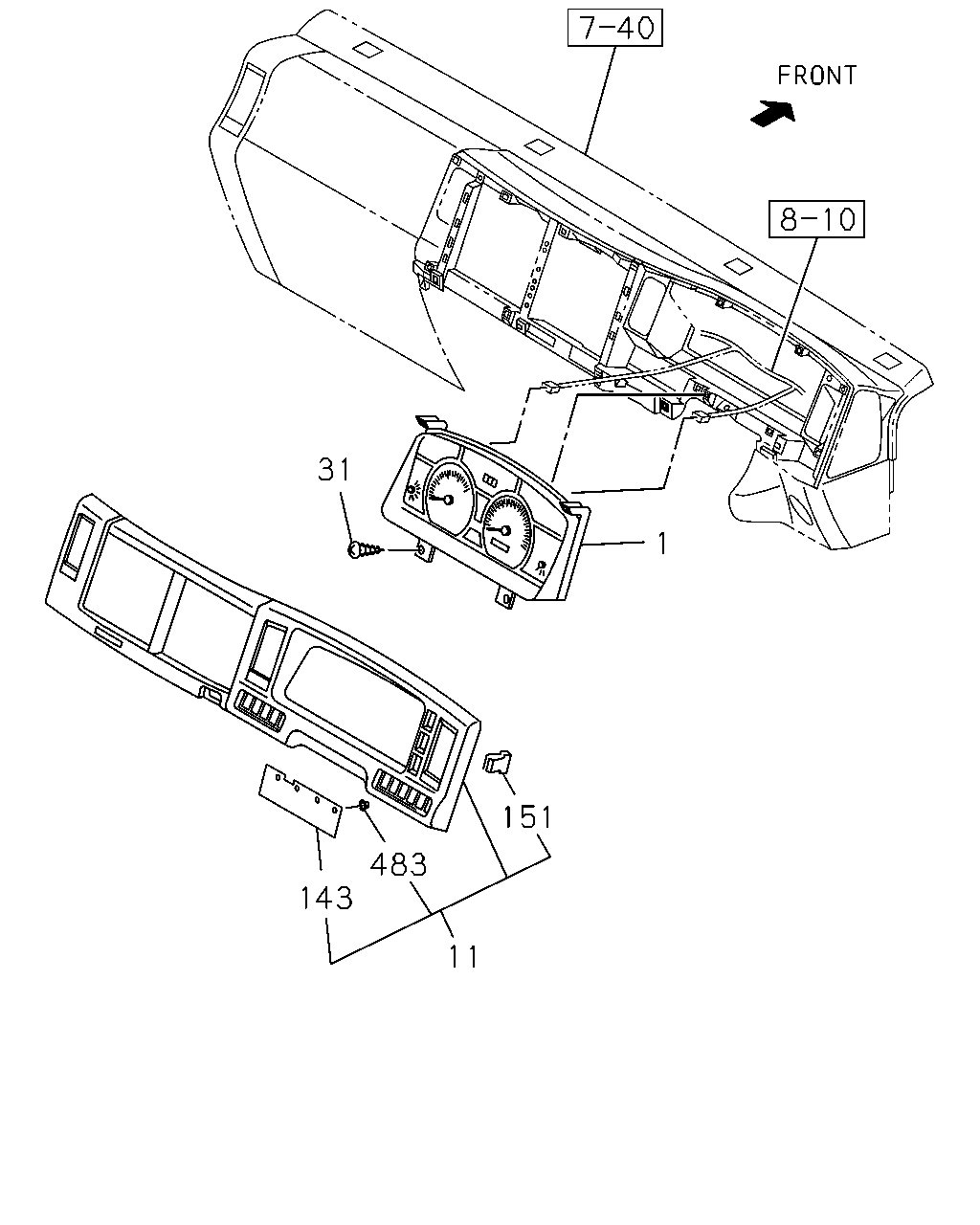

çizim 115064
31 1 151 483 143 11
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER 8-98161-295-0 01 1 1202-
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97421-767-0 01 1 1202-
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1202-1212
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
143 09.715 COVER; CLUSTER METER 8-98116-841-0 01 1 1202-
151 09.747 CLIP; METER CLUSTER
16.085 		8-98021-271-0 12 1 1202-
483 09.761 FASTENER; CLUSTER 8-98063-409-0 03 1 1202-
