8-01 — LAMP; FRONT AND FRONT SIDE (#39002) — 54 parça
çizim 115028
429 303 433 95 94 97 94 94 32 36 47 44 49 448 15
BalonParca AdiParca NoAdetTipApplied Date
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 1202-
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-147-1 01 1 1202-1301
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-062-1 01 1 1302-
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-148-1 01 1 1202-1301
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-063-1 01 1 1302-
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 1202-
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 1202-
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> M6 		8-98217-430-0 02 1 1202-
47 02.737 WASHER; PL,FOG LAMP
FOG LAMP<T96> 		8-98217-429-0 02 1 1202-
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-433-0 01 1 1202-
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-434-0 01 1 1202-
94 08.991 BULB; SIDE COMB LAMP
02.727 (A) 24V 5W 		1-82194-042-0 02 1 1202-
94 08.991 BULB; SIDE COMB LAMP
(B) 24V 21W 		1-82194-099-0 02 1 1202-
94 08.991 BULB; SIDE COMB LAMP
(C) 24V 21W AMBER 		8-97323-806-0 02 1 1202-
95 02.895 SCREW; SIDE COMB LAMP 8-98051-427-0 02 1 1202-
97 02.895 LAMP UNIT; COMB 8-98051-415-0 01 1 1202-
97 02.895 LAMP UNIT; COMB 8-98051-416-0 01 1 1202-
303 02.799 CLIP; COMB LAMP 8-98051-429-0 01 1 1202-
303 02.799 CLIP; COMB LAMP 8-98051-430-0 01 1 1202-
429 02.585 LAMP ASM; SIDE COMB 8-98020-070-4 01 1 1202-
429 02.585 LAMP ASM; SIDE COMB 8-98020-071-4 01 1 1202-
433 02.727 CORD ASM; LAMP 8-98069-969-0 01 1 1202-
433 02.727 CORD ASM; LAMP 8-98069-970-0 01 1 1202-
448 02.727 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 1202-
çizim 115033
1 23 307 420 408 5 4 13
BalonParca AdiParca NoAdetTipApplied Date
1 02.725 LAMP ASM; HEAD 8-98100-810-1 01 1 1202-1303
1 02.725 LAMP ASM; HEAD 8-98240-644-1 01 1 1304-
1 02.725 LAMP ASM; HEAD 8-98100-811-1 01 1 1202-1303
1 02.725 LAMP ASM; HEAD 8-98240-645-1 01 1 1304-
4 02.727 HEADLAMP UNIT 8-98051-408-0 01 1 1202-
4 02.727 HEADLAMP UNIT 8-98051-409-0 01 1 1202-
5 02.727 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 1202-
13 02.736 CLIP; HEADLAMP 8-98184-139-0 02 1 1304-
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1202-
307 02.727 SCREW; TAPPING,HEAD LAMP 8-98096-953-0 06 1 1202-
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1202-
420 02.737 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 1202-

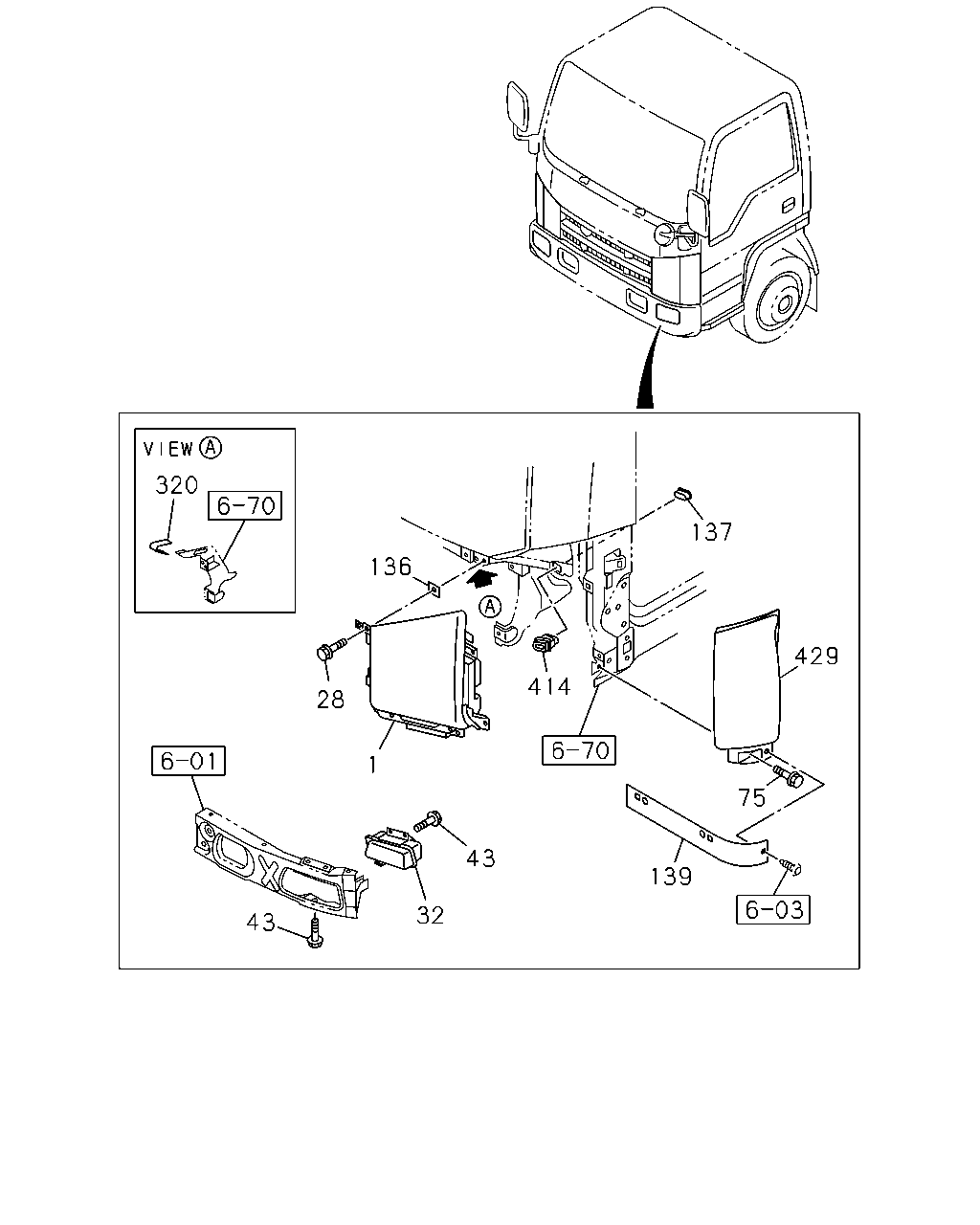

çizim 115077
320 137 136 429 414 28 1 75 43 139 32 43
BalonParca AdiParca NoAdetTipApplied Date
1 02.725 LAMP ASM; HEAD 8-98100-810-1 01 1 1202-1303
1 02.725 LAMP ASM; HEAD 8-98240-644-1 01 1 1304-
1 02.725 LAMP ASM; HEAD 8-98100-811-1 01 1 1202-1303
1 02.725 LAMP ASM; HEAD 8-98240-645-1 01 1 1304-
28 02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1202-
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-147-1 01 1 1202-1301
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-062-1 01 1 1302-
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-148-1 01 1 1202-1301
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-063-1 01 1 1302-
43 02.736 BOLT; FOG LAMP
FOG LAMP<T96> 01.531 M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 1202-
75 02.587 SCREW; FRT COMB LAMP
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1202-
136 02.726 SEAL; HEADLAMP
03.602 25X25 		8-94272-533-0 02 1 1202-
137 02.726 GROMMET; HEADLAMP 8-97581-666-0 02 1 1202-
139 02.726 COVER; HEADLAMP 8-98038-234-1 02 1 1202-
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 1202-
414 02.736 PIN; HEADLAMP,RIM 8-97581-667-0 02 1 1202-
429 02.585 LAMP ASM; SIDE COMB 8-98020-070-4 01 1 1202-
429 02.585 LAMP ASM; SIDE COMB 8-98020-071-4 01 1 1202-
