Isuzu WW
▶
TRUCKS
▶
NHR
▶
51405 - NHR(RHD)EURO4 W/DOC
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#39000) — 38 parça
◀
[750A] DRIVER SEAT (21 parça)
[750A] PASSENGER SEAT (17 parça)
▶
1
17
18
2
228
24
19
16
12
99
13
69
63
631
67
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY
8-97421-233-1
01
1
1202-
1
16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY
8-97409-315-6
01
1
1202-
2
16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY
8-97421-252-0
01
1
1202-
2
16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY
8-97412-904-2
01
1
1202-
12
16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY
8-97421-239-2
01
1
1202-
12
16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK GRAY
8-97409-325-4
01
1
1202-
13
16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY
8-97421-258-2
01
1
1202-
13
16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK GRAY
8-97413-193-3
01
1
1202-
16
16.682 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB
8-97859-273-3
01
1
1202-
16
16.682 ADJUSTER ASM; RECLINING
(A)
8-98003-087-1
01
1
1202-
17
16.682 BOLT; RECLINING
M10X20
8-98062-661-0
04
1
1202-
18
16.682 COVER; RECLINING
GRAY
8-97409-332-0
01
1
1202-
19
16.686 SCREW; COVER
M5
8-98062-663-0
01
1
1202-
24
16.682 KNOB; RECLINING,FRT,SEAT
GRAY
8-97409-333-0
01
1
1202-
63
16.682 ADJUSTER; SEAT SLIDE
(A)
8-97382-802-1
01
1
1202-
63
16.682 ADJUSTER; SEAT SLIDE
(B)
8-97382-803-2
01
1
1202-
67
16.682 BOLT; FRT SEAT TO BODY
16.679 M8X20 W/PL WASHER
8-98031-841-0
02
1
1202-
69
16.682 NUT; FRT SEAT
01.840 M8 W/DISHED WASHER
8-97329-625-0
02
1
1202-
99
16.716 BUSHING; SEAT BACK
8-98063-218-0
01
1
1202-
228
16.714 SCREW; KNOB
M4
8-98062-662-0
01
1
1202-
631
16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER
8-98062-658-0
04
1
1202-

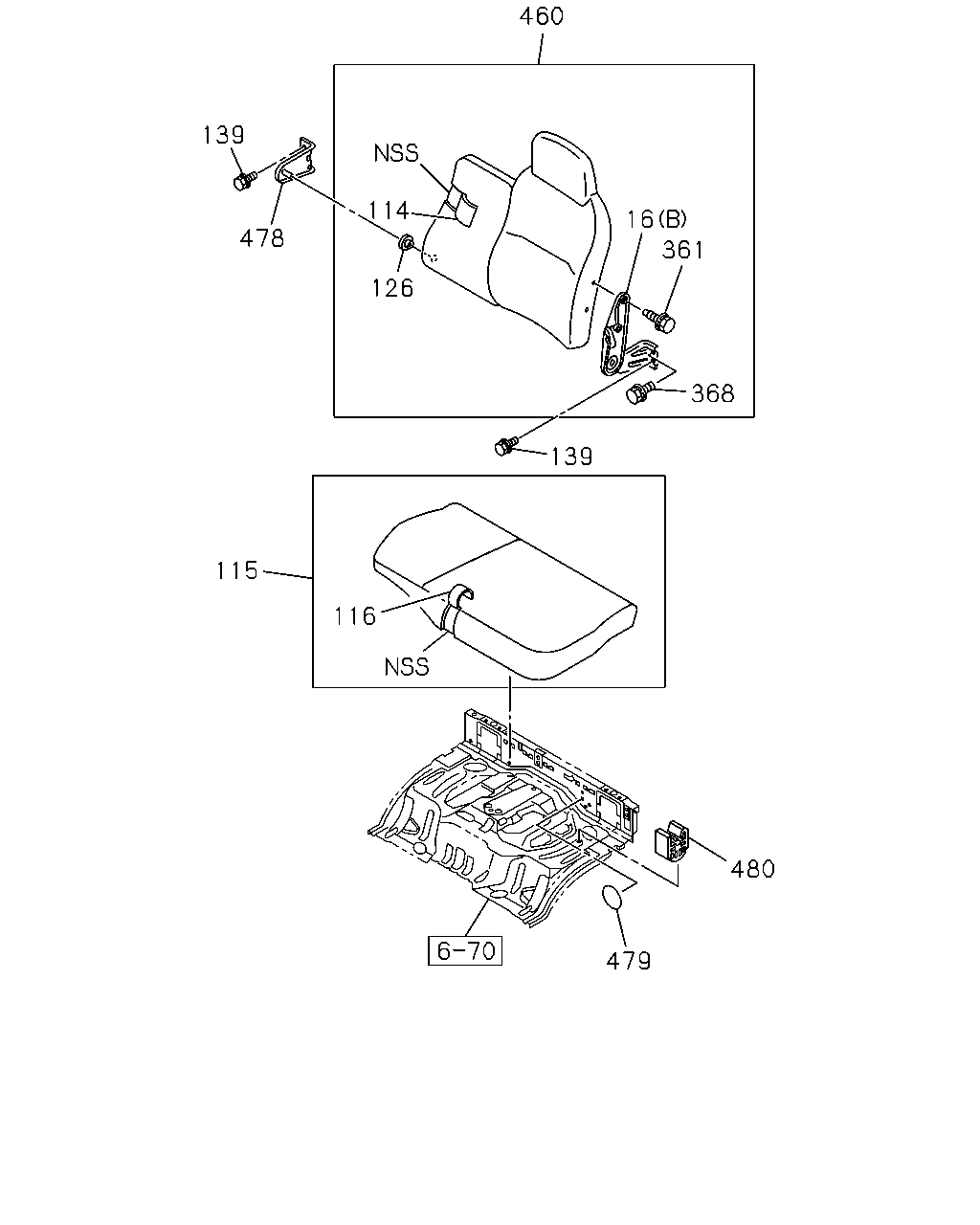

460
139
114
16
478
361
126
368
139
115
116
480
479
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
16.682 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB
8-97859-273-3
01
1
1202-
16
16.682 ADJUSTER ASM; RECLINING
(A)
8-98003-087-1
01
1
1202-
114
16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY
8-97421-286-1
01
1
1202-
114
16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY
8-97418-716-0
01
1
1202-
115
16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY
8-97421-312-3
01
1
1202-
115
16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY
8-97418-701-2
01
1
1202-
116
16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY
8-97421-332-2
01
1
1202-
116
16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK GRAY
8-97418-730-1
01
1
1202-
126
16.686 BUSHING; HINGE,RECLINING
8-98069-558-0
01
1
1202-
139
16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER
8-98031-841-0
03
1
1202-
361
16.682 BOLT; ADJ,RECLINING
M8X18
8-94279-109-1
02
1
1202-
368
16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER
8-94279-217-0
01
1
1202-
460
16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY
8-97421-273-2
01
1
1202-
460
16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY
8-97418-687-1
01
1
1202-
478
16.716 BRACKET ASM; HINGE,PASSENGER SEA
8-97868-186-0
01
1
1202-
479
16.716 PLUG; HINGE
16.165 OD=25 BLACK
1-76798-019-0
02
1
1202-
480
16.716 CLIP; CUSHION
8-94279-977-0
05
1
1202-
