◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10705 - FVR(LHD) EXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#3900) — 58 parça

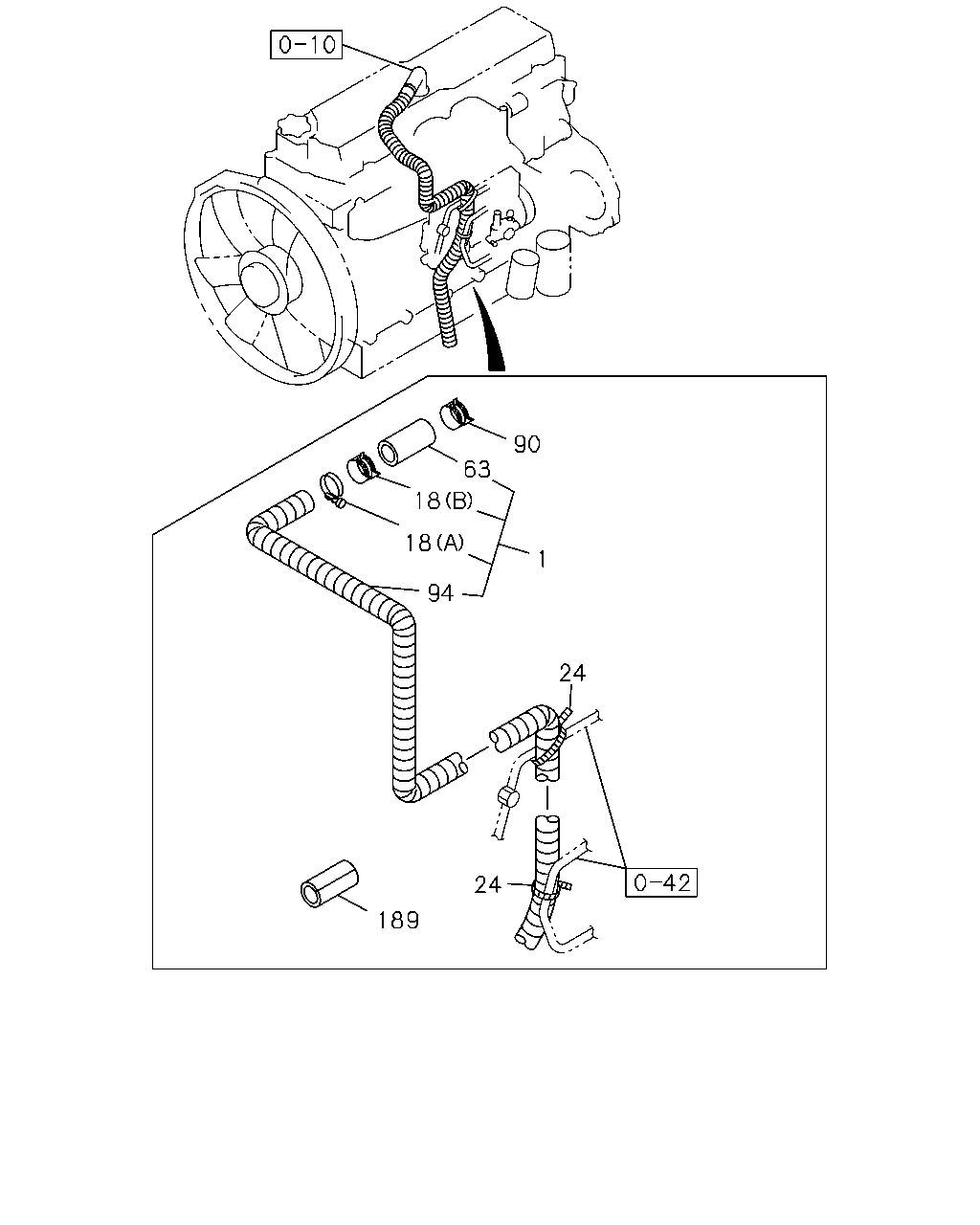

çizim 5798
90 63 18 18 1 94 24 24 189
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 BREATHER; AIR 8-94394-777-1 01 1 9601-9806 ●
1 BREATHER; AIR 8-94394-777-1 01 1 9807-0004 ● ●
1 BREATHER; AIR 8-94394-777-1 01 1 0005-0607 ●
1 BREATHER; AIR 8-94394-777-2 01 1 0608- ● ●
1 BREATHER; AIR 8-94394-859-4 01 1 9601- ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 9601-9806 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 9807-0004 ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 0005-0607 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 0608- ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 9601-9806 ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 9807-0004 ● ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 0005-0607 ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 0608- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 02 1 0006-1102 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 0006-1102 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 1103-1109 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 02 1 1110-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 1110-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 02 1 1206- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-0 02 1 9601-9806 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 9807-0004 ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 0005-0005 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 03 1 0006-0607 ●
24 CLIP; RUBBER HOSE,VENTILATOR
EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 03 1 0608-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 03 1 0608-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
EURO2 SPECIFICATION<THN> L=250 		8-98216-430-0 03 1 1206- ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 03 1 1206- ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02828-070-0 01 1 0704-1005 ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 1006- ●
63 HOSE; RUBBER,AIR BREATHER 8-94394-471-0 01 1 9601-9806 ●
63 HOSE; RUBBER,AIR BREATHER 8-94394-471-0 01 1 9807-0004 ● ●
63 HOSE; RUBBER,AIR BREATHER 8-94394-471-0 01 1 0005-0607 ●
63 HOSE; RUBBER,AIR BREATHER 8-94394-471-0 01 1 0608- ● ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 9601-9809 ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 9601-9806 ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 9807-0004 ● ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 0005-0607 ● ●
90 CLIP; RUBBER HOSE
ID=33.6 		8-94362-518-0 01 1 0608- ● ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9601-9806 ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9807-0004 ● ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 0005-0607 ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 0608- ● ● ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 03 1 0608- ●
189 SLEEVE; RUBBER
EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30 		9-09956-682-0 02 1 0002-0004 ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0002-0004 ● ●
189 SLEEVE; RUBBER
EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30 		9-09956-682-0 02 1 0005-0106 ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0005-0106 ●
189 SLEEVE; RUBBER
EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30 		9-09956-682-0 02 1 0107- ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0107- ● ● ●

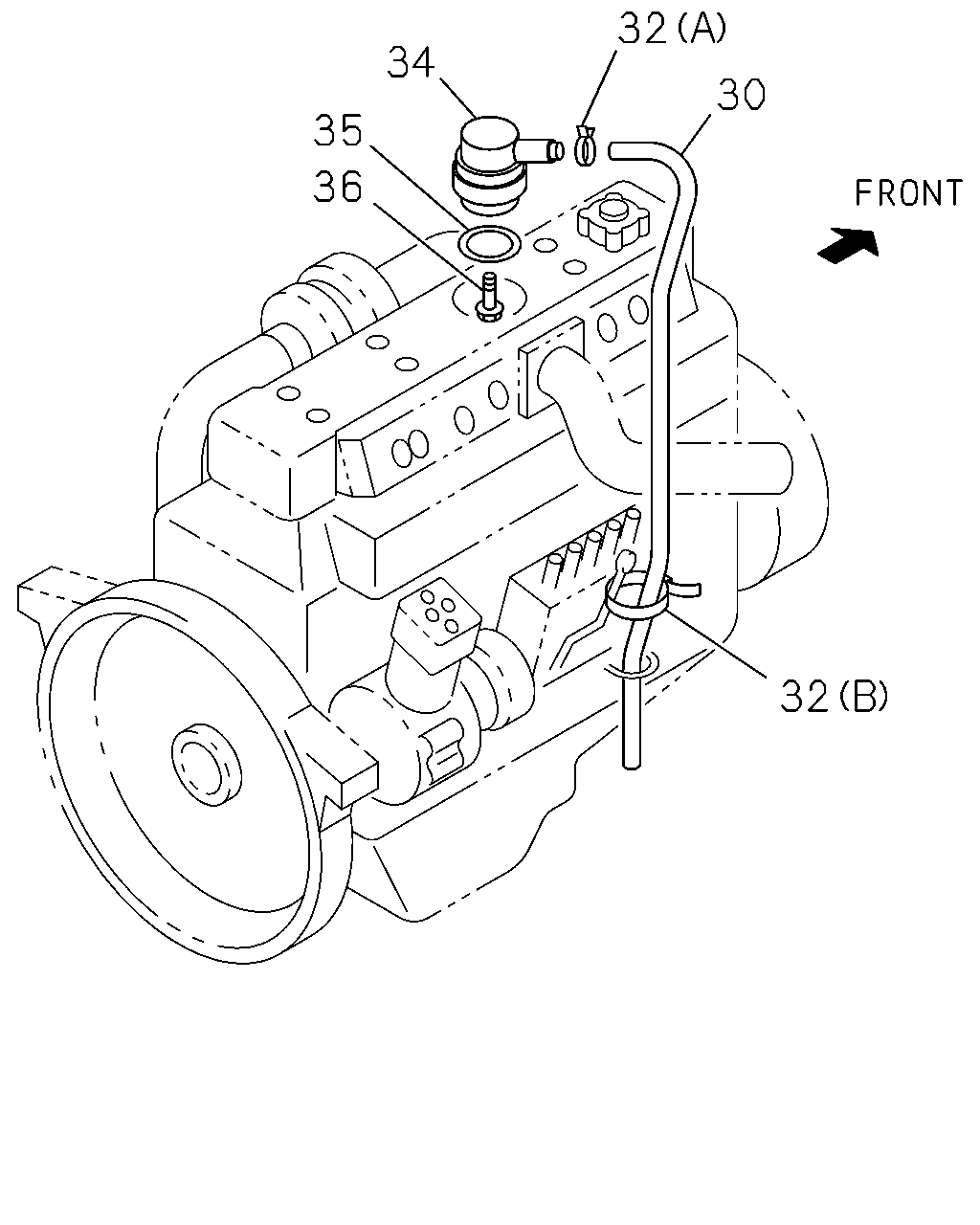

çizim 40171
32 34 30 35 36 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
30 HOSE; VENTILATOR,CYL HD COVER 1-09360-730-1 01 1 9601- ● ●
32 CLIP; VENT HOSE
(A) ID=20 		1-09707-084-1 01 1 9601- ● ●
32 CLIP; VENT HOSE
(B) L=140 		5-09707-031-1 01 1 9601-0106 ● ●
32 CLIP; VENT HOSE
(B) L=140 		5-09707-031-1 02 1 0107-1205 ● ●
32 CLIP; VENT HOSE
(B) L=140 		8-98216-431-0 02 1 1206- ● ●
34 VENTILATOR 1-11740-172-2 01 1 9601- ● ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-209-0 01 1 9601- ● ●
36 BOLT; VENTILATOR
M10X25 W/LK WASHER 		0-50051-025-0 01 1 9601-0906 ● ●
36 BOLT; VENTILATOR
M10X25 W/LK WASHER 		0-50551-025-0 01 1 0907- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
