◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10624 - FSR-RHD ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#39) — 111 parça

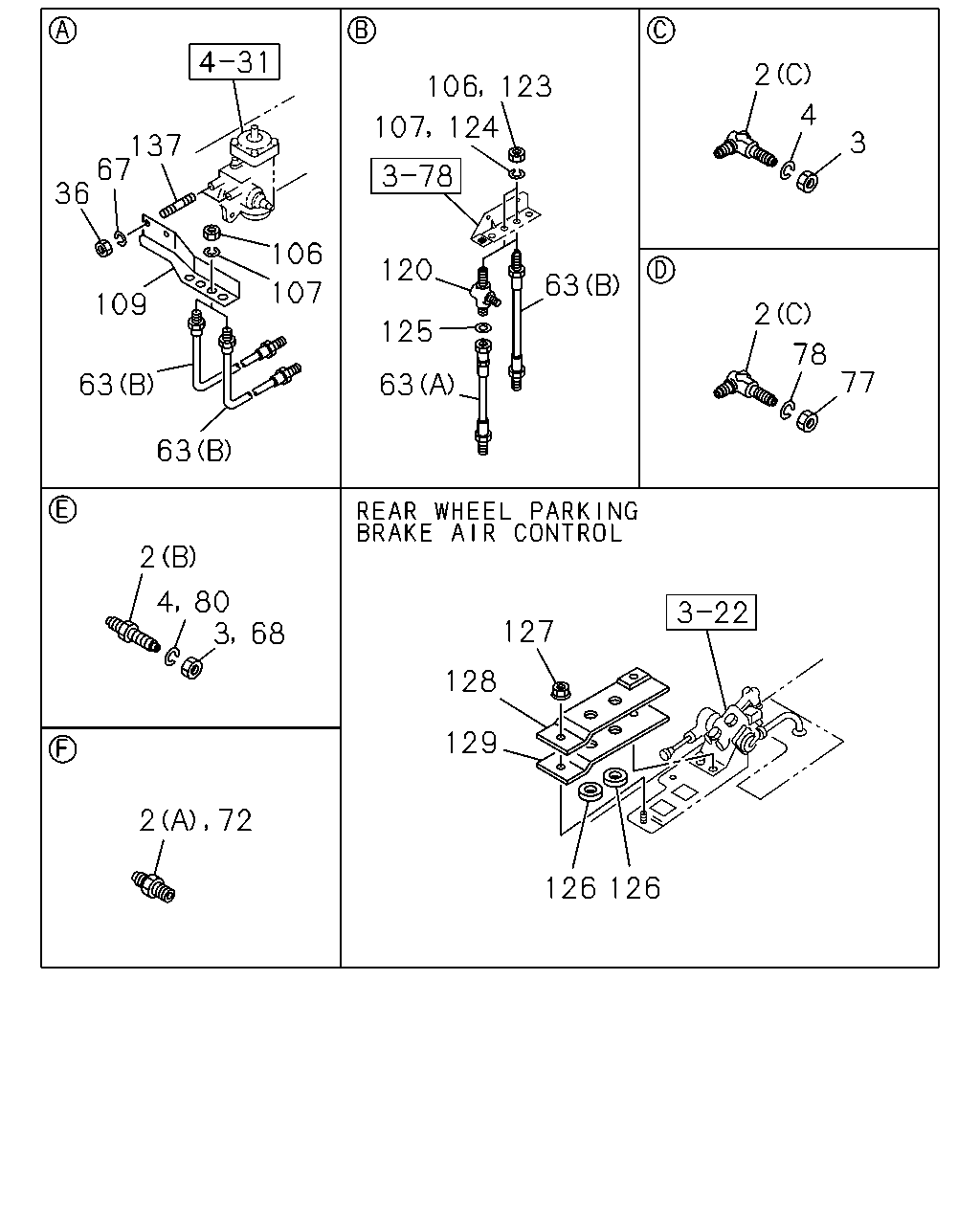

çizim 27724
2 106 123 4 107 124 3 137 67 36 106 120 63 107 109 2 125 78 77 63 63 63 2 80 3 4 127 68 128 129 2 72 126 126
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		9-09223-310-0 02 1 9202-9208 ● ●
2 UNION; AIR PIPE
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		9-09223-310-1 02 1 9209-9312 ● ●
2 UNION; AIR PIPE
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 L=74 		9-09233-310-1 02 1 9401- ● ●
2 UNION; AIR PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M16 L=42 		9-09233-010-1 01 1 9202- ● ●
2 UNION; AIR PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (C) M16 ELBOW 		9-09235-210-1 01 1 9208-9208 ● ●
2 UNION; AIR PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (C) M16 ELBOW 		9-09235-210-1 02 1 9209- ● ●
2 UNION; AIR PIPE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16 ELBOW 		9-09235-210-1 02 1 9209- ● ●
2 UNION; AIR PIPE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16 ELBOW 		9-09235-210-0 02 1 9202-9208 ● ●
3 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 9202- ● ●
4 WASHER; LK,PIPE UNION
ID=16.2 		9-09150-516-0 01 1 9202-9312 ● ●
36 NUT; HOSE BRKT
M10 		9-09110-510-0 02 1 9202- ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=590 		0-07424-590-0 01 1 9308- ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> DUAL AIR GAUGE<UG2> (A) L=480 		0-07474-480-1 01 1 9308-9408 ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
DUAL AIR GAUGE<UG2> (A) L=520 		0-07474-520-1 01 1 9202-9307 ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) L=520 		0-07474-520-1 01 1 9308-9408 ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
DUAL AIR GAUGE<UG2> (A) L=520 		0-07474-520-1 01 1 9308-9408 ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
DUAL AIR GAUGE<UG2> (A) L=520 		0-07474-520-1 01 1 9409- ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> (B) L=630 		0-07424-630-0 01 1 9202-9307 ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
(B) L=630 		0-07424-630-0 01 1 9202-9307 ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> (B) L=630 		0-07424-630-0 01 1 9308- ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=630 		0-07424-630-0 01 1 9308- ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
(B) L=630 		0-07424-630-0 01 1 9308- ●
67 WASHER; LK,HOSE BRKT
ID=10.2 		9-09150-510-0 02 1 9202- ● ●
68 NUT; UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 		9-99111-416-0 01 1 9202- ● ●
72 UNION; AIR PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 L=42 		9-09233-010-1 01 1 9202- ● ●
77 NUT; PIPE UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 		9-99111-416-0 01 1 9202- ● ●
78 WASHER; LK,PIPE UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16.2 		9-09150-516-0 01 1 9202-9312 ● ●
80 WASHER; LK,UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16.2 		9-09150-516-0 01 1 9202-9312 ● ●
106 NUT; FLEX HOSE
DUAL AIR GAUGE<UG2> M16 		9-99111-416-0 01 1 9202- ● ●
106 NUT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M16 		9-99111-416-0 02 1 9202- ● ●
106 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 9202- ● ●
107 WASHER; LK,FLEX HOSE
DUAL AIR GAUGE<UG2> ID=16.2 		9-09150-516-0 01 1 9202- ● ●
107 WASHER; LK,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> ID=16.2 		9-09150-516-0 02 1 9202- ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 9202- ● ●
109 BRACKET; FLEX HOSE
POWER STEERING(N40) 		1-47476-294-0 01 1 9202- ● ●
109 BRACKET; FLEX HOSE
EXC. POWER STEERING(N40) 		1-47475-777-1 01 1 9202- ● ●
120 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> 		1-09656-451-1 01 1 9202- ● ●
123 NUT; HOSE CONNECTOR
DUAL AIR GAUGE<UG2> M16 		9-99111-416-0 01 1 9202- ● ●
124 WASHER; LK,CONNECTOR
DUAL AIR GAUGE<UG2> ID=16.2 		9-09150-516-0 01 1 9202- ● ●
125 GASKET; FLEX HOSE
DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9202- ● ●
126 SPACER; PIPE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09503-191-0 02 1 9202- ● ●
127 NUT; UNION PLATE,ENG HOOD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6 FLANGE 		1-09984-141-0 01 1 9202- ● ●
128 PLATE; 2 WAY UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-71998-372-0 01 1 9202- ● ●
129 SEAL; UNION PLATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79998-224-0 01 1 9202- ● ●
137 STUD; BRKT
M10X25 L=40 		9-04411-025-0 02 1 9202- ● ●
çizim 28359
118 87 1 70 62 118 87 62 70 76 5 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=511 SERVICED BY L=550 		1-47426-407-0 01 1 9202-9207 ●
1 PIPE; AIR,AIR TANK TO UNION
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=511 SERVICED BY L=550 		1-47426-407-0 01 1 9208- ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=362 SERVICED BY L=400 		1-47426-404-0 01 1 9208- ● ●
1 PIPE; AIR,AIR TANK TO UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=732 		1-47488-504-0 01 1 9202-9212 ● ●
1 PIPE; AIR,AIR TANK TO UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=732 		1-47497-936-0 01 1 9301- ● ●
1 PIPE; AIR,AIR TANK TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=273 SERVICED BY L=300 		1-47426-402-0 01 1 9202-9207 ● ●
1 PIPE; AIR,AIR TANK TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=273 SERVICED BY L=300 		1-47426-402-0 01 1 9208- ● ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2047 SERVICED BY L=2500 		1-47434-479-0 01 1 9202-9207 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2047 SERVICED BY L=2500 		1-47434-479-0 01 1 9208-9212 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2047 SERVICED BY L=2500 		1-47426-423-0 01 1 9301- ●
5 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=1442 SERVICED BY L=1550 		1-47437-970-0 01 1 9208-9212 ● ●
5 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=1442 SERVICED BY L=1550 		1-47426-419-0 01 1 9301- ● ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1771 SERVICED BY L=1900 		1-47437-971-0 01 1 9202-9207 ● ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1771 SERVICED BY L=1900 		1-47437-971-0 01 1 9208-9212 ● ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1771 SERVICED BY L=1900 		1-47426-421-0 01 1 9301- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2577 SERVICED BY L=2600 		1-47437-973-0 01 1 9208-9210 ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2577 SERVICED BY L=2600 		1-47437-973-0 01 1 9211-9212 ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2576 SERVICED BY L=2600 		1-47426-424-0 01 1 9301- ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=2037 SERVICED BY L=2100 		1-47437-972-0 01 1 9208-9212 ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=2037 SERVICED BY L=2100 		1-47426-422-0 01 1 9301- ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2096 SERVICED BY L=2100 		1-47437-972-0 01 1 9202-9207 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2096 SERVICED BY L=2100 		1-47437-972-0 01 1 9208-9212 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2096 SERVICED BY L=2100 		1-47426-422-0 01 1 9301- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2657 SERVICED BY L=2900 		1-47437-974-0 01 1 9202-9207 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2657 SERVICED BY L=2900 		1-47437-974-0 01 1 9208-9210 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2657 SERVICED BY L=2900 		1-47437-974-0 01 1 9211-9212 ●
62 PIPE; AIR,UNION TO FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2657 SERVICED BY L=2900 		1-47426-425-0 01 1 9301- ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2644 SERVICED BY L=2900 		1-47437-974-0 01 1 9208-9212 ●
62 PIPE; AIR,UNION TO FLEX HOSE
EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2642 SERVICED BY L=2900 		1-47426-425-0 01 1 9301- ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=2104 SERVICED BY L=2500 		1-47434-479-0 01 1 9208-9212 ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=2104 SERVICED BY L=2500 		1-47426-423-0 01 1 9301- ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2653 SERVICED BY L=2900 		1-47437-974-0 01 1 9208-9210 ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2653 SERVICED BY L=2900 		1-47437-974-0 01 1 9211-9212 ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2642 SERVICED BY L=2900 		1-47426-425-0 01 1 9301- ●
70 PIPE; AIR,FLEX HOSE TO UNION
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1972 SERVICED BY L=2100 		1-47426-422-0 01 1 9301- ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1972 SERVICED BY L=2100 		1-47437-972-0 01 1 9202-9207 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1972 SERVICED BY L=2100 		1-47437-972-0 01 1 9208-9212 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=1928 SERVICED BY L=2100 		1-47426-422-0 01 1 9208- ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2689 SERVICED BY L=2900 		1-47437-974-0 01 1 9202-9207 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2689 SERVICED BY L=2900 		1-47437-974-0 01 1 9208-9210 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2689 SERVICED BY L=2900 		1-47437-974-0 01 1 9211-9212 ●
70 PIPE; AIR,FLEX HOSE TO UNION
AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2689 SERVICED BY L=2900 		1-47426-425-0 01 1 9301- ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2698 SERVICED BY L=2900 		1-47437-974-0 01 1 9208-9212 ●
70 PIPE; AIR,FLEX HOSE TO UNION
EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2687 SERVICED BY L=2900 		1-47426-425-0 01 1 9301- ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=1973 SERVICED BY L=2100 		1-47426-422-0 01 1 9208- ●
76 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2377 SERVICED BY L=2600 		1-47437-973-0 01 1 9202-9207 ●
76 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2377 SERVICED BY L=2600 		1-47437-973-0 01 1 9208-9212 ●
76 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2377 SERVICED BY L=2600 		1-47426-424-0 01 1 9301- ●
76 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=1561 SERVICED BY L=1700 		1-47434-478-0 01 1 9208-9212 ● ●
76 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=1561 SERVICED BY L=1700 		1-47426-420-0 01 1 9301- ● ●
76 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1877 SERVICED BY L=2100 		1-47437-972-0 01 1 9202-9207 ● ●
76 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1877 SERVICED BY L=2100 		1-47437-972-0 01 1 9208-9212 ● ●
76 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1877 SERVICED BY L=2100 		1-47426-422-0 01 1 9301- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=635 SERVICED BY L=660 		1-47437-964-0 01 1 9202-9207 ●
87 PIPE; AIR,UNION TO AIR MASTER
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=635 SERVICED BY L=660 		1-47437-964-0 01 1 9208- ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=726 SERVICED BY L=550 		1-47426-344-0 01 1 9208-9212 ● ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=726 SERVICED BY L=730 		1-47426-411-0 01 1 9301- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=912 		1-47488-441-0 01 1 9202-9212 ● ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=912 		1-47497-170-0 01 1 9301- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=675 SERVICED BY L=700 		1-47426-410-0 01 1 9202-9207 ● ●
87 PIPE; AIR,UNION TO AIR MASTER
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=675 SERVICED BY L=700 		1-47426-410-0 01 1 9208- ● ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=403 		1-47497-151-0 01 1 9308- ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=361 		1-47482-334-0 01 1 9202-9212 ● ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=361 		1-47497-112-0 01 1 9301-9307 ● ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=361 		1-47497-112-0 01 1 9308- ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=361 		1-47497-112-0 01 1 9308- ●
