Isuzu WW
▶
TRUCKS
▶
NHR
▶
51405 - NHR(RHD)EURO4 W/DOC
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶

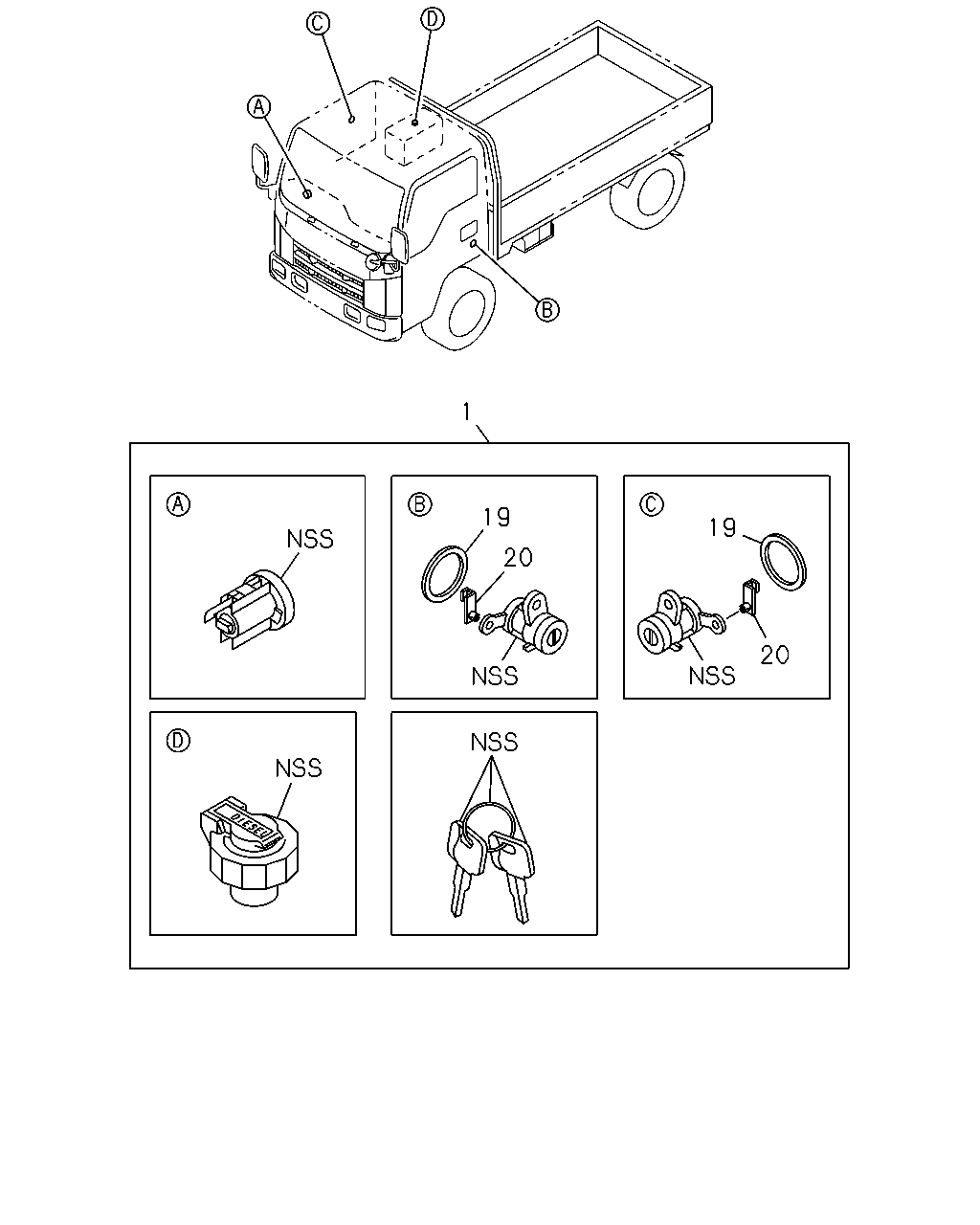

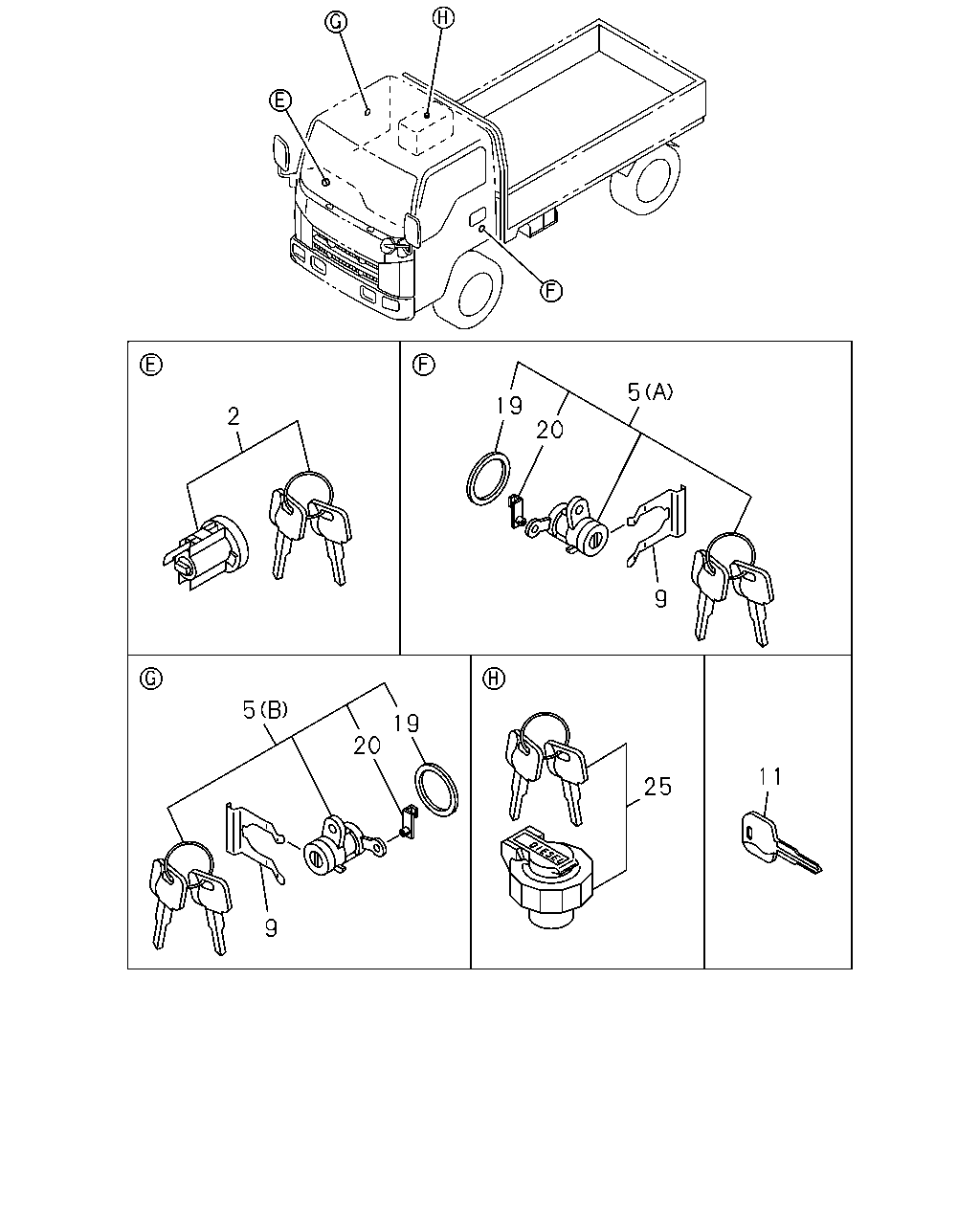

7-30 — LOCK CYLINDER SET
(#38996) — 15 parça
◀
[730A] NO.2 (10 parça)
[730A] NO.1 (5 parça)
▶
5
19
2
20
9
5
19
20
11
25
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
02.188 BARREL ASM; W/KEY,STRG LOCK
8-98055-148-0
01
1
1202-1203
2
02.188 BARREL ASM; W/KEY,STRG LOCK
8-98201-342-0
01
1
1204-
5
16.328 CYLINDER ASM; DOOR LOCK
(B)
8-98055-151-0
01
1
1202-
5
16.328 CYLINDER ASM; DOOR LOCK
(A)
8-98055-152-0
01
1
1202-
9
16.328 CLIP; DOOR LOCK
8-97410-786-0
02
1
1202-
11
02.187 KEY; BLANK
8-98055-170-0
AR
1
1202-
19
16.328 GASKET; DOOR LOCK CYL
8-98055-179-0
02
1
1202-
20
16.328 SNAP; DOOR LOCK CYL
8-98055-181-0
01
1
1202-
20
16.328 SNAP; DOOR LOCK CYL
8-98055-182-0
01
1
1202-
25
03.028 CAP; FUEL TANK,W/KEY
8-98088-979-0
01
1
1202-
1
19
19
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.188 CYLINDER SET; CAR LOCK
8-98089-015-0
01
1
1202-1203
1
02.188 CYLINDER SET; CAR LOCK
8-98201-630-0
01
1
1204-
19
16.328 GASKET; DOOR LOCK CYL
8-98055-179-0
02
1
1202-
20
16.328 SNAP; DOOR LOCK CYL
8-98055-181-0
01
1
1202-
20
16.328 SNAP; DOOR LOCK CYL
8-98055-182-0
01
1
1202-
