Sayfa 6-80 - Isuzu EPC

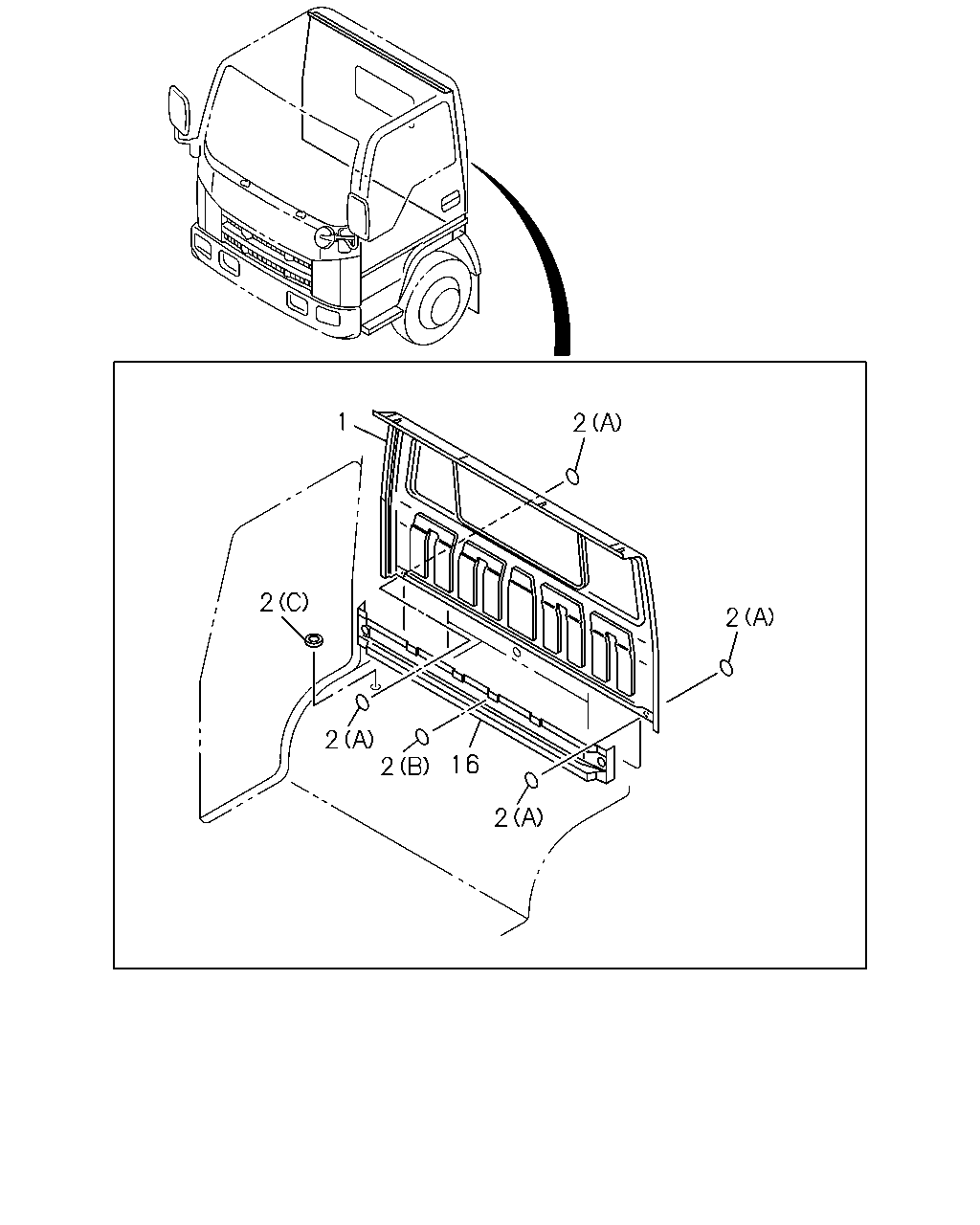

6-80 — BACK PANEL (#38989) — 7 parça

1 2 2 2 2 2 16 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.587 PANEL; BACK OUTER	8-98182-755-0	01	1	1202-
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.545 (B) OD=32 BLACK	8-98031-126-0	02	1	1202-
2	16.587 GROMMET; LOCATION HOLE,BACK PANE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARDIN AL RED(736),BODY COLOR WOODLAND GREEN(807) ,BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLU E(890),BODY COLOR HIGHWAY ORANGE(944), BODYCOLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.545 (B) OD=32 BLACK	8-98031-126-0	02	1	1202-
2	16.587 GROMMET; LOCATION HOLE,BACK PANE BODY COLOR POLAR WHITE(534),BODY COLOR ARCWHITE(729) 16.592 (B) OD=36 WHITE	1-76778-007-0	02	1	1202-
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	1202-
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.547 (C) OD=15.0	8-94279-040-0	02	1	1202-
16	16.575 REINFORCEMENT; BACK OUTER PNL	8-97585-401-0	01	1	1202-
