Isuzu WW
▶
TRUCKS
▶
NHR
▶
51405 - NHR(RHD)EURO4 W/DOC
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-70 - FLOOR PANEL
▶
6-70 — FLOOR PANEL
(#38985) — 35 parça
◀

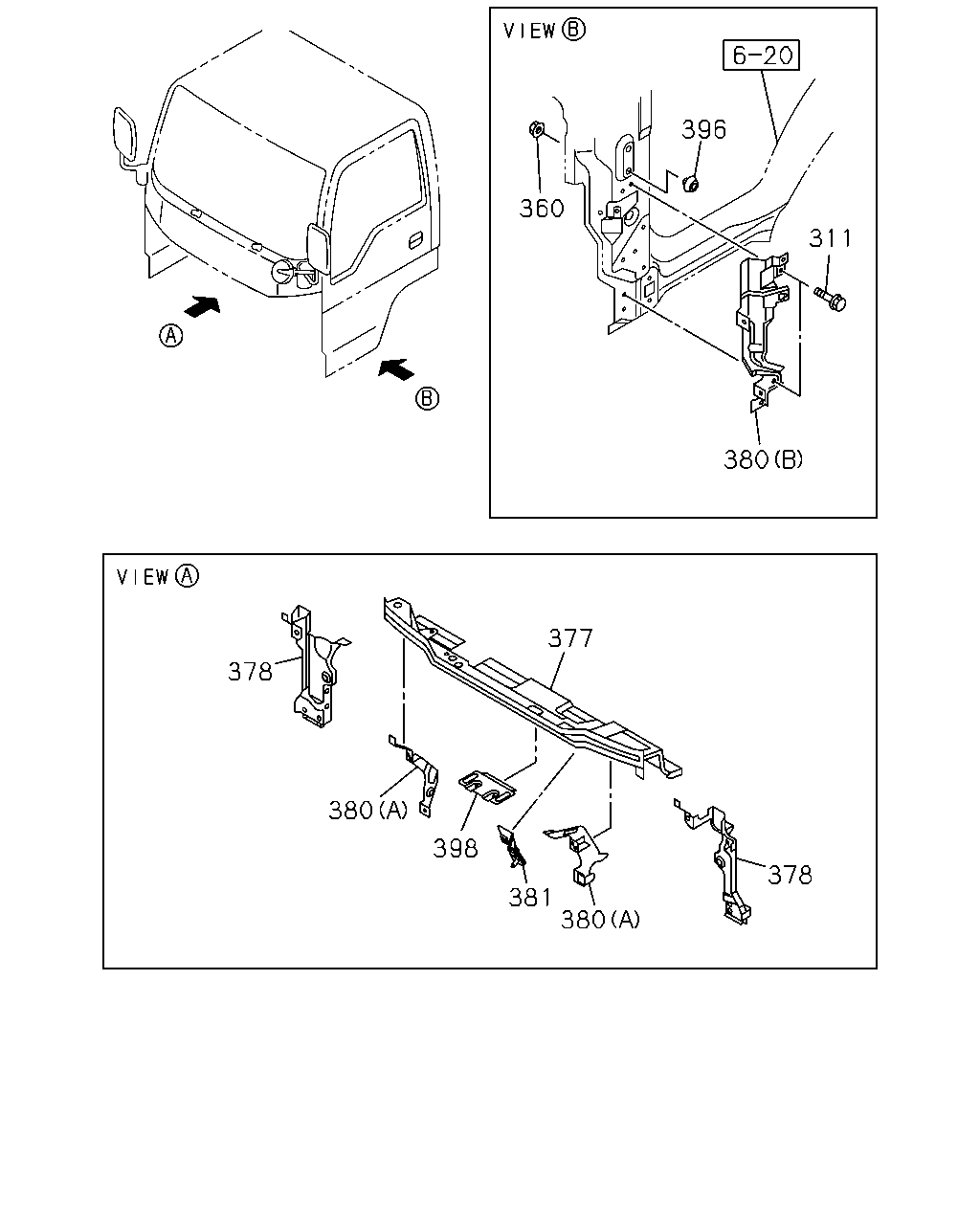

[670A] FRT MTG RAIL AND BRACKET (12 parça)

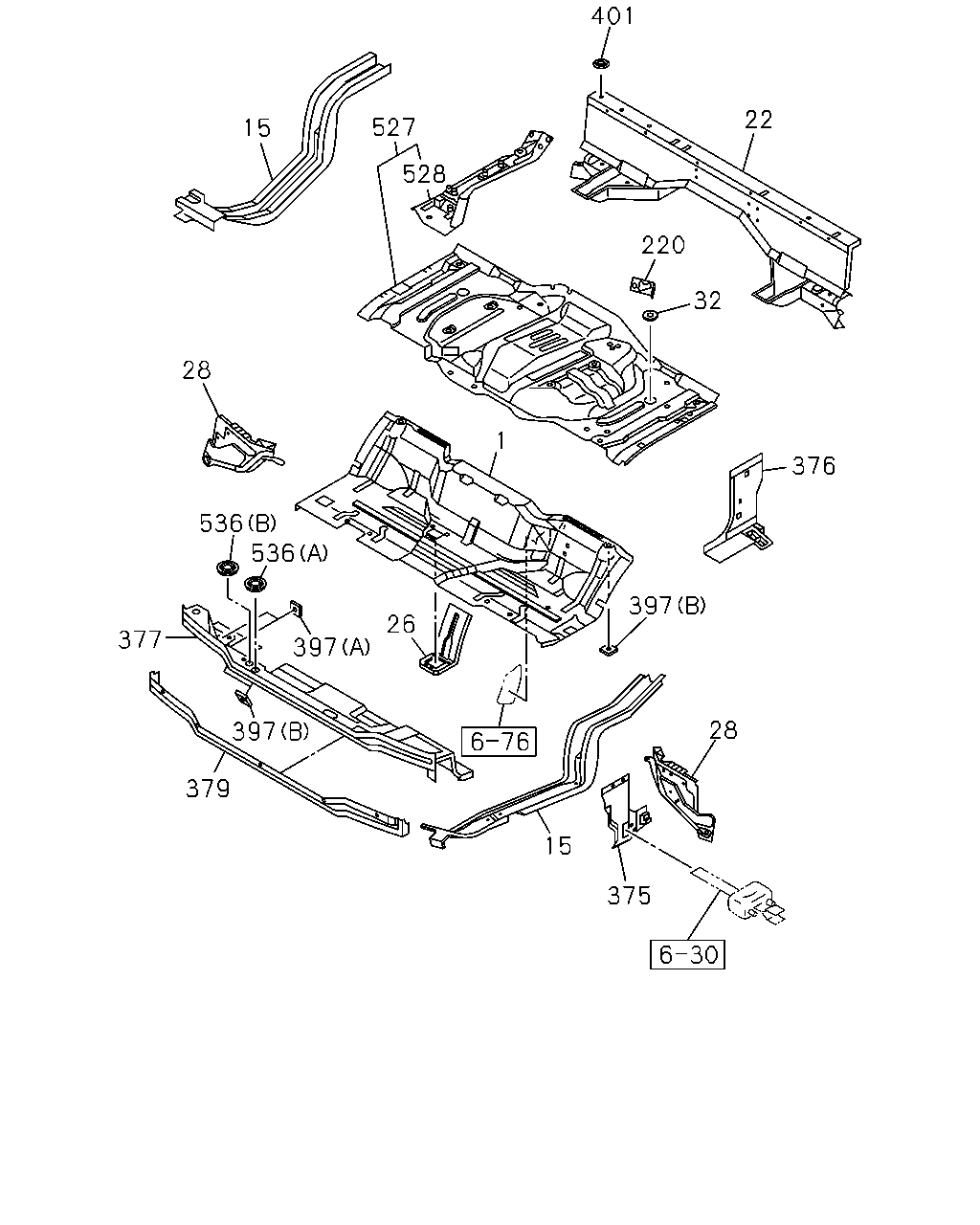

[670A] PANEL (23 parça)
▶
396
360
311
380
377
378
380
398
378
381
380
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
311
16.545 BOLT; BRKT
02.343 M6X16 FLANGE
0-28650-616-0
04
1
1202-
360
16.545 NUT; BRKT
09.786 M6 POP NUT
8-98013-752-0
02
1
1202-
377
16.545 RAIL ASM; MTG,FRT
8-97997-547-1
01
1
1202-
378
16.545 GASSET; LWR
8-98019-836-1
01
1
1202-
378
16.545 GASSET; LWR
8-98019-837-0
01
1
1202-
380
16.545 BRACKET; HEAD LAMP
(A)
8-97850-090-2
01
1
1202-
380
16.545 BRACKET; HEAD LAMP
(A)
8-97850-705-0
01
1
1202-
380
16.545 BRACKET; HEAD LAMP
(B)
8-98032-311-1
01
1
1202-
380
16.545 BRACKET; HEAD LAMP
(B)
8-98032-312-1
01
1
1202-
381
16.545 BRACKET; AIR INTAKE DUCT,FRT
8-97411-017-1
01
1
1202-
396
16.547 GROMMET; LOCATION HOLE
OD=15.0
8-94279-040-0
02
1
1202-
398
16.545 BRACKET; PIPE SUPPORT
8-97850-318-1
01
1
1202-
401
22
527
15
528
220
32
28
1
376
536
536
397
26
377
397
28
397
379
15
375
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.545 PANEL; FLOOR
8-97581-770-0
01
1
1202-
15
16.545 FRAME; UNDER
8-97850-060-9
01
1
1202-
15
16.545 FRAME; UNDER
8-98013-405-0
01
1
1202-
22
16.545 FRAME; FLOOR REAR
8-97585-250-7
01
1
1202-
26
16.545 PANEL; GEAR CONT REINF
8-97850-005-6
01
1
1202-
28
16.545 GUSSET; FLOOR PANEL SIDE
8-98170-770-0
01
1
1202-
28
16.545 GUSSET; FLOOR PANEL SIDE
8-98170-771-0
01
1
1202-
32
16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.155 OD=28.5
8-94279-711-0
02
1
1202-
220
16.587 PATCH
8-97410-789-0
01
1
1202-
375
16.545 CLOSING; PILLAR
8-97850-086-5
01
1
1202-
375
16.545 CLOSING; PILLAR
8-97850-087-4
01
1
1202-
376
16.545 CLOSING; PILLAR,LWR
8-97850-320-6
01
1
1202-
376
16.545 CLOSING; PILLAR,LWR
8-97850-923-1
01
1
1202-
377
16.545 RAIL ASM; MTG,FRT
8-97997-547-1
01
1
1202-
379
16.545 PANEL
8-98019-134-2
01
1
1202-
397
16.545 NUT; PIERCE
16.588 (B) M8
9-09114-048-0
04
1
1202-
397
16.545 NUT; PIERCE
(A) M10
9-09114-030-0
03
1
1202-
397
16.545 NUT; PIERCE
16.588 (B) M8
9-09114-048-0
03
1
1202-
401
16.545 GROMMET; HOLE
OD=24.5 T=7.5
8-97224-683-0
01
1
1202-
527
16.545 FLOOR; RR
8-97585-233-0
01
1
1202-
528
16.545 REINFORCEMENT; PARKING BRAKE
8-97585-235-2
01
1
1202-
536
16.549 PLUG; CABLE,PTO
16.802 (B) OD=36
1-09983-092-0
01
1
1202-
536
16.549 PLUG; CABLE,PTO
(A) OD=38
8-94159-507-0
01
1
1202-
