◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51405 - NHR(RHD)EURO4 W/DOC ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#38978) — 39 parça
çizim 114992
129 244
BalonParca AdiParca NoAdetTipApplied Date
129 16.183 SEAL; DOOR,SUB UPR 8-97857-841-0 02 1 1202-
244 16.155 STOPPER; DOOR 8-97890-484-0 02 1 1202-

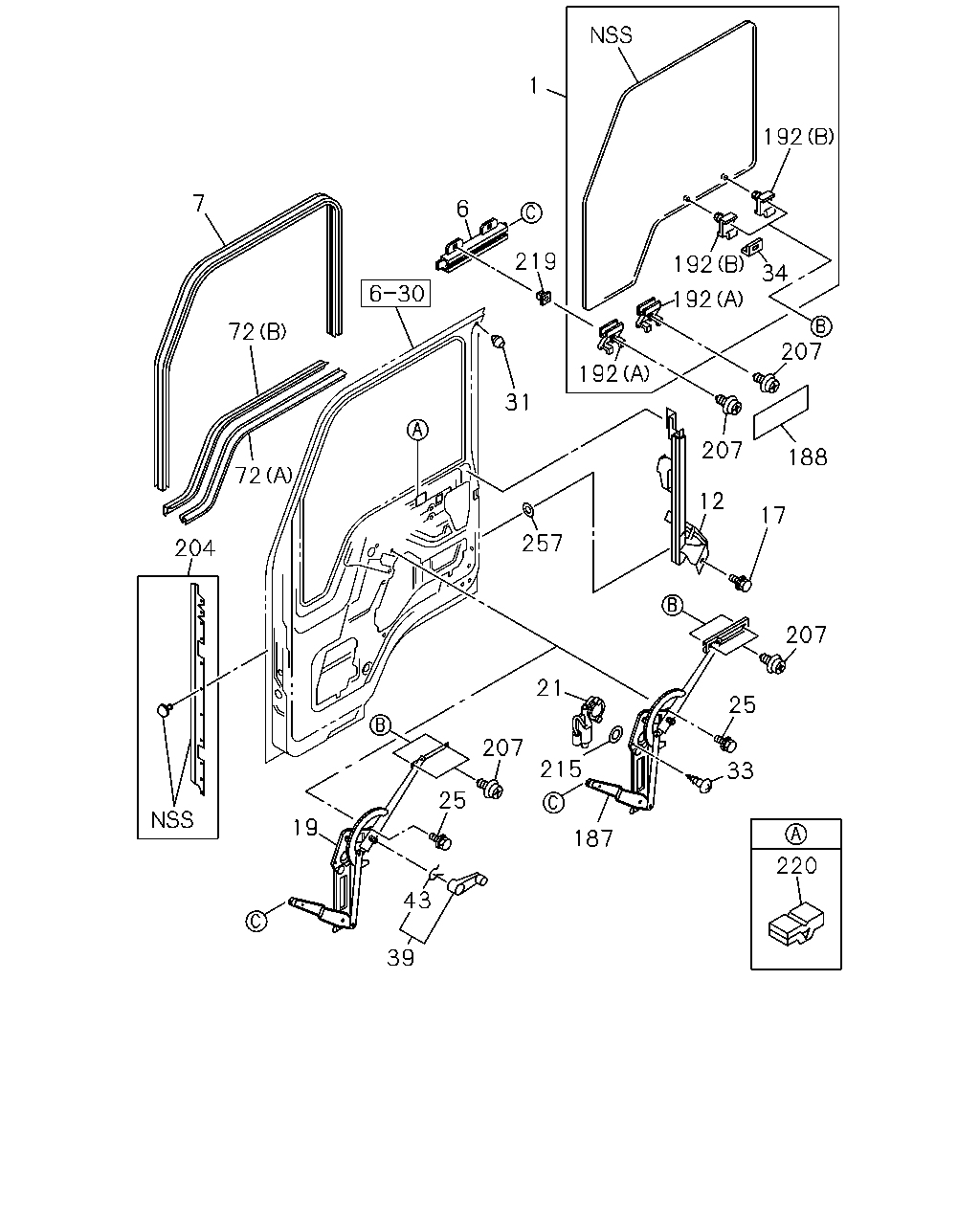

çizim 114998
1 7 72 72 204 219 192 192 192 34 192 31 207 207 188 17 12 207 25 33 187 215 21 207 25 43 39 19 257 6 220
BalonParca AdiParca NoAdetTipApplied Date
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97867-415-1 01 1 1202-
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97867-416-1 01 1 1202-
6 10.685 CHANNEL; DOOR GLASS
W/ROLLER&PROTECTOR 		8-97898-425-1 02 1 1202-
7 16.190 GLASS RUN; FRT DOOR 8-97852-113-4 01 1 1202-
7 16.190 GLASS RUN; FRT DOOR 8-97852-114-4 01 1 1202-
12 16.190 CHANNEL; GLASS RUN,FRT 8-98009-456-0 01 1 1202-1212
12 16.190 CHANNEL; GLASS RUN,FRT 8-98020-038-0 01 1 1301-
12 16.190 CHANNEL; GLASS RUN,FRT 8-98009-457-0 01 1 1202-1212
12 16.190 CHANNEL; GLASS RUN,FRT 8-98020-039-0 01 1 1301-
17 16.183 SCREW; RR CHANNEL
16.585 T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 04 1 1202-1212
17 16.183 SCREW; RR CHANNEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 04 1 1301-
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-115-8 01 1 1202-
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-116-8 01 1 1202-
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-479-0 01 1 1202-
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-480-0 01 1 1202-
25 16.270 BOLT; WINDOW REG
16.230 M6X9 LK+W/PL WASHER&TORQUES 		8-98108-677-0 10 1 1202-
31 16.225 STOPPER; RUBBER,DOOR INNER 8-97852-022-1 02 1 1202-
33 16.230 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98097-389-0 06 1 1202-
34 16.270 STOPPER; WINDOW REG 8-97852-012-0 02 1 1202-
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97406-317-0 02 1 1202-
43 16.270 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-94220-591-0 02 1 1202-
72 16.183 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-117-6 01 1 1202-
72 16.183 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-118-6 01 1 1202-
72 16.183 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97866-697-6 01 1 1202-
72 16.183 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97866-698-6 01 1 1202-
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-113-3 01 1 1202-
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-114-3 01 1 1202-
188 16.225 PROTECTOR; DOOR SEAL 8-97994-698-1 02 1 1202-
192 16.183 HOLDER; DOOR GLASS
(A) 		8-97852-076-1 04 1 1202-
192 16.183 HOLDER; DOOR GLASS
(B) 		8-97852-077-1 04 1 1202-
204 16.183 RUBBER; SHIELD,FRT DOOR 8-97852-092-2 01 1 1202-
204 16.183 RUBBER; SHIELD,FRT DOOR 8-97852-093-2 01 1 1202-
207 16.183 SCREW; DOOR GLASS
M4X14.5 TAPPING 		8-98020-522-2 08 1 1202-
215 63.121 SPACER; WINDOW REG
POWER WINDOW FRT DOOR<A32> 16.230 		8-97388-942-0 02 1 1202-
219 16.175 GROMMET; SCREW,CHANNEL,REG 8-94326-756-0 04 1 1202-
220 16.332 SEAL; LINK ROD 8-97852-321-0 02 1 1202-
257 03.162 WASHER; G/RUN CHANNEL
ID=6.5 OD=30 		9-09851-911-0 02 1 1301-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
