◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51405 - NHR(RHD)EURO4 W/DOC ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#38974) — 47 parça

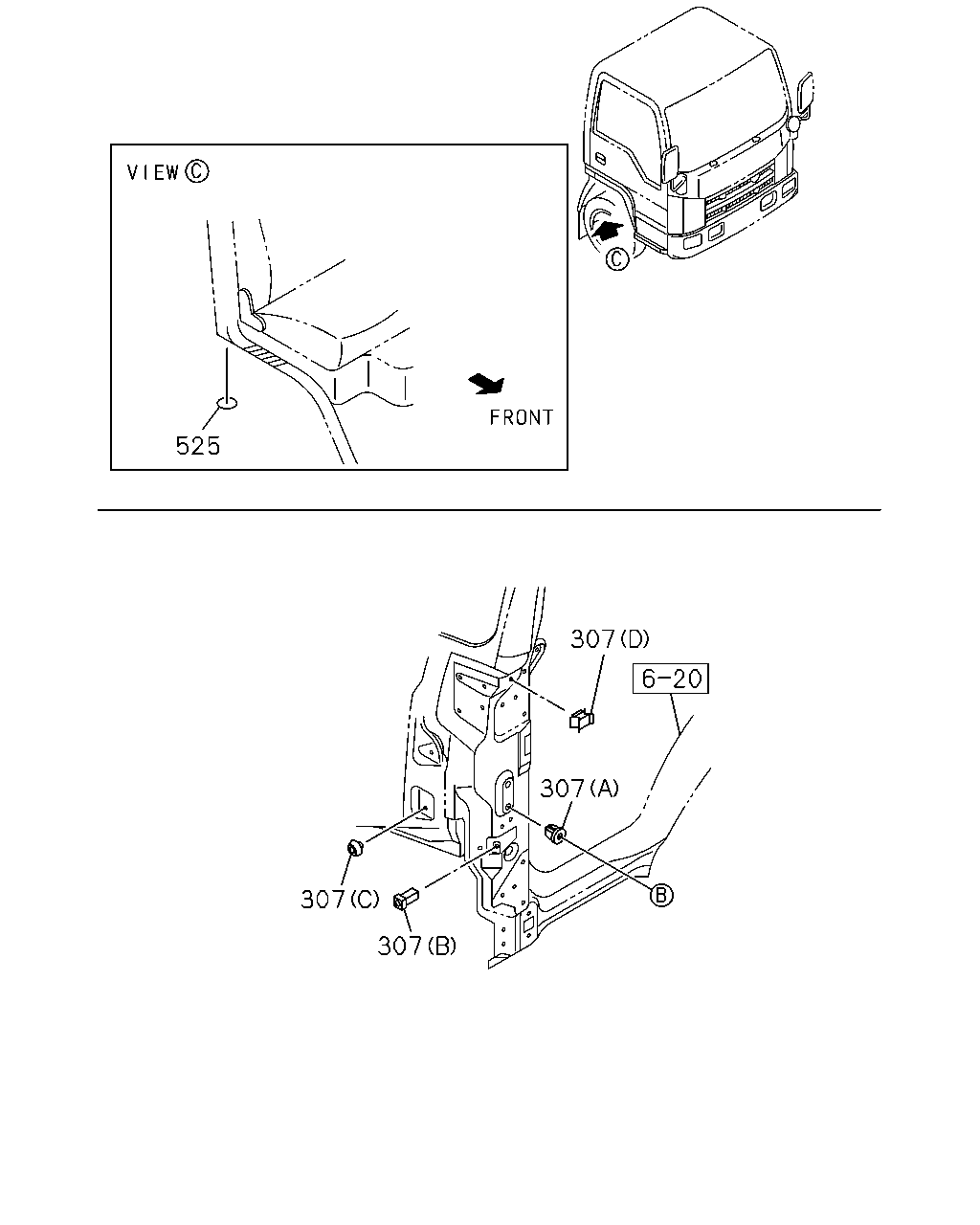

çizim 114987
525 307 307 307 307
BalonParca AdiParca NoAdetTipApplied Date
307 16.125 GROMMET; FRT PANEL
16.588 (A) D=7X7 L=7.5 		5-09983-007-0 02 1 1202-
307 16.125 GROMMET; FRT PANEL
16.802 (B) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 1202-
307 16.125 GROMMET; FRT PANEL
(C) 		8-97410-741-0 06 1 1202-
307 16.125 GROMMET; FRT PANEL
16.588 (D) 		8-97581-632-1 04 1 1202-
525 08.131 SEAL; FENDER
16.165 OD=25 BLACK 		1-76798-019-0 03 1 1202-

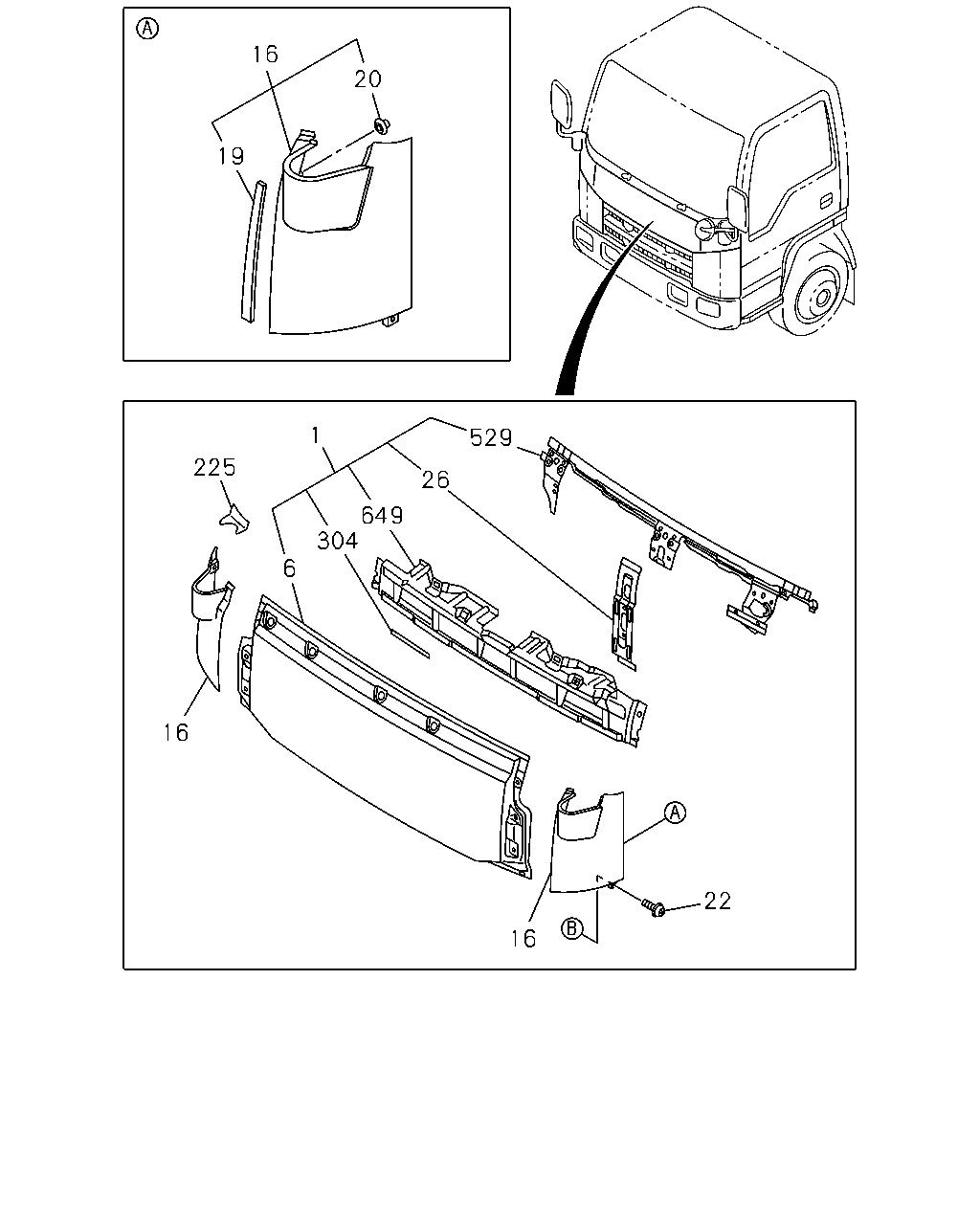

çizim 114989
16 20 19 1 529 225 26 649 304 6 16 22 16
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT 8-98032-098-0 01 1 1202-
6 16.570 PANEL; FRONT 8-98032-100-2 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-118-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-130-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-128-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-140-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-119-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-131-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97412-120-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97412-132-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-121-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-133-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97406-734-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97406-738-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-122-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-134-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-123-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-135-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-124-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-136-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-125-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-137-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-126-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-138-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-127-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-139-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-129-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-141-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97406-736-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97406-740-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97406-737-0 01 1 1202-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97406-745-0 01 1 1202-
19 16.588 SEAL; FRT SIDE PANEL 8-98035-621-0 02 1 1202-
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 06 1 1202-
22 16.588 SCREW; FRT PANEL SIDE
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1202-1212
22 16.588 SCREW; FRT PANEL SIDE
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-98032-104-0 01 1 1202-
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98039-033-1 01 1 1202-
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98039-034-1 01 1 1202-
304 16.125 SPACER; FRT PANEL 8-98021-576-0 02 1 1202-
529 16.578 REINFORCEMENT; PANEL 8-98032-107-0 01 1 1202-
649 16.578 STIFFENER; PANEL 8-98032-103-2 01 1 1202-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
