Sayfa 9-33 - Isuzu EPC

9-33 — REAR BODY; GATE AND SIDE GUARD (#38973) — 304 parça

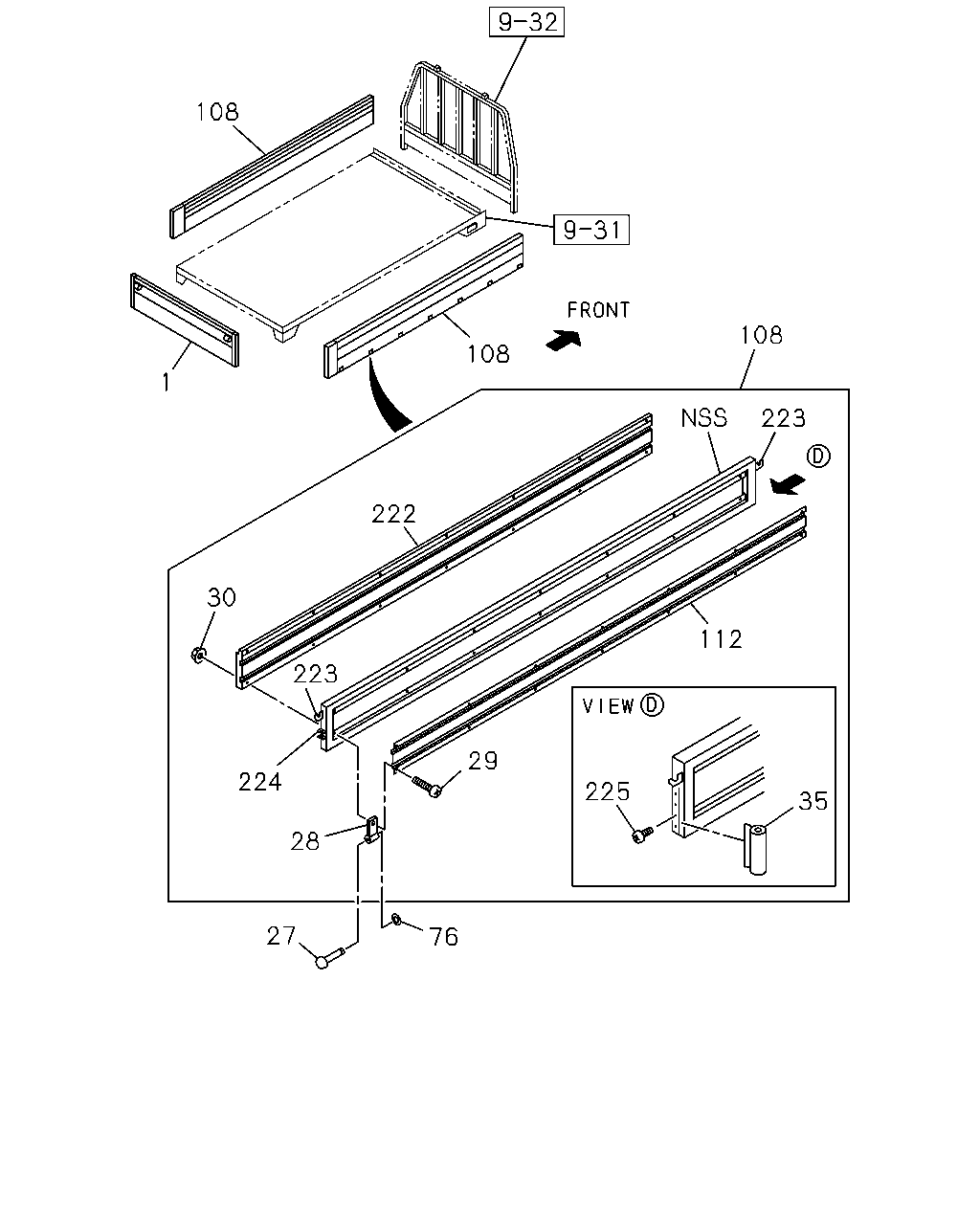

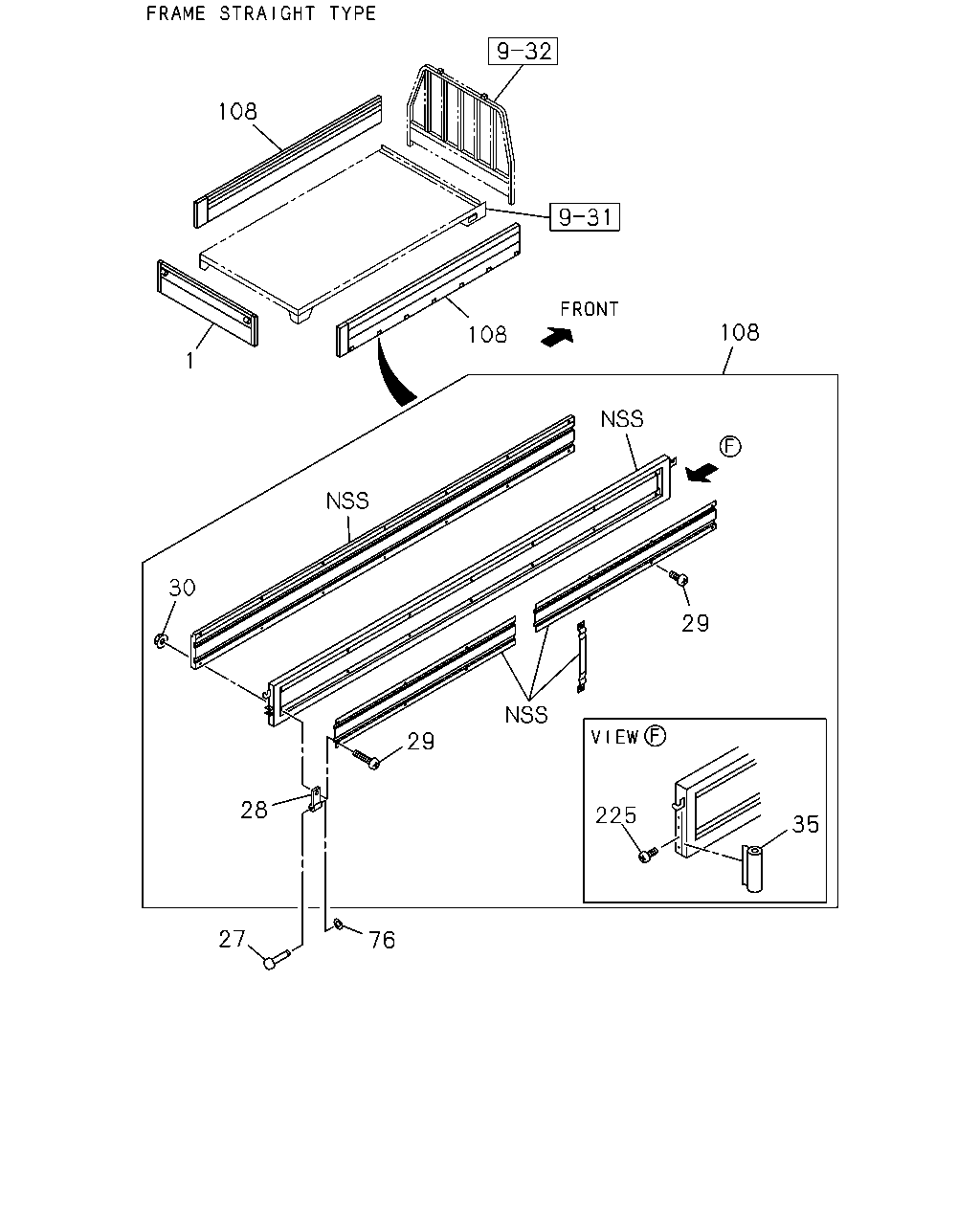

108 108 108 1 30 29 29 28 225 35 27 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=2067 H=398 B=50 PLYWOOD	8-94195-515-4	01	1	0211-0501	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=2067 H=398 B=50 PLYWOOD	8-94195-515-4	01	1	0211-0501		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=2067 H=398 B=50 PLYWOOD	8-97591-791-0	01	1	0502-0801	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=2067 H=398 B=50 PLYWOOD	8-97591-791-0	01	1	0502-0801		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6>	8-97594-489-0	01	1	0802-	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-489-0	01	1	0802-		●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> OD=10 L=89.5	8-94195-763-2	14	1	0211-	●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=89.5	8-94195-763-2	16	1	0211-		●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-027-0	14	1	0211-	●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97590-027-0	16	1	0211-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 UPPER M8X16	8-94193-952-3	14	1	0211-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 LOWER M8X21	8-94193-953-3	14	1	0211-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 UPPER M8X16	8-94193-952-3	16	1	0211-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 LOWER M8X21	8-94193-953-3	16	1	0211-		●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-1	28	1	0211-	●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 M8	8-94193-954-1	32	1	0211-		●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6>	8-94194-277-0	02	1	0211-	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-277-0	02	1	0211-		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=9	8-94194-116-0	18	1	0211-0505	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	18	1	0506-	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> ID=9	8-94194-116-0	20	1	0211-0505		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> ID=8	8-94194-117-1	20	1	0506-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-94195-526-3	01	1	0211-0501	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-97591-773-0	01	1	0502-0801	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> TAKADA	8-97594-480-0	01	1	0802-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-94195-527-3	01	1	0211-0501	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-97591-774-0	01	1	0502-0801	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6>	8-97594-481-0	01	1	0802-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-94195-544-3	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-97591-779-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-484-0	01	1	0802-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-94195-545-3	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-97591-780-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-485-0	01	1	0802-		●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6> TAKADA	8-94194-351-0	08	1	0211-	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94194-351-0	08	1	0211-		●

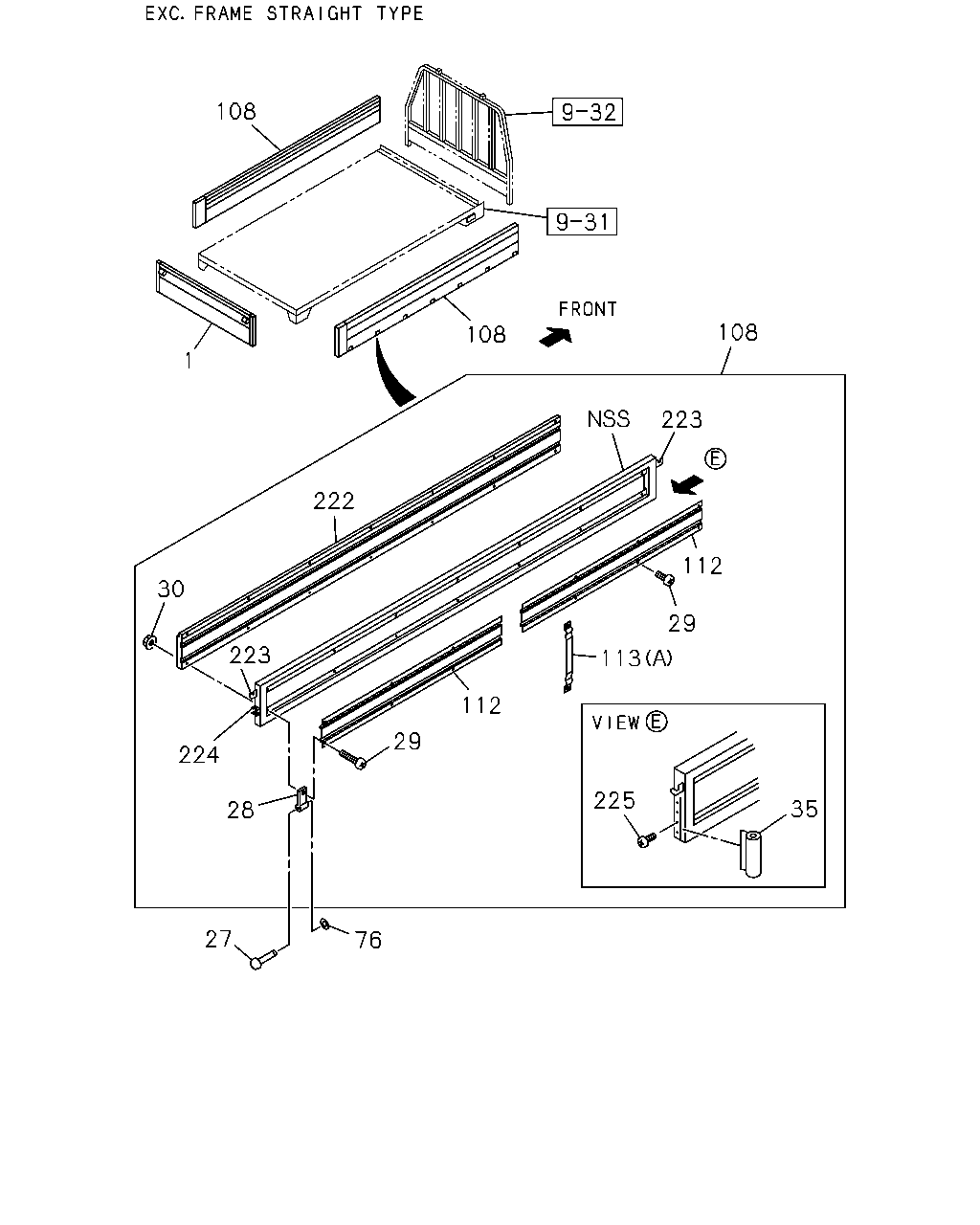

108 108 108 1 223 222 30 112 223 29 224 225 35 28 27 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=2067 H=398 B=50 PLYWOOD	8-94195-515-4	01	1	0211-0501	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=2067 H=398 B=50 PLYWOOD	8-94195-515-4	01	1	0211-0501		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=2067 H=398 B=50 PLYWOOD	8-97591-791-0	01	1	0502-0801	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=2067 H=398 B=50 PLYWOOD	8-97591-791-0	01	1	0502-0801		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6>	8-97594-489-0	01	1	0802-	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-489-0	01	1	0802-		●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> OD=10 L=89.5	8-94195-763-2	14	1	0211-	●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=89.5	8-94195-763-2	16	1	0211-		●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-027-0	14	1	0211-	●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97590-027-0	16	1	0211-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 UPPER M8X16	8-94193-952-3	14	1	0211-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 LOWER M8X21	8-94193-953-3	14	1	0211-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 UPPER M8X16	8-94193-952-3	16	1	0211-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 LOWER M8X21	8-94193-953-3	16	1	0211-		●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-1	28	1	0211-	●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 M8	8-94193-954-1	32	1	0211-		●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6>	8-94194-277-0	02	1	0211-	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-277-0	02	1	0211-		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=9	8-94194-116-0	18	1	0211-0505	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	18	1	0506-	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> ID=9	8-94194-116-0	20	1	0211-0505		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> ID=8	8-94194-117-1	20	1	0506-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-94195-526-3	01	1	0211-0501	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-97591-773-0	01	1	0502-0801	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> TAKADA	8-97594-480-0	01	1	0802-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-94195-527-3	01	1	0211-0501	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-97591-774-0	01	1	0502-0801	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6>	8-97594-481-0	01	1	0802-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-94195-544-3	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-97591-779-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-484-0	01	1	0802-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-94195-545-3	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-97591-780-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-485-0	01	1	0802-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-037-0	02	1	0211-	●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT TAKADA	8-97590-045-0	01	1	0211-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT TAKADA	8-97590-046-0	01	1	0211-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR TAKADA	8-97590-047-0	01	1	0211-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR TAKADA	8-97590-048-0	01	1	0211-		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-97590-063-0	02	1	0211-0501	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6> TAKADA	8-97591-982-0	02	1	0502-0801	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6> TAKADA	8-97594-228-0	02	1	0802-	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-071-0	02	1	0211-0501		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97591-991-0	02	1	0502-0801		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97594-240-0	02	1	0802-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT	8-94194-291-0	01	1	0211-0501	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-94194-291-0	01	1	0211-0501		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT	8-97591-977-0	01	1	0502-	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-97591-977-0	01	1	0502-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT	8-94194-292-0	01	1	0211-0501	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-94194-292-0	01	1	0211-0501		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT	8-97591-978-0	01	1	0502-	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-97591-978-0	01	1	0502-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR TAKADA	8-94194-396-0	01	1	0211-	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR TAKADA	8-94194-396-0	01	1	0211-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR TAKADA	8-94194-397-0	01	1	0211-	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR TAKADA	8-94194-397-0	01	1	0211-		●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94194-373-0	01	1	0211-0501	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-373-0	01	1	0211-0501		●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94194-275-0	01	1	0502-	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94194-275-0	01	1	0502-		●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94194-374-0	01	1	0211-0501	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-374-0	01	1	0211-0501		●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94194-276-0	01	1	0502-	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94194-276-0	01	1	0502-		●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6> TAKADA	8-94194-351-0	08	1	0211-	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94194-351-0	08	1	0211-		●

40 40 70 37 70 40 37 70 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	17.202 SCREW RR BODY FLAT BED<RS6> TAKADA	8-94194-119-1	06	1	0211-	●
37	17.202 SCREW RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94194-119-1	06	1	0211-		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	0211-0602	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	0211-0602		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	0603-	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	0603-		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	0211-	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.447 (B) M12	9-09130-412-0	02	1	0211-		●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.202 (C) OD=45 H=28	8-94192-532-0	02	1	0211-	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.202 (C) OD=45 H=28	8-94192-532-0	02	1	0211-		●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> 17.507 (A) OD=60 H=22	8-94193-455-0	02	1	0211-	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.507 (A) OD=60 H=22	8-94193-455-0	02	1	0211-		●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> (B) OD=60 H=28	8-94194-895-0	02	1	0211-	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=60 H=28	8-94194-895-0	02	1	0211-		●

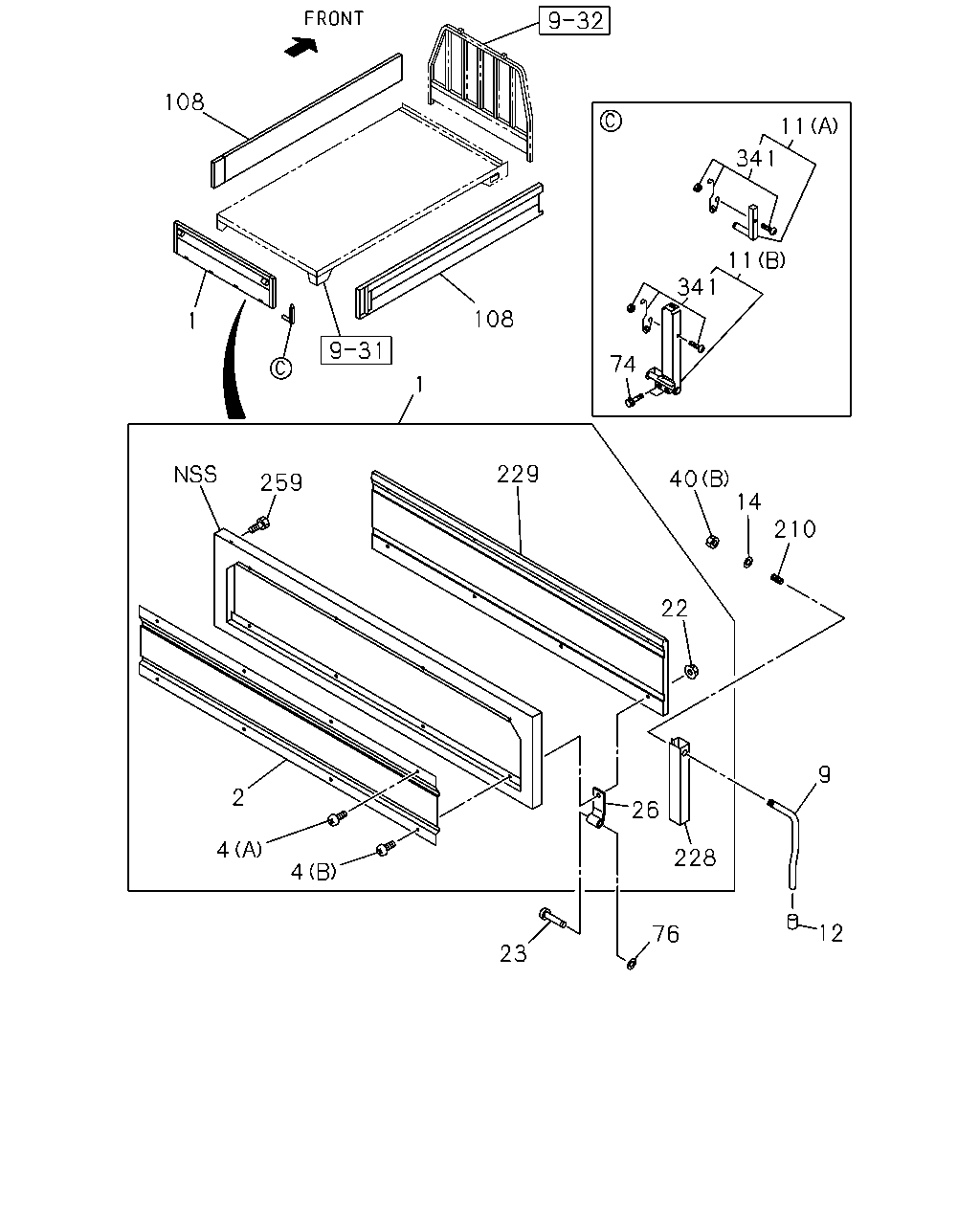

108 11 341 11 341 108 1 74 1 229 40 14 259 210 22 9 2 26 4 228 4 12 76 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=2067 H=398 B=50 PLYWOOD	8-94195-515-4	01	1	0211-0501	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=2067 H=398 B=50 PLYWOOD	8-94195-515-4	01	1	0211-0501		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=2067 H=398 B=50 PLYWOOD	8-97591-791-0	01	1	0502-0801	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=2067 H=398 B=50 PLYWOOD	8-97591-791-0	01	1	0502-0801		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6>	8-97594-489-0	01	1	0802-	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-489-0	01	1	0802-		●
2	17.185 PANEL; RR GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-084-0	01	1	0211-	●
2	17.185 PANEL; RR GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97590-084-0	01	1	0211-		●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED<RS6> (A) M8X16	8-94193-952-3	04	1	0211-	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X16	8-94193-952-3	04	1	0211-		●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED<RS6> (B) M8X21	8-94193-953-3	04	1	0211-	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8X21	8-94193-953-3	04	1	0211-		●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6> TAKADA	8-94196-400-2	01	1	0211-	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94196-400-2	01	1	0211-		●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6> TAKADA	8-94196-401-2	01	1	0211-	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94196-401-2	01	1	0211-		●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> (A) TAKADA	8-94196-398-0	01	1	0211-0501	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> (A) TAKADA	8-94196-398-0	01	1	0211-0501		●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> (B) TAKADA	8-97591-898-0	01	1	0502-	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> (B) TAKADA	8-97591-898-0	01	1	0502-		●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> (A) TAKADA	8-94196-399-0	01	1	0211-0501	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> (A) TAKADA	8-94196-399-0	01	1	0211-0501		●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> (B) TAKADA	8-97591-899-0	01	1	0502-	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> (B) TAKADA	8-97591-899-0	01	1	0502-		●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	0211-	●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94193-344-0	02	1	0211-		●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> 06.172 ID=12.5	9-09164-512-0	02	1	0211-	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 06.172 ID=12.5	9-09164-512-0	02	1	0211-		●
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED<RS6> M8	8-94193-954-1	08	1	0211-	●
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> M8	8-94193-954-1	08	1	0211-		●
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED<RS6> OD=10 L=58.5	8-94193-933-2	04	1	0211-	●
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=58.5	8-94193-933-2	04	1	0211-		●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-079-0	04	1	0211-	●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97590-079-0	04	1	0211-		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	0211-0602	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	0211-0602		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	0603-	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	0603-		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> 17.447 (B) M12	9-09130-412-0	02	1	0211-	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.447 (B) M12	9-09130-412-0	02	1	0211-		●
74	17.490 SCREW; LOCK RR BODY FLAT BED<RS6> 17.185 M8X25	8-94194-111-2	04	1	0502-	●
74	17.490 SCREW; LOCK RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 M8X25	8-94194-111-2	02	1	0502-		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=9	8-94194-116-0	18	1	0211-0505	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	18	1	0506-	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> ID=9	8-94194-116-0	20	1	0211-0505		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> ID=8	8-94194-117-1	20	1	0506-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-94195-526-3	01	1	0211-0501	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-97591-773-0	01	1	0502-0801	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> TAKADA	8-97594-480-0	01	1	0802-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-94195-527-3	01	1	0211-0501	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-97591-774-0	01	1	0502-0801	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6>	8-97594-481-0	01	1	0802-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-94195-544-3	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-97591-779-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-484-0	01	1	0802-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-94195-545-3	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-97591-780-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-485-0	01	1	0802-		●
210	17.505 SPRING; LATCH HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94194-192-1	02	1	0211-	●
210	17.505 SPRING; LATCH HANDLE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94194-192-1	02	1	0211-		●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-97590-094-0	01	1	0211-	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-094-0	01	1	0211-		●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6>	8-97590-095-0	01	1	0211-	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-095-0	01	1	0211-		●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6>	8-97590-089-0	01	1	0211-0501	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-089-0	01	1	0211-0501		●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6> TAKADA	8-97591-999-0	01	1	0502-0801	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97591-999-0	01	1	0502-0801		●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6> TAKADA	8-97594-245-0	01	1	0802-	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97594-245-0	01	1	0802-		●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED<RS6> M8X40 TAKADA	8-97590-325-0	04	1	0211-	●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> M8X40 TAKADA	8-97590-325-0	04	1	0211-		●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-448-0	01	1	0211-	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97594-448-0	01	1	0211-		●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-97594-449-0	01	1	0211-	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97594-449-0	01	1	0211-		●

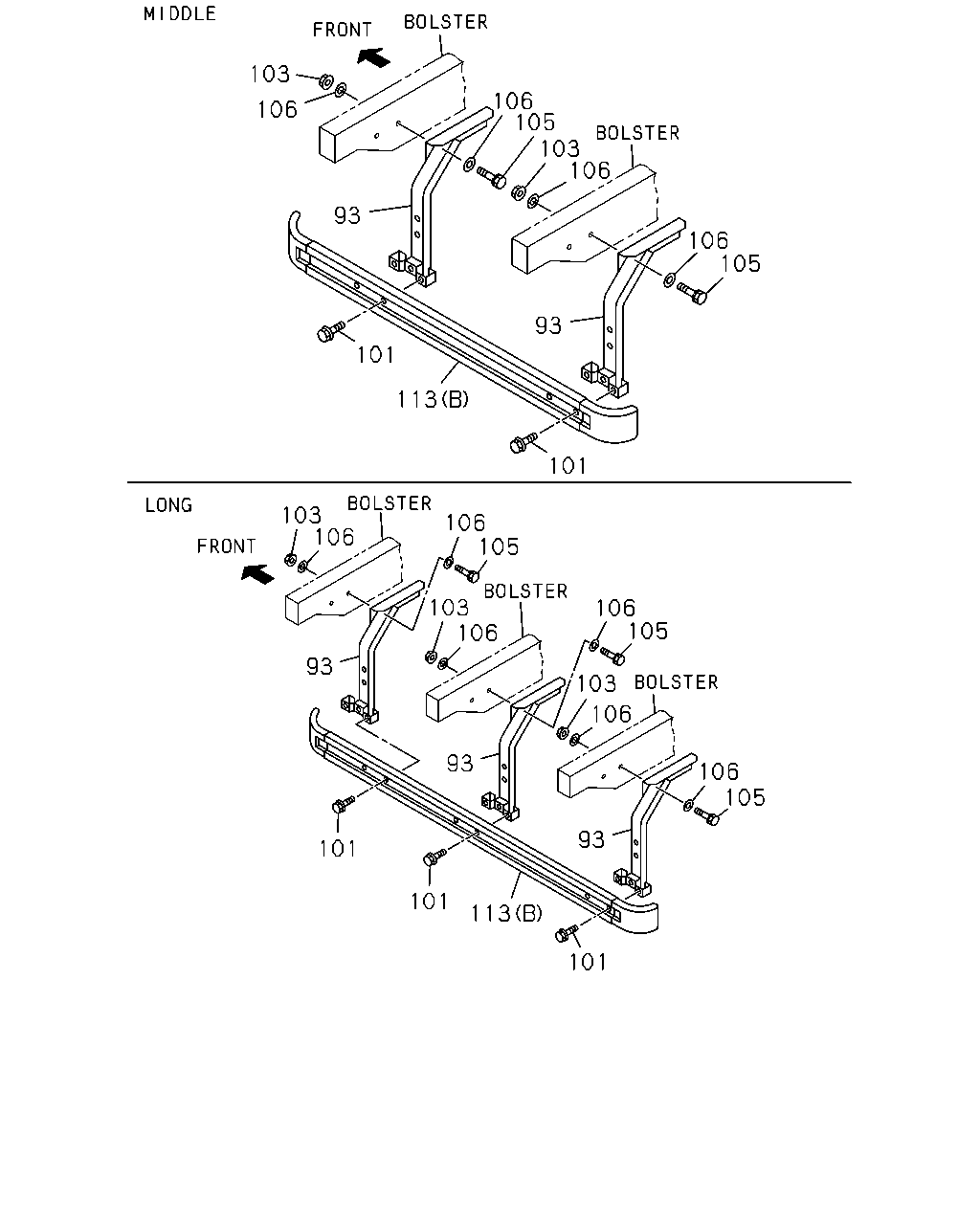

103 106 105 103 106 106 93 106 105 93 101 113 101 103 106 106 105 103 106 106 105 93 103 106 93 106 105 93 101 101 113 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA)	8-97190-187-2	02	1	0211-0501	●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED<RS6>	8-97190-187-2	02	1	0502-	●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA)	8-97190-188-2	02	1	0211-0501	●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED<RS6>	8-97190-188-2	02	1	0502-	●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA)	8-97190-187-2	03	1	0211-0501		●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED<RS6>	8-97190-187-2	03	1	0502-		●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA)	8-97190-188-2	03	1	0211-0501		●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED<RS6>	8-97190-188-2	03	1	0502-		●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA) 02.559 M8X25 FLANGE	0-28680-825-0	08	1	0211-0501	●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED<RS6> 02.559 M8X25 FLANGE	0-28680-825-0	08	1	0502-0512	●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED<RS6> 06.216 M8X25 FLANGE	0-28650-825-0	08	1	0601-	●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA) 02.559 M8X25 FLANGE	0-28680-825-0	12	1	0211-0501		●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED<RS6> 02.559 M8X25 FLANGE	0-28680-825-0	12	1	0502-0512		●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED<RS6> 06.216 M8X25 FLANGE	0-28650-825-0	12	1	0601-		●
103	17.507 NUT; PIPE TO BOLSTER RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA) 04.785 M10 FLANGE	0-91150-110-0	08	1	0211-0501	●
103	17.507 NUT; PIPE TO BOLSTER RR BODY FLAT BED<RS6> 04.785 M10 FLANGE	0-91150-110-0	08	1	0502-0602	●
103	17.507 NUT; PIPE TO BOLSTER RR BODY FLAT BED<RS6> 03.162 M10 FLANGE	0-91180-110-0	08	1	0603-	●
103	17.507 NUT; PIPE TO BOLSTER RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA) 04.785 M10 FLANGE	0-91150-110-0	12	1	0211-0501		●
103	17.507 NUT; PIPE TO BOLSTER RR BODY FLAT BED<RS6> 04.785 M10 FLANGE	0-91150-110-0	12	1	0502-0602		●
103	17.507 NUT; PIPE TO BOLSTER RR BODY FLAT BED<RS6> 03.162 M10 FLANGE	0-91180-110-0	12	1	0603-		●
105	17.507 BOLT; PIPE TO BOLSTER RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA) 02.277 M10X70 W/LK WASHER	0-50041-070-0	08	1	0211-0501	●
105	17.507 BOLT; PIPE TO BOLSTER RR BODY FLAT BED<RS6> 02.277 M10X70 W/LK WASHER	0-50041-070-0	08	1	0502-0705	●
105	17.507 BOLT; PIPE TO BOLSTER RR BODY FLAT BED<RS6> 17.185 M10X70 W/LK WASHER	0-50541-070-0	08	1	0706-	●
105	17.507 BOLT; PIPE TO BOLSTER RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA) 02.277 M10X70 W/LK WASHER	0-50041-070-0	12	1	0211-0501		●
105	17.507 BOLT; PIPE TO BOLSTER RR BODY FLAT BED<RS6> 02.277 M10X70 W/LK WASHER	0-50041-070-0	12	1	0502-0705		●
105	17.507 BOLT; PIPE TO BOLSTER RR BODY FLAT BED<RS6> 17.185 M10X70 W/LK WASHER	0-50541-070-0	12	1	0706-		●
106	17.507 WASHER; PL,PIPE TO BOLSTER RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA) 03.706 ID=10.5 OD=32	9-09164-810-0	08	1	0211-0501	●
106	17.507 WASHER; PL,PIPE TO BOLSTER RR BODY FLAT BED<RS6> 03.706 ID=10.5 OD=32	9-09164-810-0	08	1	0502-0605	●
106	17.507 WASHER; PL,PIPE TO BOLSTER RR BODY FLAT BED<RS6> 00.002 ID=10.5 OD=32	0-91614-810-0	08	1	0606-	●
106	17.507 WASHER; PL,PIPE TO BOLSTER RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA) 03.706 ID=10.5 OD=32	9-09164-810-0	12	1	0211-0501		●
106	17.507 WASHER; PL,PIPE TO BOLSTER RR BODY FLAT BED<RS6> 03.706 ID=10.5 OD=32	9-09164-810-0	12	1	0502-0605		●
106	17.507 WASHER; PL,PIPE TO BOLSTER RR BODY FLAT BED<RS6> 00.002 ID=10.5 OD=32	0-91614-810-0	12	1	0606-		●
113	17.505 BAR; SIDE RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA) (B)	8-97201-588-2	02	1	0211-0501	●
113	17.505 BAR; SIDE RR BODY FLAT BED<RS6> (B)	8-97201-588-2	02	1	0502-	●
113	17.505 BAR; SIDE RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA) (B)	8-97172-921-2	02	1	0211-0501		●
113	17.505 BAR; SIDE RR BODY FLAT BED<RS6> (B)	8-97172-921-2	02	1	0502-		●
113	17.505 BAR; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97592-160-0	02	1	0211-0801		●
113	17.505 BAR; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> (A) TAKADA	8-97592-794-0	02	1	0802-		●

108 108 108 1 223 222 112 30 29 223 113 112 29 224 225 35 28 27 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=2067 H=398 B=50 PLYWOOD	8-94195-515-4	01	1	0211-0501	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=2067 H=398 B=50 PLYWOOD	8-94195-515-4	01	1	0211-0501		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=2067 H=398 B=50 PLYWOOD	8-97591-791-0	01	1	0502-0801	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=2067 H=398 B=50 PLYWOOD	8-97591-791-0	01	1	0502-0801		●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6>	8-97594-489-0	01	1	0802-	●
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-489-0	01	1	0802-		●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> OD=10 L=89.5	8-94195-763-2	14	1	0211-	●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=89.5	8-94195-763-2	16	1	0211-		●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-027-0	14	1	0211-	●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97590-027-0	16	1	0211-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 UPPER M8X16	8-94193-952-3	14	1	0211-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> 17.185 LOWER M8X21	8-94193-953-3	14	1	0211-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 UPPER M8X16	8-94193-952-3	16	1	0211-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 LOWER M8X21	8-94193-953-3	16	1	0211-		●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> 17.185 M8	8-94193-954-1	28	1	0211-	●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 M8	8-94193-954-1	32	1	0211-		●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6>	8-94194-277-0	02	1	0211-	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-277-0	02	1	0211-		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=9	8-94194-116-0	18	1	0211-0505	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> ID=8	8-94194-117-1	18	1	0506-	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> ID=9	8-94194-116-0	20	1	0211-0505		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> ID=8	8-94194-117-1	20	1	0506-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-94195-526-3	01	1	0211-0501	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-97591-773-0	01	1	0502-0801	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> TAKADA	8-97594-480-0	01	1	0802-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-94195-527-3	01	1	0211-0501	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=4366 H=398 B=50 PLYWOOD	8-97591-774-0	01	1	0502-0801	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6>	8-97594-481-0	01	1	0802-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-94195-544-3	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-97591-779-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-484-0	01	1	0802-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-94195-545-3	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-97591-780-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-485-0	01	1	0802-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> TAKADA	8-97590-037-0	02	1	0211-	●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT TAKADA	8-97590-045-0	01	1	0211-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT TAKADA	8-97590-046-0	01	1	0211-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR TAKADA	8-97590-047-0	01	1	0211-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR TAKADA	8-97590-048-0	01	1	0211-		●
113	17.505 BAR; SIDE RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA) (B)	8-97201-588-2	02	1	0211-0501	●
113	17.505 BAR; SIDE RR BODY FLAT BED<RS6> (B)	8-97201-588-2	02	1	0502-	●
113	17.505 BAR; SIDE RR BODY FLAT BED<RS6> VIN MODEL YEAR 2004(8JA) (B)	8-97172-921-2	02	1	0211-0501		●
113	17.505 BAR; SIDE RR BODY FLAT BED<RS6> (B)	8-97172-921-2	02	1	0502-		●
113	17.505 BAR; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97592-160-0	02	1	0211-0801		●
113	17.505 BAR; SIDE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> (A) TAKADA	8-97592-794-0	02	1	0802-		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6>	8-97590-063-0	02	1	0211-0501	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6> TAKADA	8-97591-982-0	02	1	0502-0801	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6> TAKADA	8-97594-228-0	02	1	0802-	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-071-0	02	1	0211-0501		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97591-991-0	02	1	0502-0801		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97594-240-0	02	1	0802-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT	8-94194-291-0	01	1	0211-0501	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-94194-291-0	01	1	0211-0501		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT	8-97591-977-0	01	1	0502-	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-97591-977-0	01	1	0502-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT	8-94194-292-0	01	1	0211-0501	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-94194-292-0	01	1	0211-0501		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> FRONT	8-97591-978-0	01	1	0502-	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-97591-978-0	01	1	0502-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR TAKADA	8-94194-396-0	01	1	0211-	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR TAKADA	8-94194-396-0	01	1	0211-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> REAR TAKADA	8-94194-397-0	01	1	0211-	●
223	17.505 HOOK; PLATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> REAR TAKADA	8-94194-397-0	01	1	0211-		●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94194-373-0	01	1	0211-0501	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-373-0	01	1	0211-0501		●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94194-275-0	01	1	0502-	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94194-275-0	01	1	0502-		●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94194-374-0	01	1	0211-0501	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-374-0	01	1	0211-0501		●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94194-276-0	01	1	0502-	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94194-276-0	01	1	0502-		●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6> TAKADA	8-94194-351-0	08	1	0211-	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94194-351-0	08	1	0211-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
